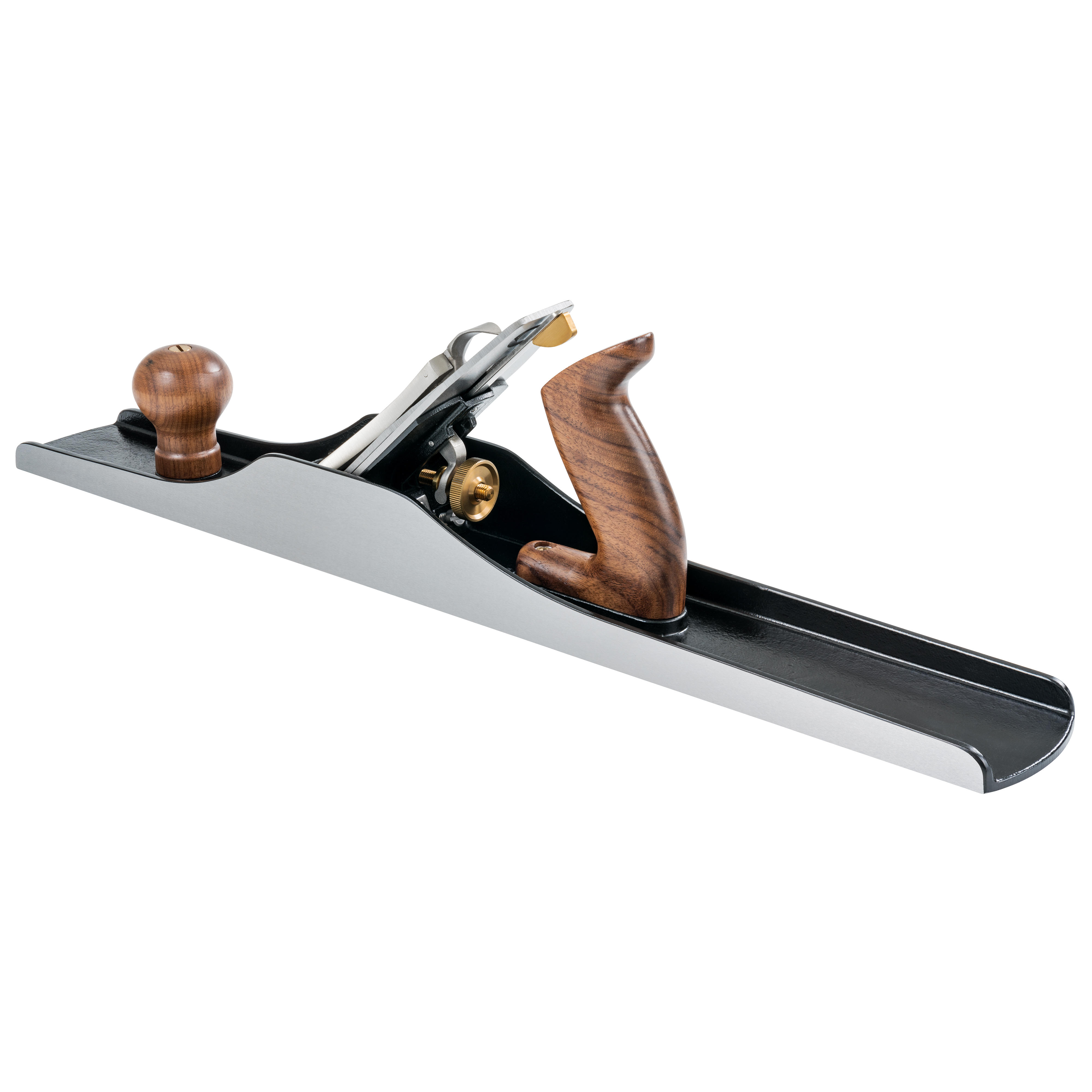

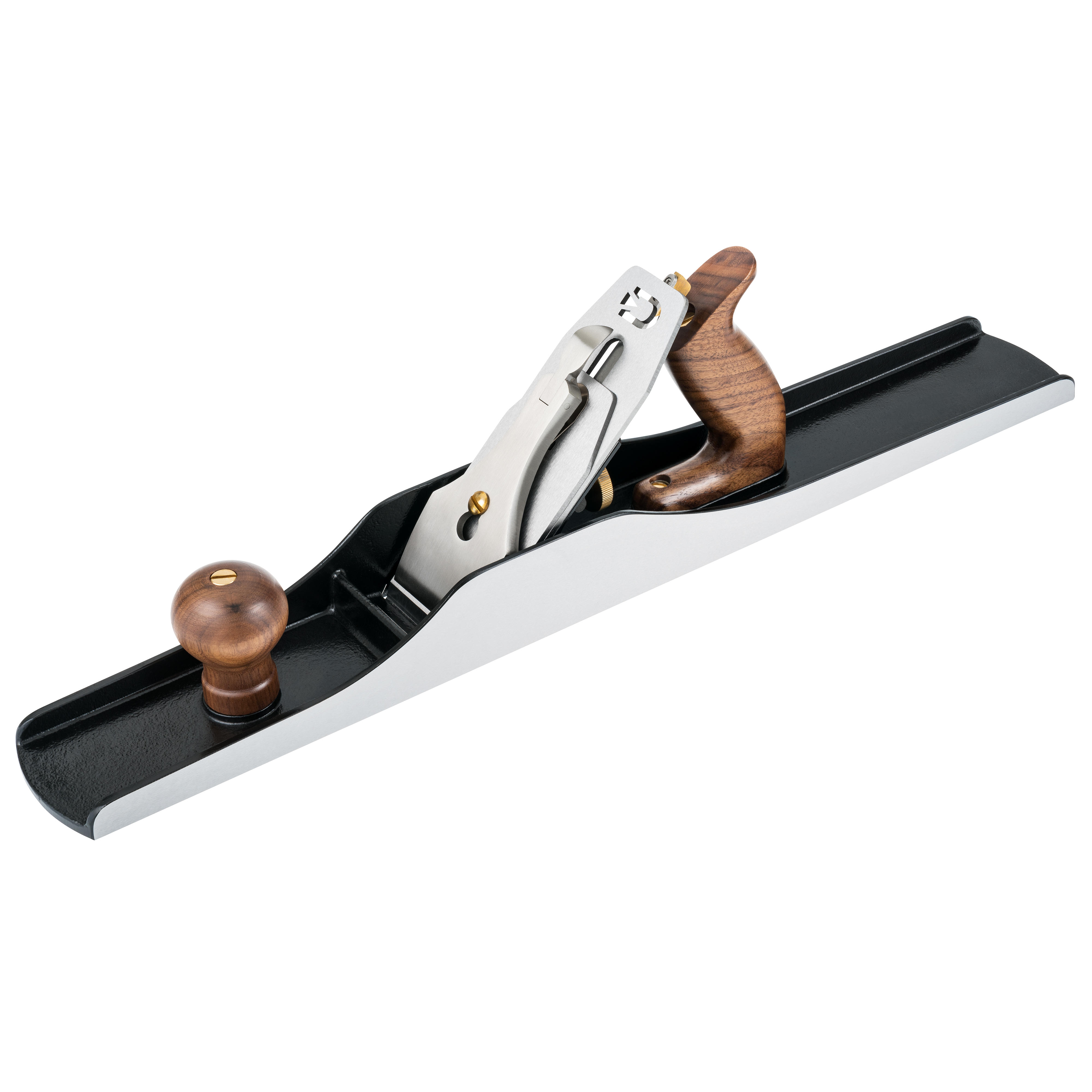

DICTUM® Jointer Plane No. 7, SK4 Blade
Product no.:
703338
Brand:
DICTUM
€209.00 €175.63
per piece(s)
In stock, delivery time approx. 2-3 working days
- Blade material SK4 steel
- Blade thickness 3 mm
- Blade width 60 mm
- Design / cutting angle Bevel down / cutting angle 40°-45°
- Form Bevel down / cutting angle 40°-45°
Description
Most popular size of jointer plane, ideal for trueing and producing exact joints and fittings.
DICTUM® Bench Planes

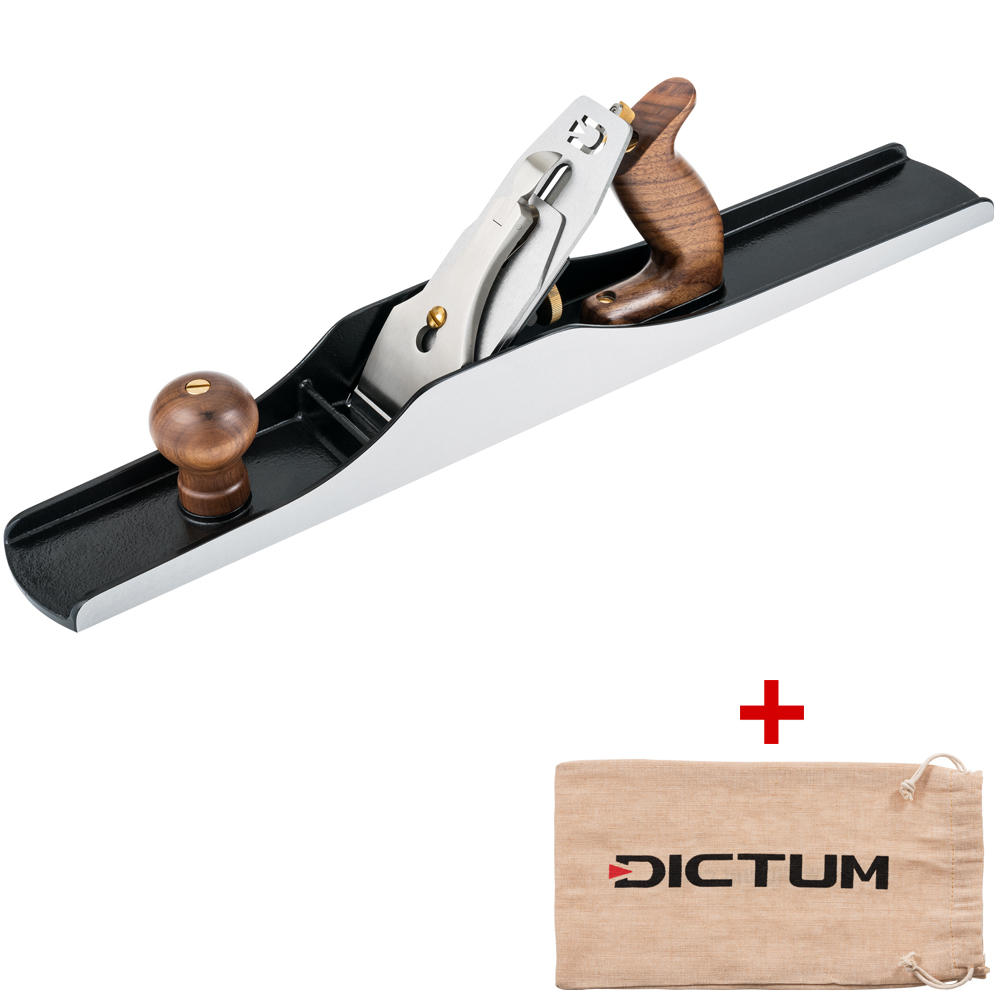

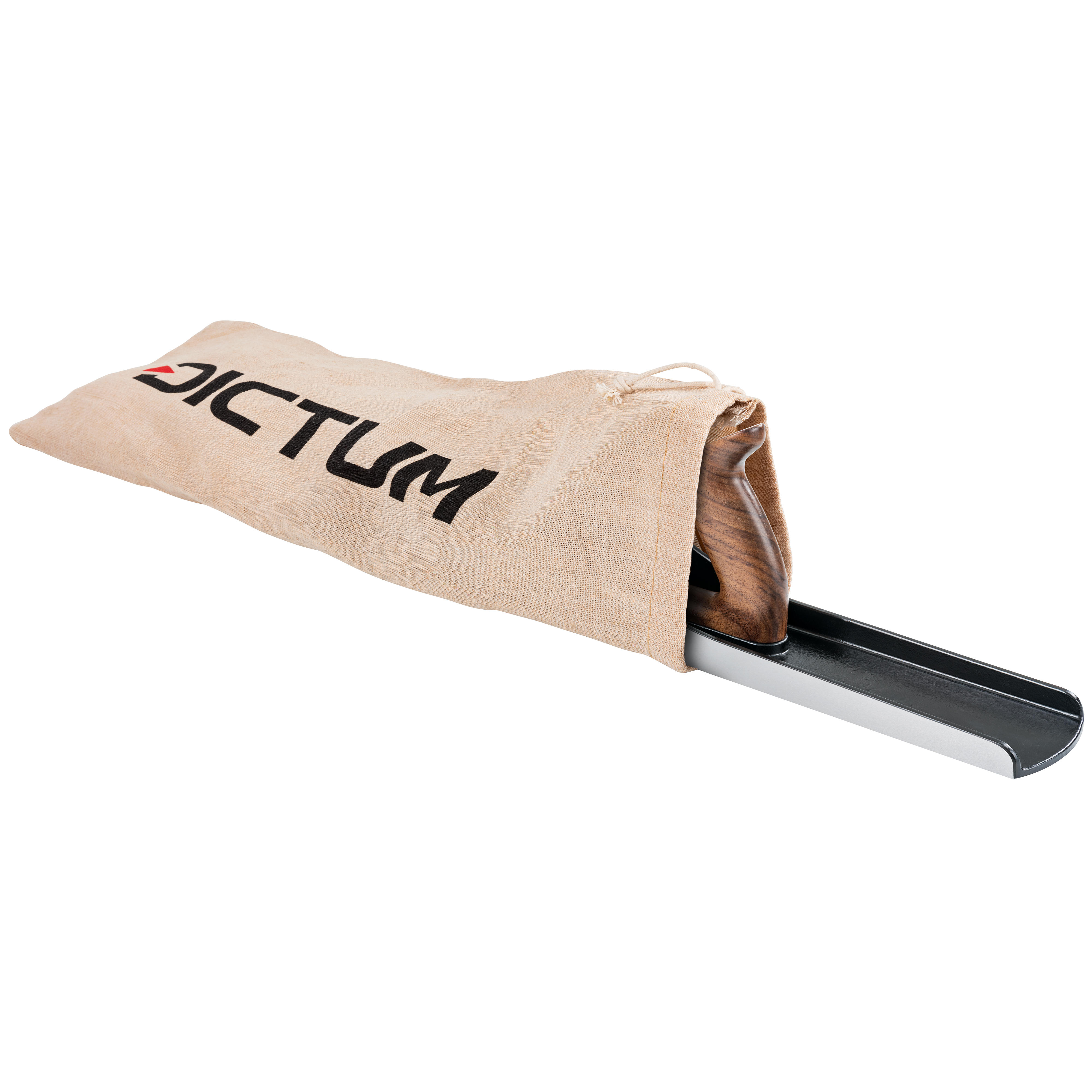

The Bedrock design of these planes allows the mouth to be adjusted without removing the cap iron and blade. The rear handle with its width of 26 mm offers a comfortable grip even for large hands. Lateral blade adjustment with side lever. Cutting angle 45°. Delivery includes plane bag made of jute-cotton mix with drawstring.
DICTUM® Planes

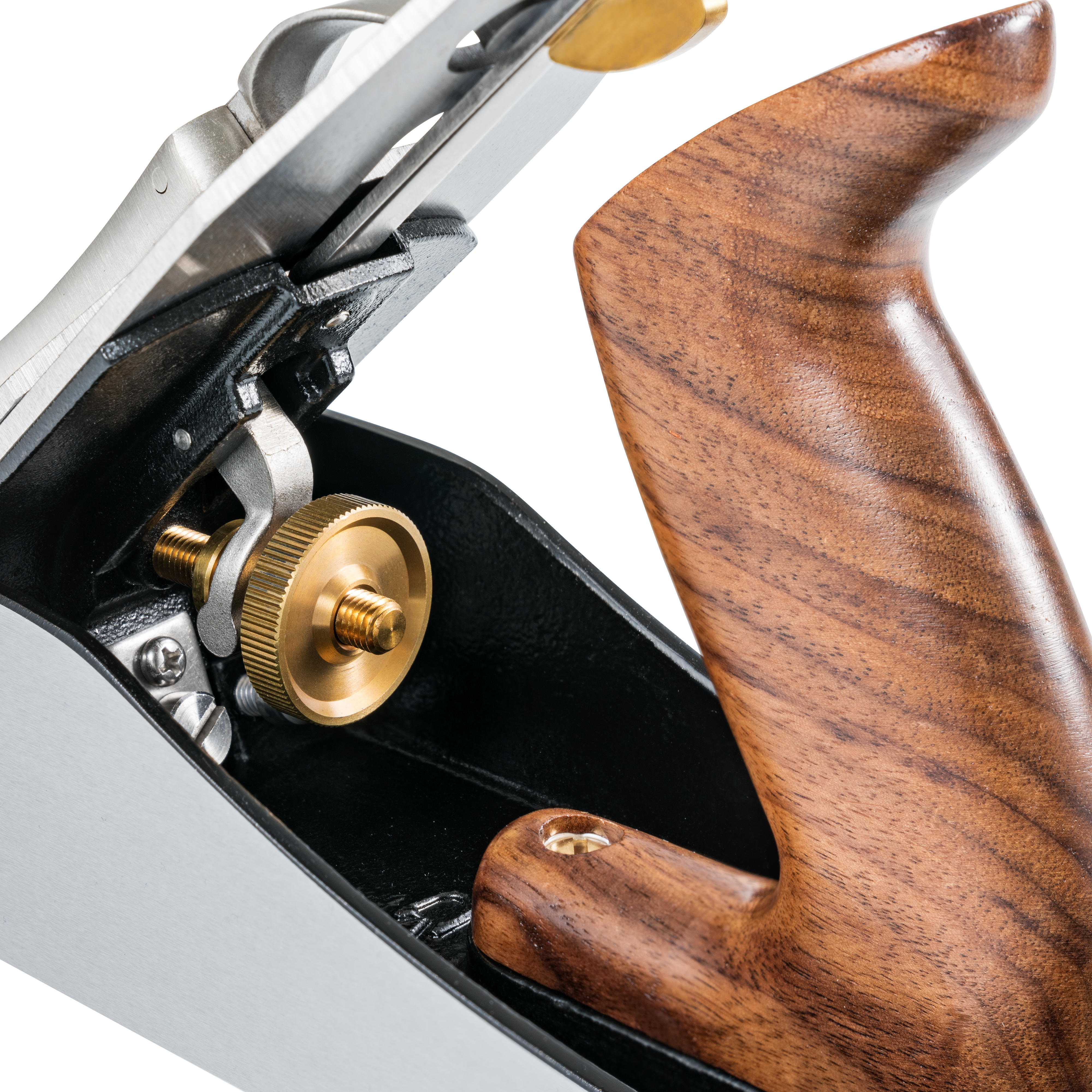

We have developed our DICTUM plane series based on our Herdim planes. We have been making these planes for decades for our violin makers, who require the utmost precision and perfect workmanship. The solid, stress-relieved plane bodies made from cast steel* with precisely ground soles aligned at right angles to the sides, together with the minimum 3 mm thick blades made from SK4 steel (61 HRC) signify top quality. The planes are also available with a Japanese blade made of Blue Paper Steel (63 HRC) or HSS Cryo (64 HRC). The blade adjuster allows for precise adjustments and the ergonomically shaped handles developed through tests as well as the polished cap irons provide a good grip. Handles of native red beechwood.
(* unless otherwise stated)
(* unless otherwise stated)
Properties
| Blade material: | SK4 steel |
|---|---|
| Blade thickness: | 3 mm |
| Blade width: | 60 mm |
| Design / cutting angle: | Bevel down / cutting angle 40°-45° |
| Form: | Bevel down / cutting angle 40°-45° |
| Overall length: | 560 mm |
| Plane body: | Cast steel |
| Purpose: | Trueing (surfaces/edges) |
| Typ: | Bench planes |
| Weight: | 4 kg |
Properties
| Blade material: | SK4 steel |
|---|---|
| Blade thickness: | 3 mm |
| Blade width: | 60 mm |
| Design / cutting angle: | Bevel down / cutting angle 40°-45° |
| Form: | Bevel down / cutting angle 40°-45° |
| Overall length: | 560 mm |
| Plane body: | Cast steel |
| Purpose: | Trueing (surfaces/edges) |
| Typ: | Bench planes |
| Weight: | 4 kg |
