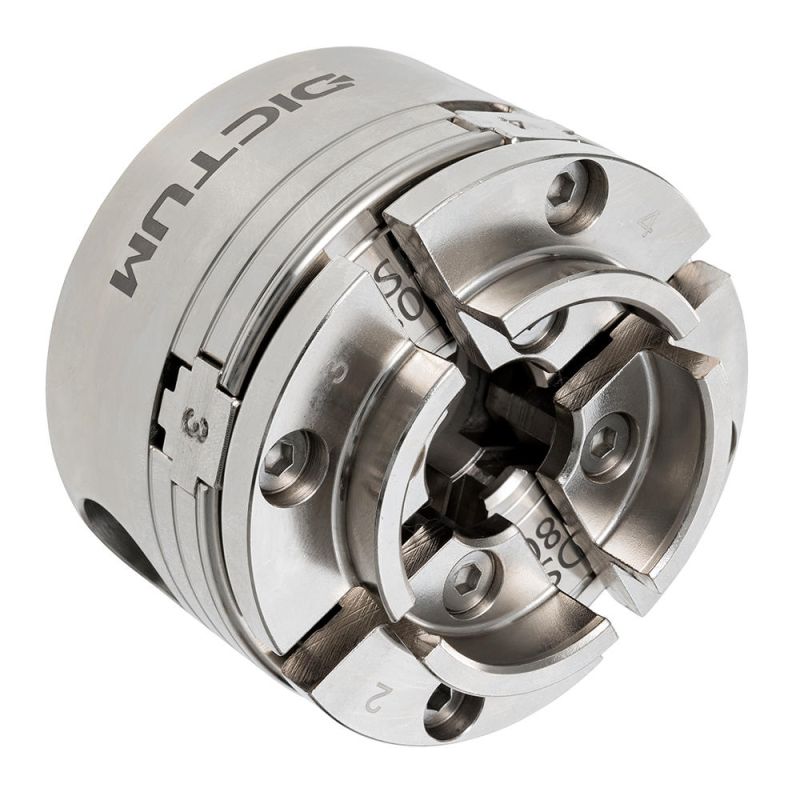

DICTUM® Chuck DSF80
Product no.:
725096
Brand:
DICTUM
€99.00 €83.19
per piece(s)
Product early October 2025 Available
- External chucking 42-60 mm
- Internal chucking 52-72 mm
- Model DSF80
- Thread M33 x 3.5 DIN 800
- Ø 80 mm
Description
Simple, safe and versatile clamping options for your turning work
Compact and lightweight self-centring four-jaw universal chuck. Particularly suitable for small to medium-sized woodturning objects. The chuck key with a T-handle allows for the chuck to be easily clamped and spread with one hand, leaving the other hand free for the workpiece. The base jaws are secured against excessive unscrewing. Clamping the jaws in a clockwise direction provides additional safety. The direct thread M33 x 3.5 DIN 800 is integrated into the chuck body, making the chuck lighter and shorter while providing higher concentric accuracy. The chuck and the matching DICTUM jaws are nickel-plated, offering excellent protection against moisture and corrosion. Stainless steel screws also prevent the screws from seizing due to rust.
Benefits:
Benefits:
- T-handle chuck key
- Chuck body and jaws nickel-plated for maximum corrosion resistance
- Base jaws are secured against unscrewing
- Closure of the jaws in the usual clockwise direction
- Direct thread for high concentricity
Scope of delivery
- Chuck Ø 80 mm, with direct thread M33 x 3.5 DIN 800

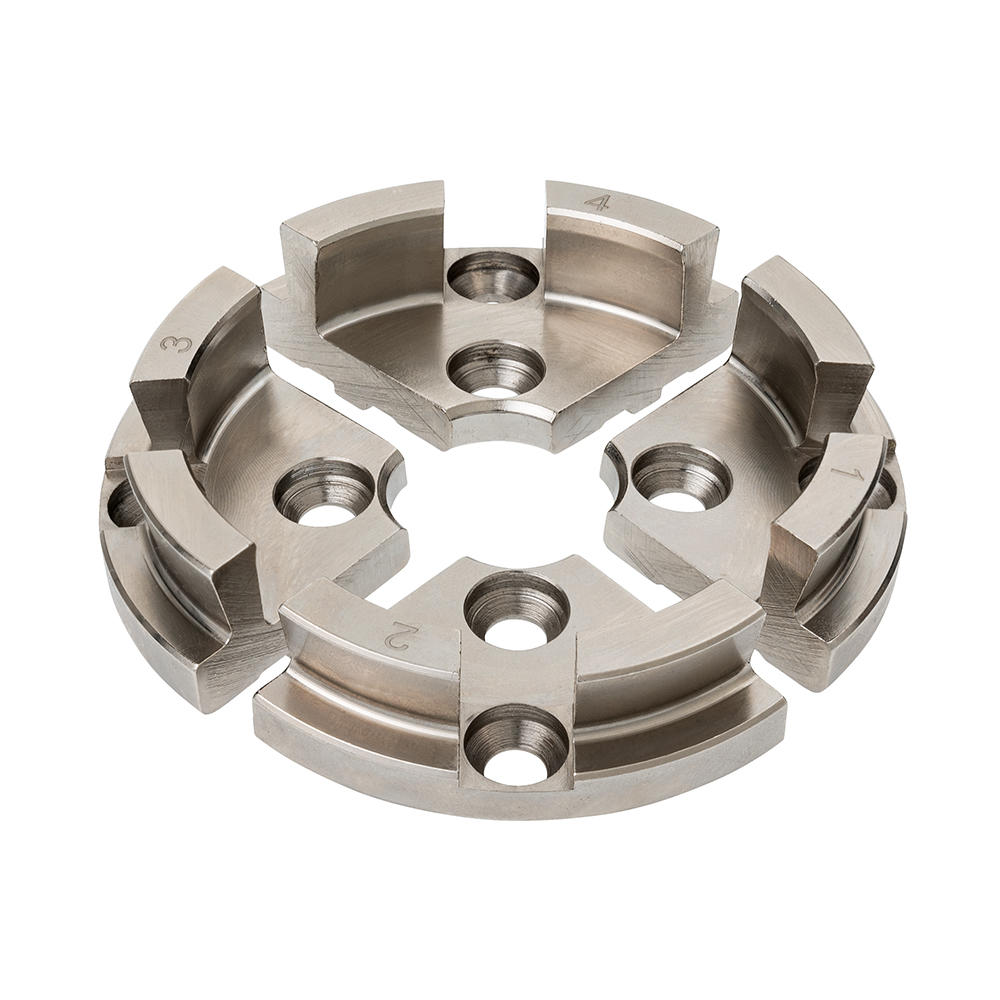

- Dovetail jaws Ø 50 mm
- T-handle geared chuck key
- Stainless steel screws (10 pieces)
- Woodworm screw
- Hex key
- Includes German instruction manual
Supplied in cardboard packaging
Properties
| External chucking: | 42-60 mm |
|---|---|
| Internal chucking: | 52-72 mm |
| Model: | DSF80 |
| Thread: | M33 x 3.5 DIN 800 |
| Ø: | 80 mm |
Properties
| External chucking: | 42-60 mm |
|---|---|
| Internal chucking: | 52-72 mm |
| Model: | DSF80 |
| Thread: | M33 x 3.5 DIN 800 |
| Ø: | 80 mm |

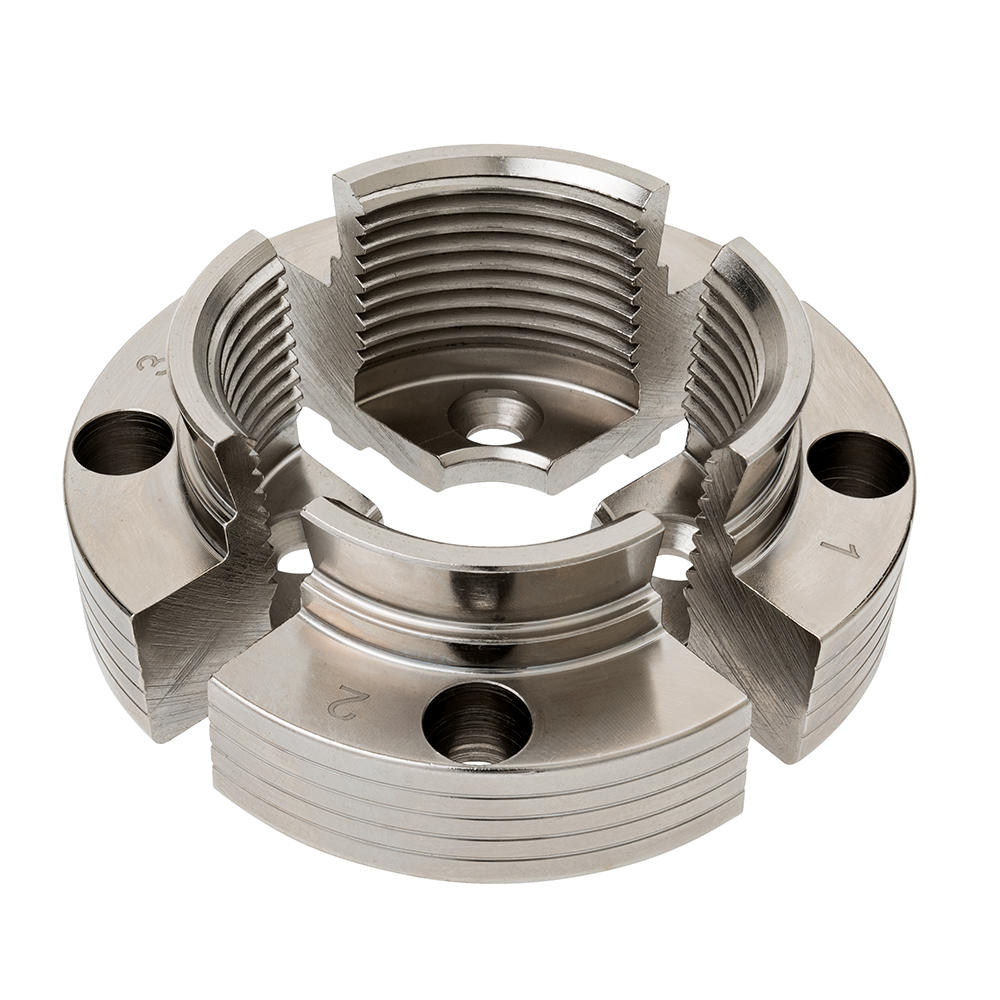

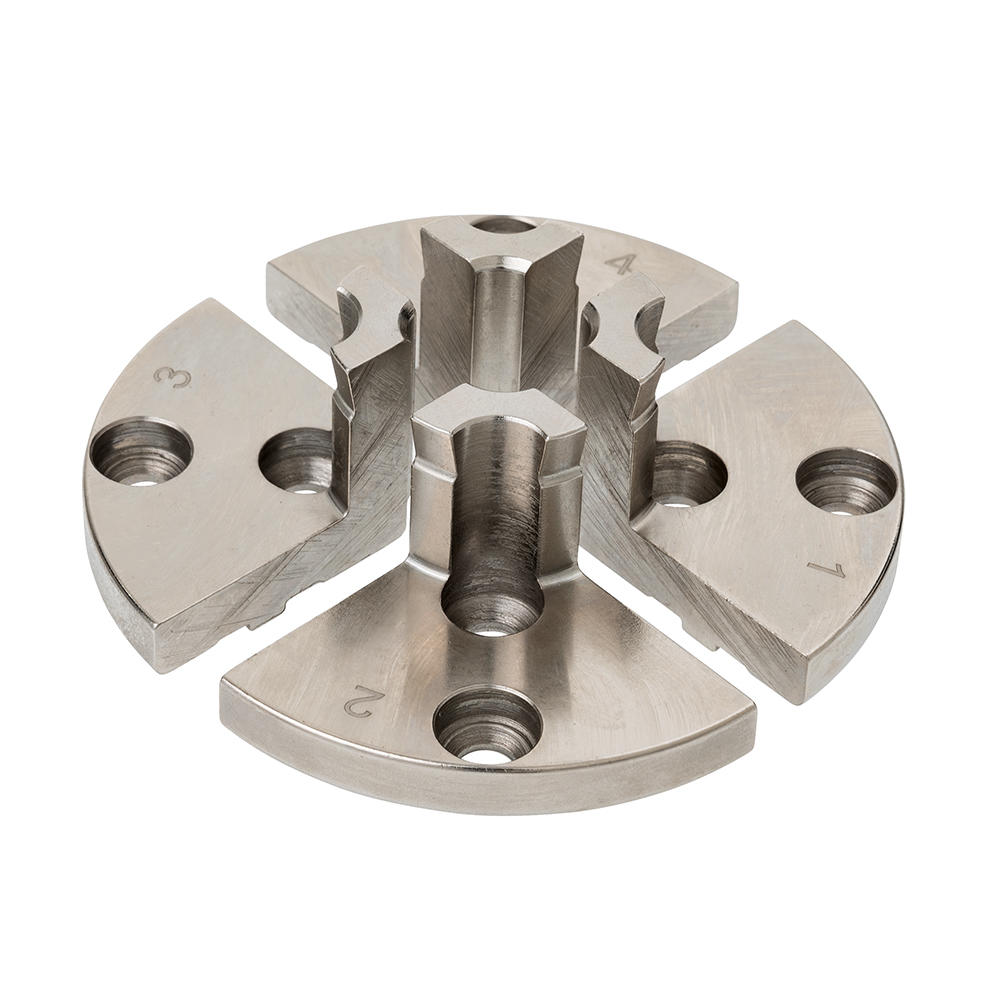

Accessories
