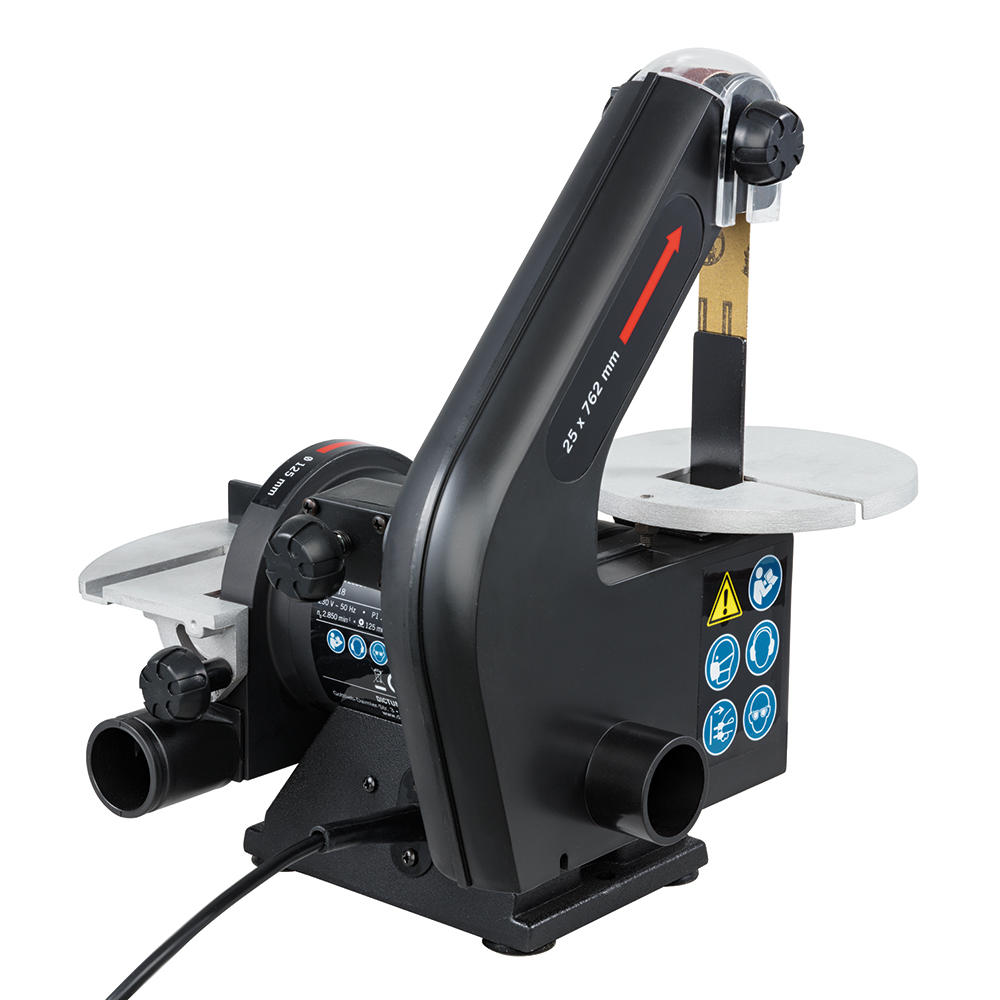

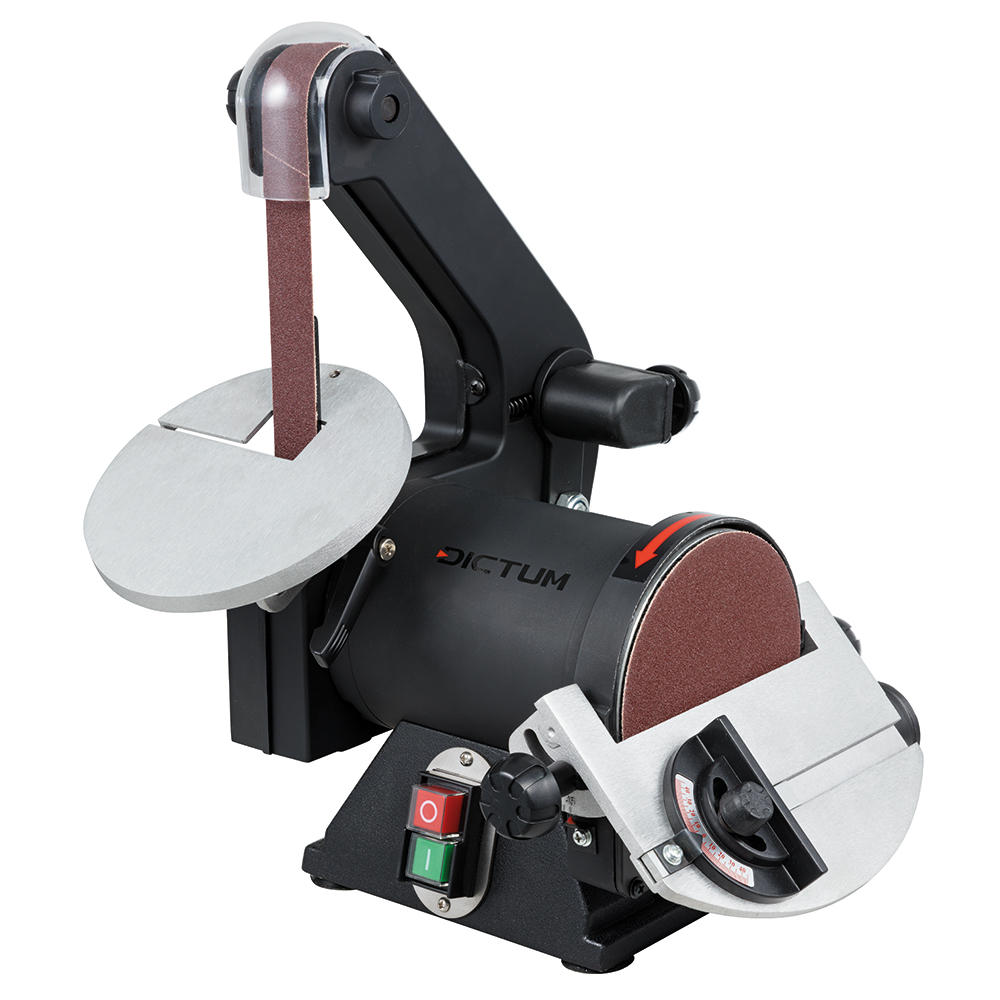

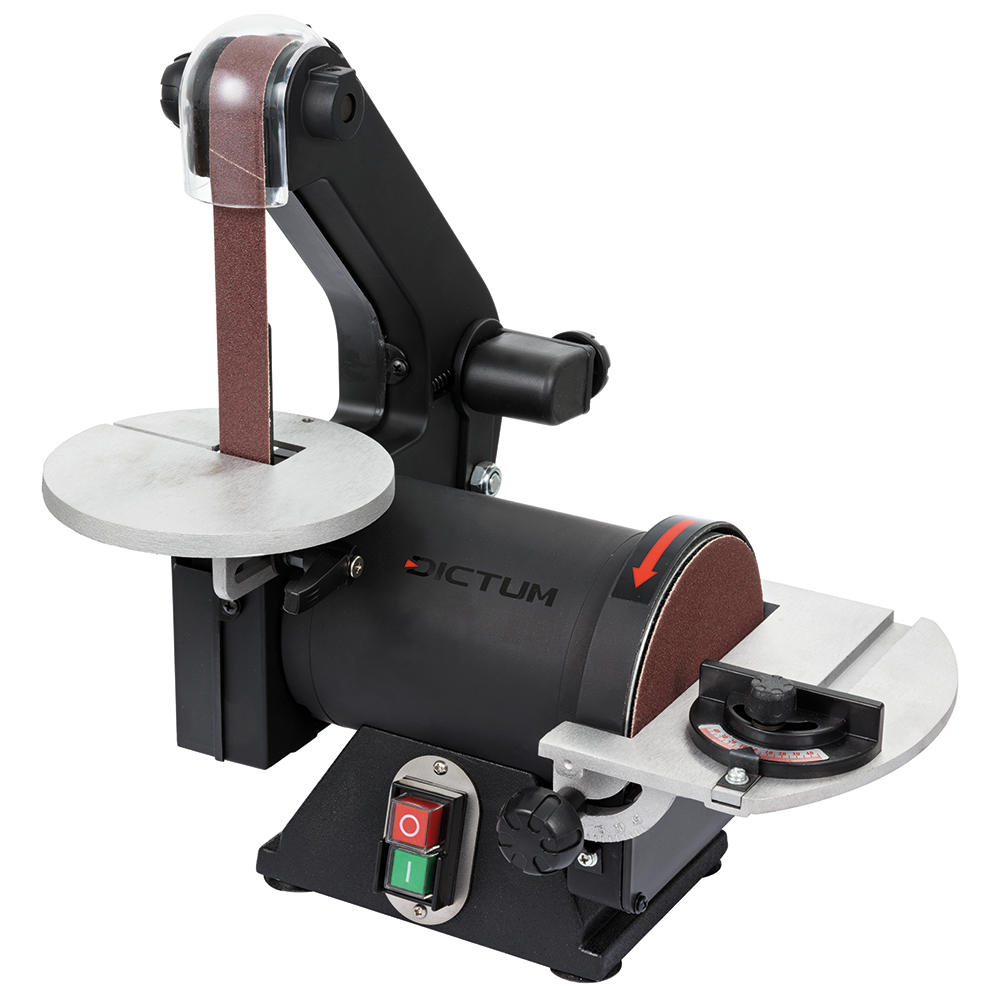

DICTUM® Belt and Disc Sander BTS 25/125
Product no.:
720804
Brand:
DICTUM
€129.00 €108.40
per piece(s)
In stock, delivery time approx. 2-3 working days
- Belt Length x Belt Width 762 x 25 mm
- Belt speed 14 m/sec
- Dimensions (L x W x H) 380 x 300 x 370 mm
- Exhaust Nozzle Ø 2 x 37/45 mm
- Maschine/Zubehör Machine
Description
The small belt and disc sander offers universal application possibilities for fine sanding work in wood, plastics and wood-like materials. The inclinable grinding table on the 125 mm grinding disc and the 25 mm wide grinding belt allow the versatile processing of small turning or wooden components, knife handles, jewellery or art objects. A grinding belt correction mechanism ensures precise grinding belt alignment. The aluminium grinding disc is coated with a hook-and-loop layer. The grinding belt support and table alignment can be readjusted.
Your benefits:
Your benefits:
- Robust and torsion-resistant die-cast aluminium housing
- Two swivelling grinding tables (0°-45°), on grinding pad incl. angular stop
- Clamping lever on grinding belt table made of die-cast zinc
- Adjustable scale on grinding belt table
- Dimensions of working table grinding belt 128 x 128 mm, grinding disc 190 x 125 mm

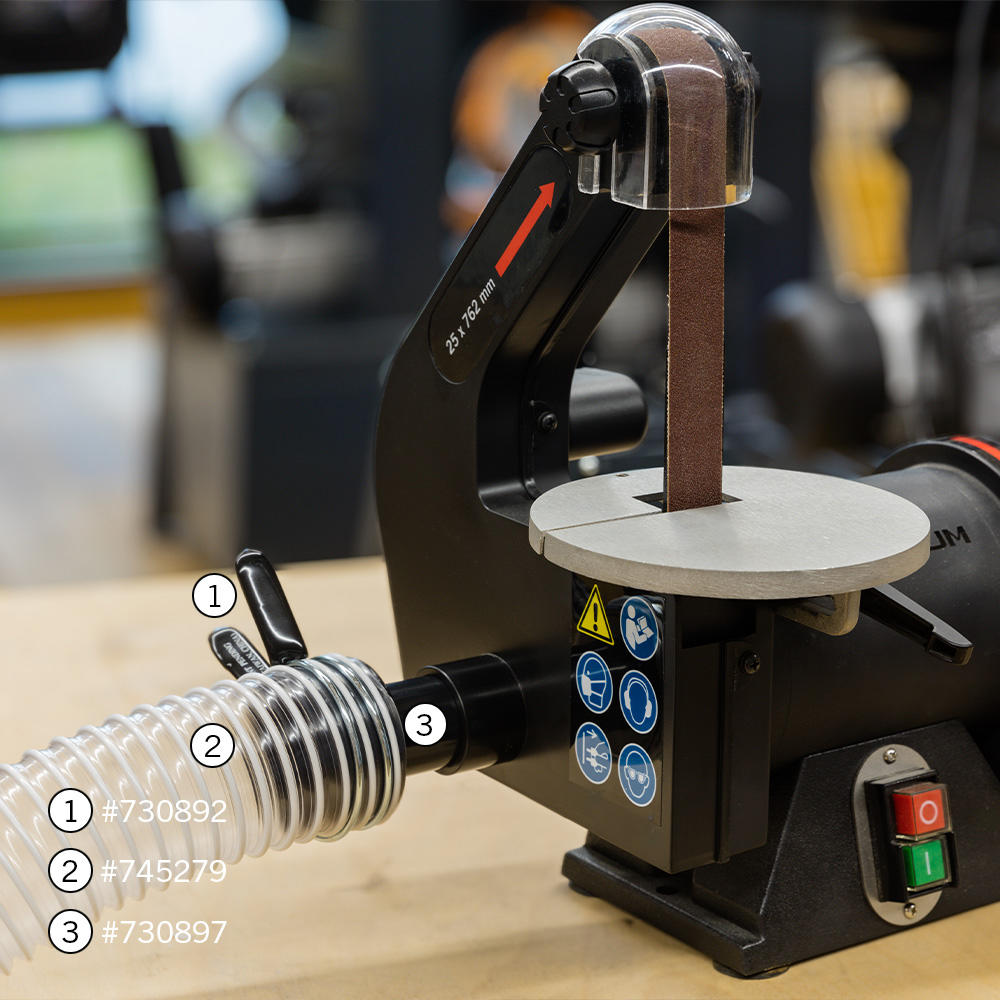

- Two suction nozzles, inside 37 mm, outside 45 mm
- On/off switch with undervoltage release for greater work safety
Scope of delivery

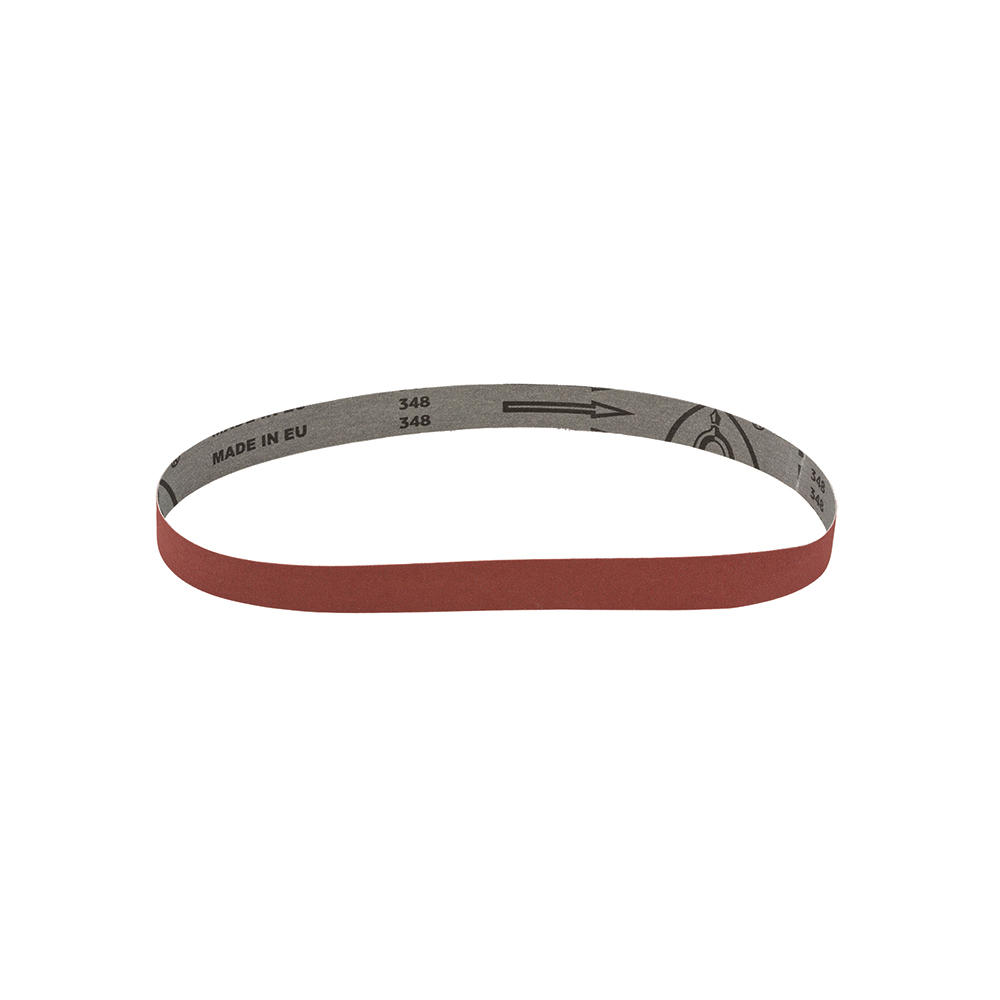

- Sanding belt 25 x 762 mm, grit 80
- Sanding wheel Ø 125 mm, grit 80
- Hook-and-loop pad Ø 125 mm
- Mitre gauge
- 2 sanding tables
Properties
| Belt Length x Belt Width: | 762 x 25 mm |
|---|---|
| Belt speed: | 14 m/sec |
| Dimensions (L x W x H): | 380 x 300 x 370 mm |
| Exhaust Nozzle Ø: | 2 x 37/45 mm |
| Maschine/Zubehör: | Machine |
| Maschinen-Typ: | Belt disc sanders |
| Motor voltage: | 230 V / 50 Hz |
| Power input: | 250 W |
| Power source: | Corded |
| Schleifteller-Ø: | 125 mm |
| Weight: | 7.5 kg |
Properties
| Belt Length x Belt Width: | 762 x 25 mm |
|---|---|
| Belt speed: | 14 m/sec |
| Dimensions (L x W x H): | 380 x 300 x 370 mm |
| Exhaust Nozzle Ø: | 2 x 37/45 mm |
| Maschine/Zubehör: | Machine |
| Maschinen-Typ: | Belt disc sanders |
| Motor voltage: | 230 V / 50 Hz |
| Power input: | 250 W |
| Power source: | Corded |
| Schleifteller-Ø: | 125 mm |
| Weight: | 7.5 kg |
Accessories
Zubehör

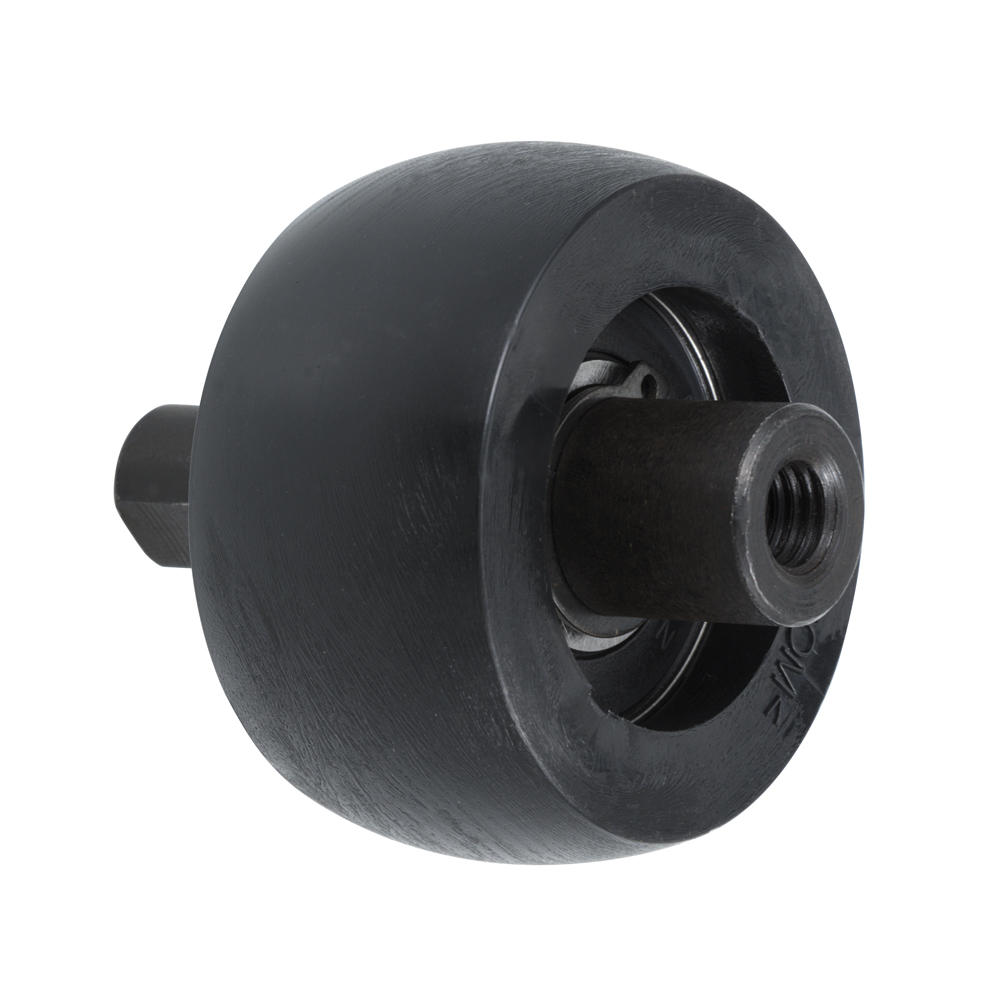

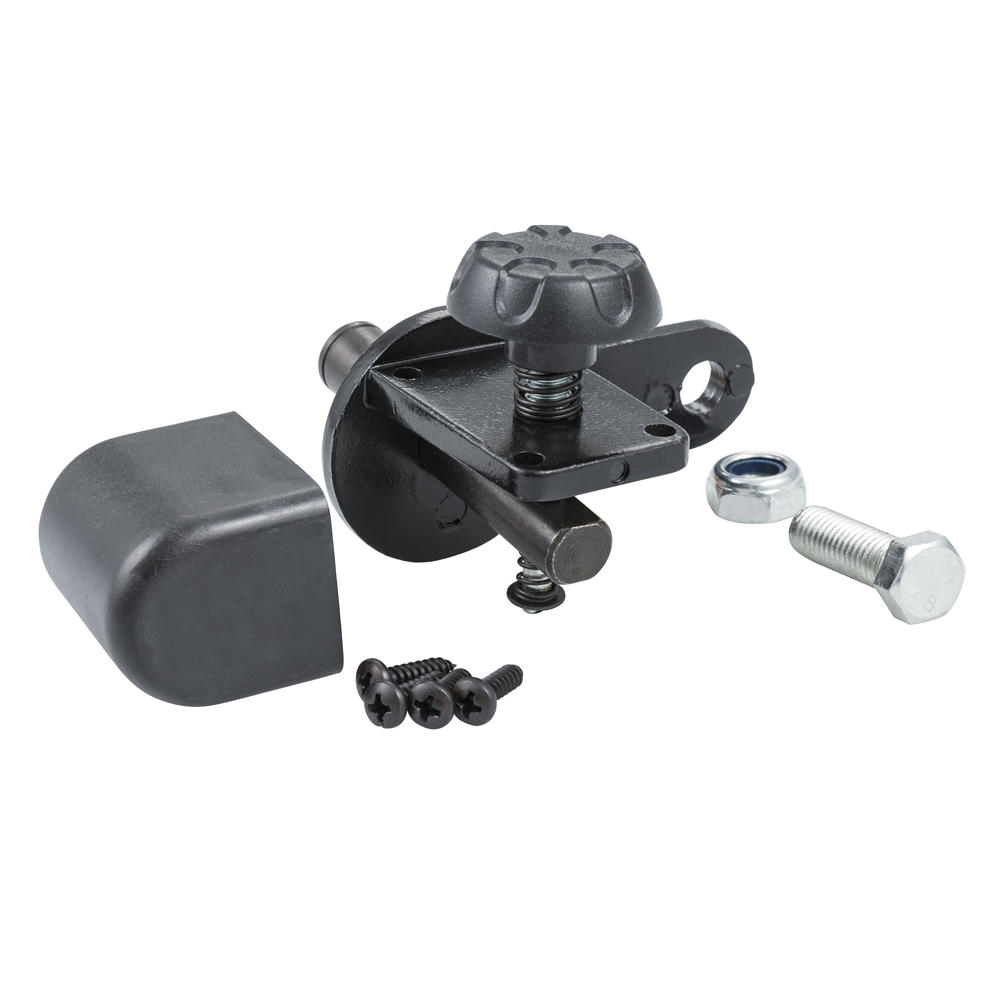

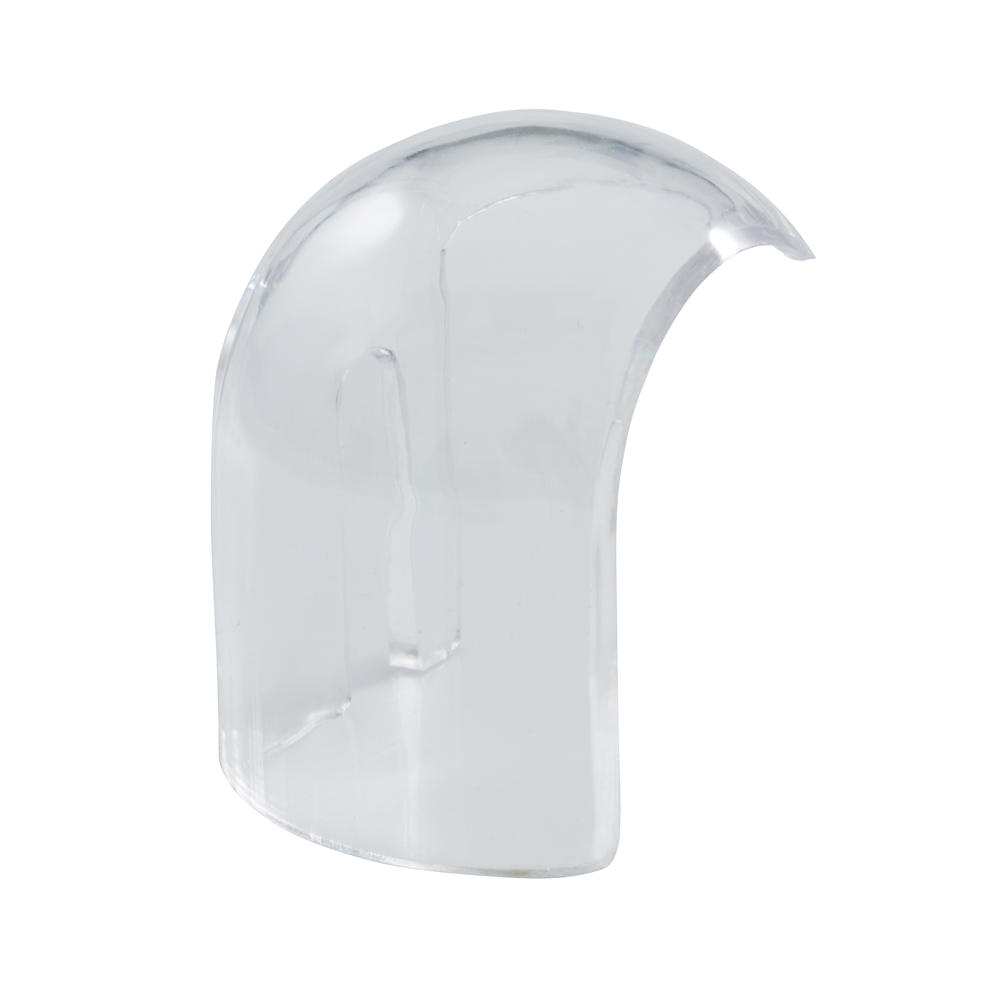

Spare parts
