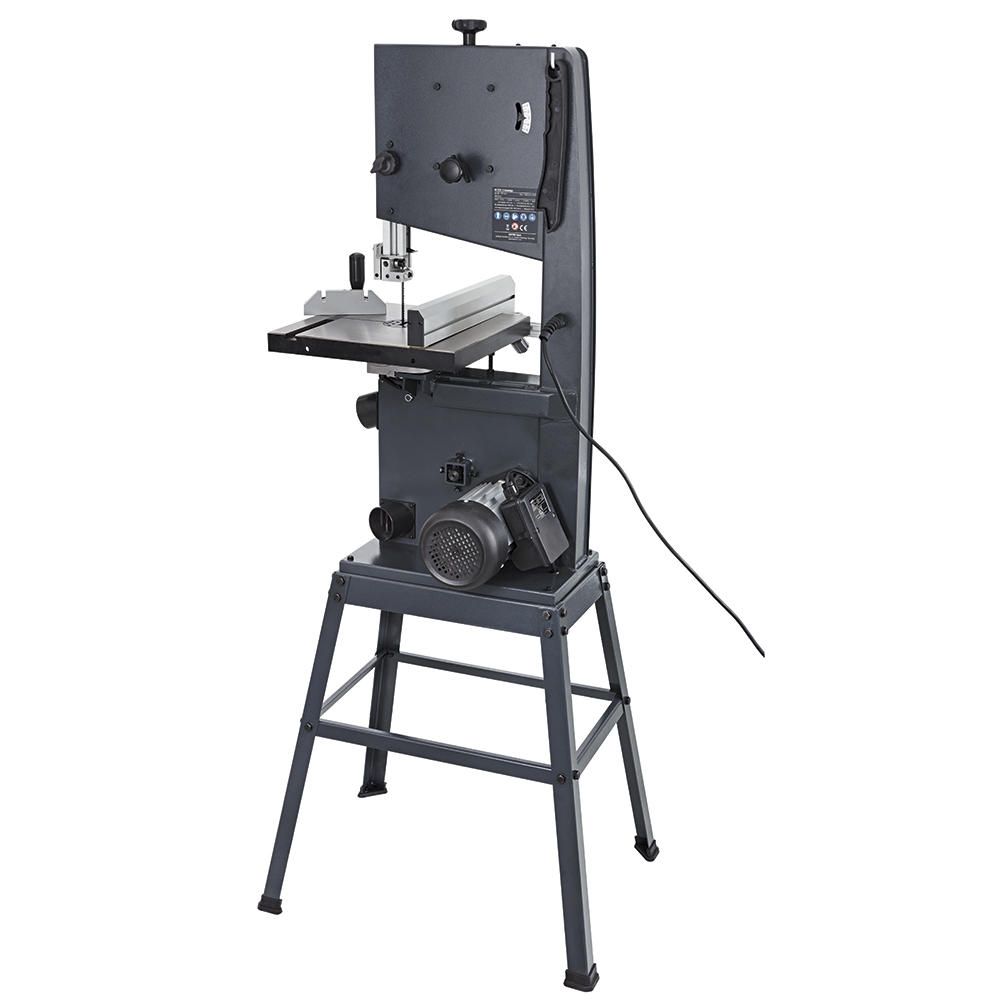

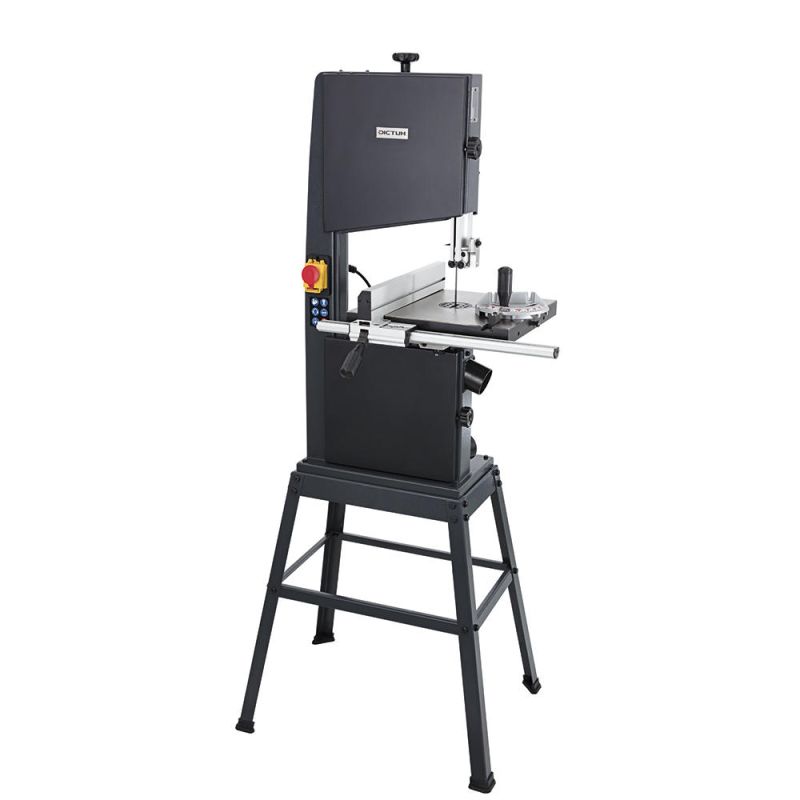

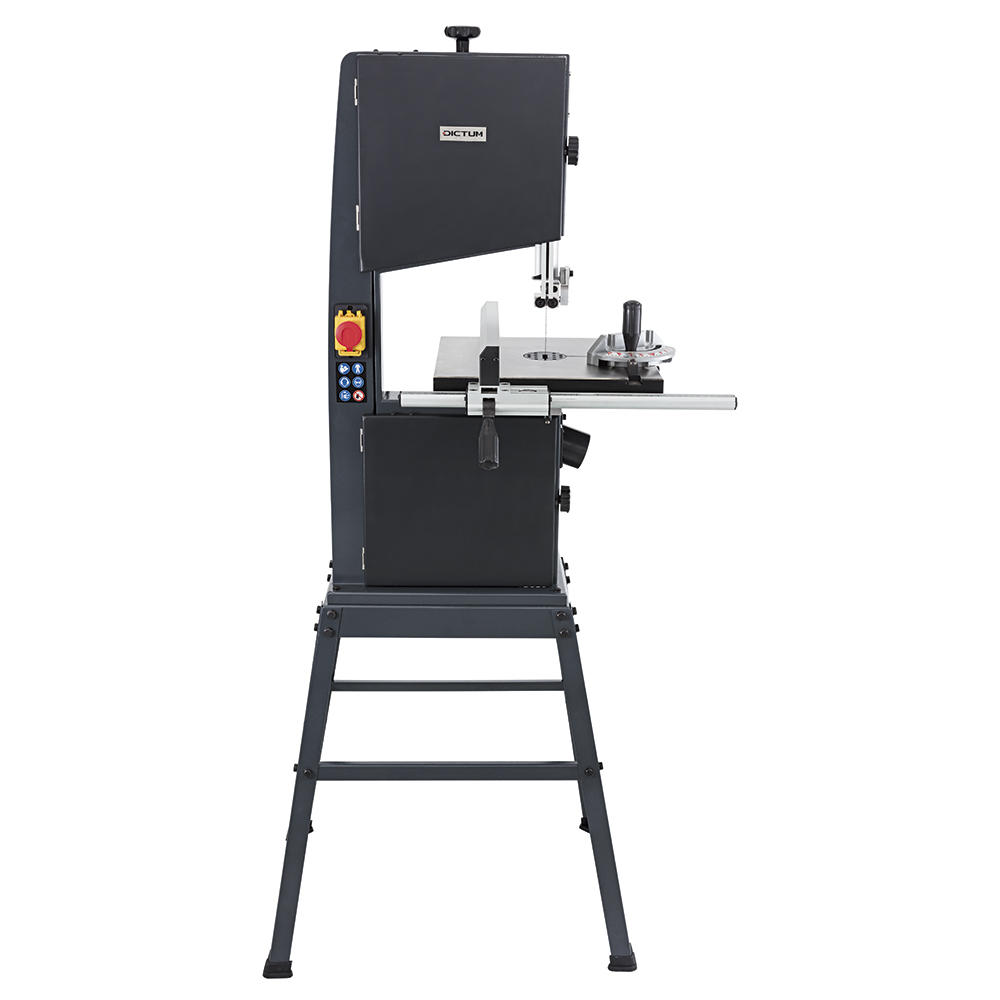

DICTUM® Bandsaw BS 270-10

Description

For straight and curved cuts

Compact bandsaw for curved contours, straight cuts, for cutting to length, separating and parallel cutting.

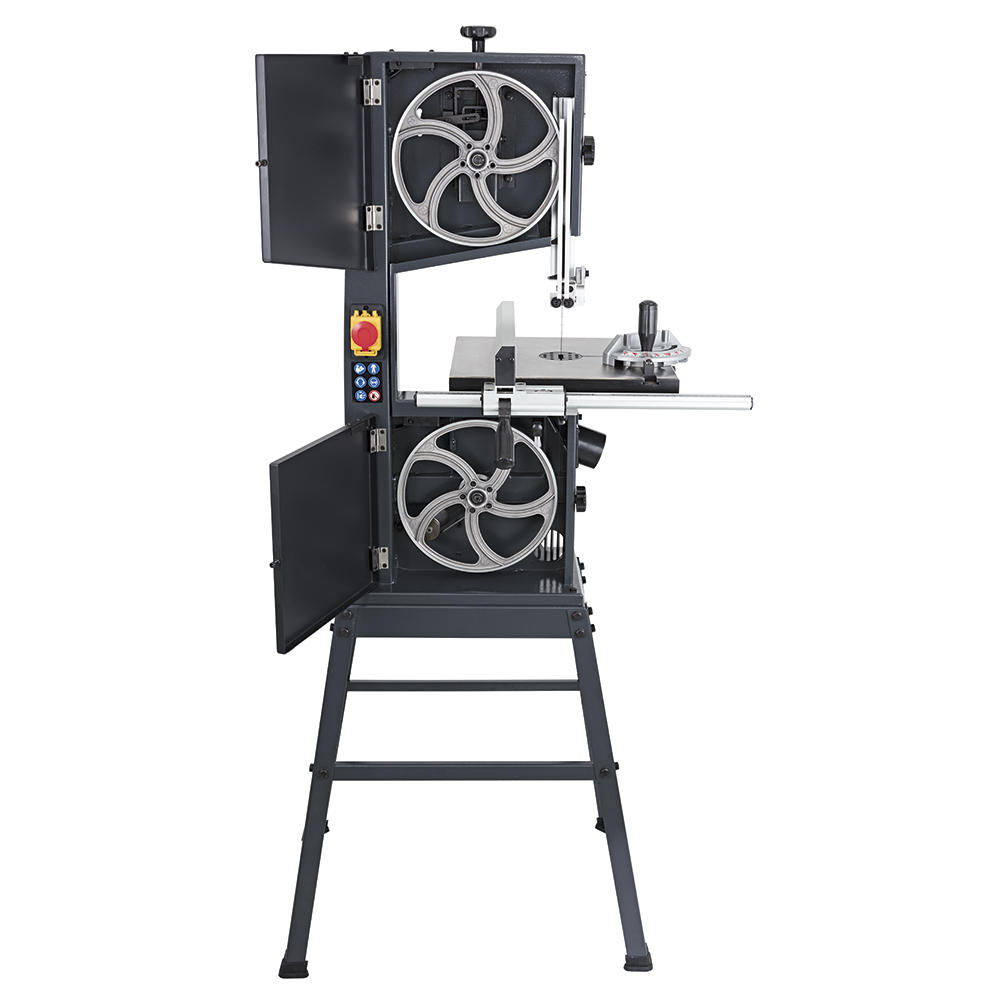

The machine including the two doors is completely made of sheet steel. An additional steel frame reinforces the construction, increases torsional stiffness and reduces vibrations. This allows higher blade tensions than with comparable machines of this size and better cutting results are achieved.

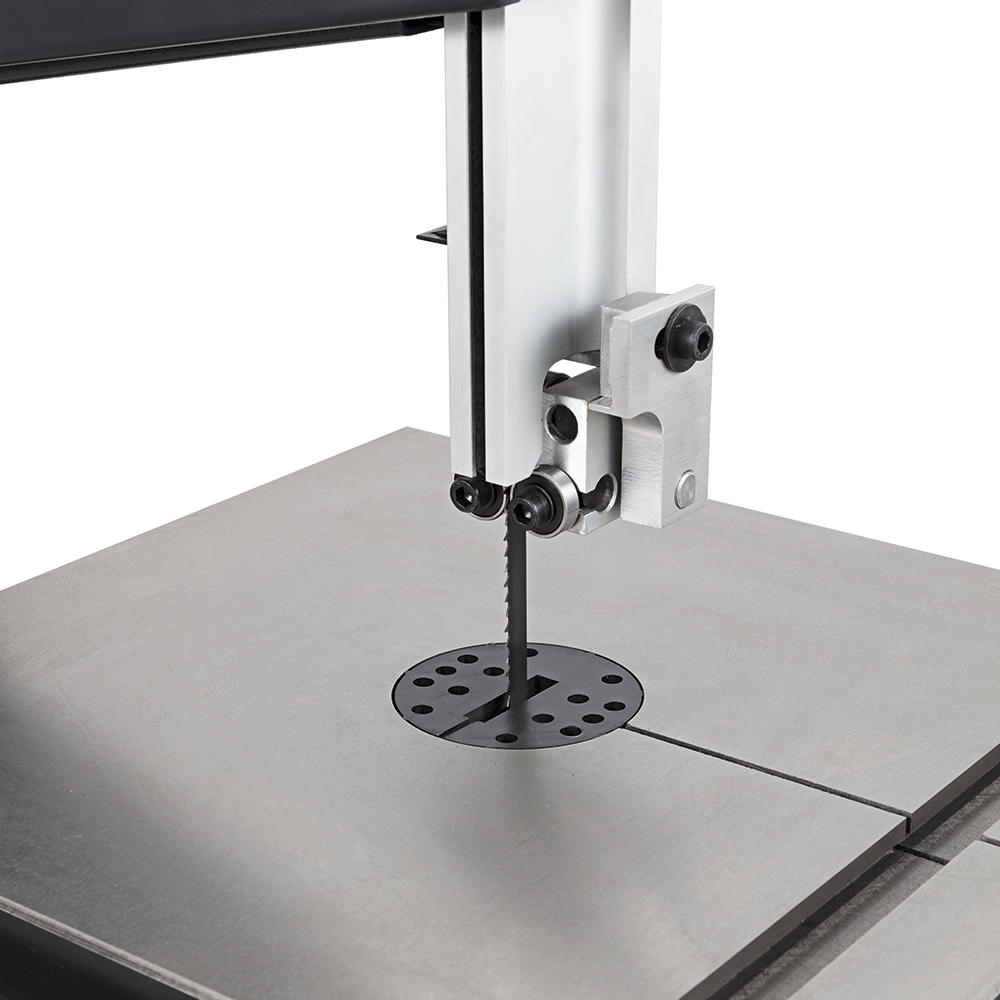

The upper and lower belt guides can be individually and precisely adjusted by lateral guide rollers and back rollers. Quick adjustments for cutting height, roller inclination and belt tension facilitate quick and precise adjustment.

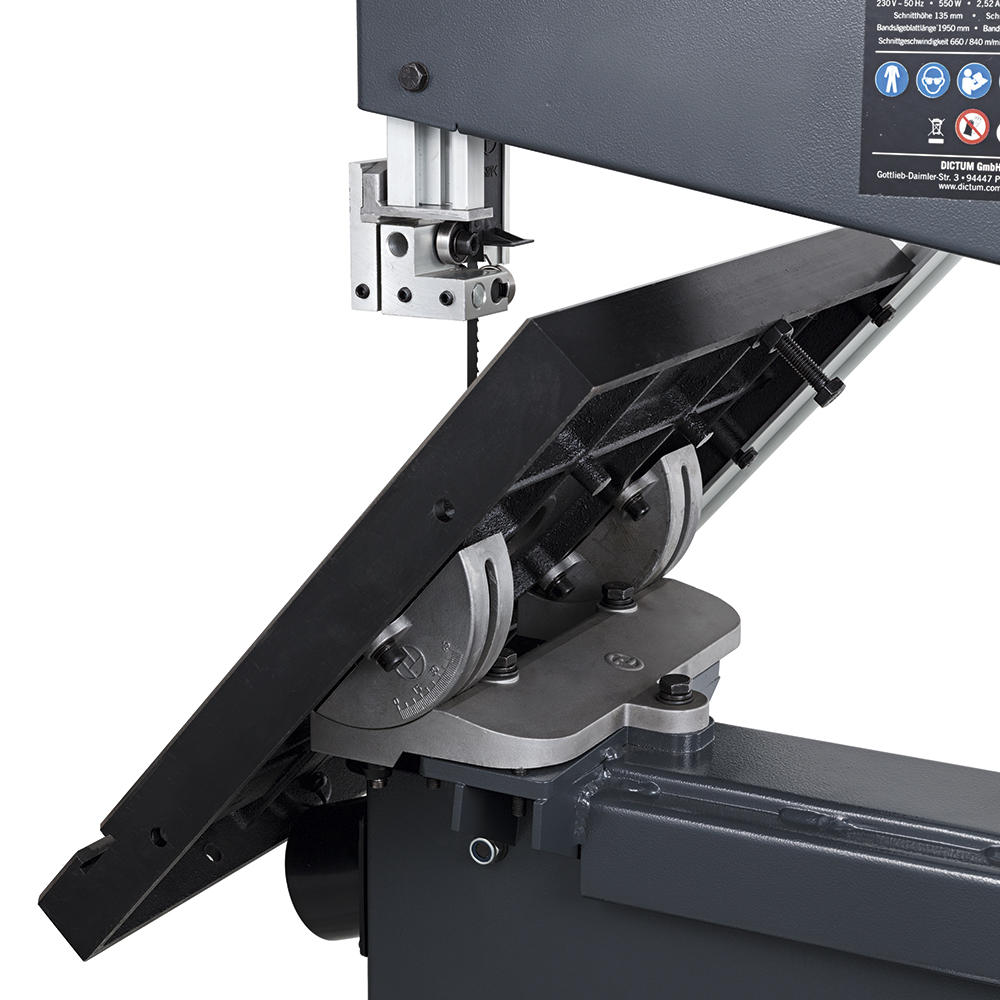

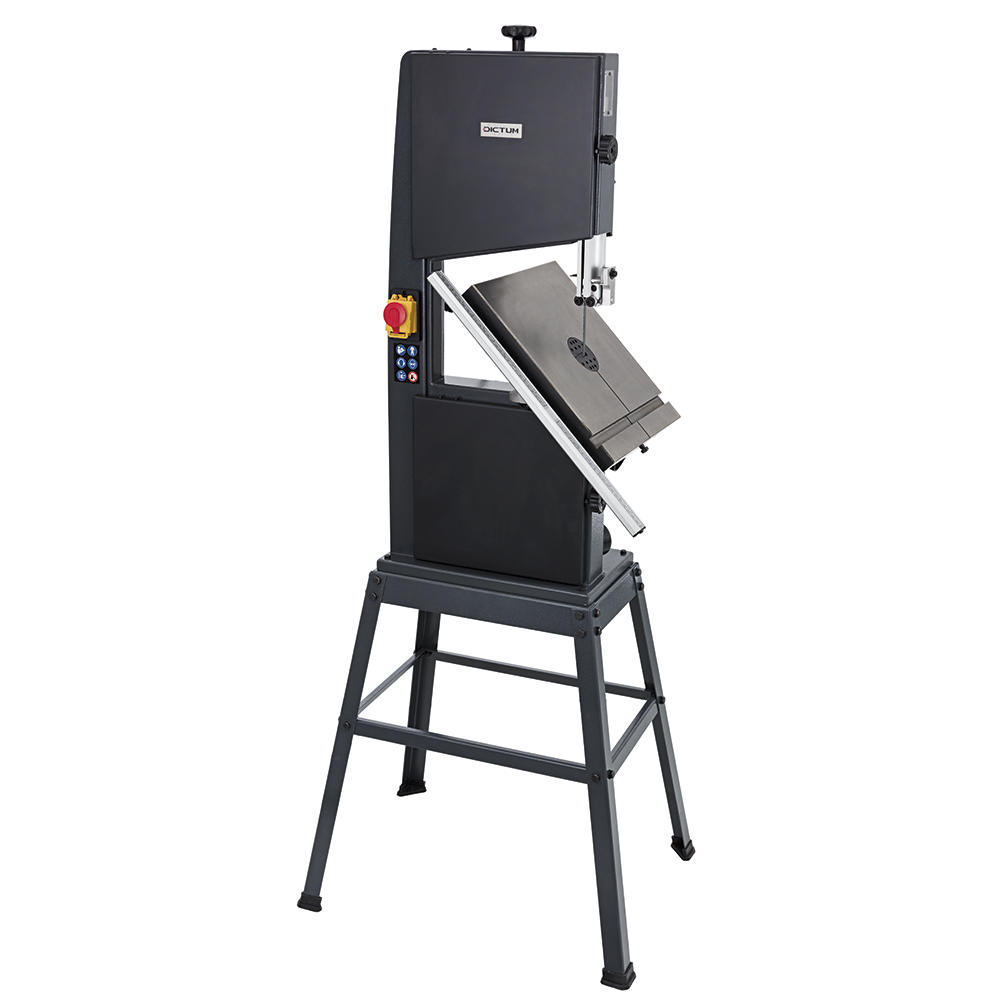

The solid cast iron table can be tilted from -5° to +45° and contains a 19 mm T-slot for guiding the mitre gauge (-60° to +60°). An optionally available table widening and extension can be mounted on it.
The balanced cast aluminium rollers are covered with rubber bindings and ensure smooth running.

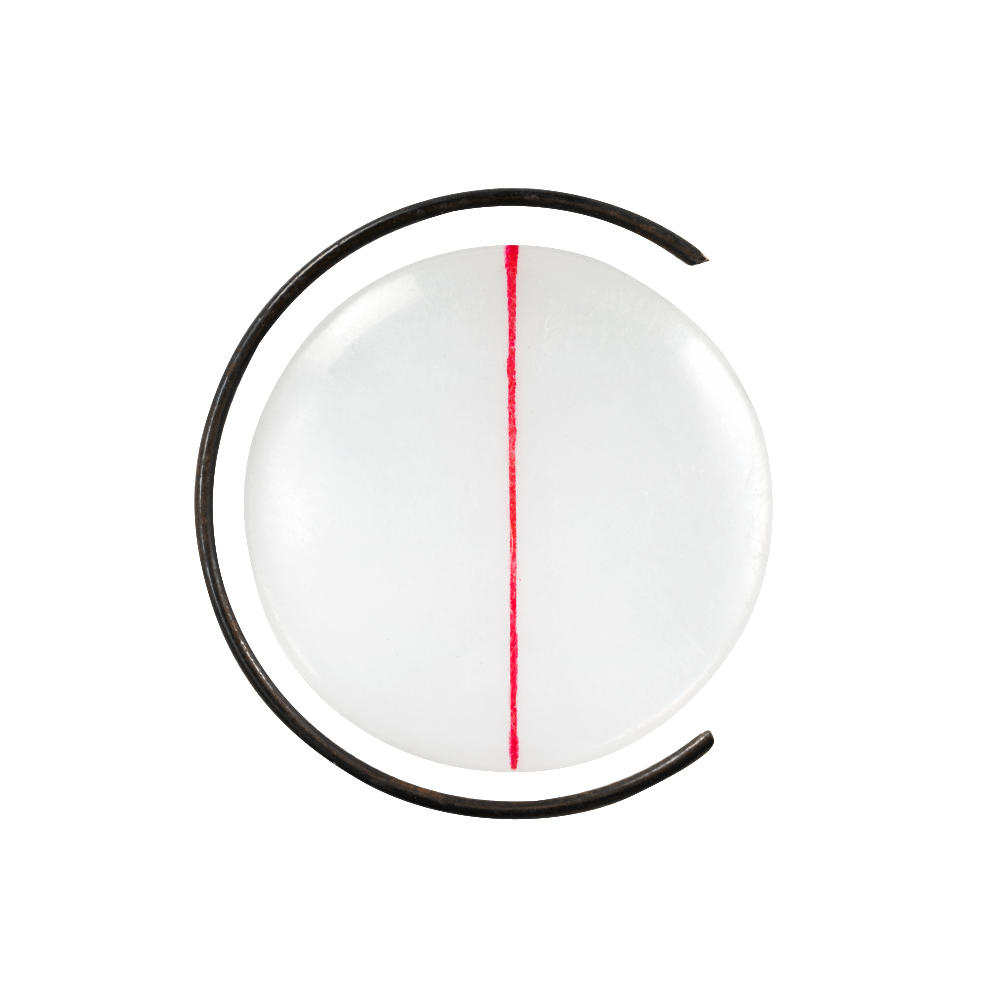

The parallel fence made of aluminium profile has an integrated magnifying glass for better reading of the mm/inch scale.
The doors contain safety switches to prevent the machine from starting when the door is open. The on/off switch with undervoltage release prevents unintentional operation.
Two belt speeds and a cleaning brush on the lower roller ensure smooth running and optimum results. Two suction connections, at the lower saw band guide and at the bottom of the housing, suck off chips immediately.

Scope of delivery

  • Parallel fence
  • Mitre gauge
  • Base made of sheet steel
  • 9.5 mm band saw blade
  • Push stick
  • Operating tool

Properties

Antriebsart: Netz
Blade length: 1950 mm
Blade speed: 660 and 840 m/min
Blade width min./max.: 6 to 13 mm
Dimensions (L x W x H): 1570 x 790 x 620 mm (incl. base frame). Machine height 930 mm.
Hose Connection Ø: 63/58 mm
Maschine/Zubehör: Maschinen
Maschinen-Typ: Bandsaws
Max. depth of cut: 135 mm
Max. width of cut with fence: 170 mm
Max. width of cut without fence: 260 mm
Motorspannung: 230 V / 50 Hz
Power consumption: 550 W
Sound power level (LWA): 83.1 dB(A)
Sound pressure level (LpA ): 74 dB(A)
Table height: 1035 mm
Table size: 350 x 330 mm
Table tilt: -5 to +45°
Weight: 45 kg
Wheel ø: 270 mm

Properties

Antriebsart: Netz
Blade length: 1950 mm
Blade speed: 660 and 840 m/min
Blade width min./max.: 6 to 13 mm
Dimensions (L x W x H): 1570 x 790 x 620 mm (incl. base frame). Machine height 930 mm.
Hose Connection Ø: 63/58 mm
Maschine/Zubehör: Maschinen
Maschinen-Typ: Bandsaws
Max. depth of cut: 135 mm
Max. width of cut with fence: 170 mm
Max. width of cut without fence: 260 mm
Motorspannung: 230 V / 50 Hz
Power consumption: 550 W
Sound power level (LWA): 83.1 dB(A)
Sound pressure level (LpA ): 74 dB(A)
Table height: 1035 mm
Table size: 350 x 330 mm
Table tilt: -5 to +45°
Weight: 45 kg
Wheel ø: 270 mm
