Wixey Electronic Digital Readout Kit for the Passage Height of Thickness Planers
Product no.:
721057
Brand:
Wixey
€89.90 €75.55
per piece(s)
In stock, delivery time approx. 2-3 working days
- Maschine/Zubehör Accessories
- Maschinen-Typ Planers
Description

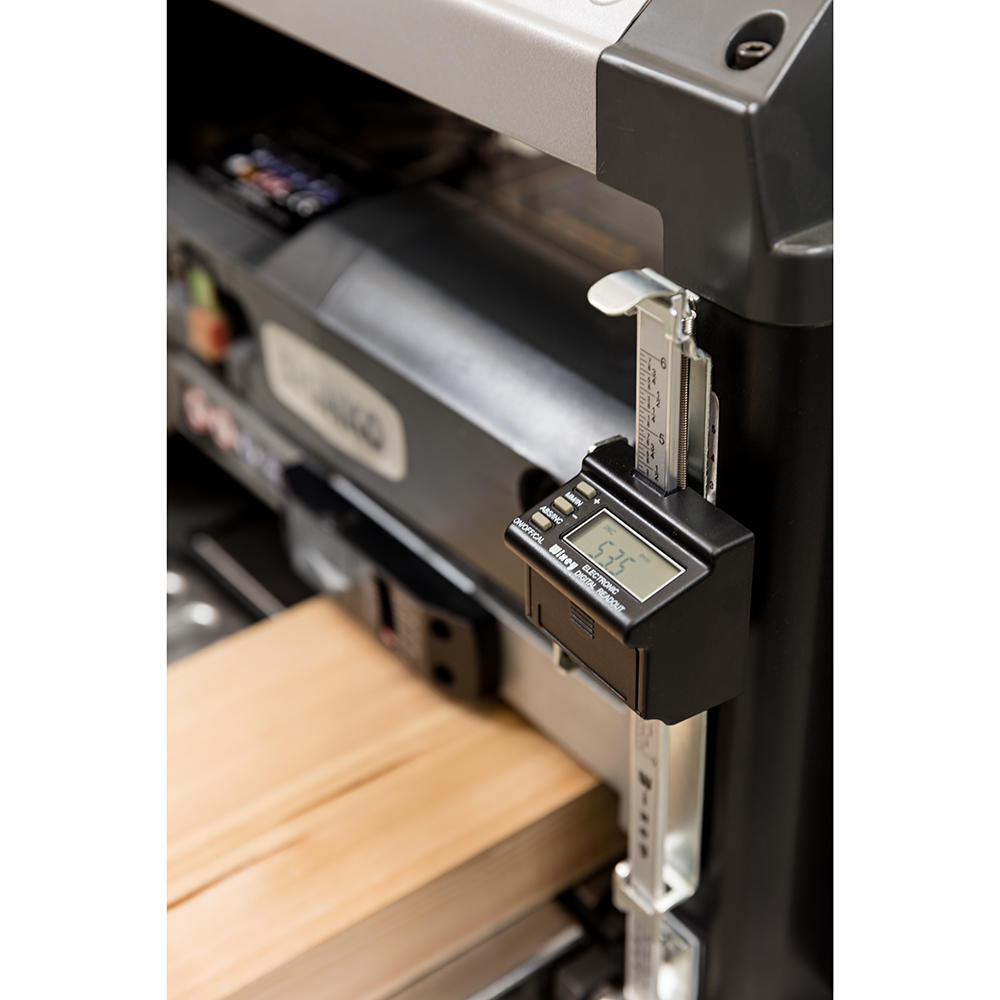

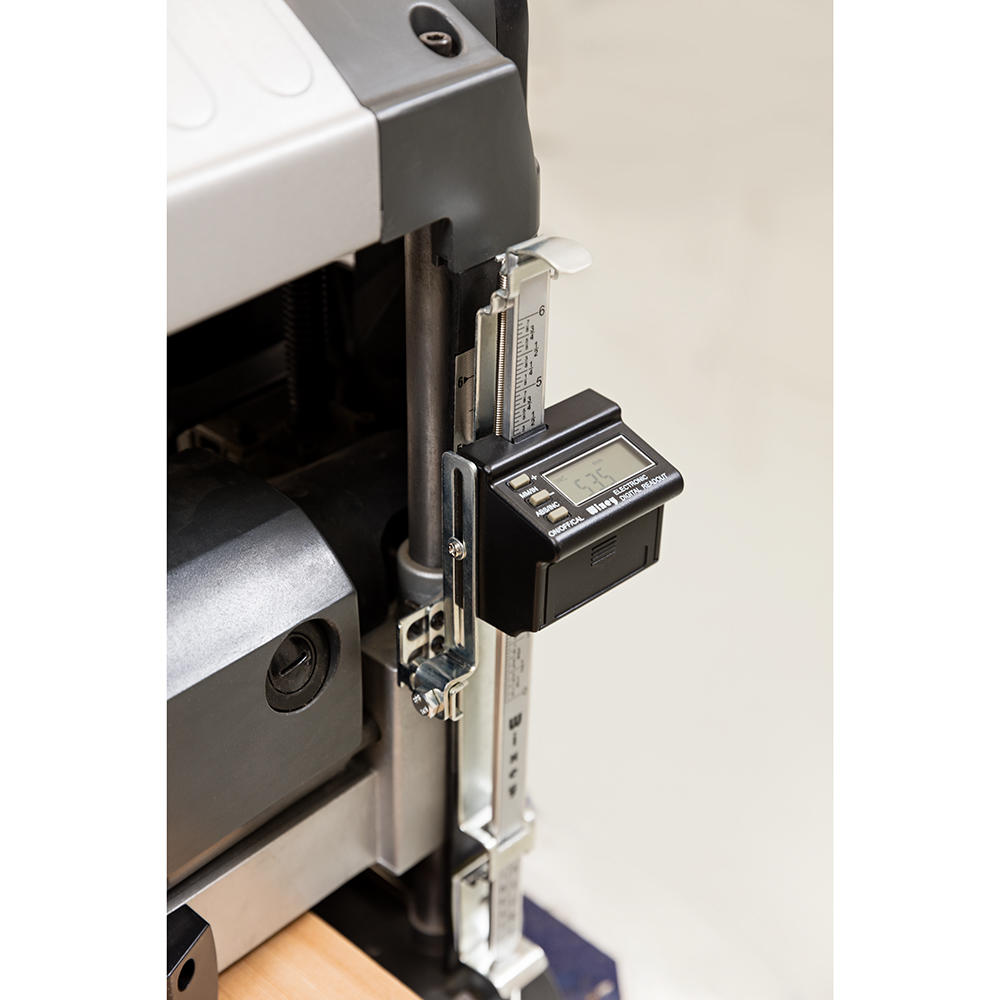

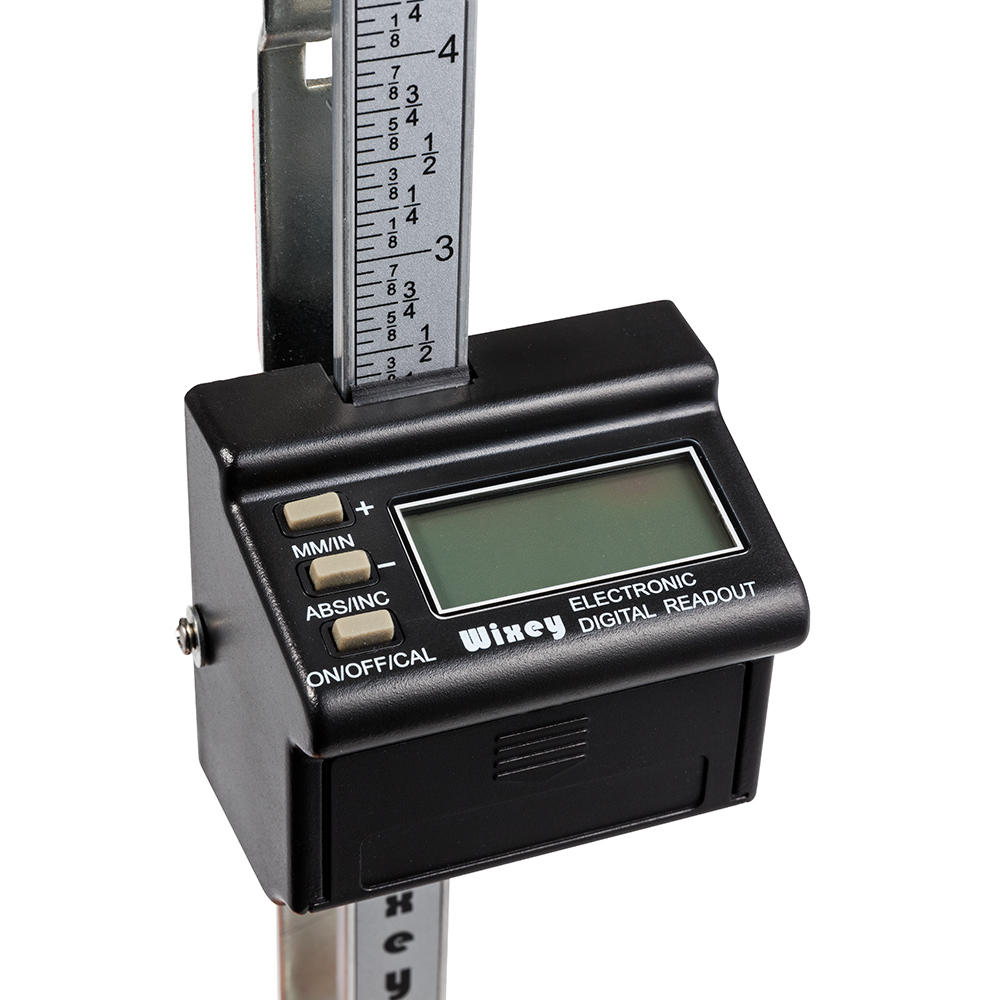

For easy reading of the set passage height or for quick readjustment by a few tenths of a millimetre. The digital display can be retrofitted to most portable thickness planers in minutes. The indicator can also be used on drum sanders. The display is operated with two AAA batteries (not included).
Quick assembly:
Features:
Quick assembly:

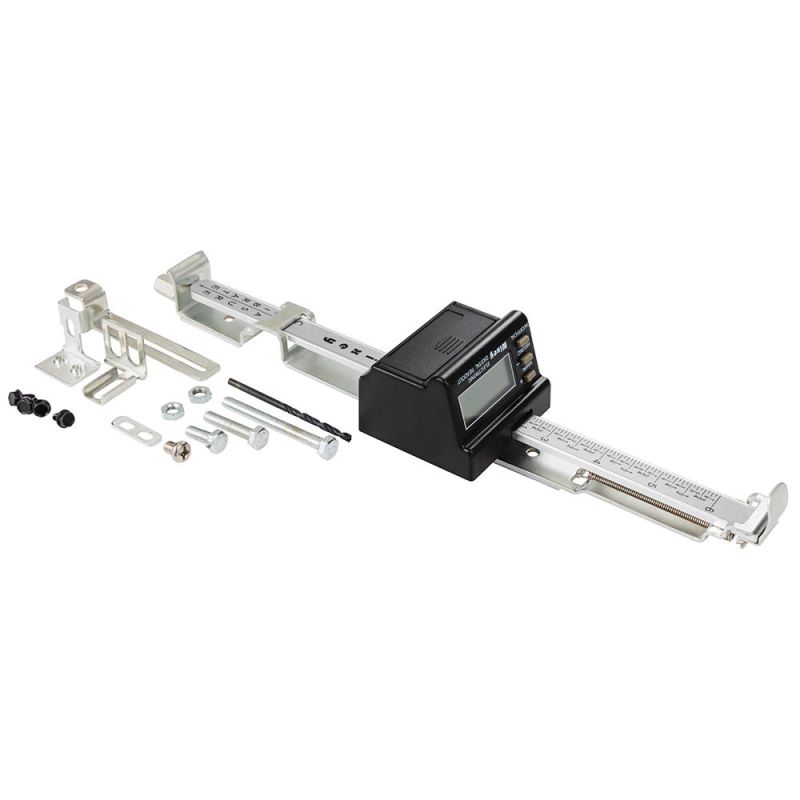

- Various mounting brackets and adhesive pads included in the scope of delivery allow the display to be mounted quickly and easily, even without drilling holes in the machine housing.

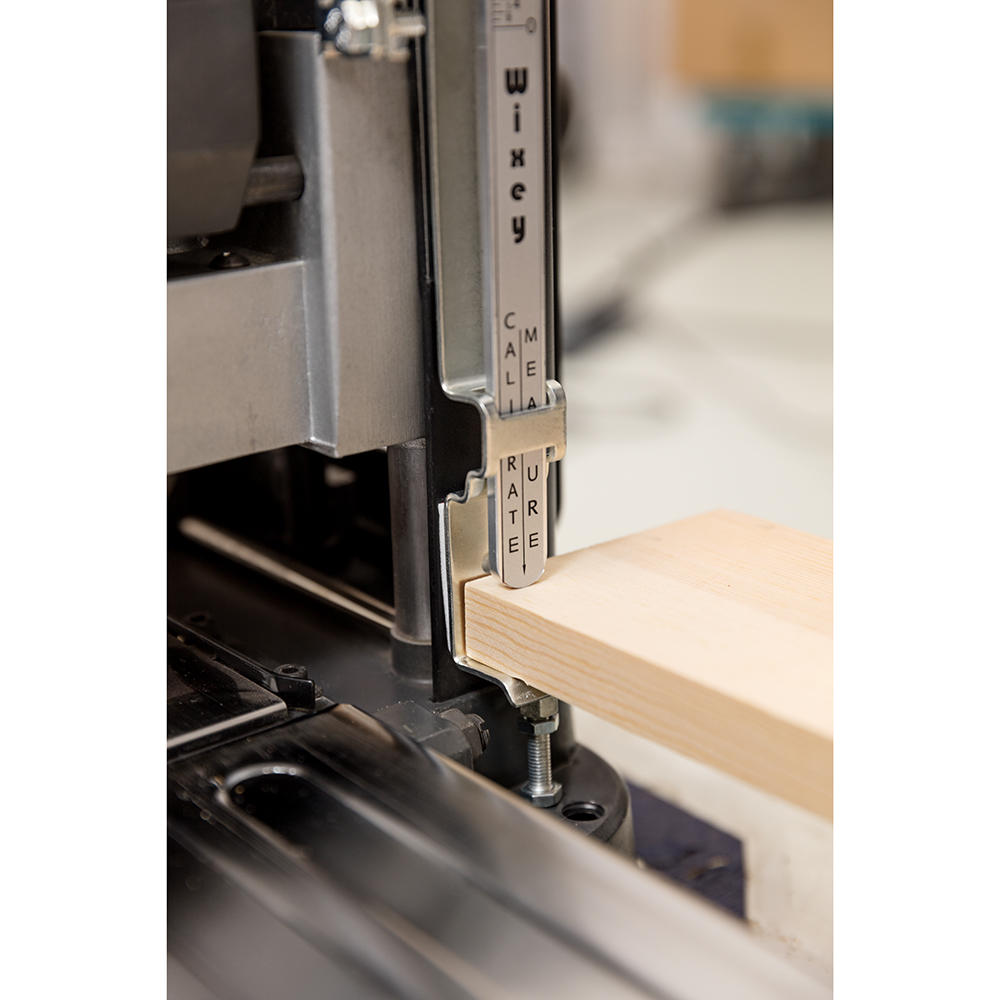

- The thickness of a planed board can be scanned directly at the mounting rail to calibrate the display.
- The display does not need to be reset until the batteries in the display or the planer blades are changed.
Features:
- Data memory retains the measurement result even when switched off
- Absolute measurement mode
- Incremental measurement mode
- mm/inch display
- Automatic switch-off
- Measuring range 155 mm (6 inch)
- Display mode: mm/inch in decimal and fraction
- Accuracy: mm ± 0.05 mm / inch in decimal ± 0.0025 and fraction ± 1/500
Properties
| Maschine/Zubehör: | Accessories |
|---|---|
| Maschinen-Typ: | Planers |
Properties
| Maschine/Zubehör: | Accessories |
|---|---|
| Maschinen-Typ: | Planers |
Manufacturer
| Name: | Wixey |
|---|---|
| Mailing address: | Ave East 1162 15th 98112 Seattle United States |
