Veritas® Router Plane, high-carbon steel Blade
Product no.:
703697
Brand:
Veritas
€219.90 €184.79
per piece(s)
In stock, delivery time approx. 2-3 working days
- Blade material A2 steel
- Blade thickness 3.2 mm
- Blade width 12.5 mm
- Design / cutting angle Others
- Einsatzzweck Cutting grooves, rabbets and profiles
Description

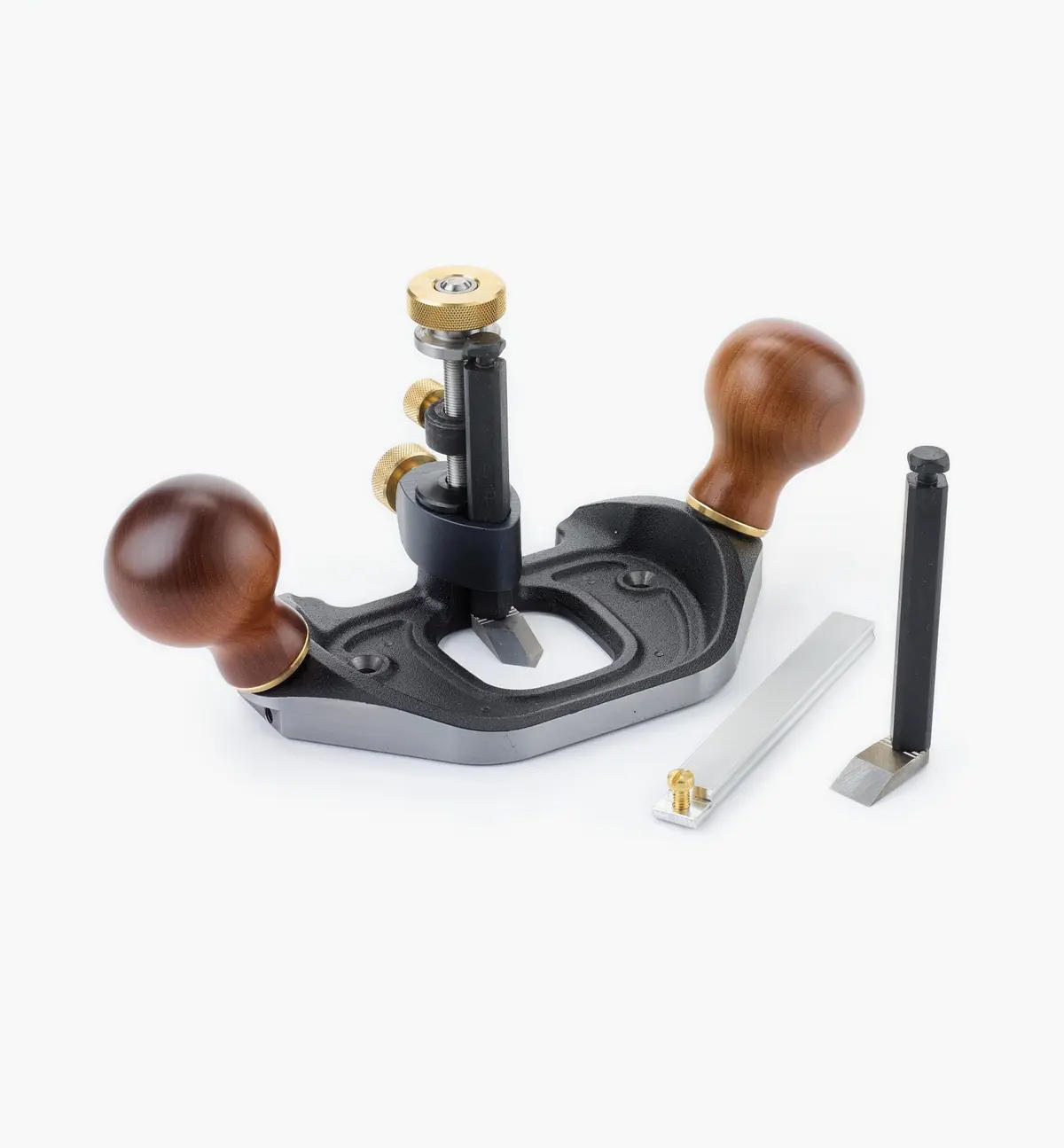

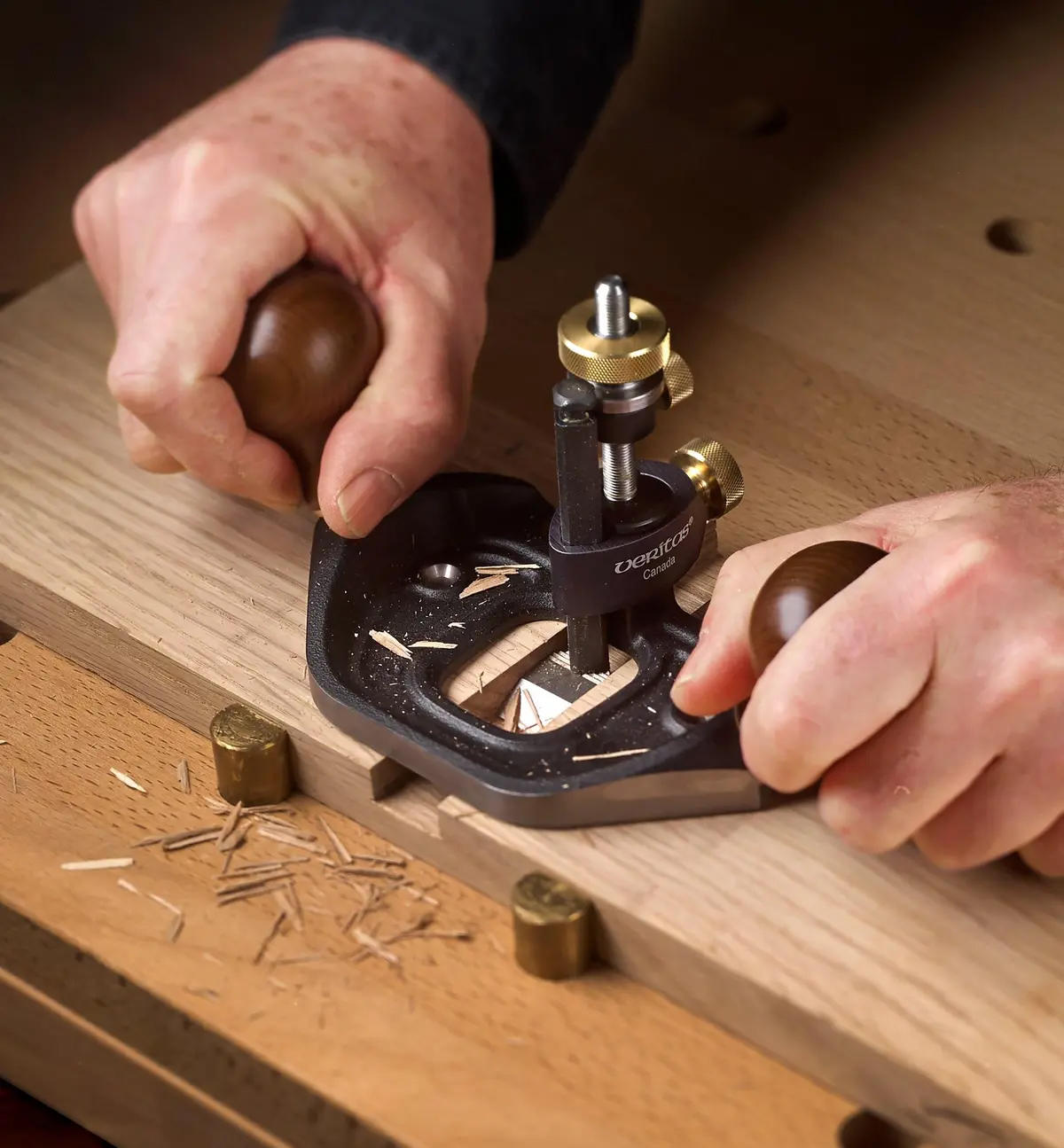

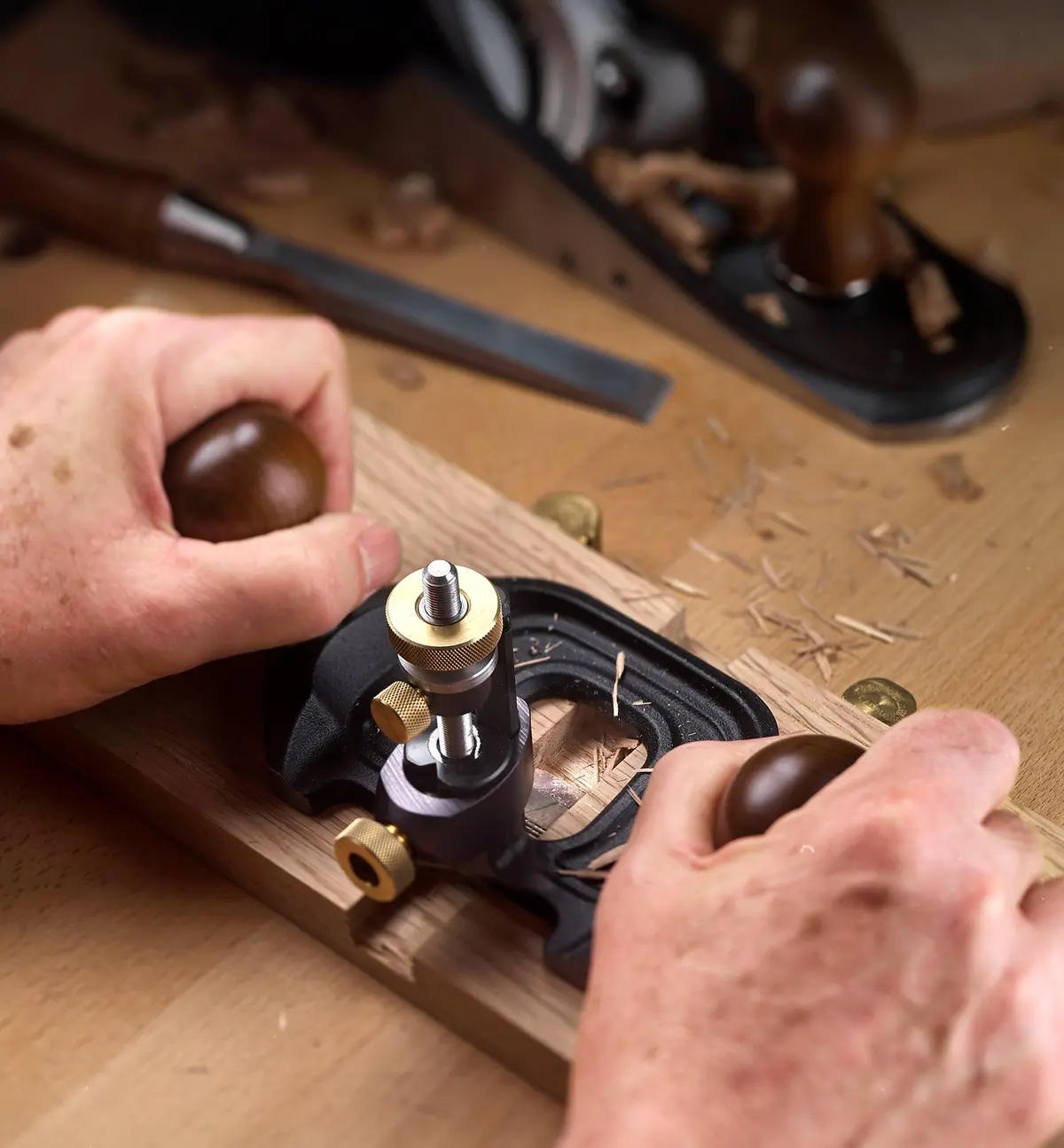

Precision tool for creating and finishing grooves, flat recesses or any work requiring an area cut to a precise depth. Its generous dimensions and solid construction make this plane very easy to use. A depth stop allows the adjustment of the cutting depth with high precision. The blade can be fixed centrally, enclosed by the sole, or close to the edge with an open sole for cutting in corners. The optional fence (No. 703698) can be used on the right or left side of the plane and will work on straight or curved workpieces. 145 x 90 mm
Includes:
1 straight blade, blade width 12.5 mm
1 pointed blade, blade width 12.5 mm
Includes:
1 straight blade, blade width 12.5 mm
1 pointed blade, blade width 12.5 mm
Veritas® Planes
The corporate philosophy of Canadian tool manufacturer Veritas aims to develop new adjustment mechanisms and enhance historic plane design. With bodies made of stress-relieved spheroidal cast iron, these tools are highly resistant to cracking and distortion. Their soles are perfectly plane and trued at right angles to the sides. Their thick blades of high-strength A2 steel are hardened to 60-62 HRC and additionally subjected to a special low-temperature process to achieve a finer grain. Veritas planes are optionally available with PM-V11 blades. (The Custom series models are equipped with PM-V11 blades as standard). Two setscrews on the sides constrain the blade laterally, keeping it in place regardless of the type of stress applied. Unless otherwise stated, the blade is angled at 45°. With their material combination of finely-ground or black-coated cast iron bodies, polished brass setscrews and beautiful torrefied maple handles, these planes are also pleasing to the eye.
Properties
| Blade material: | A2 steel |
|---|---|
| Blade thickness: | 3.2 mm |
| Blade width: | 12.5 mm |
| Design / cutting angle: | Others |
| Einsatzzweck: | Cutting grooves, rabbets and profiles |
| Form: | Others |
| Plane body: | Spheroidal Cast Iron |
| Typ: | Router planes |
| Weight: | 900 g |
Properties
| Blade material: | A2 steel |
|---|---|
| Blade thickness: | 3.2 mm |
| Blade width: | 12.5 mm |
| Design / cutting angle: | Others |
| Einsatzzweck: | Cutting grooves, rabbets and profiles |
| Form: | Others |
| Plane body: | Spheroidal Cast Iron |
| Typ: | Router planes |
| Weight: | 900 g |
Accessories
Spare parts
Ersatzteil
Similar items
Ähnliche Artikel
Frequently bought together
Matching items
Passend dazu
Manufacturer
Veritas
Veritas Tools Inc., based in Ottawa, Canada, is a world leader in woodworking tool design innovation and is the manufacturing arm of Lee Valley Tools Ltd., a leading North American retailer of fine tools. Lee Valley Manufacturing Ltd. was incorporated in 1985 and later became Veritas® Tools Inc. Today, with 250 products and more than 100 patents in lines that include woodworking planes, sharp
| Name: | Veritas |
|---|---|
| Mailing address: | Morrison Drive 1080 K2H 1C4 Ottawa Canada |
| Homepage: | https://www.veritastools.ca/en-ca |
