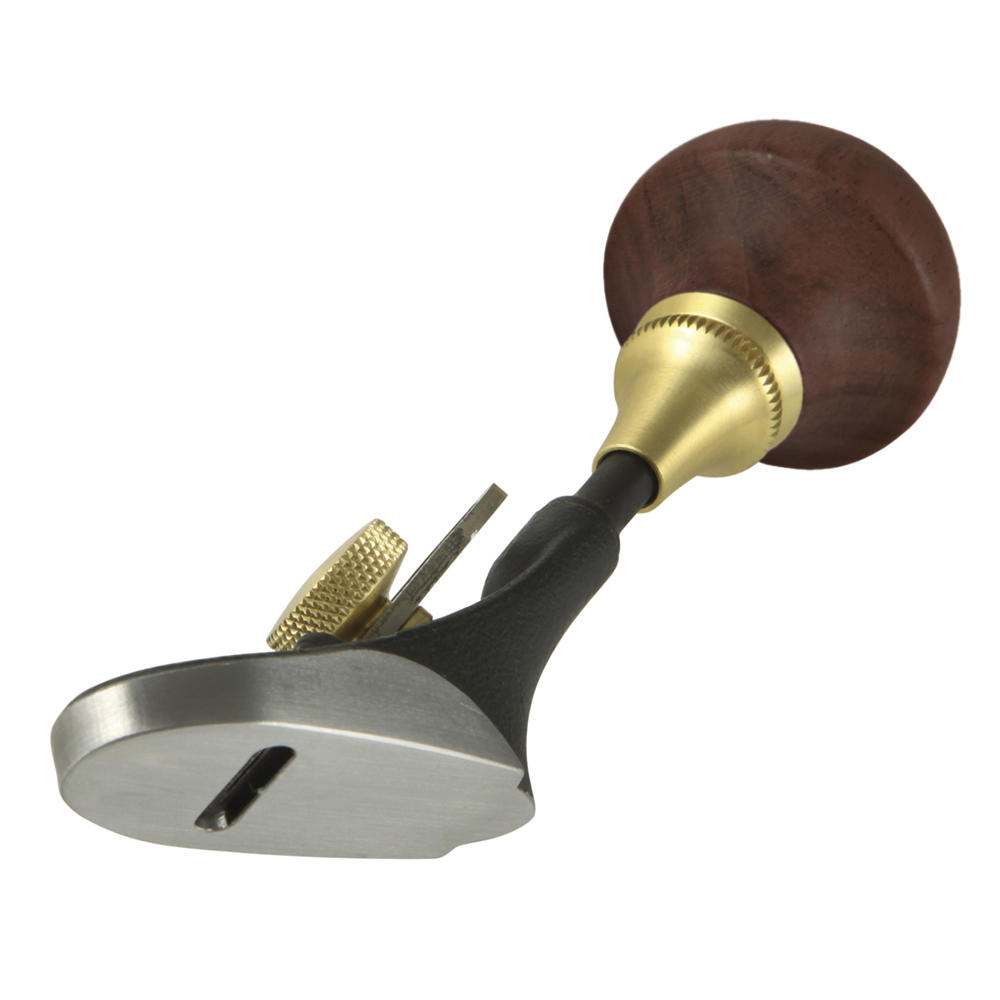

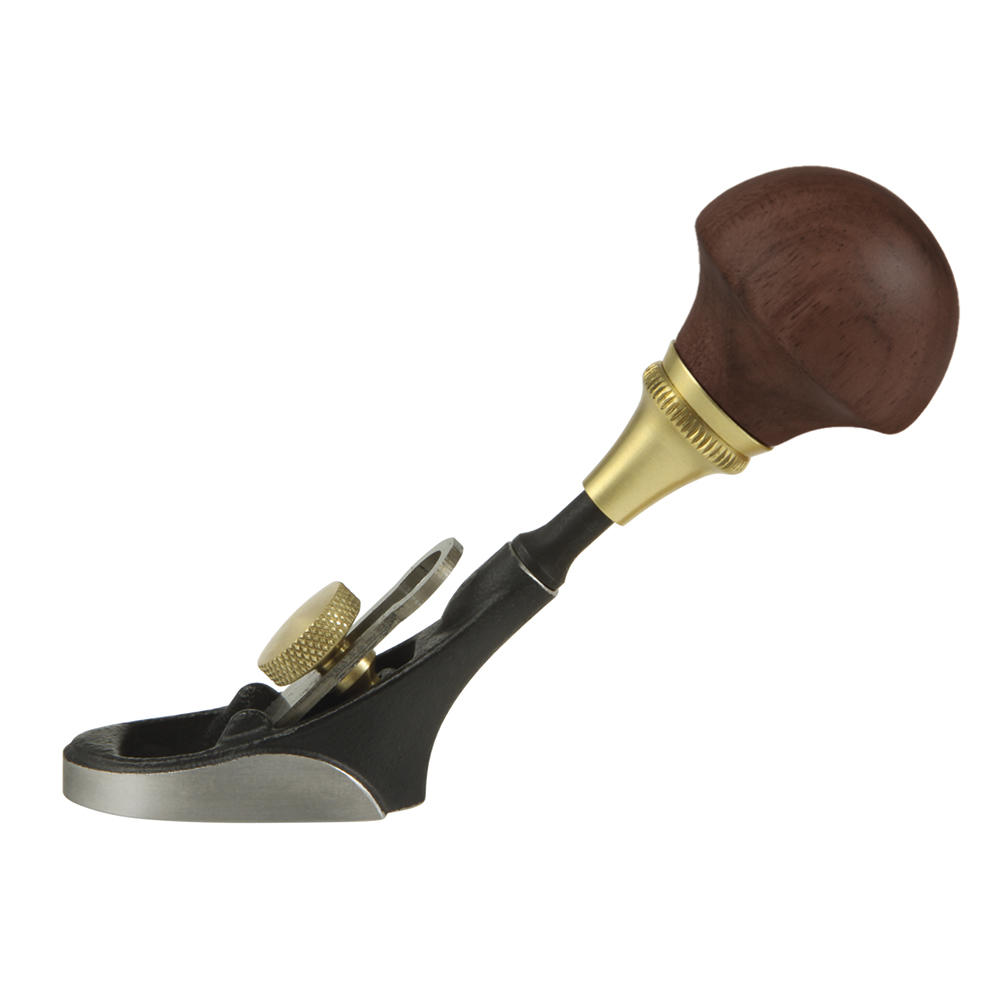

Veritas® Detail Palm Planes, Straight Sole, A2 Blade
Product no.:
703797
Brand:
Veritas
€86.90 €73.03
per piece(s)
In stock, delivery time approx. 2-3 working days

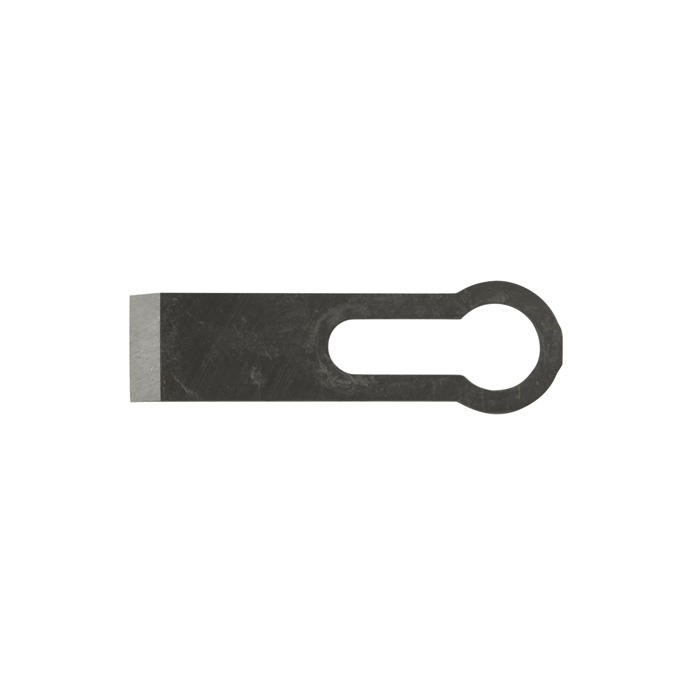

- Blade material A2 steel
- Blade thickness 1.5 mm
- Blade width 9.5 mm
- Design / cutting angle Bevel down / cutting angle 40°-45°
- Form Bevel down / cutting angle 40°-45°
Description
With its height-adjustable rest for the heel of the hand, this miniature plane adjusts perfectly to fit any hand size, allowing exact and highly precise control for working on the smallest details, e.g. profiles or in violin making. For use in tight spaces, the hand rest can be removed. Precision-cast body, plane blade of A2 steel.
Veritas® Planes
The corporate philosophy of Canadian tool manufacturer Veritas aims to develop new adjustment mechanisms and enhance historic plane design. With bodies made of stress-relieved spheroidal cast iron, these tools are highly resistant to cracking and distortion. Their soles are perfectly plane and trued at right angles to the sides. Their thick blades of high-strength A2 steel are hardened to 60-62 HRC and additionally subjected to a special low-temperature process to achieve a finer grain. Veritas planes are optionally available with PM-V11 blades. (The Custom series models are equipped with PM-V11 blades as standard). Two setscrews on the sides constrain the blade laterally, keeping it in place regardless of the type of stress applied. Unless otherwise stated, the blade is angled at 45°. With their material combination of finely-ground or black-coated cast iron bodies, polished brass setscrews and beautiful torrefied maple handles, these planes are also pleasing to the eye.
Properties
| Blade material: | A2 steel |
|---|---|
| Blade thickness: | 1.5 mm |
| Blade width: | 9.5 mm |
| Design / cutting angle: | Bevel down / cutting angle 40°-45° |
| Form: | Bevel down / cutting angle 40°-45° |
| Intended use: | Cutting grooves, rabbets and profiles |
| Overall length: | 75-90 mm |
| Plane body: | Spheroidal cast iron |
| Sole shape: | straight |
| Type: | Others |
| Weight: | 70 g |
Properties
| Blade material: | A2 steel |
|---|---|
| Blade thickness: | 1.5 mm |
| Blade width: | 9.5 mm |
| Design / cutting angle: | Bevel down / cutting angle 40°-45° |
| Form: | Bevel down / cutting angle 40°-45° |
| Intended use: | Cutting grooves, rabbets and profiles |
| Overall length: | 75-90 mm |
| Plane body: | Spheroidal cast iron |
| Sole shape: | straight |
| Type: | Others |
| Weight: | 70 g |
