Veritas® Compact Router Plane, high-carbon steel-Blade
Product no.:
703640
Brand:
Veritas
€83.90 €70.50
per piece(s)
Delivery time approx. 3-5 working days
- Blade material A2 steel
- Blade thickness 2.5 mm
- Blade width 6 mm
- Design / cutting angle Others
- Plane body Spheroidal cast iron
Description

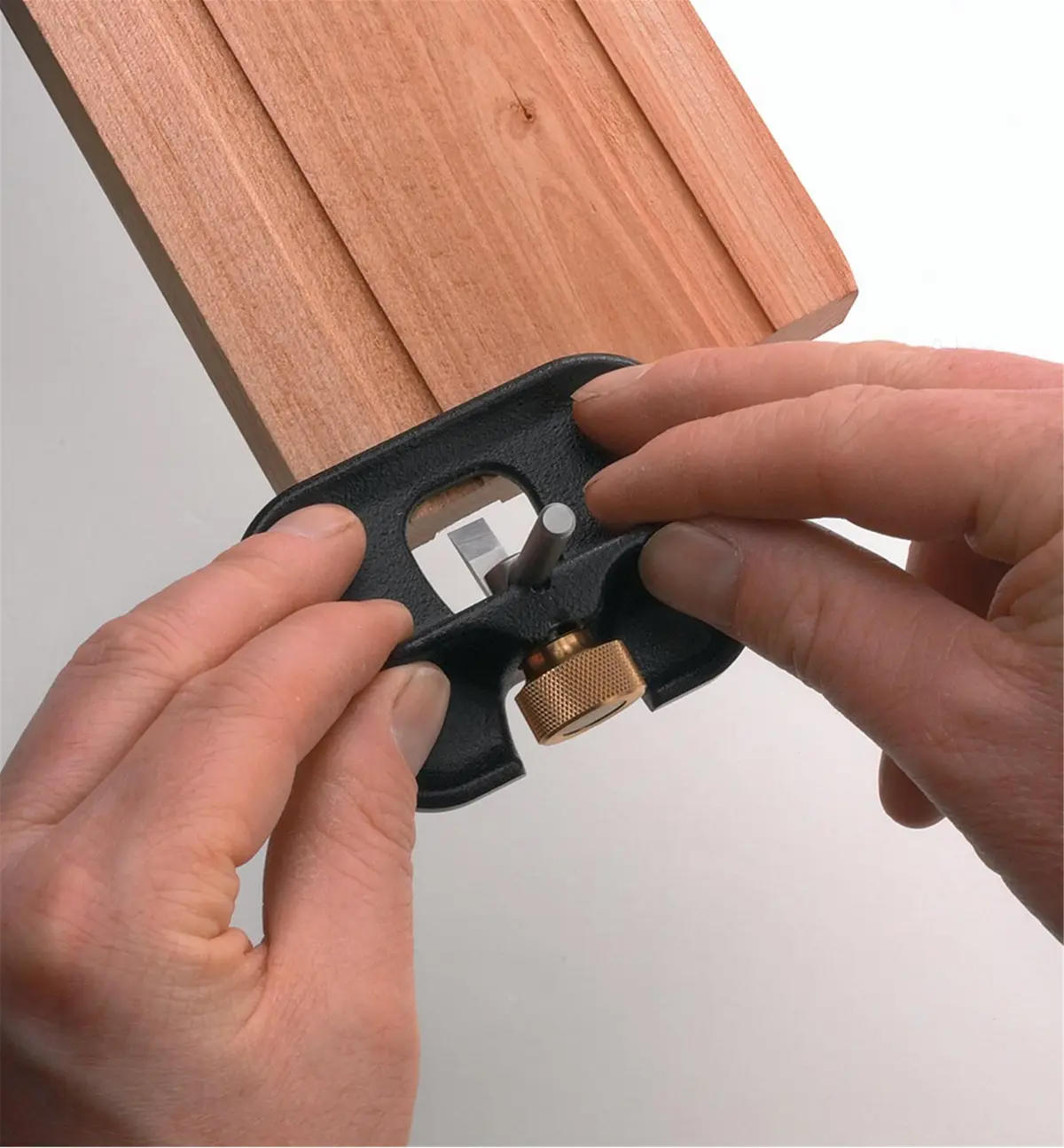

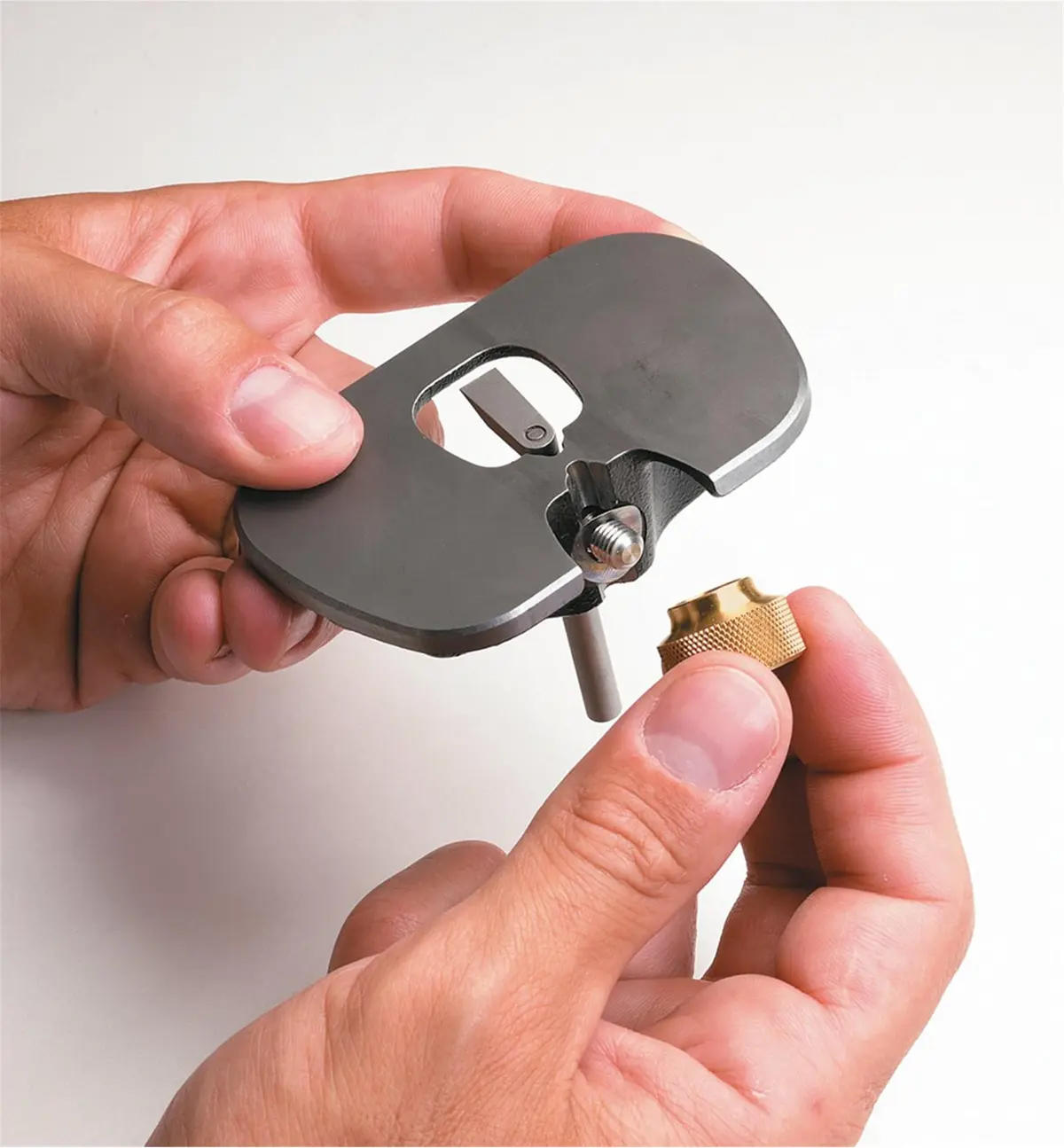

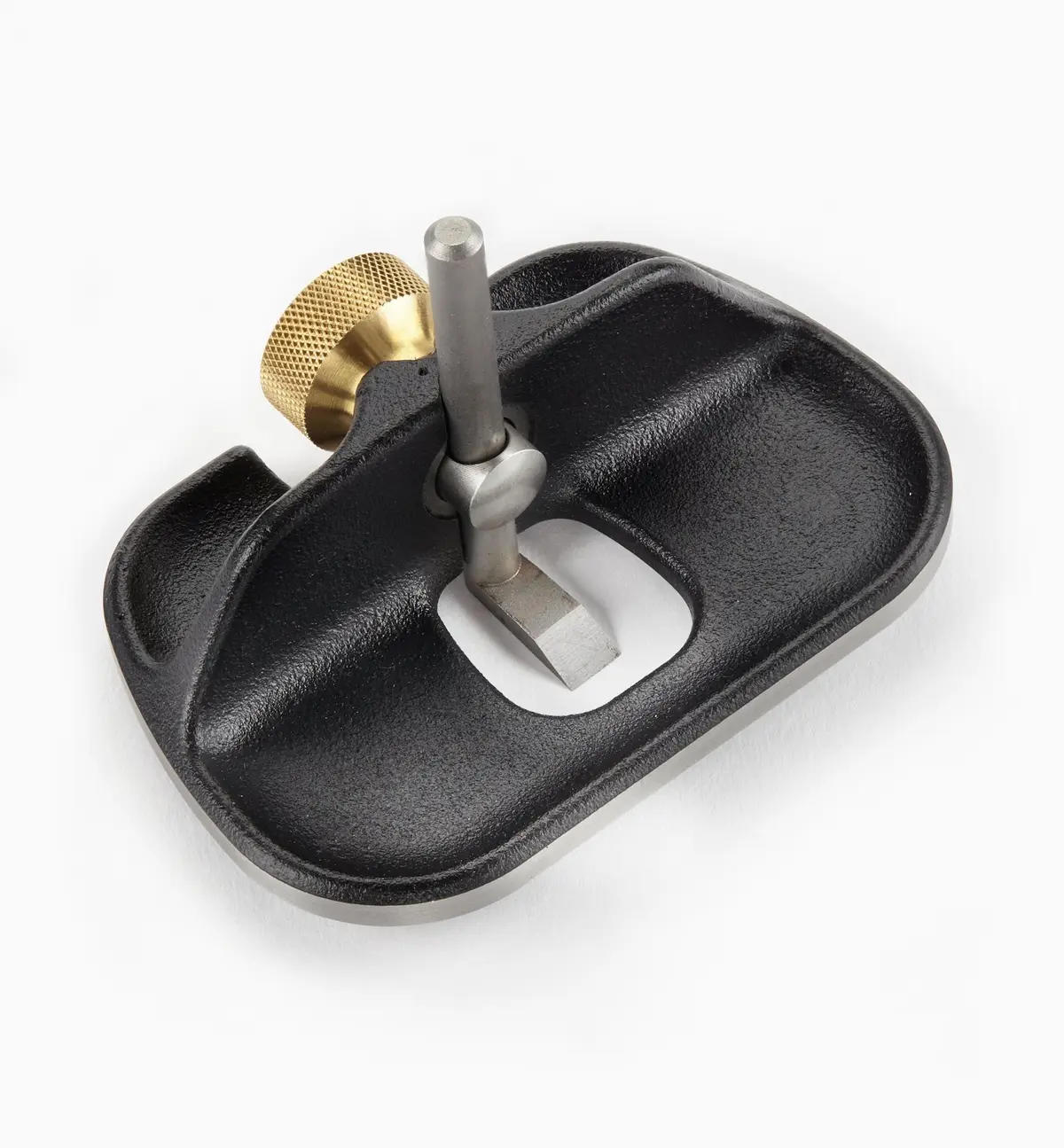

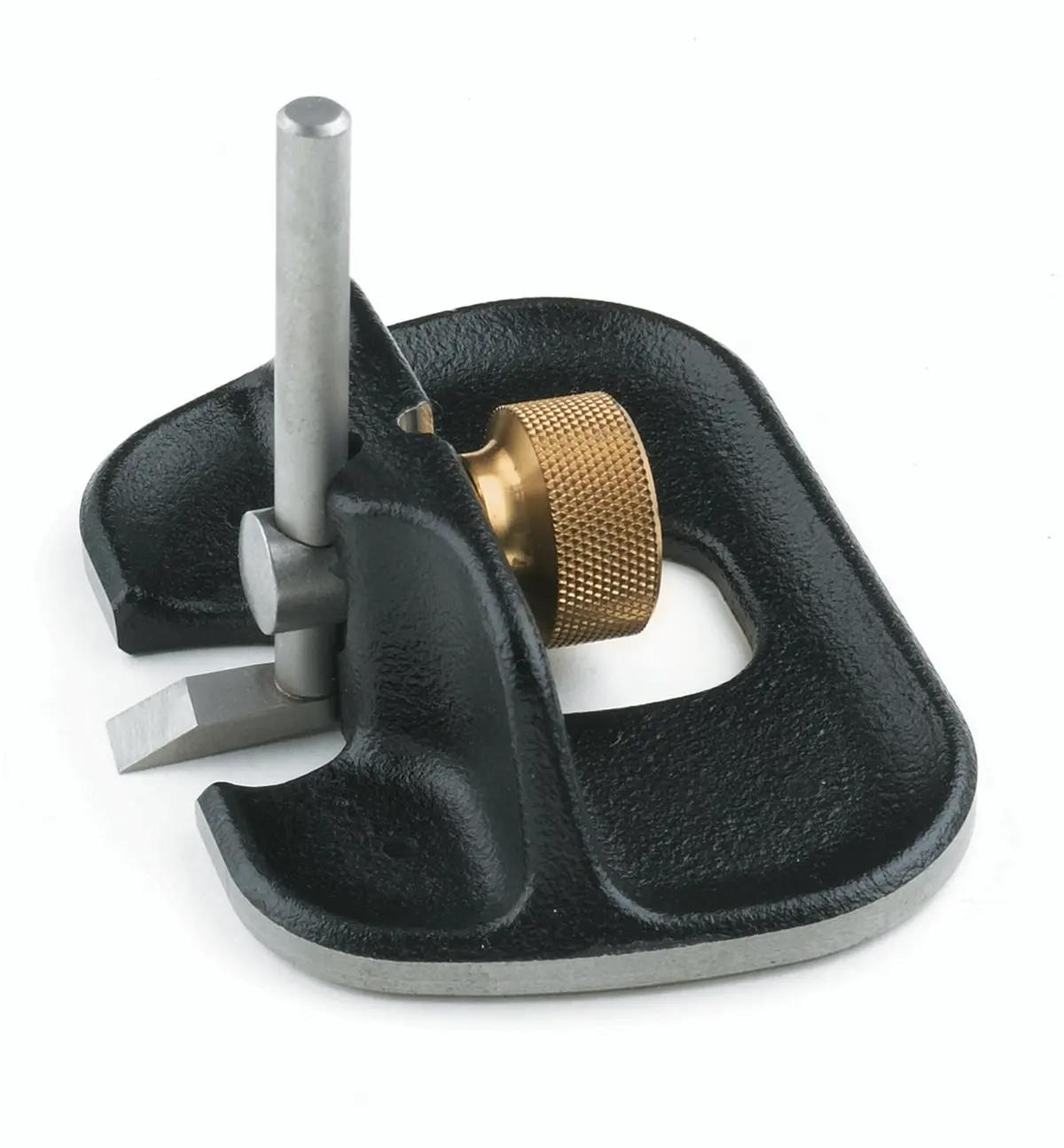

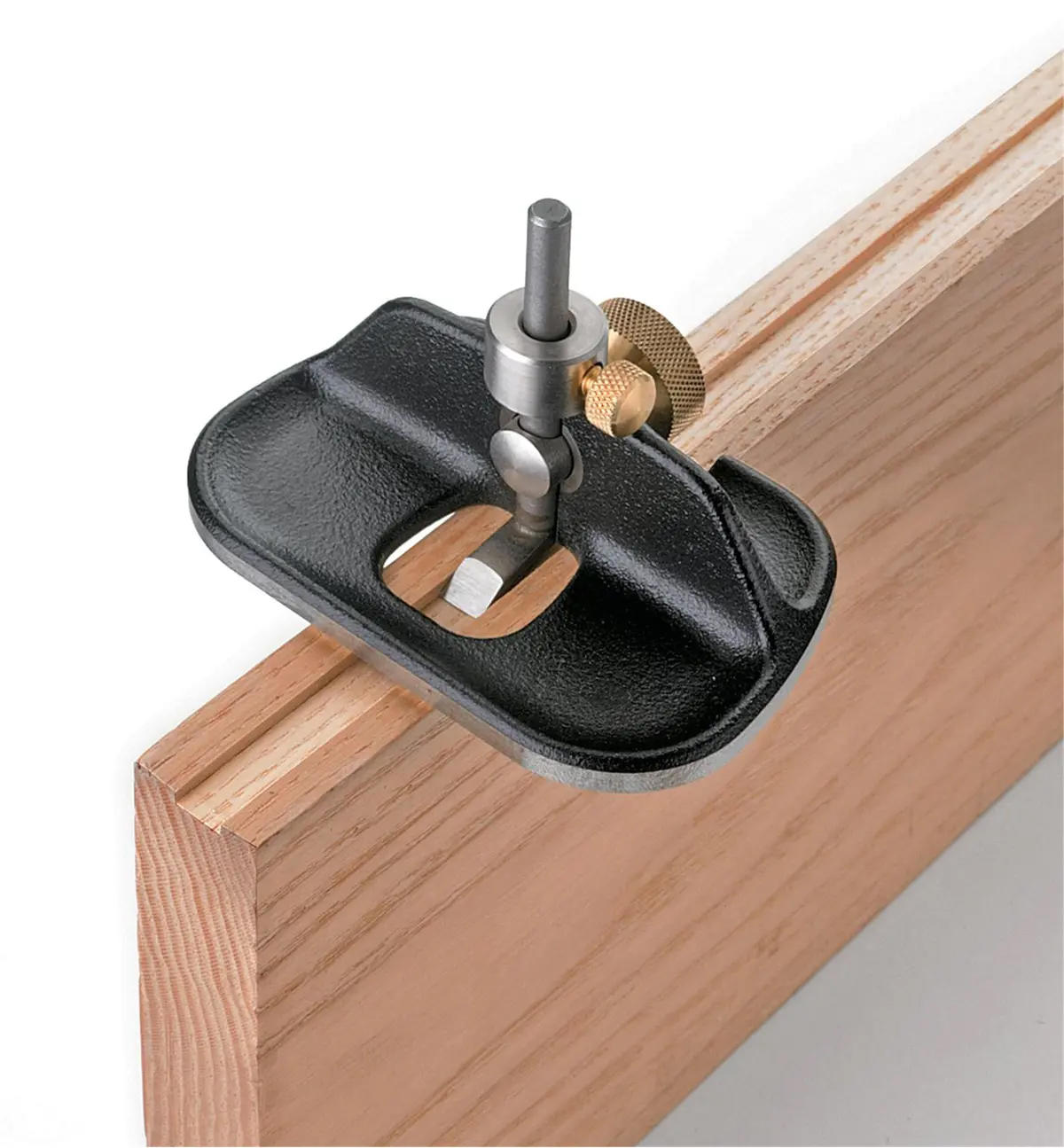

Compact router plane for working on small grooves, rabbets for metal fittings, inlay work, and other recessed areas. The blade can be fixed centrally, enclosed by the sole, or close to the edge with an open sole for cutting in corners. A spring-loaded blade-clamping collar allows precise depth adjustment. Carbon steel blade. 82 x 56 mm.
Veritas® Planes
The corporate philosophy of Canadian tool manufacturer Veritas aims to develop new adjustment mechanisms and enhance historic plane design. With bodies made of stress-relieved spheroidal cast iron, these tools are highly resistant to cracking and distortion. Their soles are perfectly plane and trued at right angles to the sides. Their thick blades of high-strength A2 steel are hardened to 60-62 HRC and additionally subjected to a special low-temperature process to achieve a finer grain. Veritas planes are optionally available with PM-V11 blades. (The Custom series models are equipped with PM-V11 blades as standard). Two setscrews on the sides constrain the blade laterally, keeping it in place regardless of the type of stress applied. Unless otherwise stated, the blade is angled at 45°. With their material combination of finely-ground or black-coated cast iron bodies, polished brass setscrews and beautiful torrefied maple handles, these planes are also pleasing to the eye.
Properties
| Blade material: | A2 steel |
|---|---|
| Blade thickness: | 2.5 mm |
| Blade width: | 6 mm |
| Design / cutting angle: | Others |
| Plane body: | Spheroidal cast iron |
| Purpose: | Cutting grooves, rabbets and profiles |
| Type: | Router planes |
| Weight: | 185 g |
Properties
| Blade material: | A2 steel |
|---|---|
| Blade thickness: | 2.5 mm |
| Blade width: | 6 mm |
| Design / cutting angle: | Others |
| Plane body: | Spheroidal cast iron |
| Purpose: | Cutting grooves, rabbets and profiles |
| Type: | Router planes |
| Weight: | 185 g |
