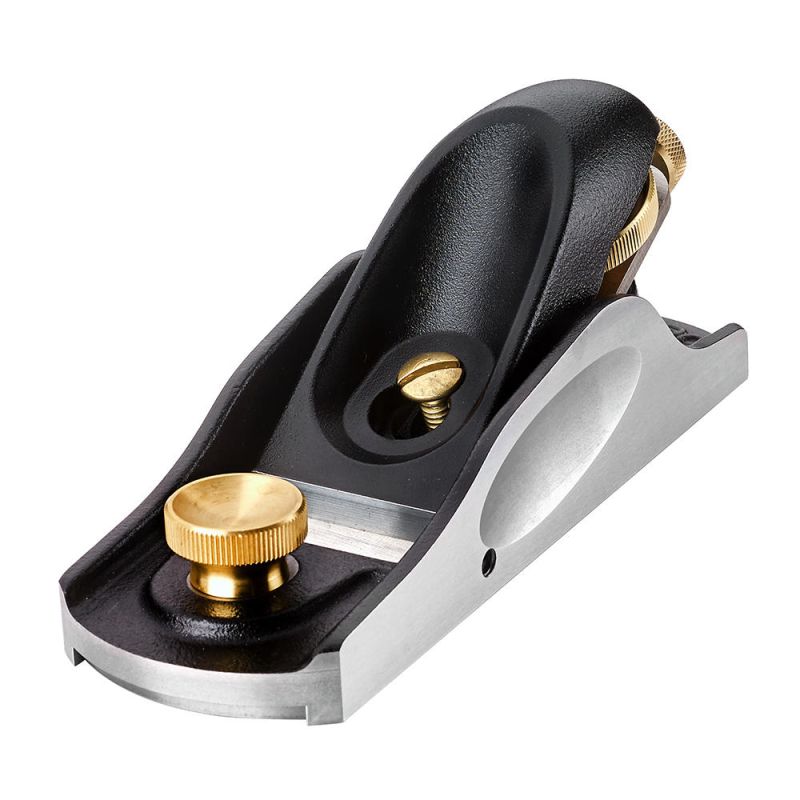

Veritas® Block Plane 20°, A2 Blade
Product no.:
703692
Brand:
Veritas
€214.00 €179.83
per piece
Delivery time 2-3 business days
- Blade material A2 steel
- Blade thickness 3.2 mm
- Blade width 41 mm
- Design / cutting angle Bevel up / cutting angle 40°-45°
- Overall length 160 mm
Description
For heavier cuts with the grain. Bevel angle 25°. Results in a normal cutting angle of 45°.
Compact all-round plane for fine shavings. The mouth opening can be adjusted according to the application, using the configurable shoe (for removing thick or thin shavings). The indentations in the sides make it easier to guide this handy plane accurately. Central setscrew for blade depth and lateral adjustment. Please note: The plane is supplied in two parts (plane body and blade).
Veritas® Planes
The corporate philosophy of Canadian tool manufacturer Veritas aims to develop new adjustment mechanisms and enhance historic plane design. With bodies made of stress-relieved spheroidal cast iron, these tools are highly resistant to cracking and distortion. Their soles are perfectly plane and trued at right angles to the sides. Their thick blades of high-strength A2 steel are hardened to 60-62 HRC and additionally subjected to a special low-temperature process to achieve a finer grain. Veritas planes are optionally available with PM-V11 blades. (The Custom series models are equipped with PM-V11 blades as standard). Two setscrews on the sides constrain the blade laterally, keeping it in place regardless of the type of stress applied. Unless otherwise stated, the blade is angled at 45°. With their material combination of finely-ground or black-coated cast iron bodies, polished brass setscrews and beautiful torrefied maple handles, these planes are also pleasing to the eye.
Properties
| Blade material: | A2 steel |
|---|---|
| Blade thickness: | 3.2 mm |
| Blade width: | 41 mm |
| Design / cutting angle: | Bevel up / cutting angle 40°-45° |
| Overall length: | 160 mm |
| Plane body: | Spheroidal cast iron |
| Purpose: | Smoothing (fine finishing) |
| Type: | Block planes |
| Weight: | 800 g |
Properties
| Blade material: | A2 steel |
|---|---|
| Blade thickness: | 3.2 mm |
| Blade width: | 41 mm |
| Design / cutting angle: | Bevel up / cutting angle 40°-45° |
| Overall length: | 160 mm |
| Plane body: | Spheroidal cast iron |
| Purpose: | Smoothing (fine finishing) |
| Type: | Block planes |
| Weight: | 800 g |
Manufacturer
Veritas Tools steht seit Jahrzehnten für Präzision, Innovation und kompromisslose Qualität – ein Synonym für feinste Handwerkskunst, das weltweit von Holzliebhabern und Profis gleichermaßen geschätzt wird.
