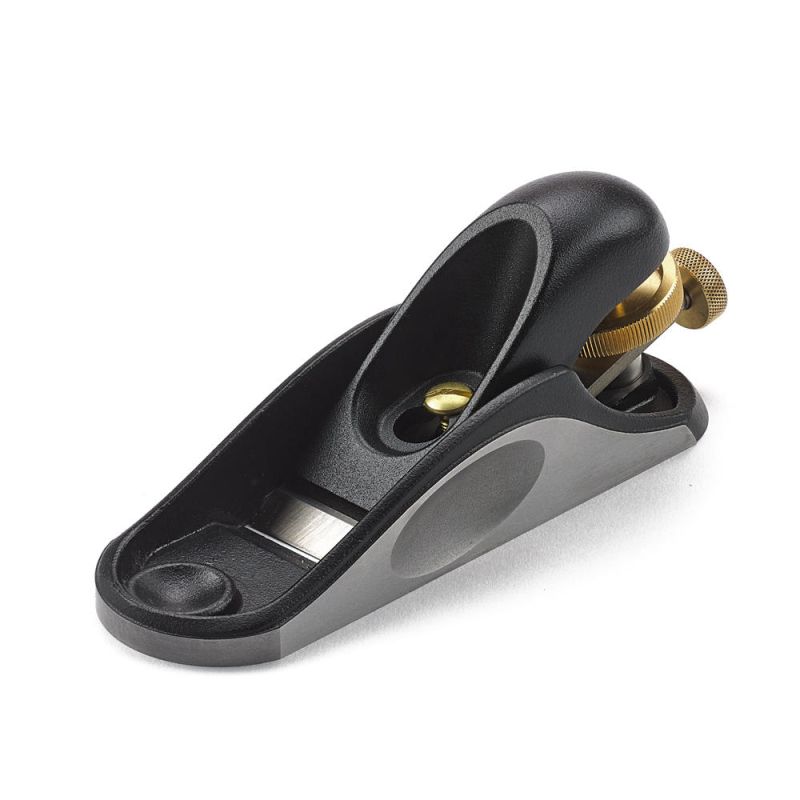

Veritas® Apron Plane, A2 Blade
Product no.:
703695
Brand:
Veritas
€134.00 €112.61
per piece(s)
Back in stock soon
- Blade material A2 steel
- Blade thickness 2.5 mm
- Blade width 32 mm
- Design / cutting angle Bevel up / cutting angle 35°-37° (end grain processing)
- Form Bevel up / cutting angle 35°-37° (end grain processing)
Description
Ideal for cabinetmakers, instrument makers and restorers. Central setscrew for blade depth and lateral adjustment. Non-adjustable mouth. Blade angle 12°, bevel angle 25°. Results in a cutting angle of 37°.
Veritas® Planes
The corporate philosophy of Canadian tool manufacturer Veritas aims to develop new adjustment mechanisms and enhance historic plane design. With bodies made of stress-relieved spheroidal cast iron, these tools are highly resistant to cracking and distortion. Their soles are perfectly plane and trued at right angles to the sides. Their thick blades of high-strength A2 steel are hardened to 60-62 HRC and additionally subjected to a special low-temperature process to achieve a finer grain. Veritas planes are optionally available with PM-V11 blades. (The Custom series models are equipped with PM-V11 blades as standard). Two setscrews on the sides constrain the blade laterally, keeping it in place regardless of the type of stress applied. Unless otherwise stated, the blade is angled at 45°. With their material combination of finely-ground or black-coated cast iron bodies, polished brass setscrews and beautiful torrefied maple handles, these planes are also pleasing to the eye.
Properties
| Blade material: | A2 steel |
|---|---|
| Blade thickness: | 2.5 mm |
| Blade width: | 32 mm |
| Design / cutting angle: | Bevel up / cutting angle 35°-37° (end grain processing) |
| Form: | Bevel up / cutting angle 35°-37° (end grain processing) |
| Overall length: | 140 mm |
| Plane body: | Spheroidal Cast Iron |
| Purpose: | For irregular grain patterns |
| Typ: | Block planes |
| Weight: | 420 g |
Properties
| Blade material: | A2 steel |
|---|---|
| Blade thickness: | 2.5 mm |
| Blade width: | 32 mm |
| Design / cutting angle: | Bevel up / cutting angle 35°-37° (end grain processing) |
| Form: | Bevel up / cutting angle 35°-37° (end grain processing) |
| Overall length: | 140 mm |
| Plane body: | Spheroidal Cast Iron |
| Purpose: | For irregular grain patterns |
| Typ: | Block planes |
| Weight: | 420 g |
