UJK Parf Plus Guide System MK II
Description
Incl. UJK Parf Protractor (also available separately, No. 720842)

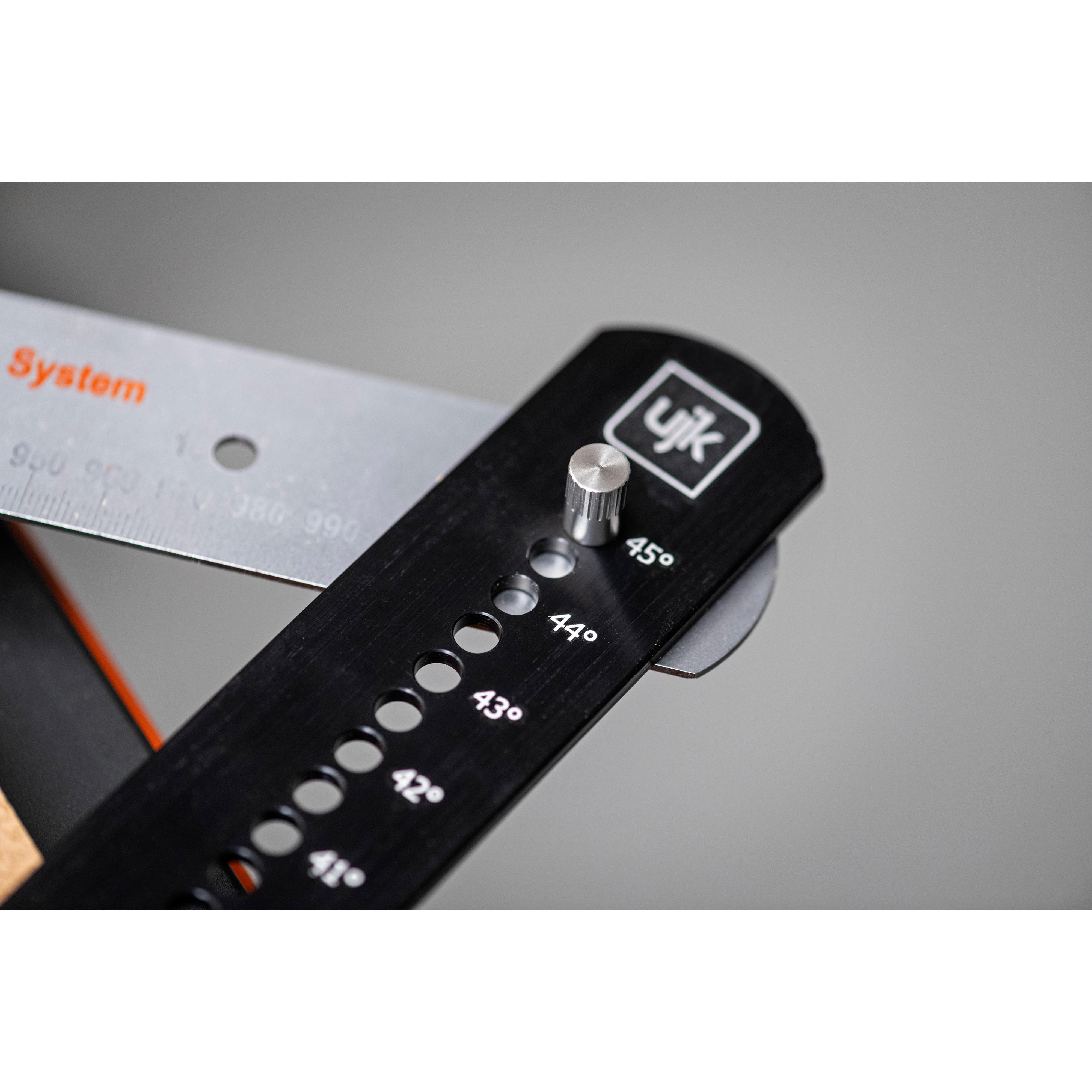

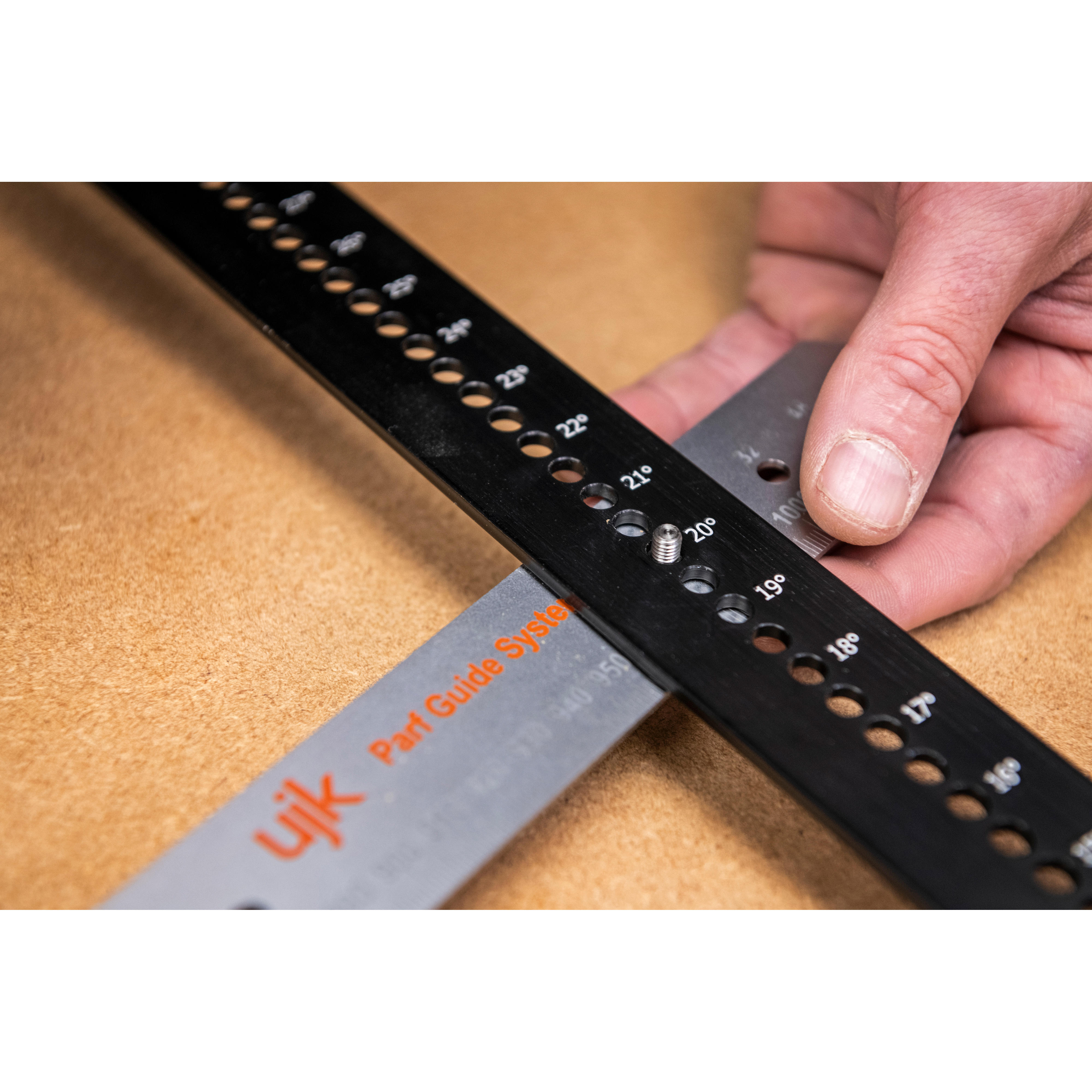

The Parf Protractor is the perfect addition to the UJK Parfguide System MK Ii. Used in conjunction with the proven MK II system, this ingenious accessory allows you to extend the 20 mm hole pattern system to include precise angled drilling in the ranges 0–45° and 45–90°. The scale deliversprecise angle measurements in 0.5° increments.

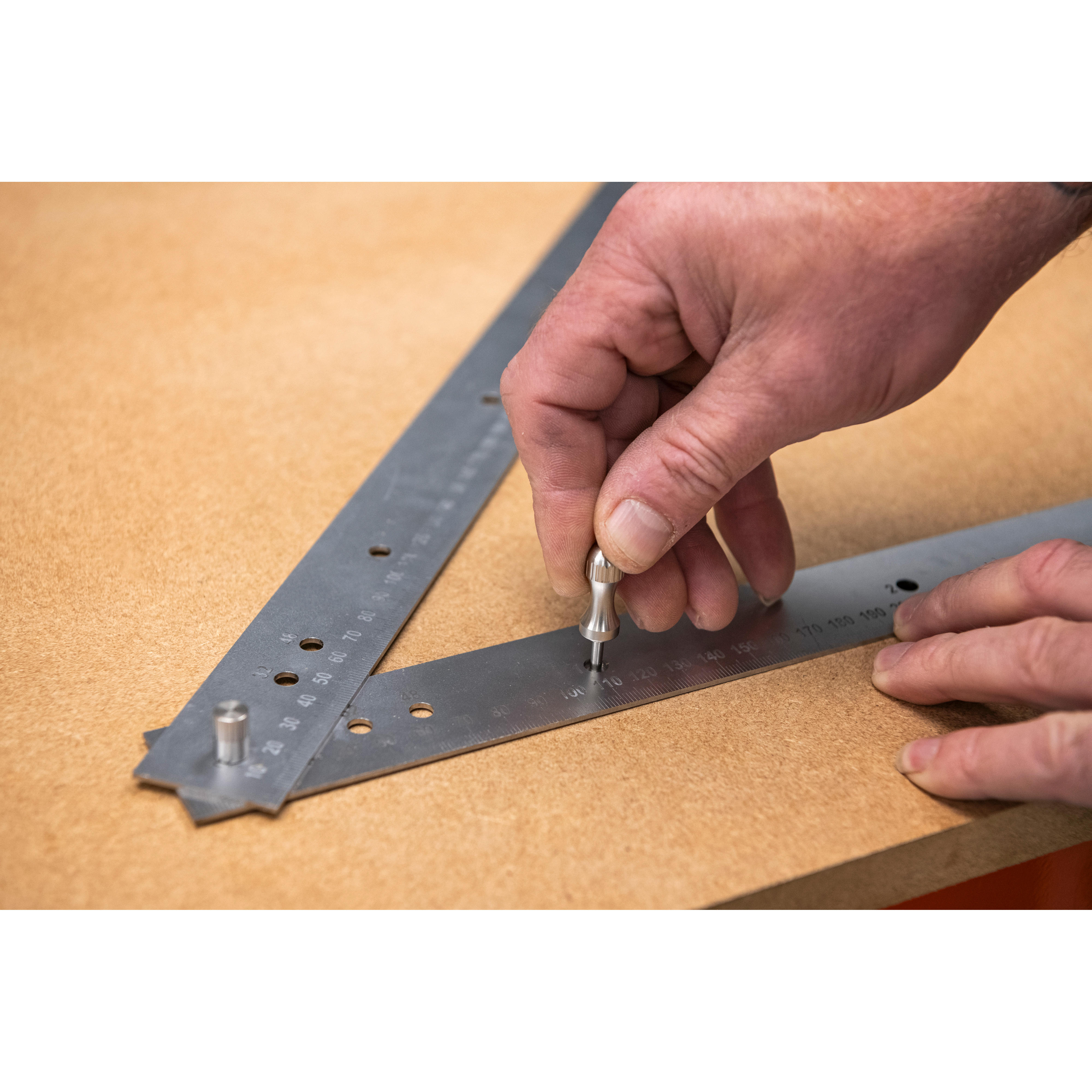

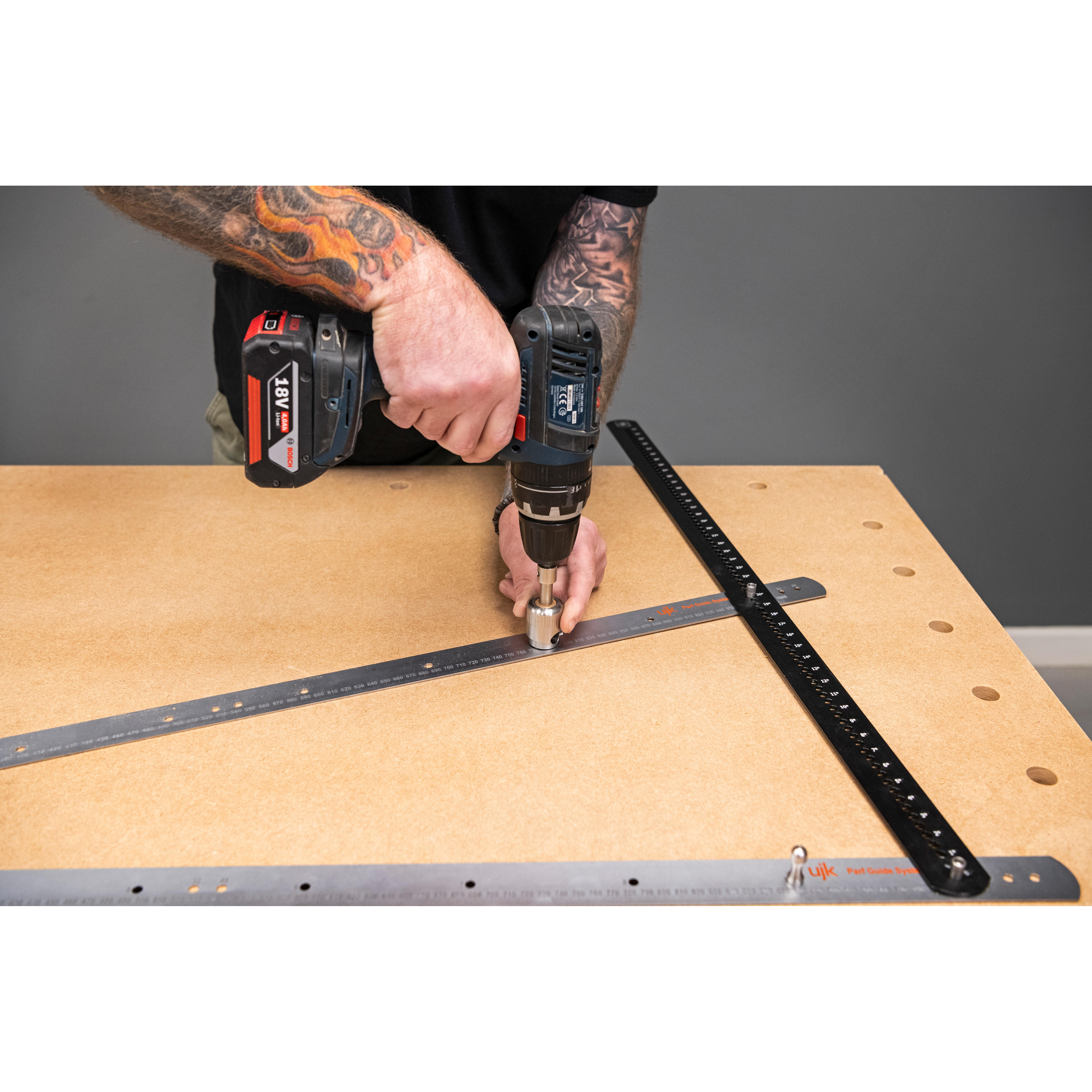

The Parf drilling system is a very precise and fast method for making your own perforated plates for e.g. multifunction tables and workbenches. The 20 mm boreholes in an exact, right-angled grid equipped with Parf Bank Pins or Parf Super Dogs serve as fences for guide rails, e.g. when cutting wood composite boards to size. Whether 90° or 45° cuts, the exact grid ensures precise angles at all times. With two Parf sticks, 3 mm drill guides and guide pins, you can secure the drilling template in the exact position. This makes the hole spacing and perpendicularity as precise as with a CNC machine.
The MK II Parf sticks have additional holes, making it possible to place intermediate holes at a distance of 32 mm or 48 mm, as well as rows of holes at different angles.
The MK II Parf sticks have additional holes, making it possible to place intermediate holes at a distance of 32 mm or 48 mm, as well as rows of holes at different angles.

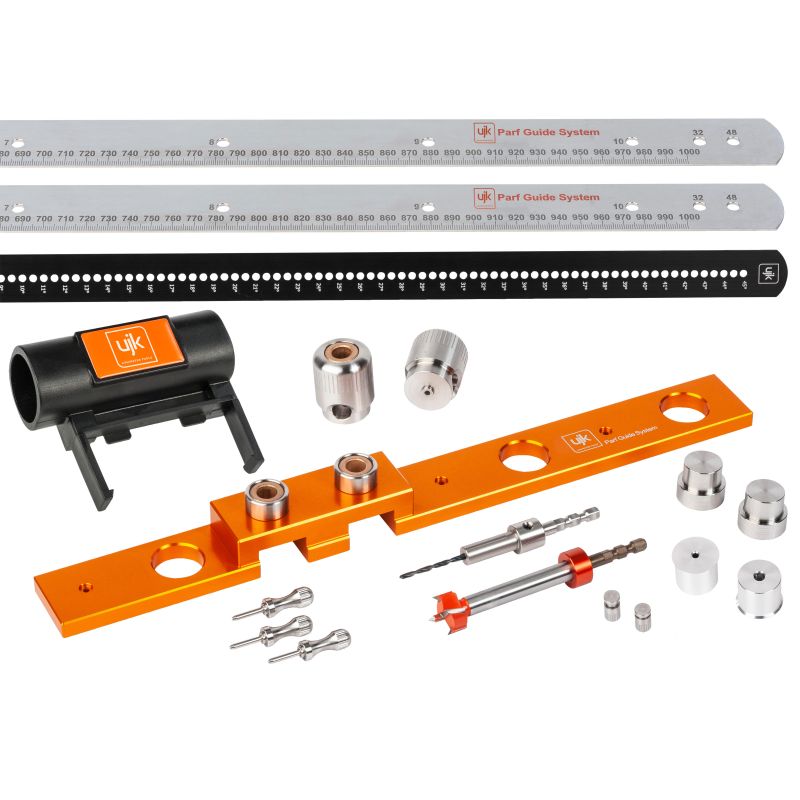

Scope of delivery
- 2 MK II Parf sticks 1 m with mm scale and 96 mm hole spacings
- Parf protractor
- Connecting screws for Parf sticks
- 3 MK II fixing pins Ø 3 mm

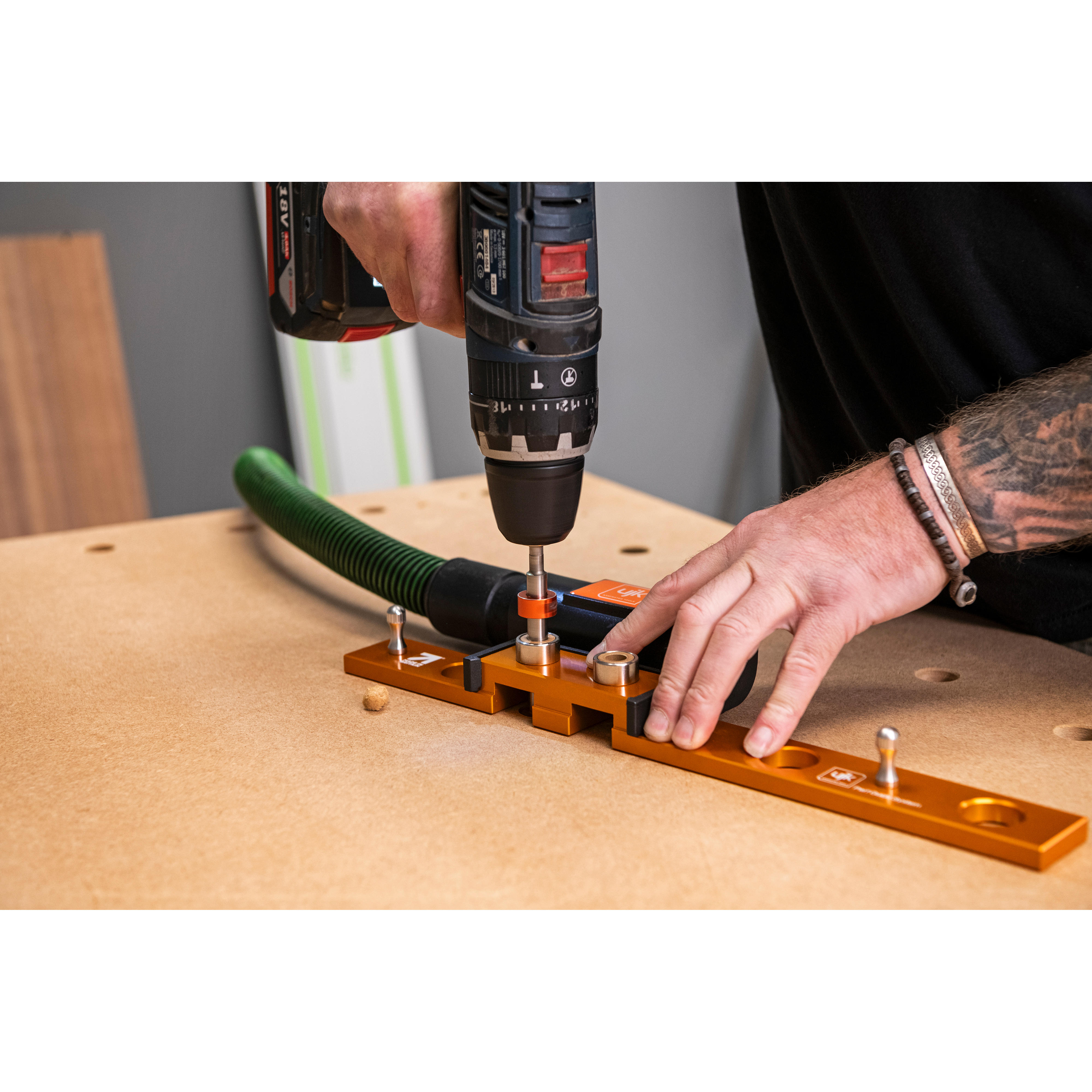

- Drill template with two drill bushes Ø 10 mm
- 2 MK II drill bushes Ø 3 mm
- Pilot drill Ø 3 mm for drill bush, with 1/4 inch hexagonal shaft
- Universal bit Ø 20 mm with 3 mm guide tip, depth adjustment ring and 1/4 inch hexagonal shaft
- 2 positioning pins Ø 20 mm/li>
- 2 alignment dogs
- Dust extraction adaptor, inner diameter 38 mm
Manufacturer
UJK
The ujk technology brand was launched by Axminster in 2012 to offer a range of carefully selected products. The range includes routing, measuring and wood jointing products.
