UJK Parf Long Super Dog
Product no.:
720653
Brand:
UJK
€44.90 €37.73
per piece(s)
In stock, delivery time approx. 2-3 working days
- Durchmesser 20 mm
- Länge 120 mm
Description

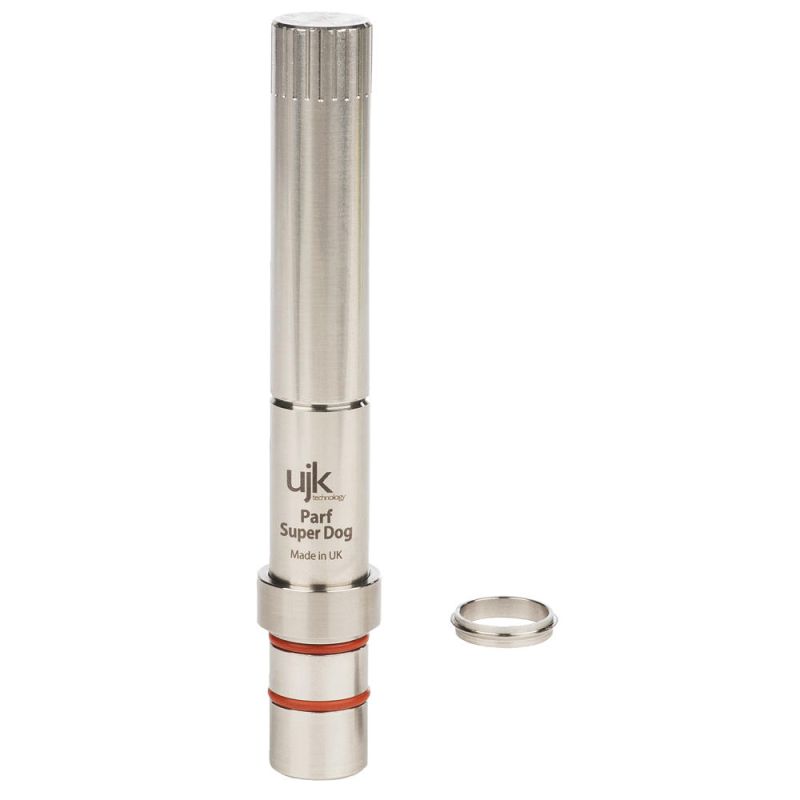

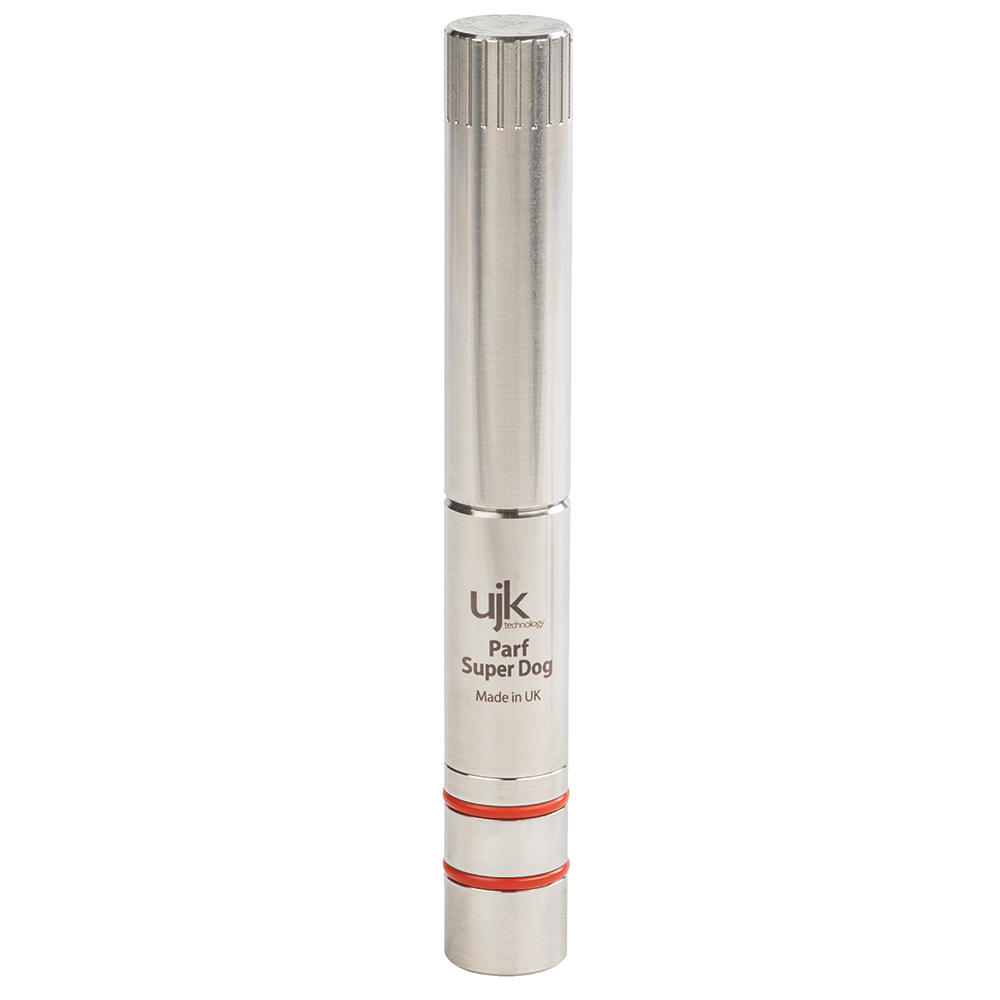

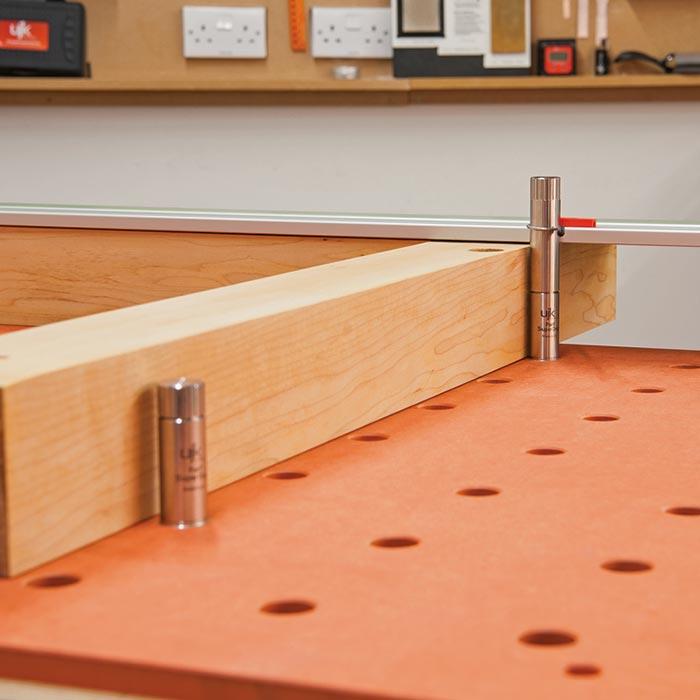

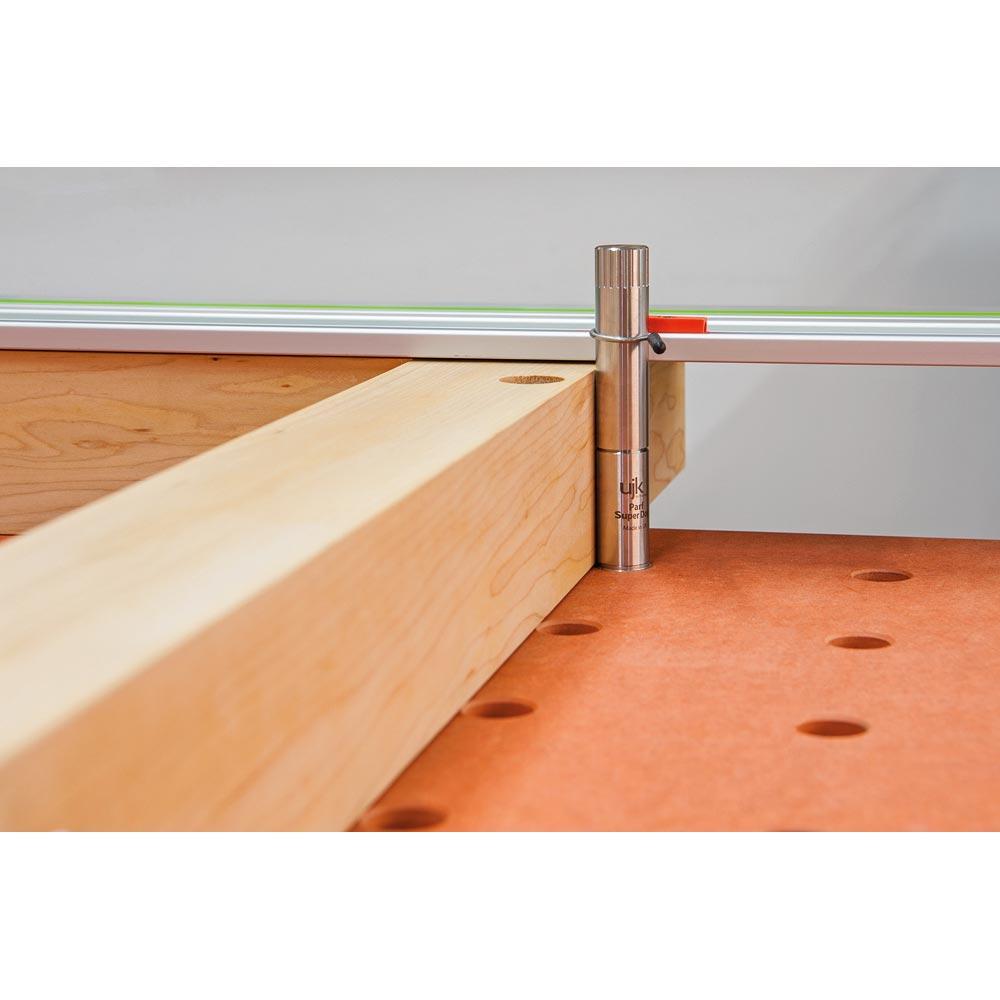

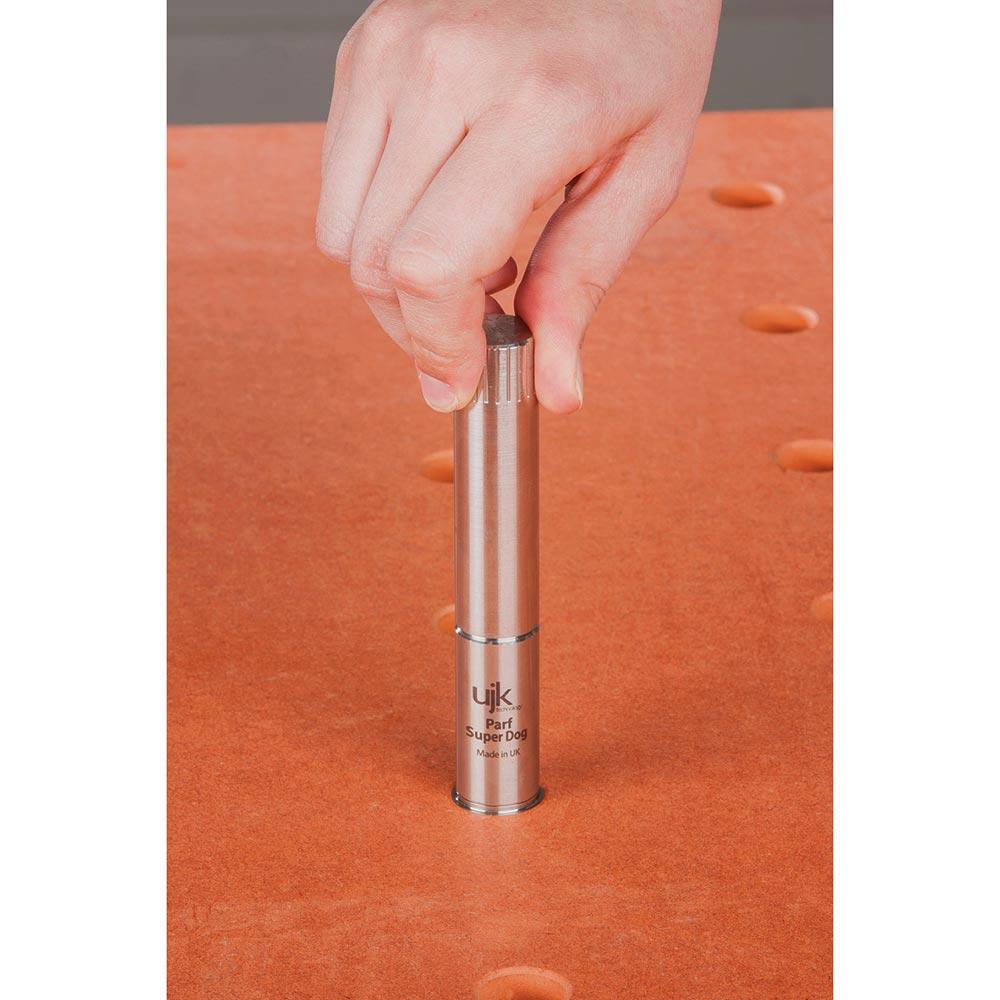

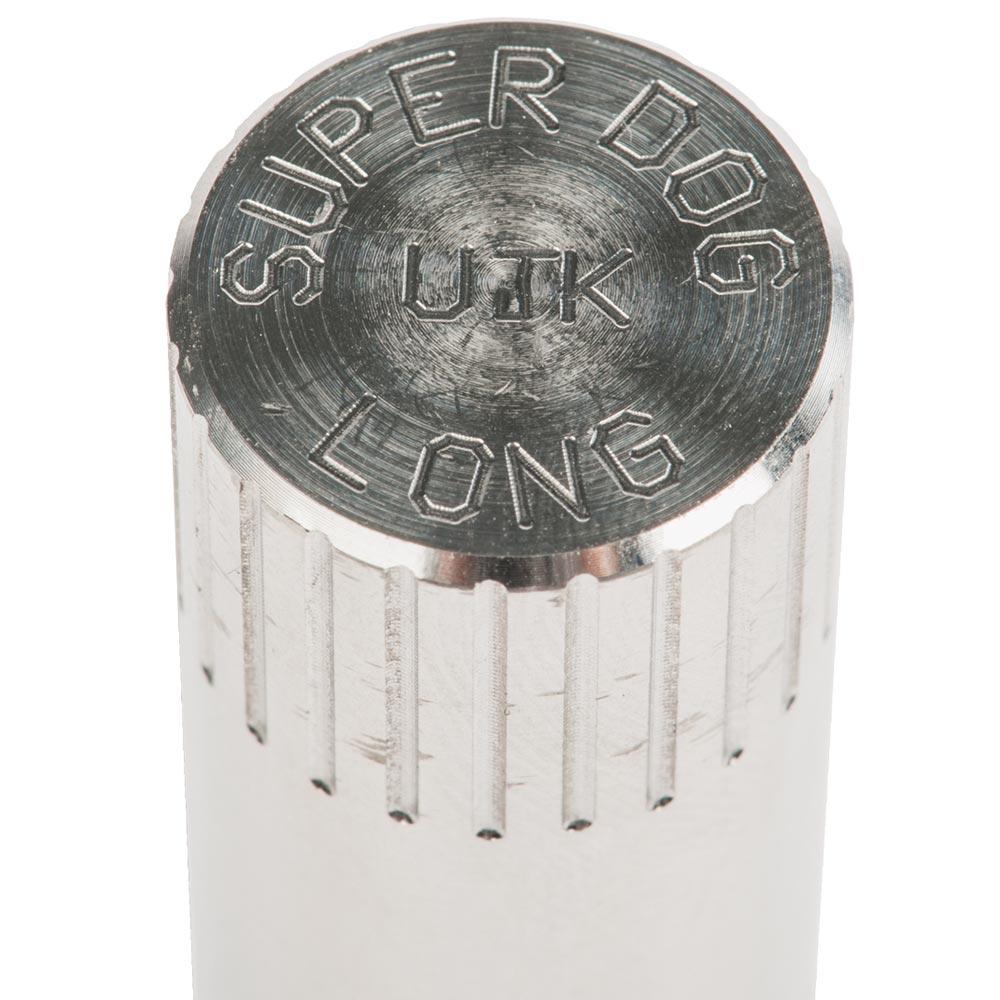

The majority of plunge saws can cut between 40 and 65mm deep. However, when used with a guide track and standard Parf dogs on a multifunction workbench, the setup is generally limited to cutting sheet material. The UJK Technology Parf Long Super Dog removes this limitation, opening a completely new range of joinery and carpentry possibilities. The 120 mm projection allows you to cut much thicker timber, taking full advantage of your saw’s depth of cut. Precise CNC manufacturing from 303 stainless steel to exceptionally fine tolerances ensures precision and a lifetime of accuracy. Parf Long Super Dogs precisely match the holes made by the UJK Technology 20 mm cutter. They are compatible with the Festool MFT/3 and self-built grid tables made using UJK Technology Parf Guide System. Push the Long Super Dog into a hole, simply twist the top and it’s rock solid. A simple twist of the top in the opposite direction releases the dog. The Parf Super Dog comes with two interchangeable collars (Ø 25 mm original parf dog geometry and a chamfered stop collar). The stop collar provides a register ensuring the dog sits exactly at 90° to the work surface when locked in place. We recommend using the Parf Dog Rail Clip (N° 707987) with the Long Super Dogs. Supplied with two spare O rings.
Properties
| Durchmesser: | 20 mm |
|---|---|
| Länge: | 120 mm |
Properties
| Durchmesser: | 20 mm |
|---|---|
| Länge: | 120 mm |
