»Profi« Wood Threading Tool, 2-Piece Set, 13 mm
Product no.:
714139
Brand:
DICTUM
€167.00 €140.34
per piece(s)
Delivery time approx. 3-5 working days
- Pitch 8
- Rod diameter 13 mm
- Square shaft 8 mm
Description
Fits core hole drill 11 mm No. 708238.

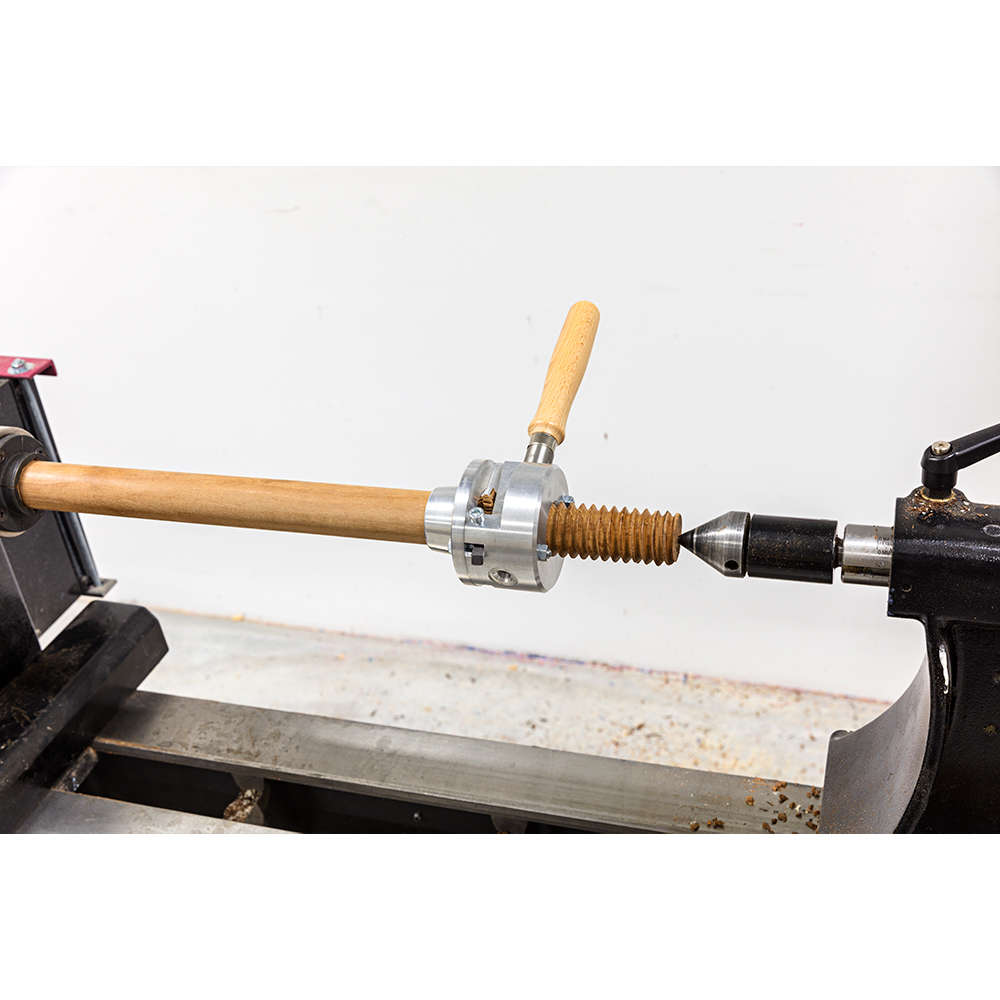

This cutting set for internal and external threads is manufactured in Germany and impresses with its high-quality workmanship and sophisticated design. For making practical wooden threads with a virtually unlimited number of applications for the production of furniture, shelves, toys, nutcrackers, lamps, etc.

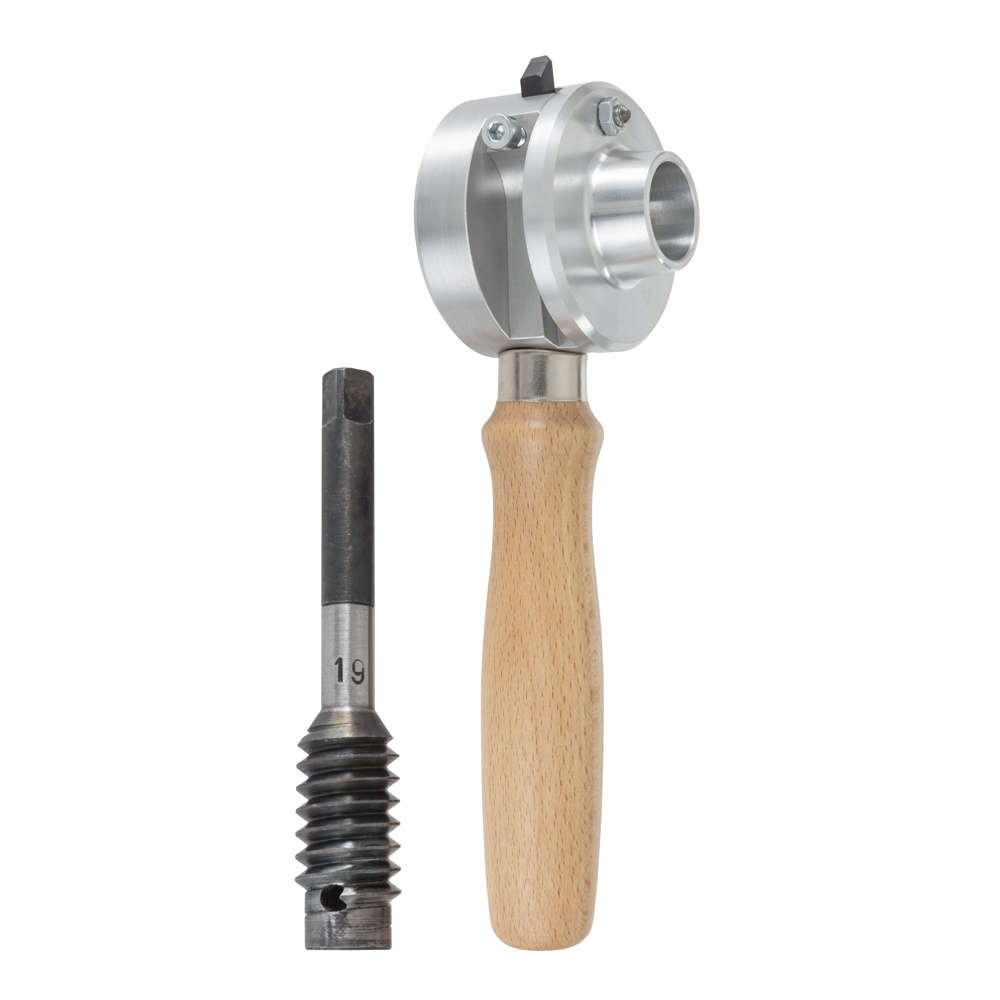

Threading box:
Tap:

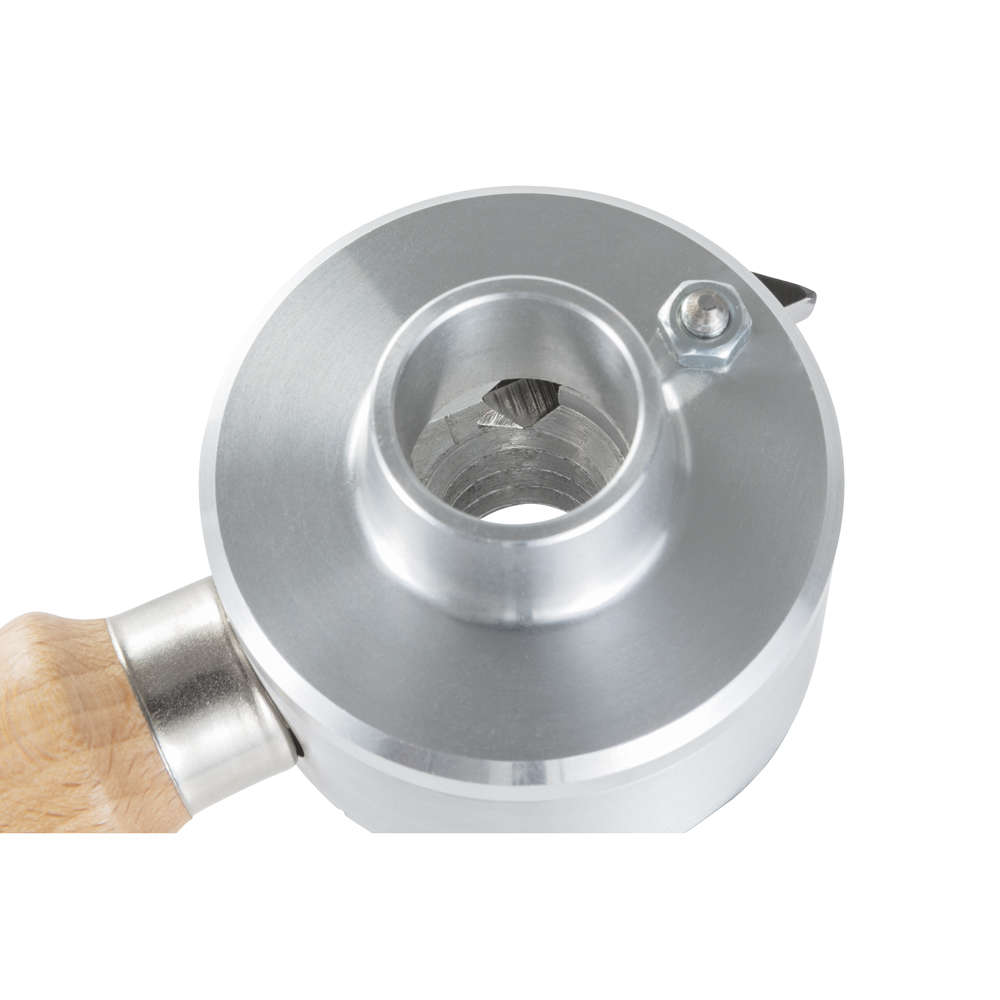

Threading box:
- Generously sized chip removal mouth reduces the risk of clogging and offers visibility of the cutting process
- Wear-resistant aluminium bushing for accurate dowel rod guidance

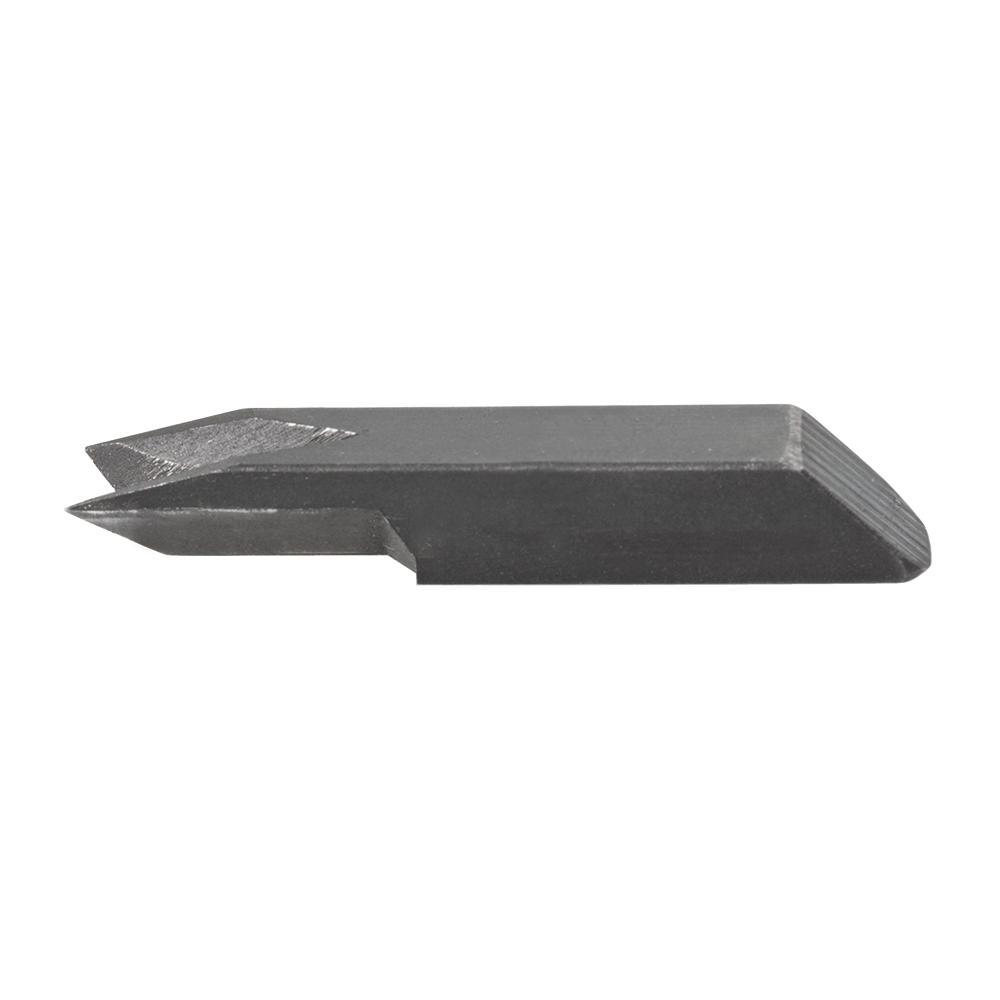

- Since the back of the blade lies on a thread flank, it can be quickly and precisely positioned on the flight circle and is supported during the cutting process
Tap:
- Guiding pin for precise guidance in the drill hole
- Square shaft, for use with tap wrenches allows for optimum force transmission
The threading tools from 38 mm are equipped with two blades and those from 32 mm with two handles. Due to the precise guidance of the dowel rod in the bushing, the second handle plays a decisive role for force transmission and not for precision when fitting. The pitch indicates the threads per inch. Fits dowel rods made of maple No. 831549, 831550 and 831552. Comes with instruction manual
Properties
| Pitch: | 8 |
|---|---|
| Rod diameter: | 13 mm |
| Square shaft: | 8 mm |
Properties
| Pitch: | 8 |
|---|---|
| Rod diameter: | 13 mm |
| Square shaft: | 8 mm |
