Pégas® Scroll Bandsaw SRP13 DUAL
Product no.:
716427
Brand:
Pégas
€1,199.00 €1,007.56
per piece(s)
Bulky goods – delivery approx. 3–5 business days within Germany.
For international delivery, please contact our customer service at +49 (0)9931 4058-901.
For international delivery, please contact our customer service at +49 (0)9931 4058-901.
In stock, delivery time approx. 3-5 working days
- Blade length 2300 mm
- Blade width min./max. 1 to 16 mm
- Cutting Speed 360 and 720 m/min
- Dimensions (L x W x H) 1625 x 890 x 700 mm (incl. base frame)

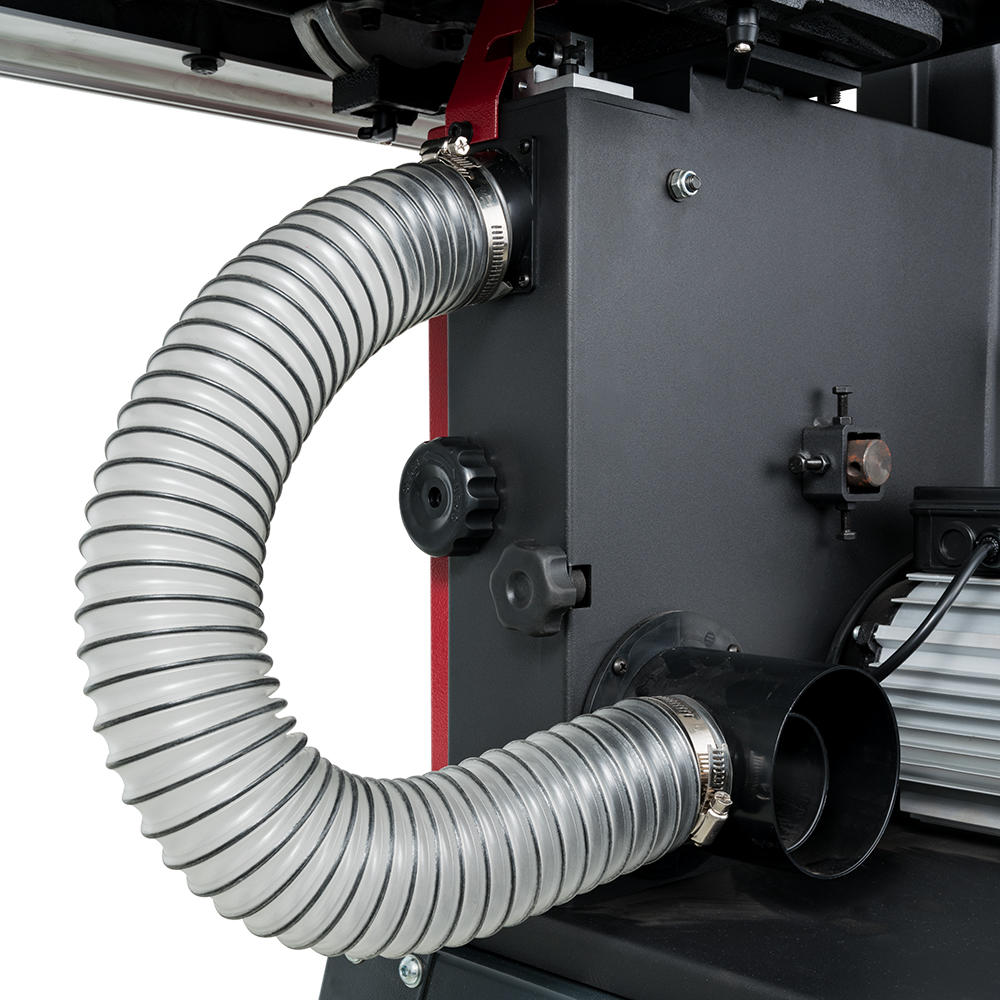

- Exhaust Nozzle Ø 100 mm
Bulky goods – delivery approx. 3–5 business days within Germany.
For international delivery, please contact our customer service at +49 (0)9931 4058-901.
For international delivery, please contact our customer service at +49 (0)9931 4058-901.
In stock, delivery time approx. 3-5 working days
Description

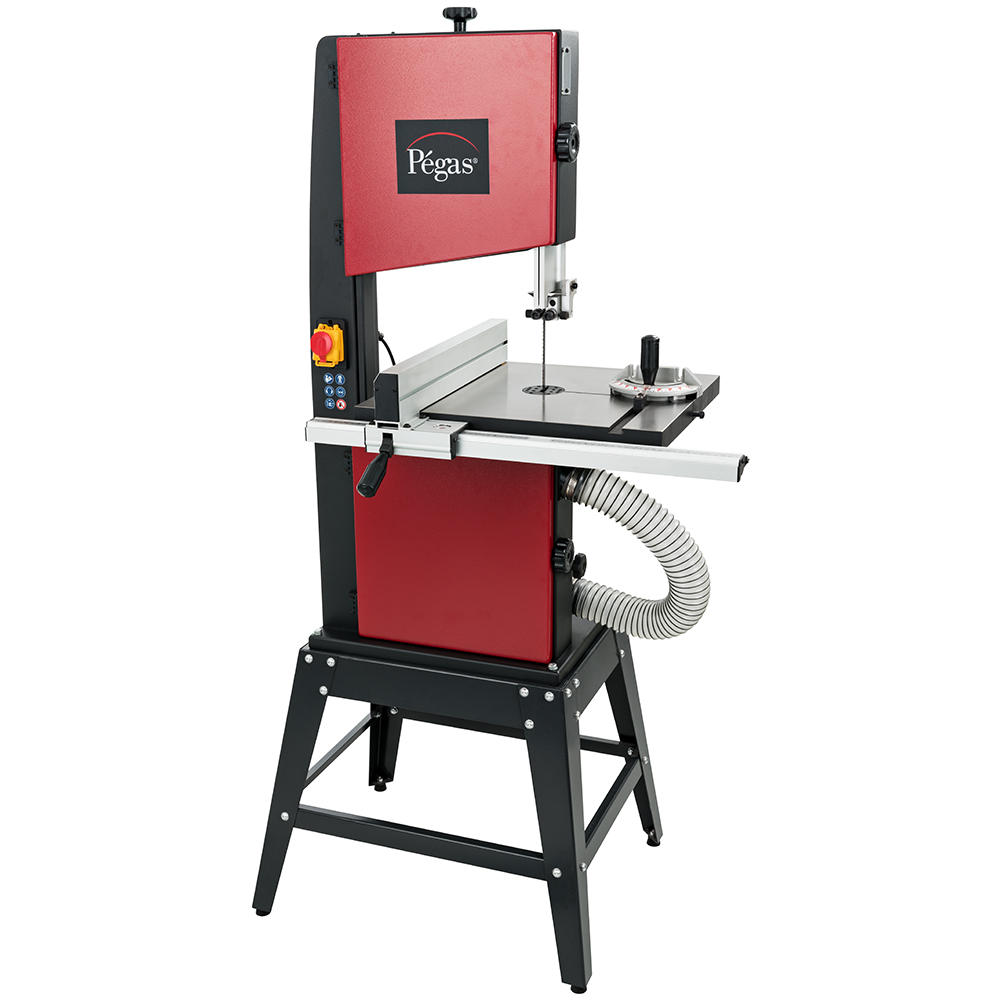

The SRP13 DUAL bandsaw by Pégas combines two machines in one – a scroll bandsaw and a standard bandsaw. With the optional sanding belt guide (available separately), the machine can also be converted into a belt sander, providing even greater versatility.
Switching between the classic blade guide, the Pégas precision guiding system, or the sanding belt setup takes just a few minutes.

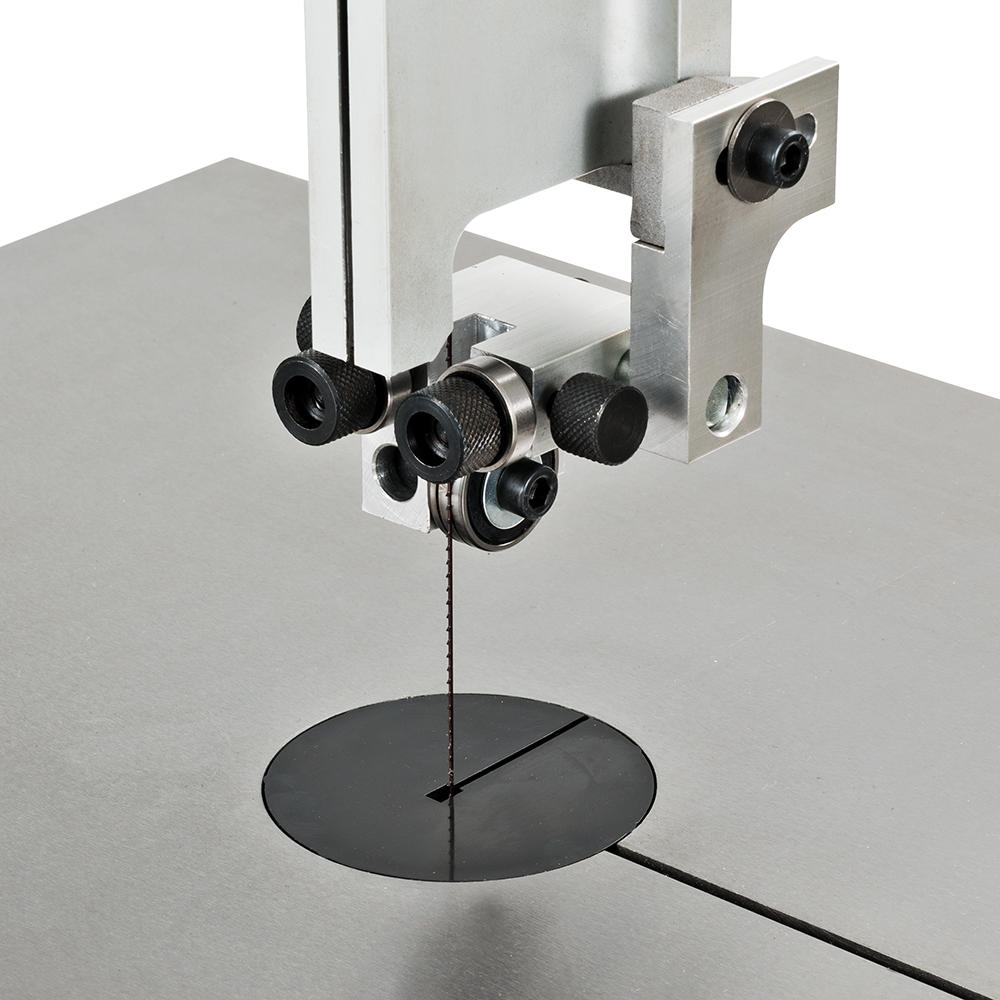

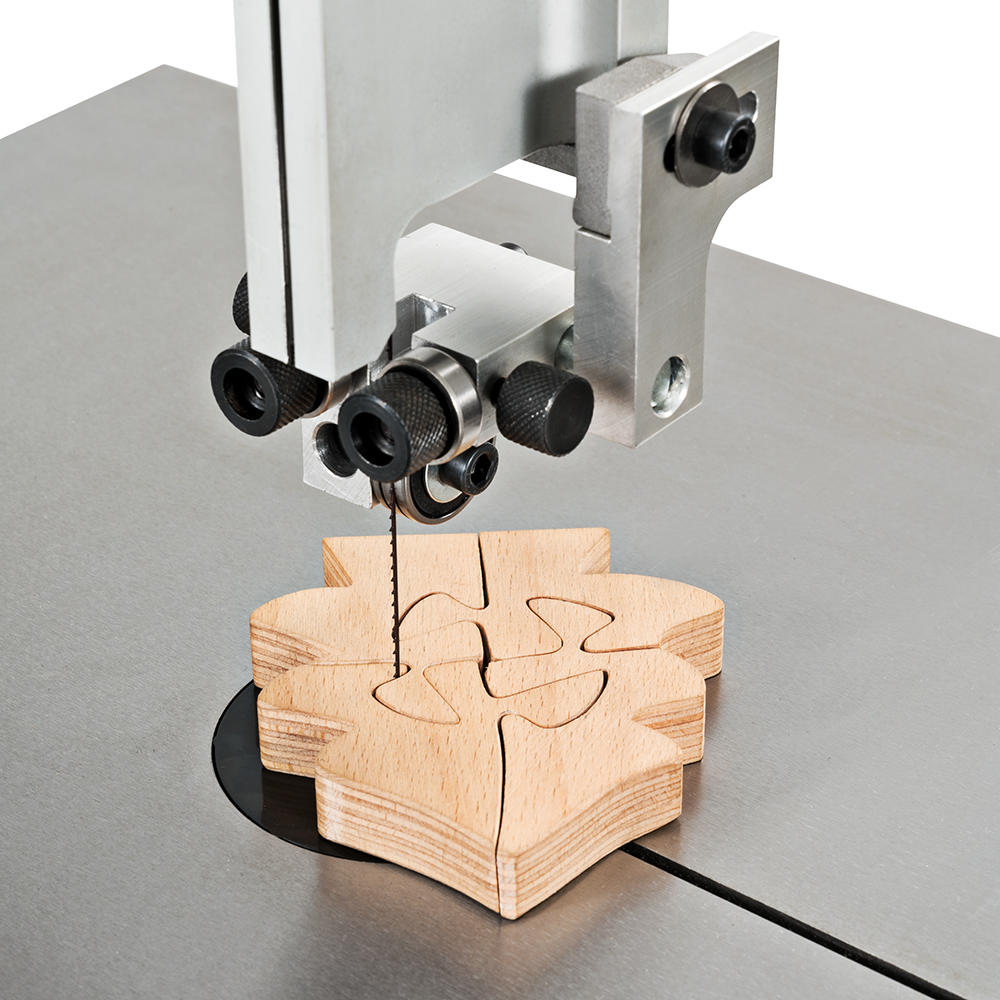

Scroll bandsaw: Equipped with the world’s finest and most precise saw blades, this bandsaw enables intricate woodworking, comparable only to what is typically achieved with scroll saws. The specially developed precision guiding system features roller bearings with guide grooves tailored to the respective scroll bandsaw blade. This ensures that the ultra-thin scroll bandsaw blades, ranging from 1.02 to 3 mm in width, are perfectly guided, prevented from twisting, and capable of performing the most delicate cuts, even for complex shapes and tight radii of less than 2 mm.

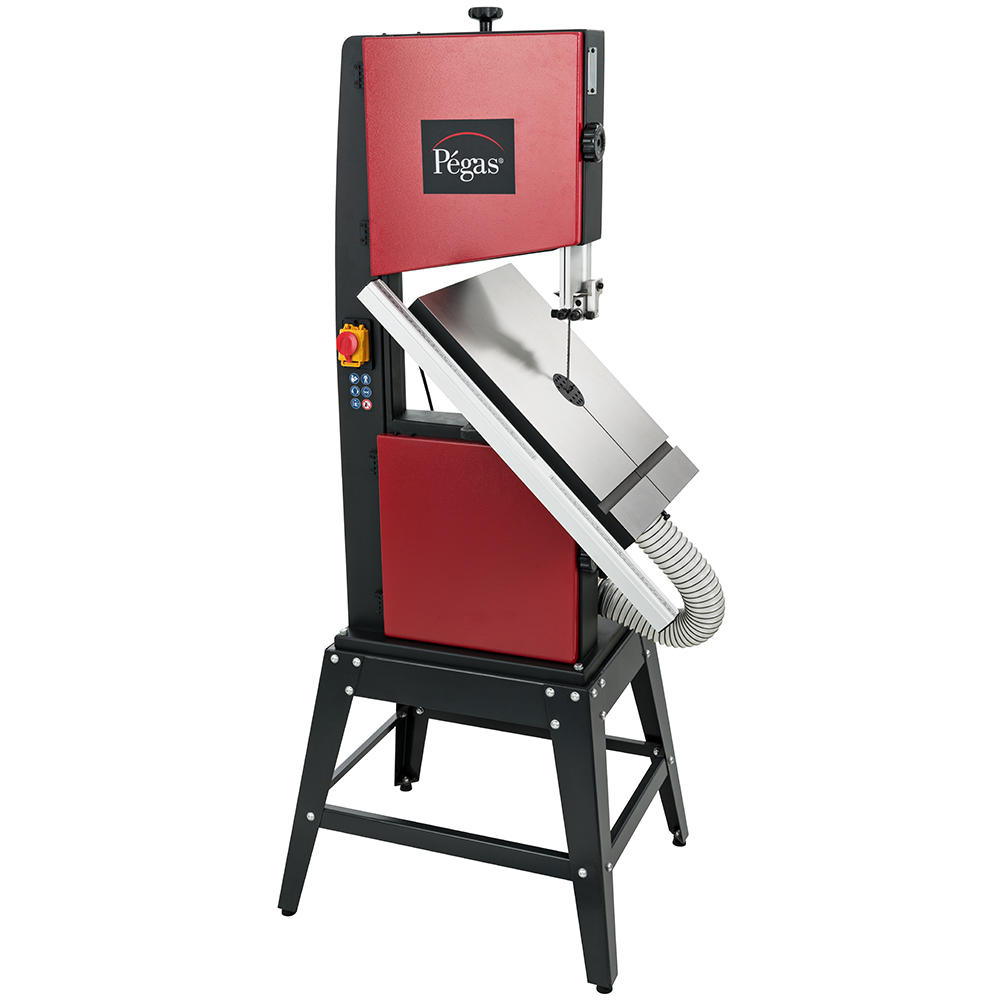

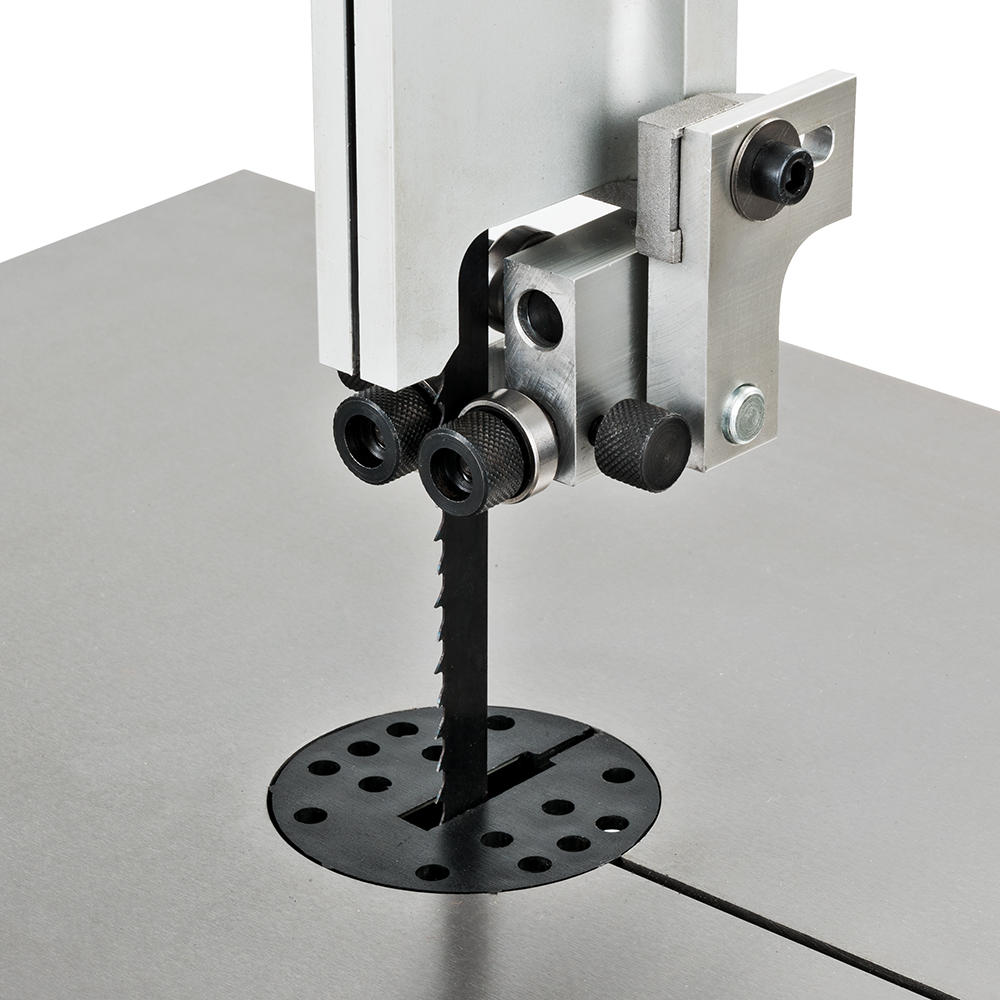

Standard bandsaw: When converted and equipped with the included standard blade guide, blades ranging from 6 to 16 mm in width can be used. The wider and sturdier saw blades facilitate rougher cutting tasks, rip cuts, and straight kerfs. The machine offers all the features typically expected from a bandsaw. The solid cast iron table can be tilted from -5° to +45° and contains a 19 mm T-slot for guiding the supplied mitre gauge (-60° to +60°). The rip fence made of aluminium profile includes an integrated magnifying glass for easier reading of the mm/inch scale.

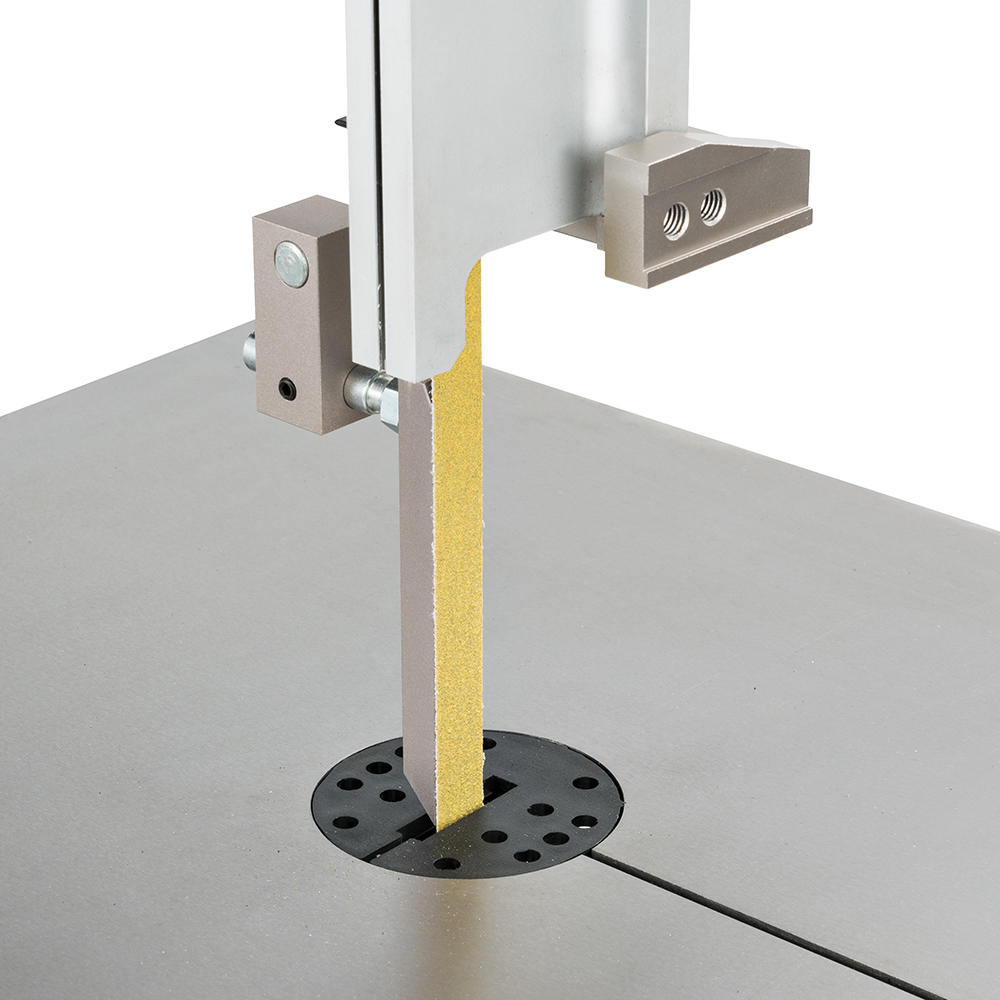

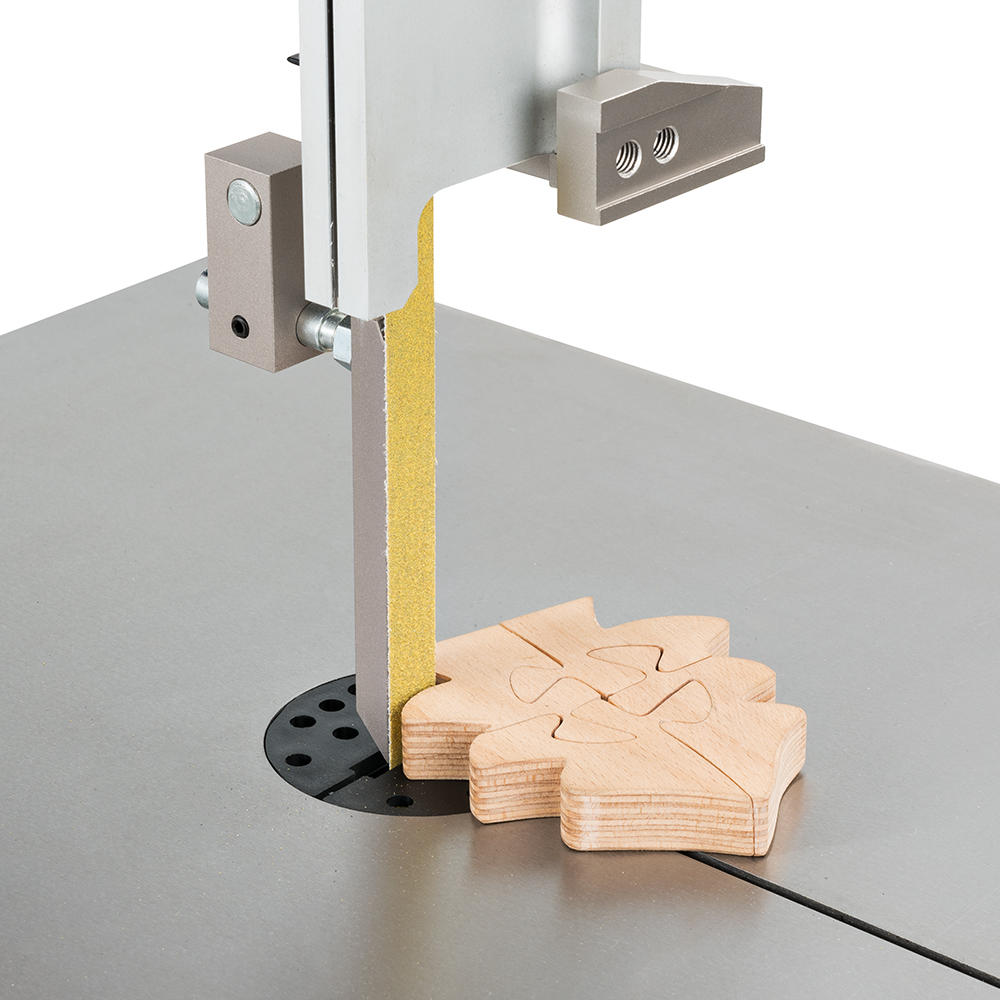

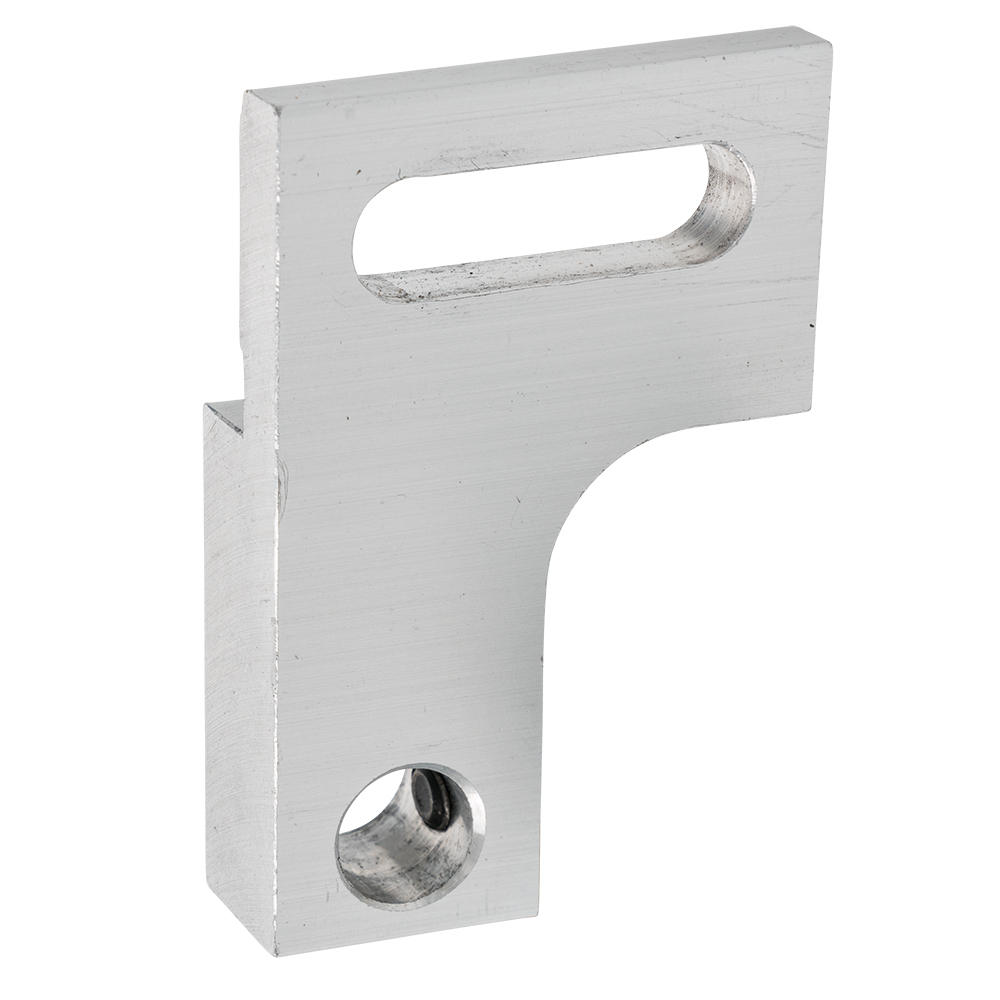

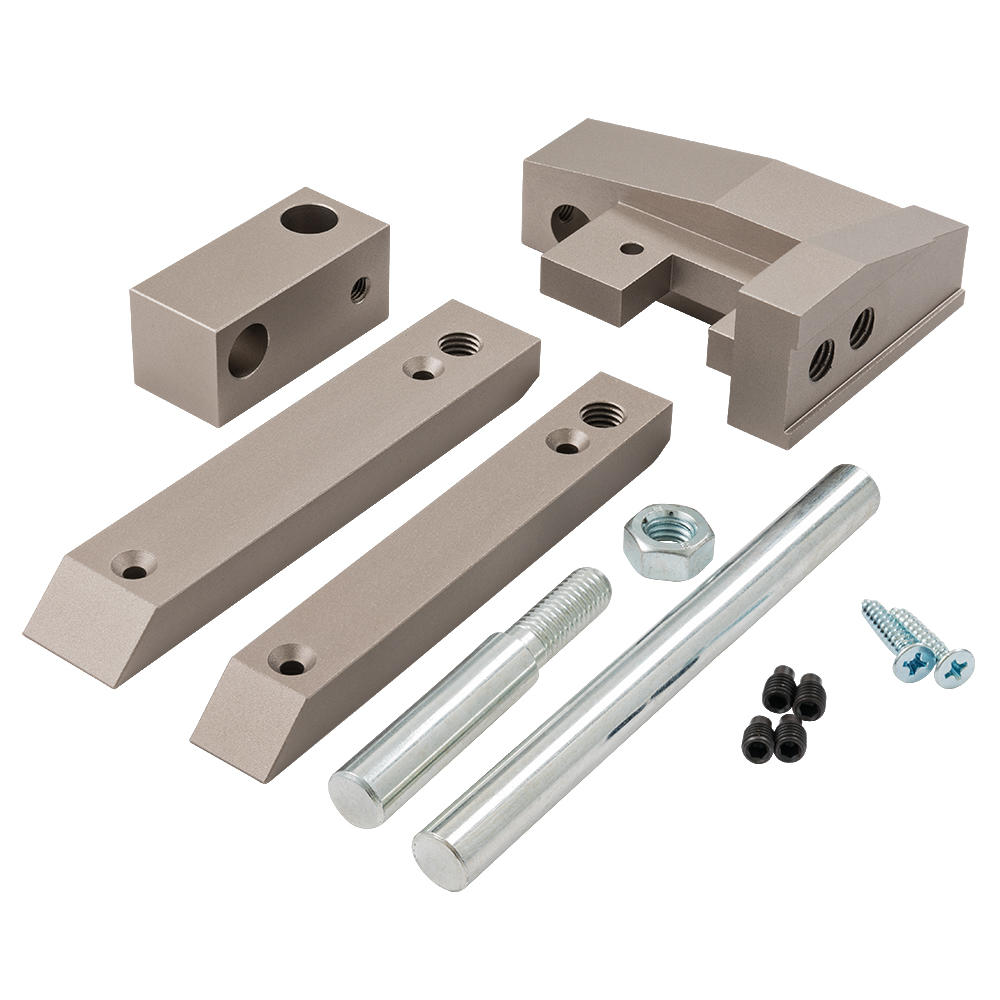

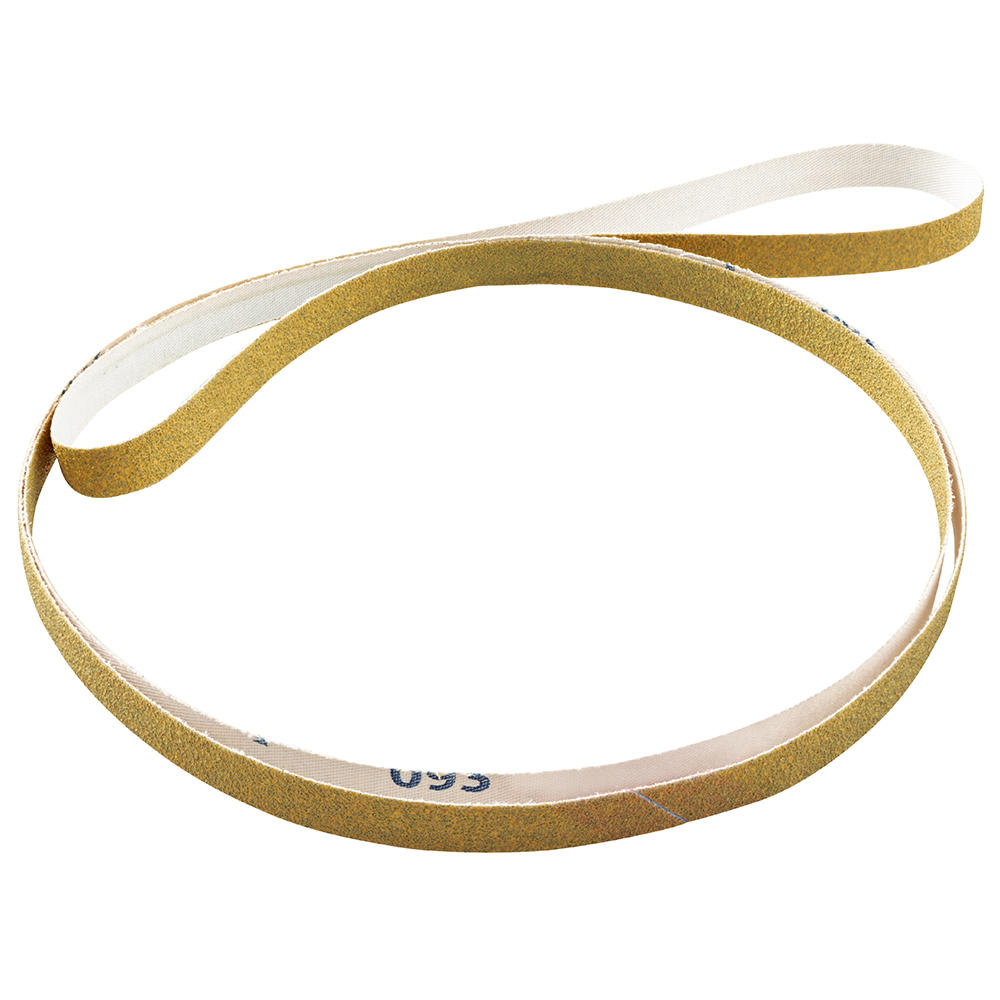

Belt sander: The optional DICTUM sanding belt guide No. 714784 transforms the SRP13 DUAL into a fully functional belt sander. The narrow sanding belts are ideal for fine work on tight curves and corners. Thanks to the specially designed mounting saddle (adapter bracket No. 801056 required), the sanding belt guide can be attached to the Pégas SRP13 DUAL and used in combination with both bandsaw guiding systems.
Further benefits:
Switching between the classic blade guide, the Pégas precision guiding system, or the sanding belt setup takes just a few minutes.
Scroll bandsaw: Equipped with the world’s finest and most precise saw blades, this bandsaw enables intricate woodworking, comparable only to what is typically achieved with scroll saws. The specially developed precision guiding system features roller bearings with guide grooves tailored to the respective scroll bandsaw blade. This ensures that the ultra-thin scroll bandsaw blades, ranging from 1.02 to 3 mm in width, are perfectly guided, prevented from twisting, and capable of performing the most delicate cuts, even for complex shapes and tight radii of less than 2 mm.
Standard bandsaw: When converted and equipped with the included standard blade guide, blades ranging from 6 to 16 mm in width can be used. The wider and sturdier saw blades facilitate rougher cutting tasks, rip cuts, and straight kerfs. The machine offers all the features typically expected from a bandsaw. The solid cast iron table can be tilted from -5° to +45° and contains a 19 mm T-slot for guiding the supplied mitre gauge (-60° to +60°). The rip fence made of aluminium profile includes an integrated magnifying glass for easier reading of the mm/inch scale.
Belt sander: The optional DICTUM sanding belt guide No. 714784 transforms the SRP13 DUAL into a fully functional belt sander. The narrow sanding belts are ideal for fine work on tight curves and corners. Thanks to the specially designed mounting saddle (adapter bracket No. 801056 required), the sanding belt guide can be attached to the Pégas SRP13 DUAL and used in combination with both bandsaw guiding systems.
Further benefits:

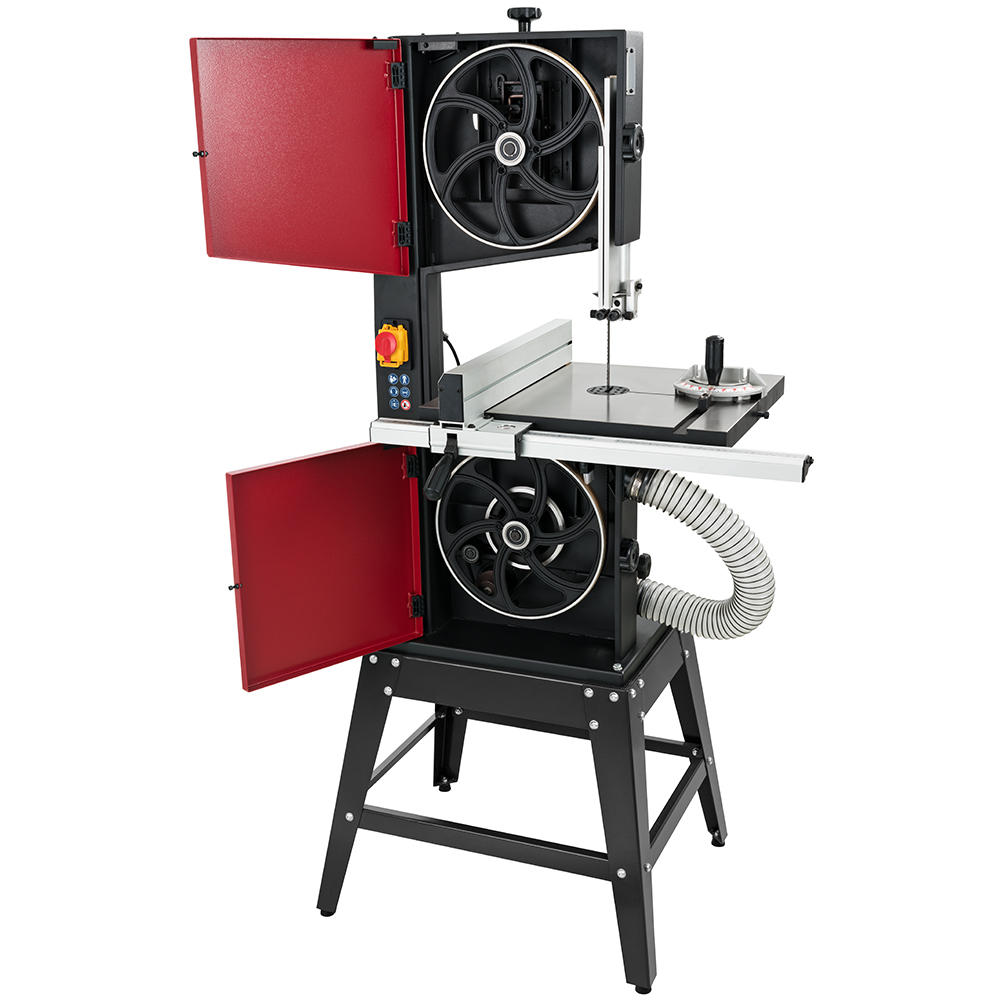

- The machine, including the two doors, is made entirely of sheet steel.
- Safety switches on the doors prevent the machine from operating when a door is open.
- The on/off switch with undervoltage release prevents unintentional start-up.
- Two blade speeds ensure optimal work results.
- Balanced aluminium wheels with rubber coating.
- High tare weight, approx. 70 kg, for excellent stability and smooth running.
Scope of delivery
- Scroll bandsaw blade No. 9 (2305 x 1.34 x 0.44 x 2.43 mm)
- Scroll bandsaw blade No. 12 (2305 x 2 x 0.5 x 2.85 mm)

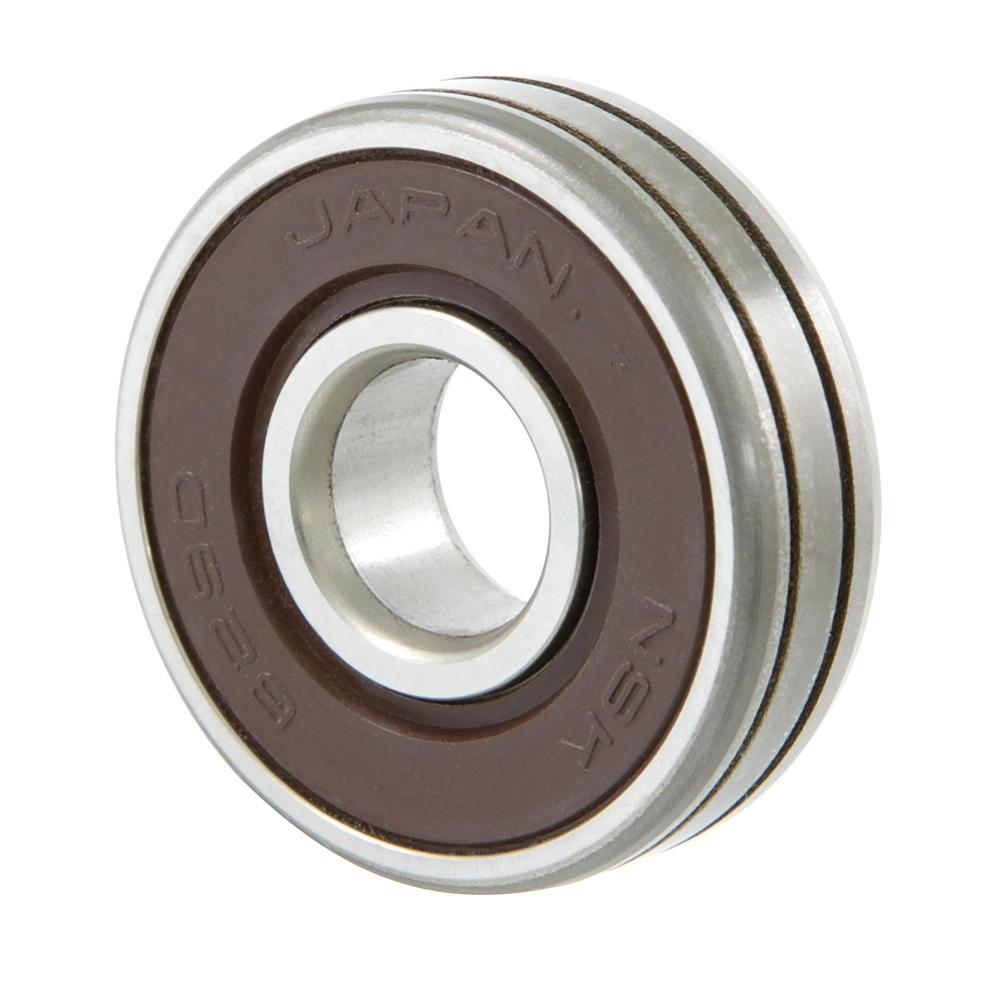

- Two bearing guides (each with a groove guide for bandsaw blades No. 9 & No. 12)
- 12.5 mm standard bandsaw blade
- Table inserts for fretwork, 2 pieces
- Rip fence
- Mitre gauge
- Sheet steel base frame
- Push stick
- Operating tool
Properties
| Blade length: | 2300 mm |
|---|---|
| Blade width min./max.: | 1 to 16 mm |
| Cutting Speed: | 360 and 720 m/min |
| Dimensions (L x W x H): | 1625 x 890 x 700 mm (incl. base frame) |
| Exhaust Nozzle Ø: | 100 mm |
| Maschine/Zubehör: | Machines |
| Maschinen-Typ: | Bandsaws |
| Max. depth of cut: | 175 mm |
| Max. width of cut with fence: | 245 mm |
| Max. width of cut without fence: | 310 mm |
| Motor voltage: | 230 V / 50 Hz |
| Power input: | 750 W |
| Power source: | Corded |
| Table height: | 1035 mm |
| Table size: | 500 x 400 mm |
| Table tilt: | -5 to +45° |
| Weight: | 70 kg |
| Wheel ø: | 320 mm |
Properties
| Blade length: | 2300 mm |
|---|---|
| Blade width min./max.: | 1 to 16 mm |
| Cutting Speed: | 360 and 720 m/min |
| Dimensions (L x W x H): | 1625 x 890 x 700 mm (incl. base frame) |
| Exhaust Nozzle Ø: | 100 mm |
| Maschine/Zubehör: | Machines |
| Maschinen-Typ: | Bandsaws |
| Max. depth of cut: | 175 mm |
| Max. width of cut with fence: | 245 mm |
| Max. width of cut without fence: | 310 mm |
| Motor voltage: | 230 V / 50 Hz |
| Power input: | 750 W |
| Power source: | Corded |
| Table height: | 1035 mm |
| Table size: | 500 x 400 mm |
| Table tilt: | -5 to +45° |
| Weight: | 70 kg |
| Wheel ø: | 320 mm |
Accessories
Zubehör
Manufacturer
Pégas

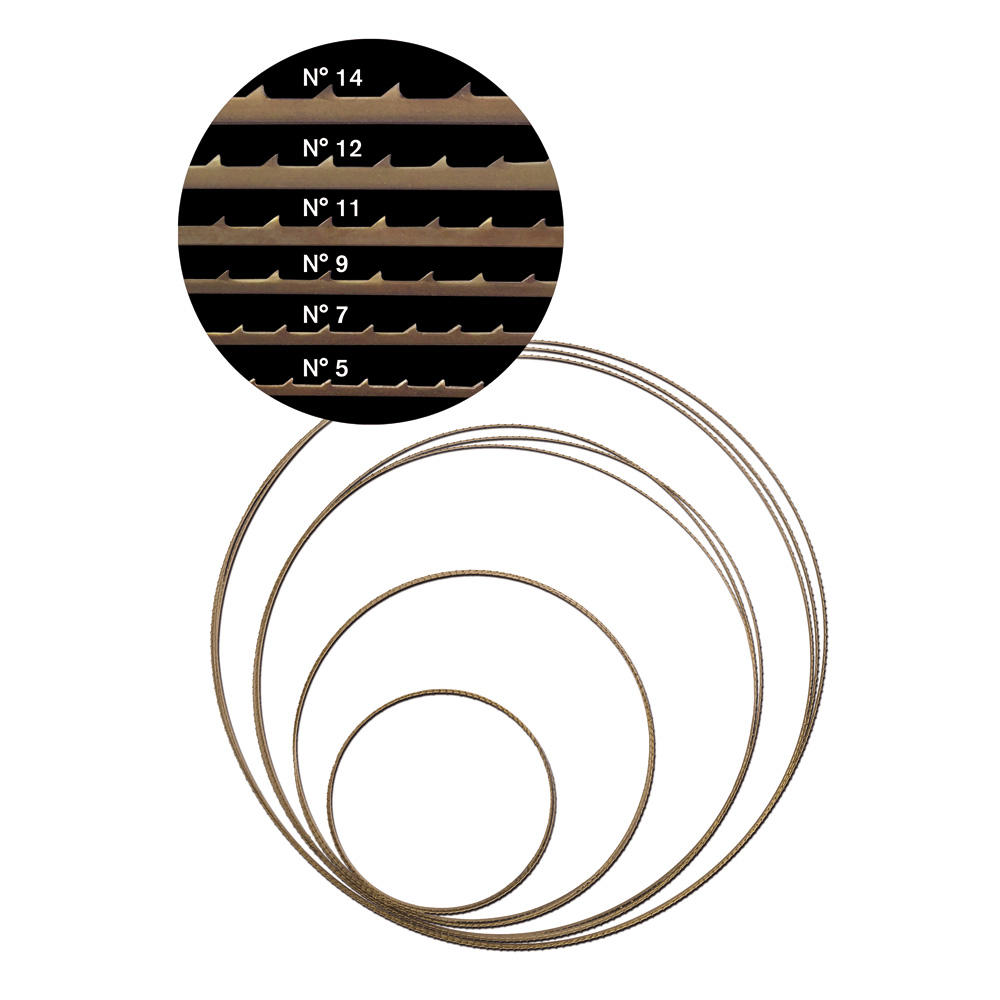

High-quality saw blades made in Switzerland.
