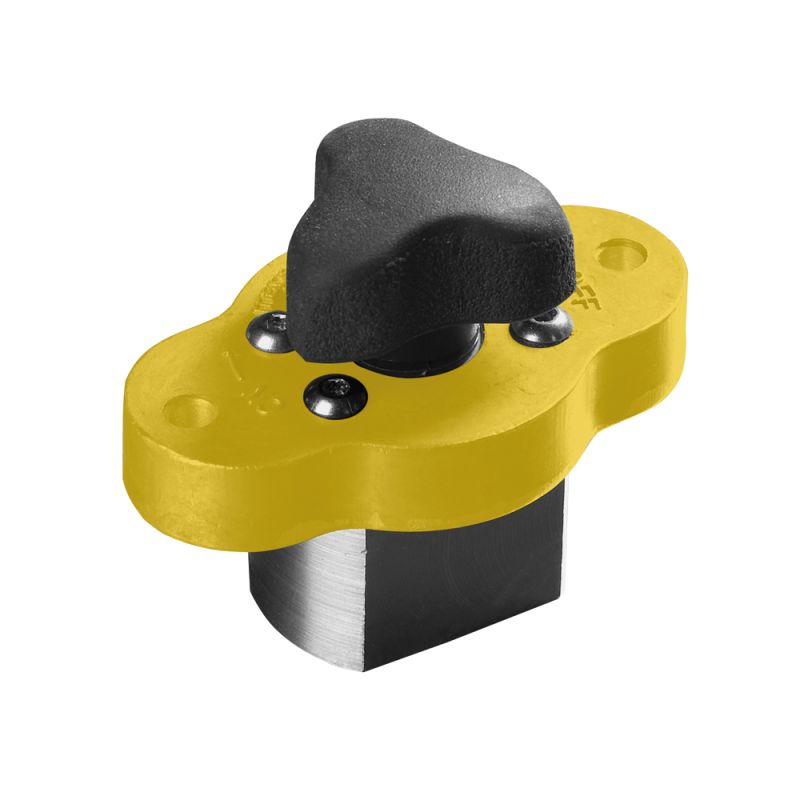

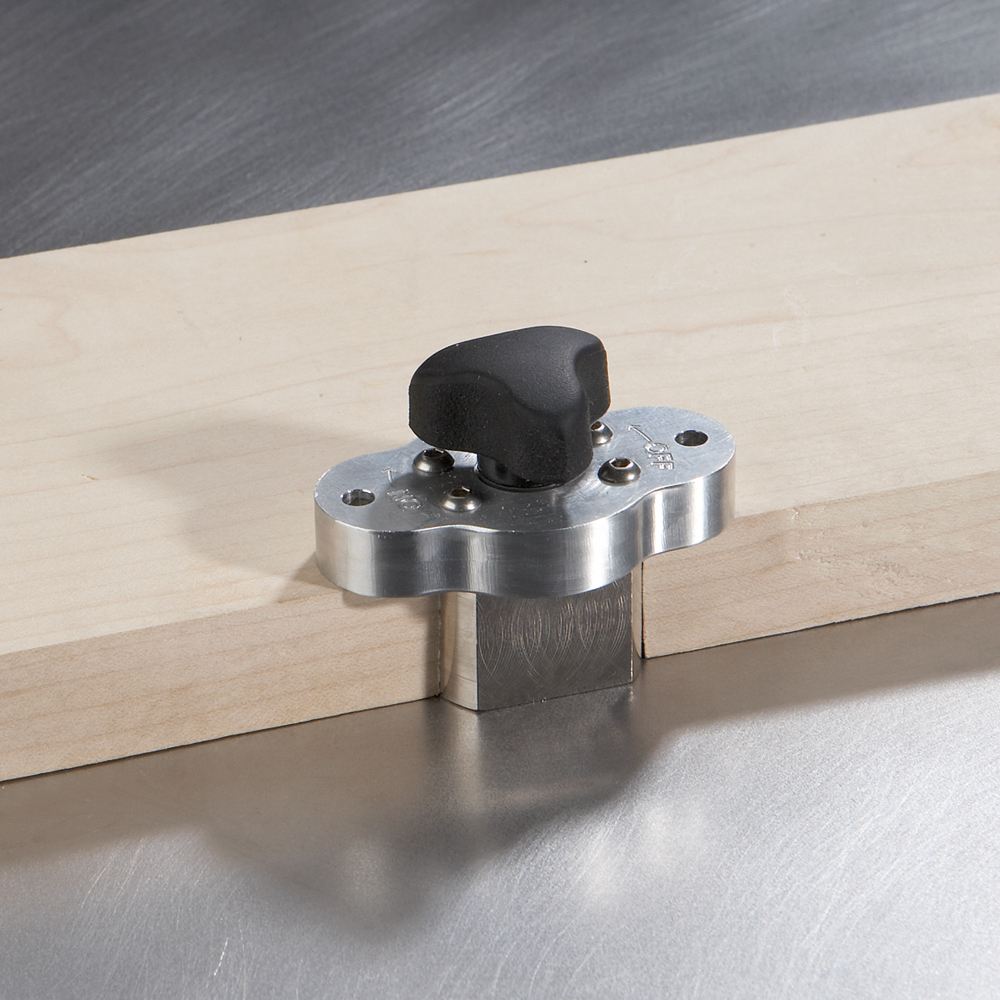

Magswitch® MagJig 95 Switchable Magnet
Product no.:
711177
Brand:
Magswitch
€39.90 €33.53
per piece(s)
In stock, delivery time approx. 2-3 working days
- Weight 200 g / 43 kg holding force
Description
43 kg holding force.
Required drill diameter 30 mm
Weight 200 g
Height 34 mm
Pin length 19 mm
Fits Magswitch Universal Mounting Base No. 711171 for self-construction of auxiliary e nd stops, featherboards, deflectors etc. For additional safety you should attach at least two magnets to each device.
Magswitch workpiece holders with switchable magnet technology

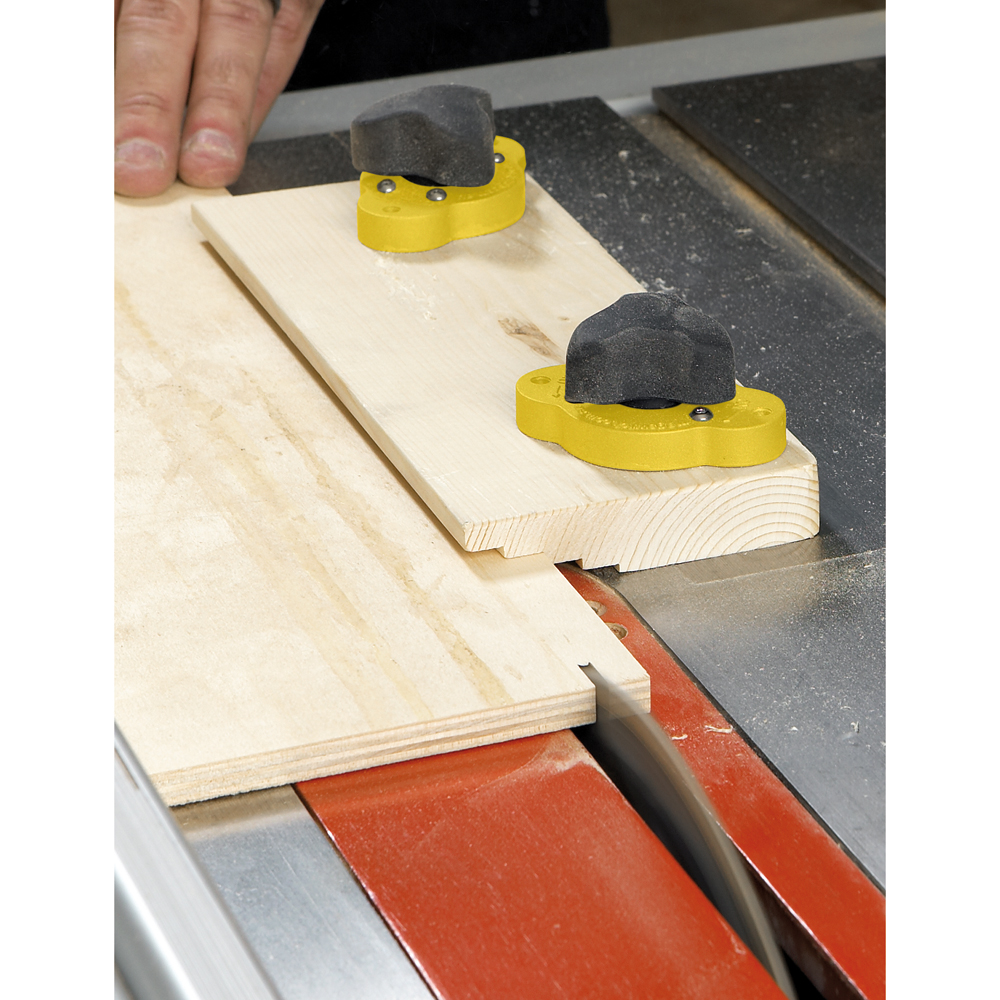

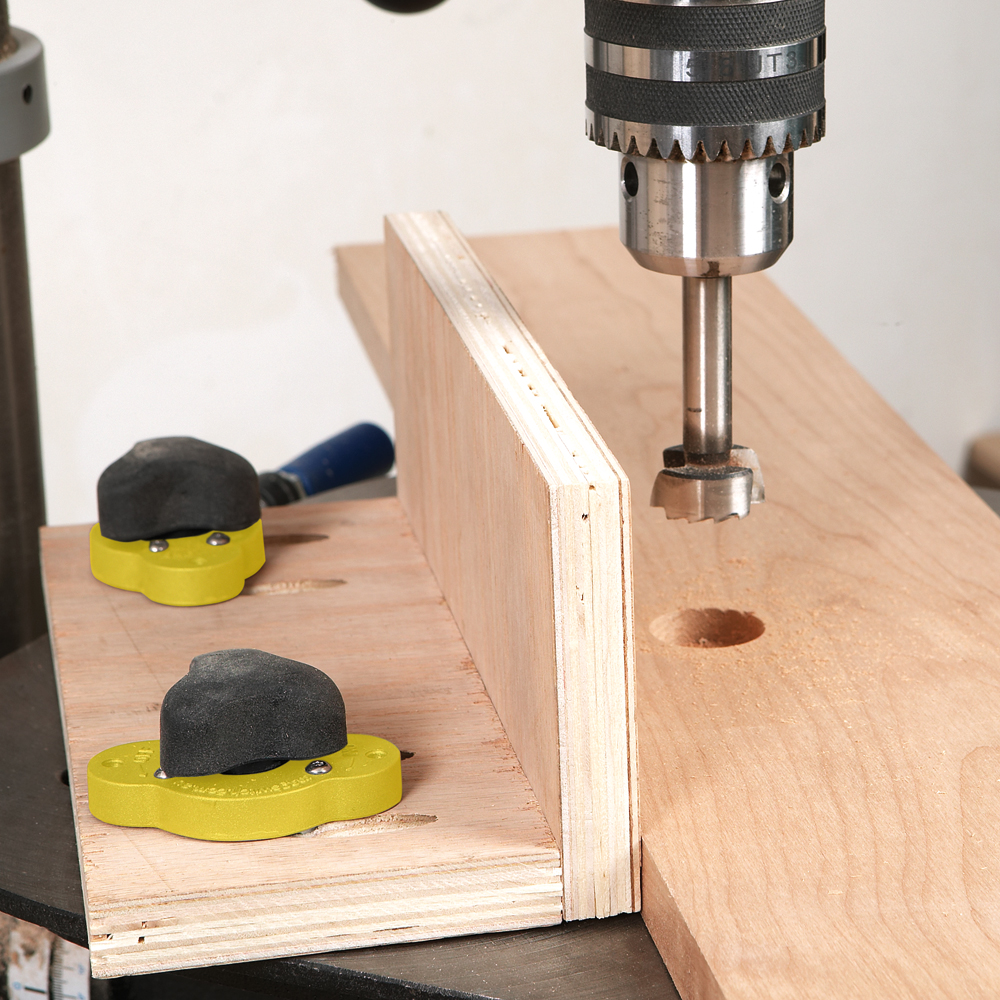

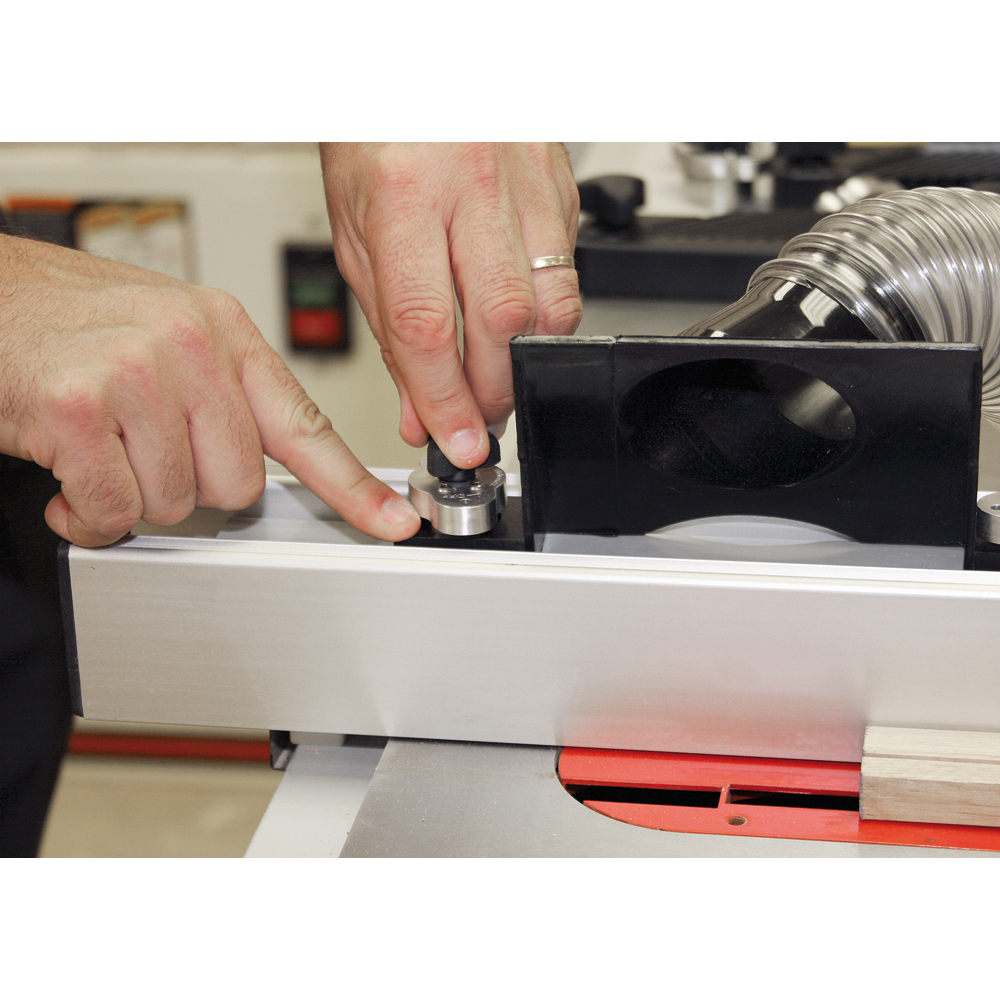

Featherboards and end stops for improved work safety and precision thanks to the exact guidance of the workpiece:
A 180° switch rotation creates a permanently strong magnetic field. This ensures that the devices adhere to all ferromagnetic surfaces such as machine tables or parallel end stops. They can be used horizontally or vertically and prevent the workpiece from flapping about or recoiling e.g. with bandsaws, circular saws, milling machines and surface planers.
Your benefits:
A 180° switch rotation creates a permanently strong magnetic field. This ensures that the devices adhere to all ferromagnetic surfaces such as machine tables or parallel end stops. They can be used horizontally or vertically and prevent the workpiece from flapping about or recoiling e.g. with bandsaws, circular saws, milling machines and surface planers.
Your benefits:
- Quick and exact assembly, freely positionable (no T-tracks needed)
- High traction of up to 68 kg per magnet
- Many possible combinations
- Can be used on both the right or left side
- Exact guidance of the workpiece
- Even and optimum contact pressure
- Magnetic field can be turned on/off easily
- Adherence to all ferromagnetic surfaces
- Small dimensions, also for small machines
- Improved work safety
Properties
| Weight: | 200 g / 43 kg holding force |
|---|
Properties
| Weight: | 200 g / 43 kg holding force |
|---|
Manufacturer
| Name: | Magswitch |
|---|---|
| Mailing address: | Marie-Curie-Str. 12 85055 Ingolstadt Deutschland |
| Homepage: | https://de.magswitch.com |
