Hultafors® Folding Square Quattro 270
Product no.:
708863
Brand:
Hultafors Group Germany GmbH
€46.00 €38.66
per piece(s)
In stock, delivery time approx. 2-3 working days
- Stock length 160 mm
- Tongue length 300 mm
Description

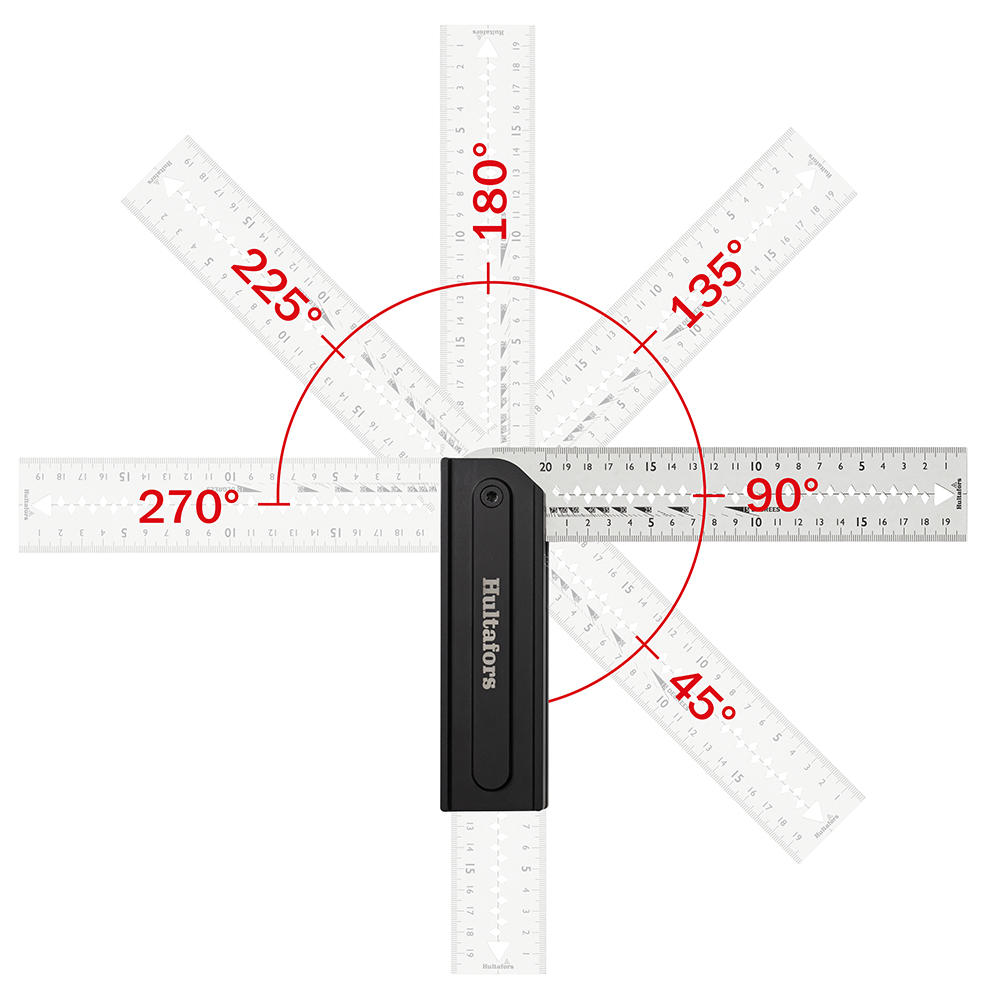

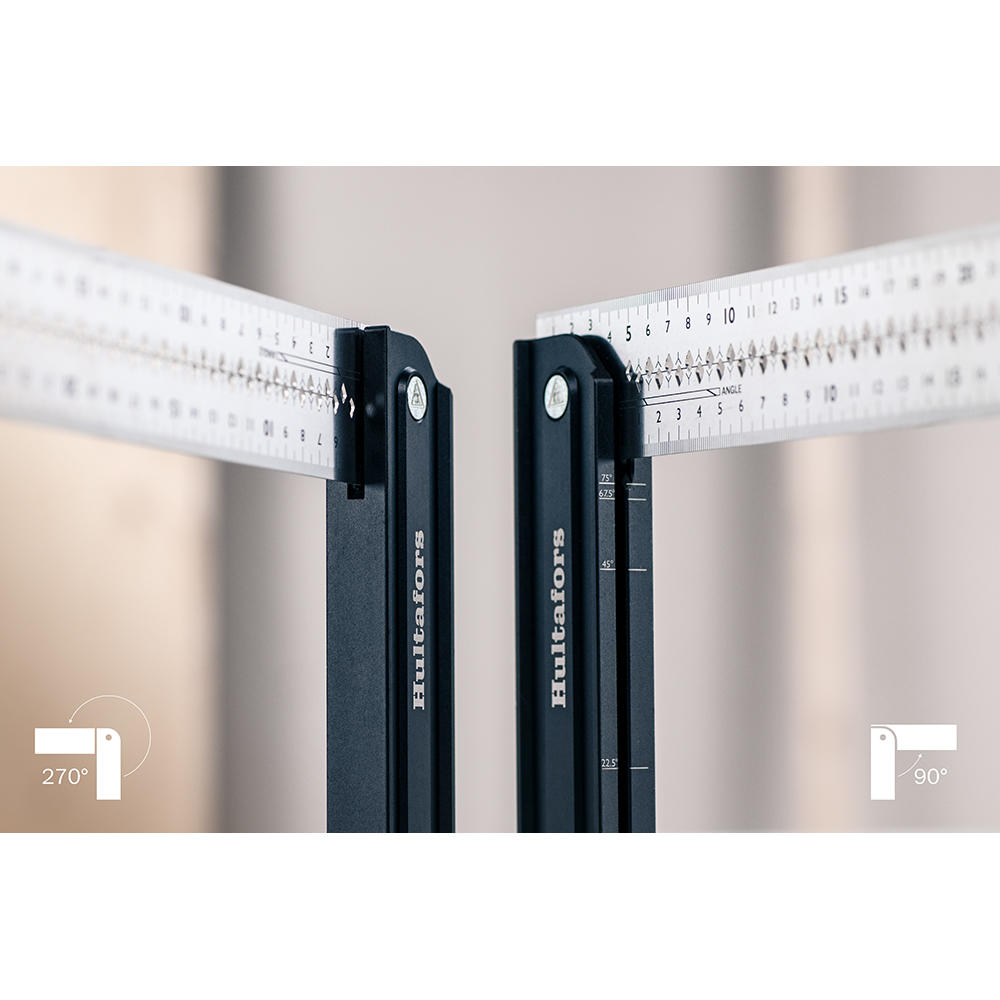

The Quattro 270 carpentry square is the ideal tool for precise measuring and marking work. With its adjustable rail, it enables precise angle measurements and markings at 45°, 90° and 135°. A special feature is the locking at 270° on the opposite side of the leg, which makes scribing on thin materials such as sheet metal easier. The angle also has markings at 22.5°, 67.5° and 75°/15° so that a variety of angles can be set quickly and easily. The positioning accuracy of this tool is unrivalled and the rail can be locked without play. Thanks to its compact design, the angle bracket fits into any tool bag when fully folded and is therefore always ready to hand. The high-strength stainless steel tongue is provided with a laser-engraved millimetre graduation on both sides, which offers very high contrast and abrasion resistance. The headpiece is made of anodised aluminium, which ensures a long service life and robustness. The 45 mm wide leg is also equipped with a centre line and cut-outs at 5 mm intervals, which make it easier to mark lines parallel to an edge and thus further improve handling and accuracy. Accuracy 0.1 mm per 100 mm.
Properties
| Stock length: | 160 mm |
|---|---|
| Tongue length: | 300 mm |
