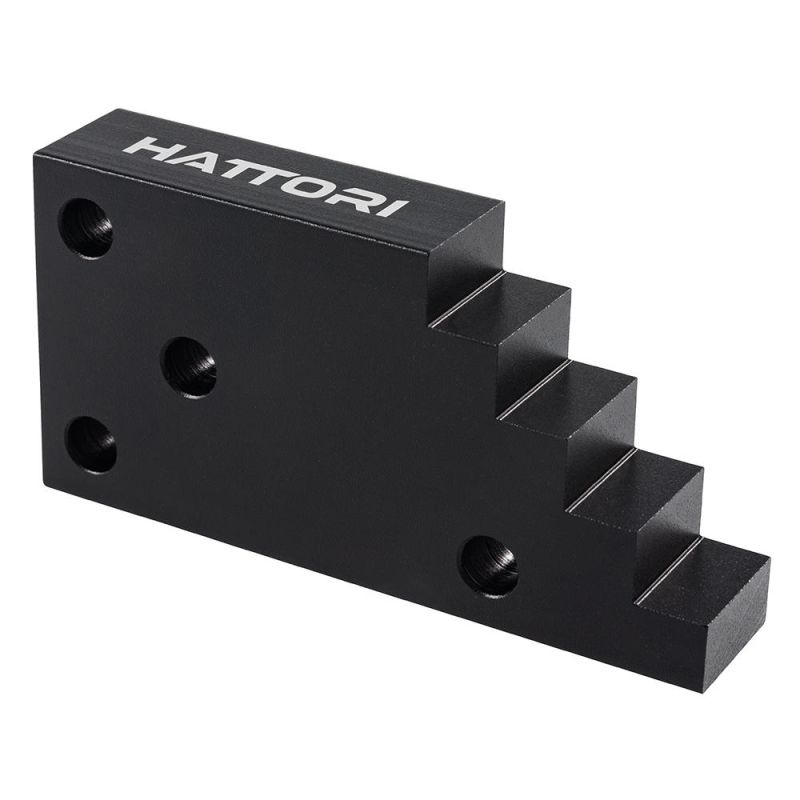

Hattori® Step Block, 50 x 100 mm
Product no.:
714710
Brand:
Hattori
€15.90 €13.36
per piece
Delivery time approx. 3-5 working days
- Dimensions (L x W x H) 100 x 50 x 20 mm
- Material Aluminium
Description
The graduations milled at 10 mm intervals offer precise adjustment possibilities when clamping or setting workpieces for machining.
End support for hold-down clamps:
Note: when used with hold-down clamps, longer hammer-head screws or T-bolts may be necessary depending on the desired clamping height.
End support for hold-down clamps:

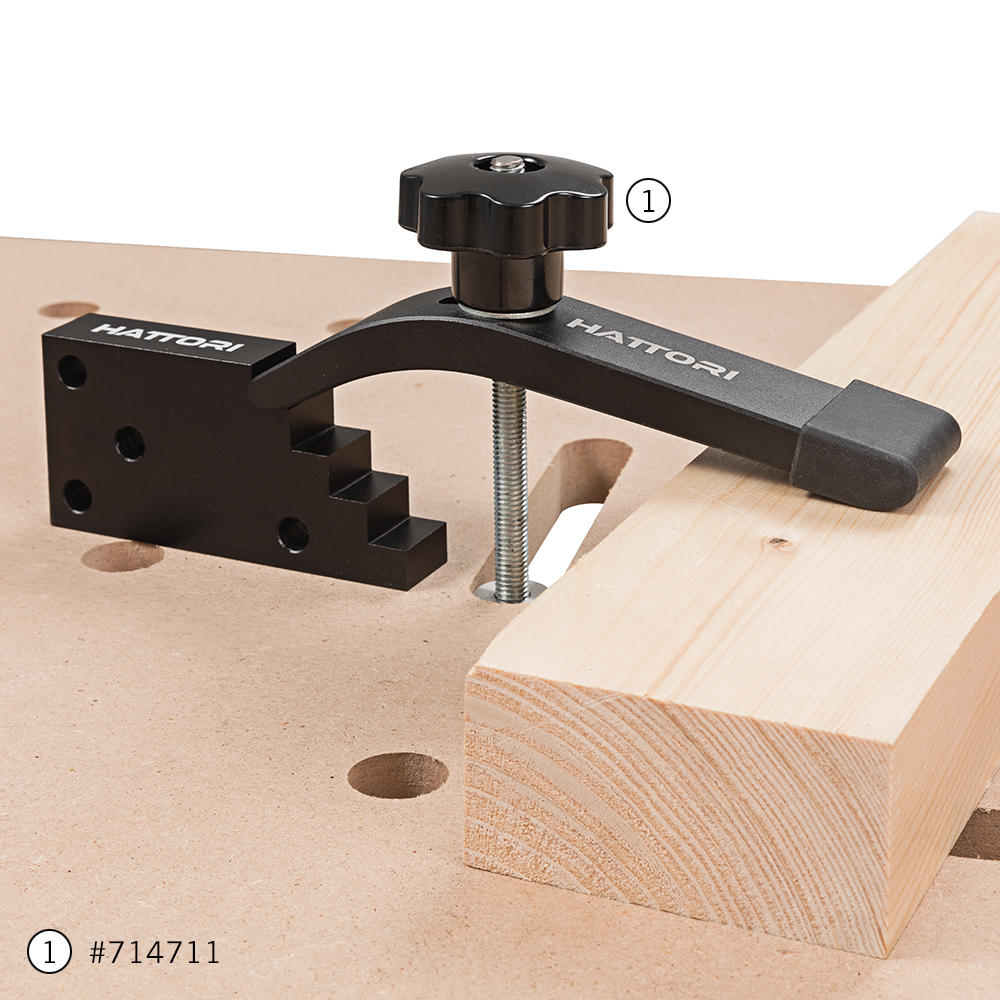

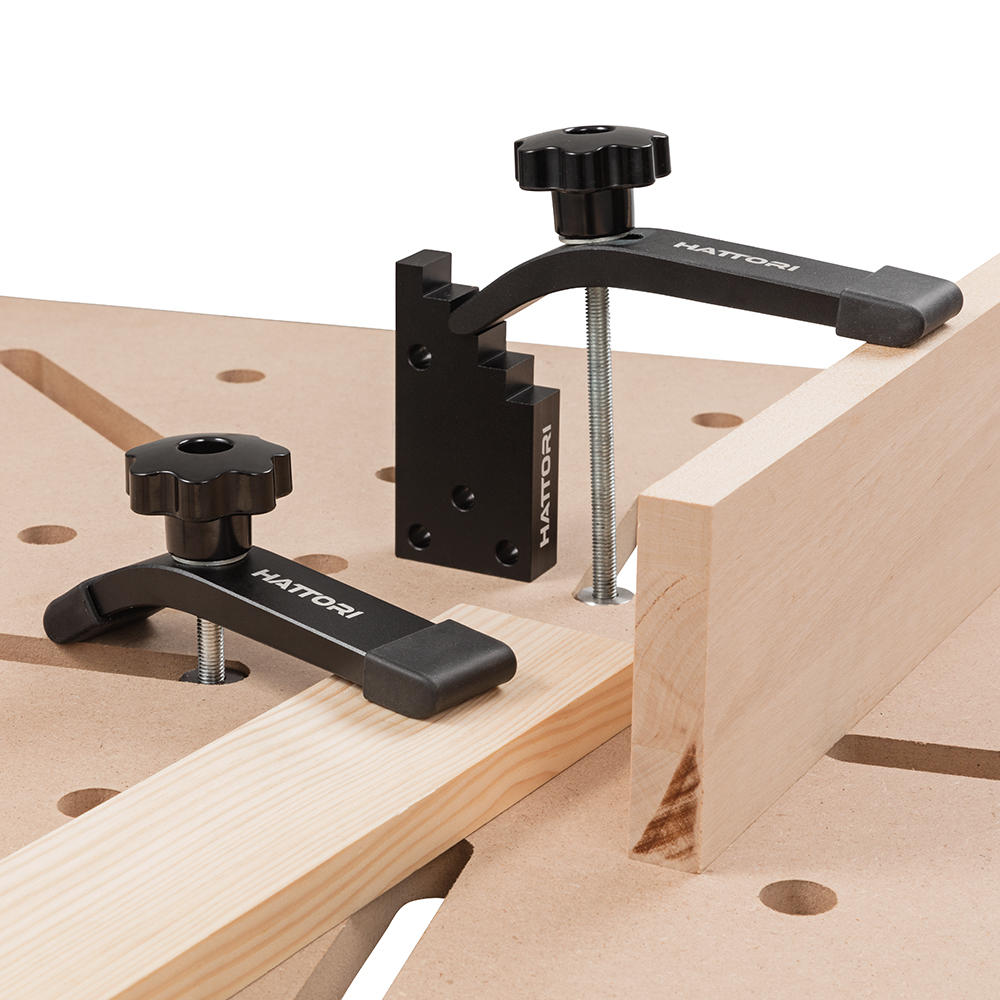

- The clamping height of many T-slot hold-downs is limited by the projection of the clamping arms. The step block allows this clamping height to be increased by a further maximum of 100 mm.

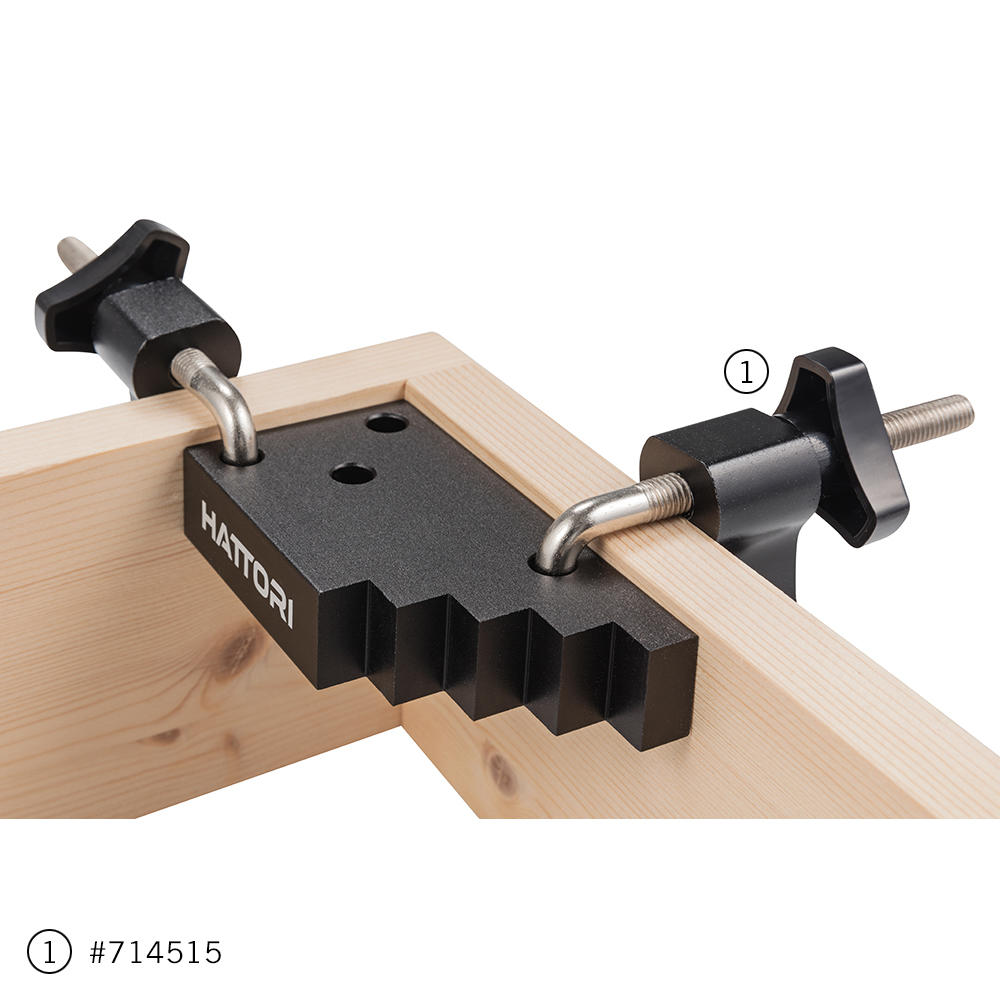

- for drill or router jigs, especially for supporting workpieces with different material thicknesses. The step block can also be used flat, e.g. as an end stop. Side holes facilitate screwing onto panels, for example.
- the 10 mm increments make it easy to set distances in 10 mm steps on rip fences of bandsaws or circular saws and to set cutting and milling depths on router tables.
Note: when used with hold-down clamps, longer hammer-head screws or T-bolts may be necessary depending on the desired clamping height.
Properties
| Dimensions (L x W x H): | 100 x 50 x 20 mm |
|---|---|
| Material: | Aluminium |
Properties
| Dimensions (L x W x H): | 100 x 50 x 20 mm |
|---|---|
| Material: | Aluminium |
