Hattori® Precision T-Rule, 160 mm
Product no.:
714643
Brand:
Hattori
€49.90 €41.93
per piece(s)
Delivery time approx. 3-5 working days
- Typ Rule
- Version T-square
Description
Scale 160 mm.

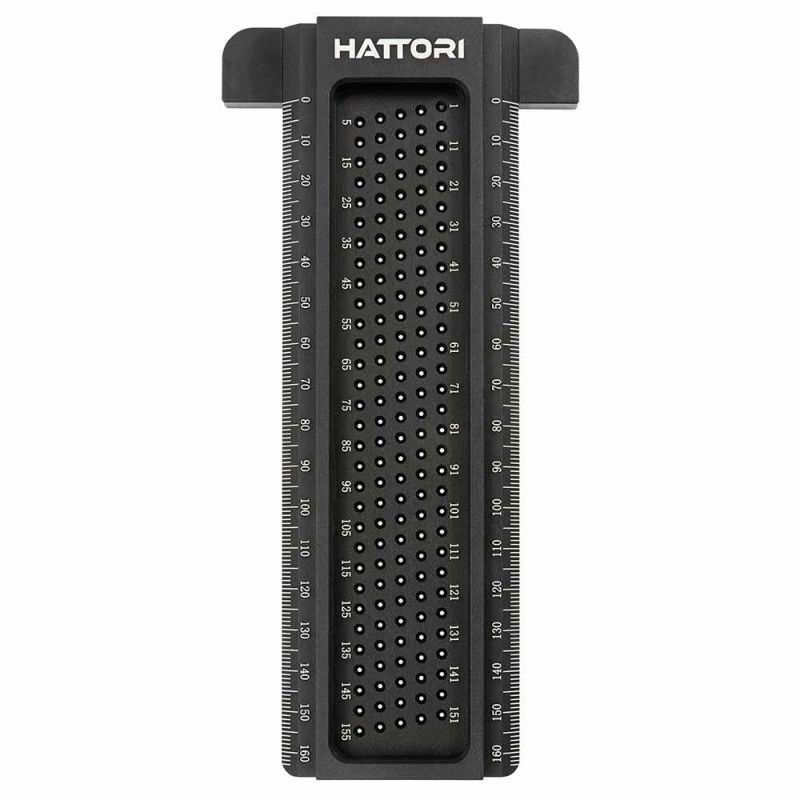

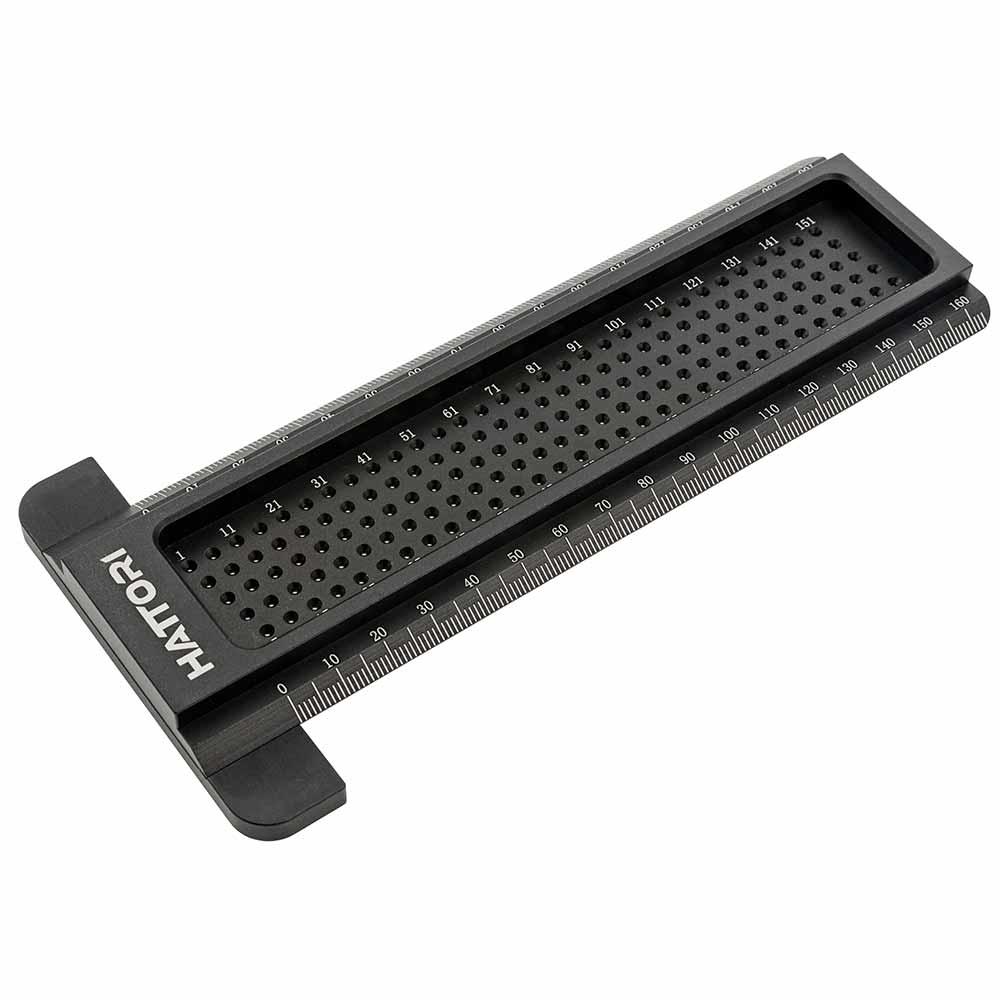

Milled from solid 8 mm-thick aluminium, the marking rule is torsion-resistant and robust and allows accurate and easy scribing. The outer edges are bevelled at 30° and have easy-to-read laser-etched scales in mm. The rule has precisely milled marking holes in 1 mm increments. The 1 mm-diameter holes are countersunk in a funnel shape to facilitate the insertion of a mechanical pencil. Parallel distances can be marked quickly and safely by moving the stop of the ruler on the edge of the workpiece. Due to the pencil lead guides in the marking holes, precise lines are created even on soft and heavily grained surfaces.
Properties
| Typ: | Rule |
|---|---|
| Version: | T-square |
