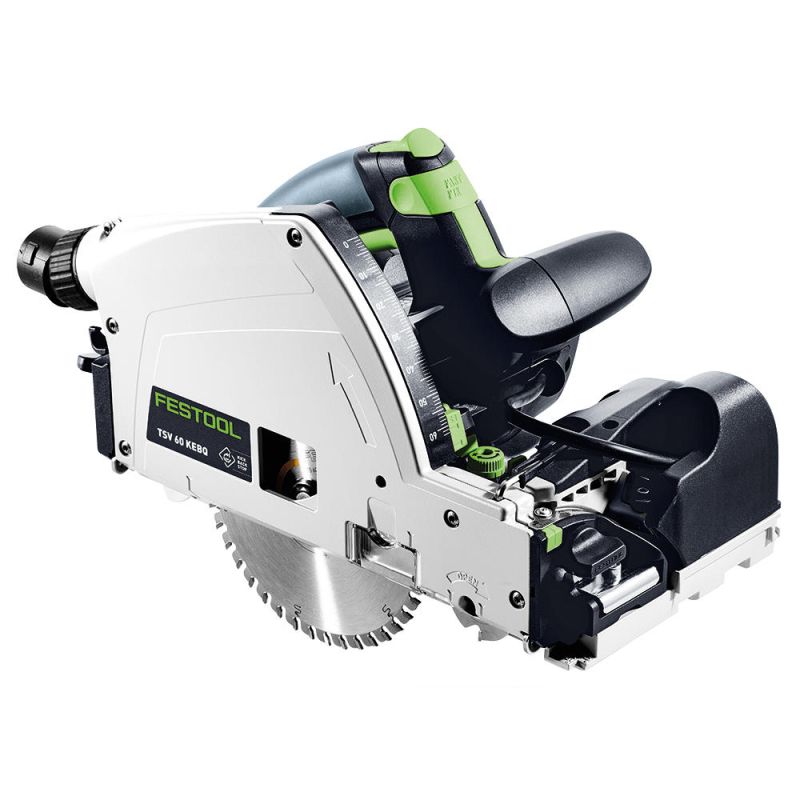

Festool Plunge-cut saw with scoring function TSV 60 KEBQ-Plus
Product no.:
721414
Brand:
Festool
€979.00 €822.69
per piece
Delivery time approx. 3-5 working days
- Machine/Accessory Accessories
- Machine type Plunge-cut saws
-
Noise and vibration values
Sawing wood: Total vibration average, Ah 2.50 m/s²
Sawing wood: A-weighted sound pressure level, LpA 90.00 dB(A)
Sawing wood: Uncertainty (noise) K 3.00 dB
Sawing wood: A-weighted sound power level, LWA 101.00 dB(A)
Sawing wood: Standards series EN 62841
Sawing wood: Uncertainty (vibration) K 1.50 m/s² -
Technical features
Power consumption 1 500 190 W
Idle engine speed 3 000 - 6 800 / 16 000 - 22 000 min⁻¹
Saw blade diameter 168 / 47 mm
Angular range 0 - 45 °
Cutting depth 0 - 62 mm
Cutting depth 45° 45 mm
Dust extraction connection diameter 27/36 mm
Cable length 4.0 m
Product weight 6.2 / 9.0 kg
Description
Splinter-free sawing like never before. Perfect from the very first cut. The TSV 60 K plunge-cut saw with scoring function.
Since 1980, Festool plunge-cut saws have been known for their reliable quality and absolute precision. Our objective: The perfect cut. With the TSV 60 K plunge-cut saw with scoring function, we have achieved exactly that. Splinter-free sawing on both sides now from the very first cut. Coupled with the built-in KickbackStop, you and your workpiece are protected from dangerous kickbacks and thanks to the ideal combination of Festool system accessories, your work can always be precise and tailored to requirements, even when on the move. With the TSV 60 K, workshop-quality results can be replicated on the construction site – as good as with a stationary machine.
Your advantages:
Your advantages:
- Splinter-free: The scoring ensures splinter-free work results on both sides from the very first cut.
- Long-lasting: Diamond scoring saw blade with very long service life for perfect cut quality time after time.
- Saw system: comprehensive system with ideal accessories for perfect panel cutting.
- Safer: the unique KickbackStop reduces the risk of injury caused by kickback during sawing or plunge-cutting into the workpiece
- Versatile: 60 mm cutting depth and can be combined with the FSK cross cutting guide rail or FS guide rail
- Swivels with: perfect scoring, even on mitre cuts from 0° to 45°.
- Flexible: Both the scoring saw blade and the main saw blade can be manually activated and deactivated.
- Convenient: The FastFix spindle stop on the main saw blade and the possibility of standing it on its side make changing the saw blade very simple, even with the scoring saw blade.
- Constant: EC-TEC motor in combination with the thin kerf saw blades ensures work progresses without difficulty whilst requiring less effort.
- Splinter-free cutting of chipboard, specially veneered and plastic-coated panels
- Splinter-free cutting of HPL compact panels such as Trespa®
- Precise plunge cuts in materials up to 60 mm thick
- Perfect, splinter-free cutting to length of interior doors
- Cutting recesses in doors and kitchen worktops
- Cross cuts with the FSK cross cutting guide rail (floor and façade panels)

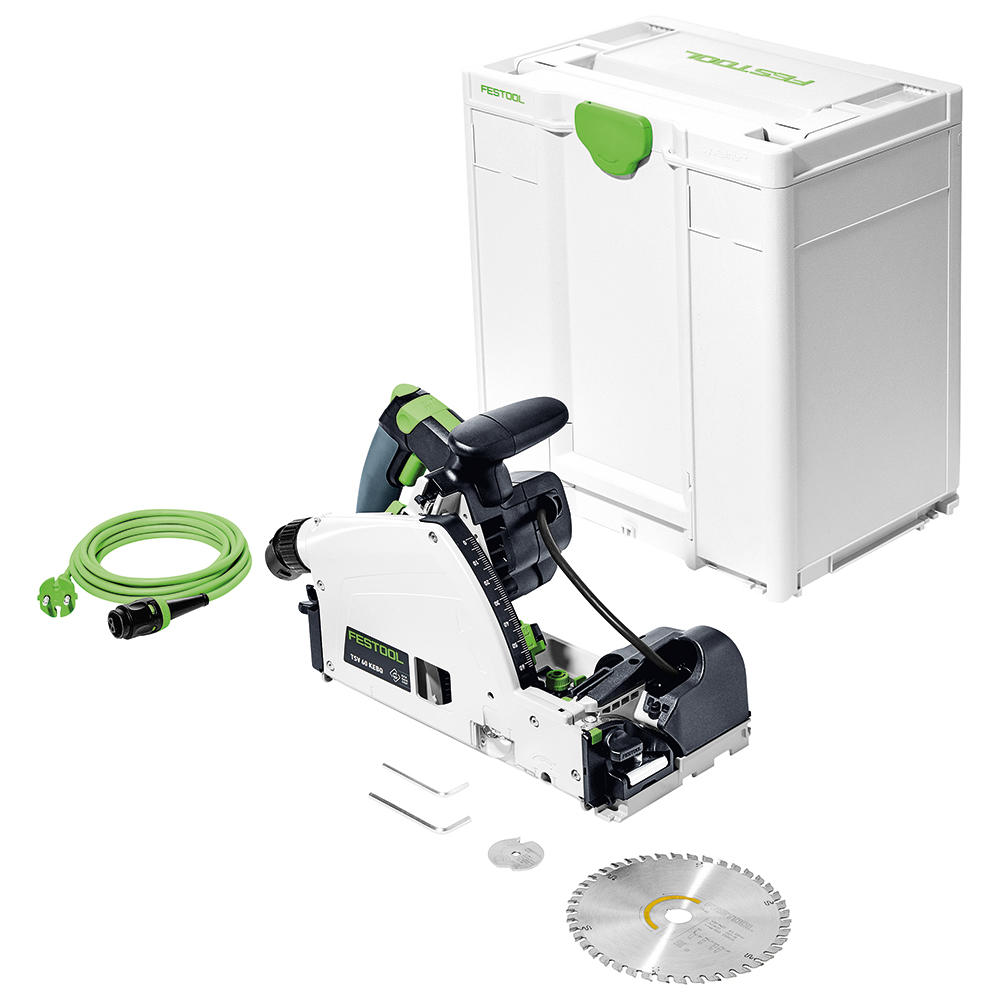

Scope of delivery

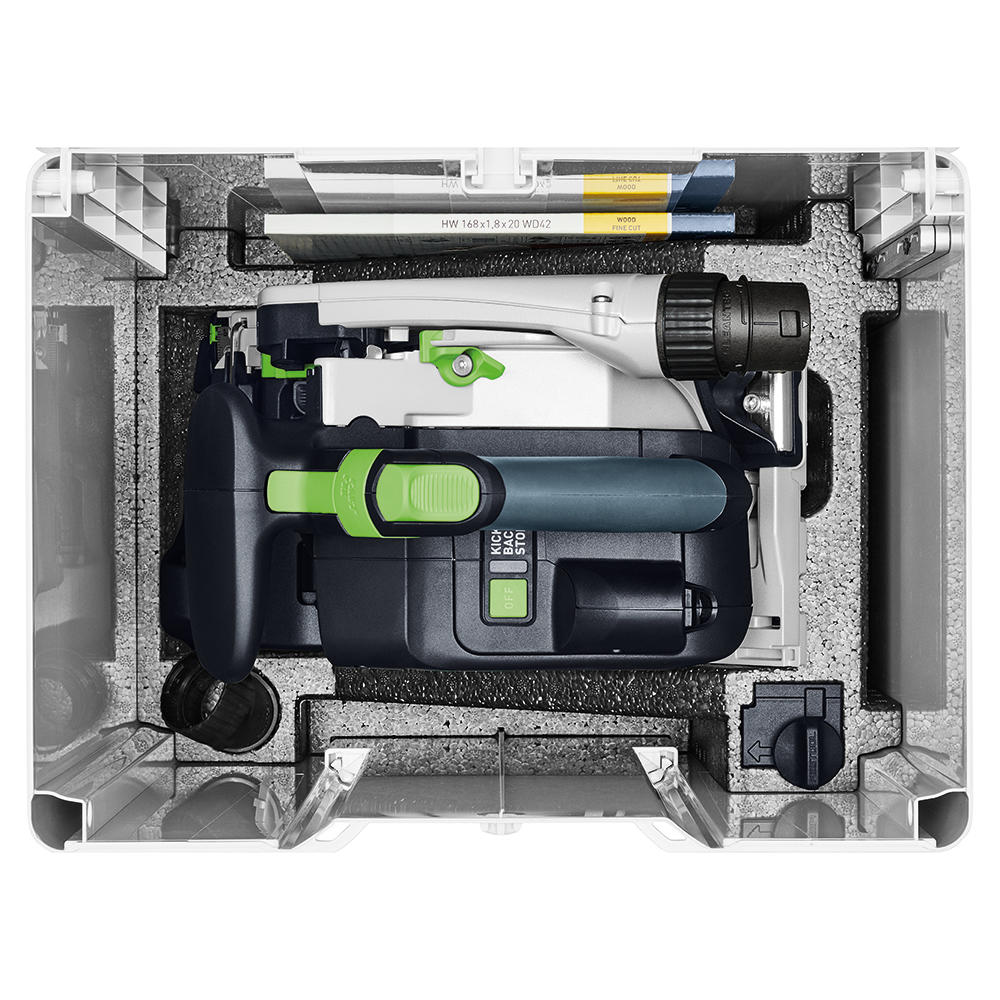

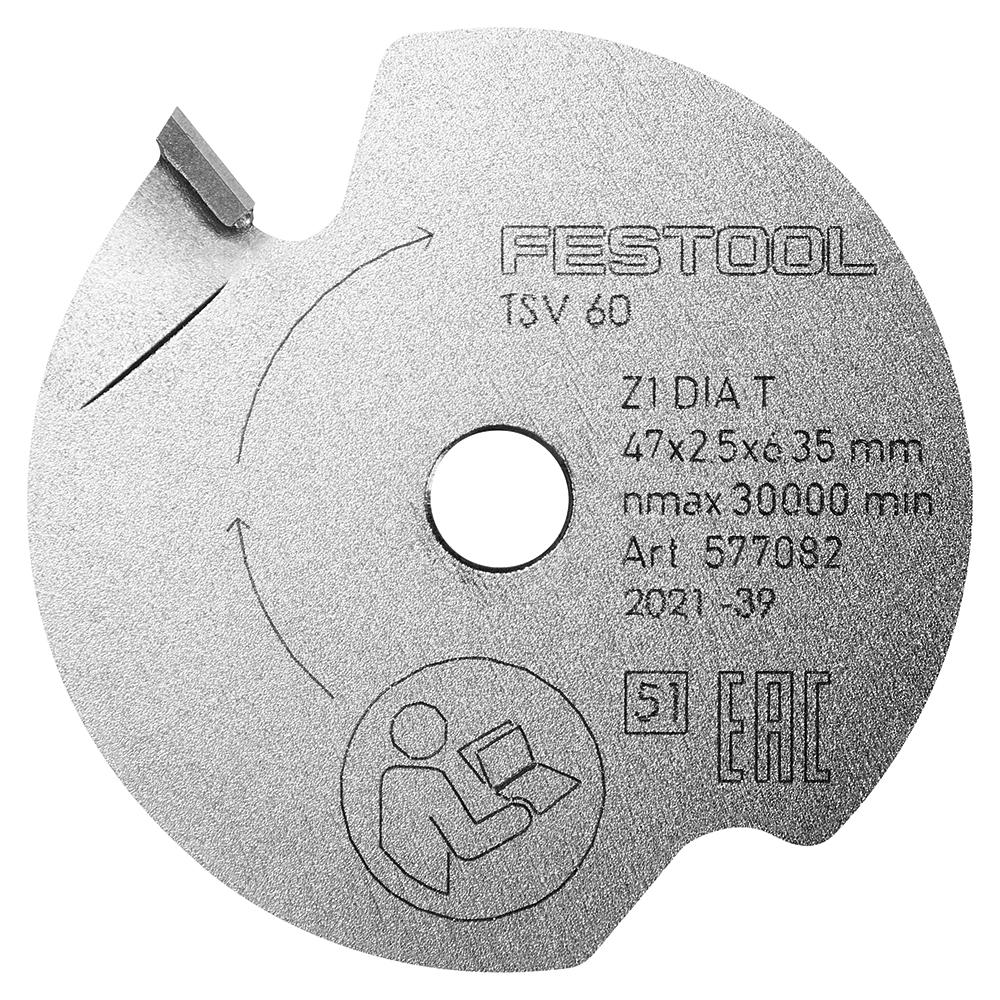

WOOD FINE CUT HW 168 x 1.8 x 20 WD42 circular saw blade; scoring blade DIA 47x2.5x6.35 T1; Flag window; vision panel; hex key WAF 4 and 5; splinterguard; Systainer SYS3 M 437Properties
| Machine/Accessory: | Accessories |
|---|---|
| Machine type: | Plunge-cut saws |
| Noise and vibration values: |
Sawing wood: Total vibration average, Ah 2.50 m/s² Sawing wood: A-weighted sound pressure level, LpA 90.00 dB(A) Sawing wood: Uncertainty (noise) K 3.00 dB Sawing wood: A-weighted sound power level, LWA 101.00 dB(A) Sawing wood: Standards series EN 62841 Sawing wood: Uncertainty (vibration) K 1.50 m/s² |
| Technical features: |
Power consumption 1 500 190 W Idle engine speed 3 000 - 6 800 / 16 000 - 22 000 min⁻¹ Saw blade diameter 168 / 47 mm Angular range 0 - 45 ° Cutting depth 0 - 62 mm Cutting depth 45° 45 mm Dust extraction connection diameter 27/36 mm Cable length 4.0 m Product weight 6.2 / 9.0 kg |
Properties
| Machine/Accessory: | Accessories |
|---|---|
| Machine type: | Plunge-cut saws |
| Noise and vibration values: |
Sawing wood: Total vibration average, Ah 2.50 m/s² Sawing wood: A-weighted sound pressure level, LpA 90.00 dB(A) Sawing wood: Uncertainty (noise) K 3.00 dB Sawing wood: A-weighted sound power level, LWA 101.00 dB(A) Sawing wood: Standards series EN 62841 Sawing wood: Uncertainty (vibration) K 1.50 m/s² |
| Technical features: |
Power consumption 1 500 190 W Idle engine speed 3 000 - 6 800 / 16 000 - 22 000 min⁻¹ Saw blade diameter 168 / 47 mm Angular range 0 - 45 ° Cutting depth 0 - 62 mm Cutting depth 45° 45 mm Dust extraction connection diameter 27/36 mm Cable length 4.0 m Product weight 6.2 / 9.0 kg |
