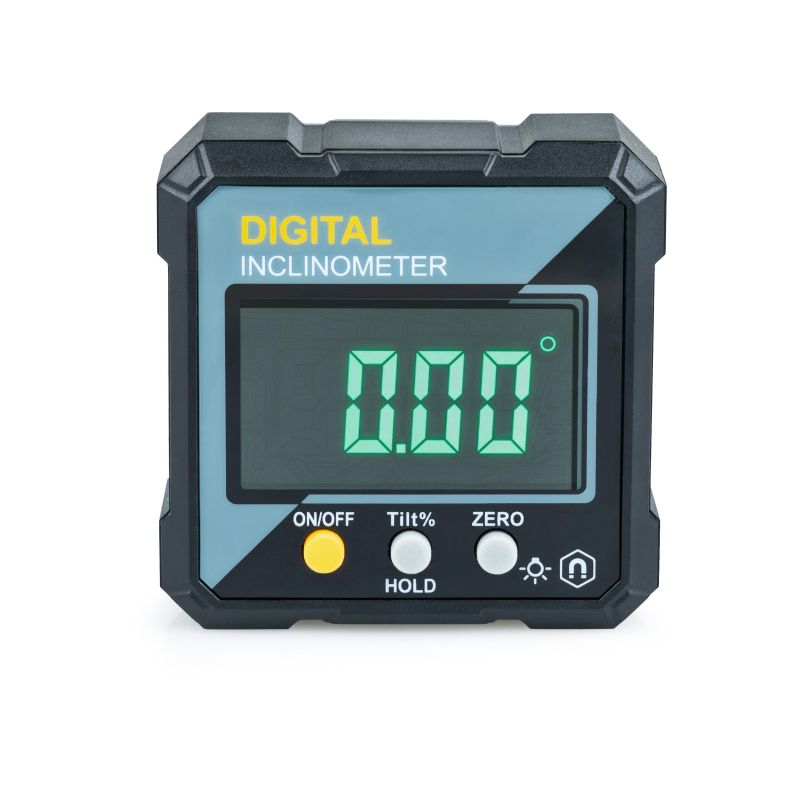

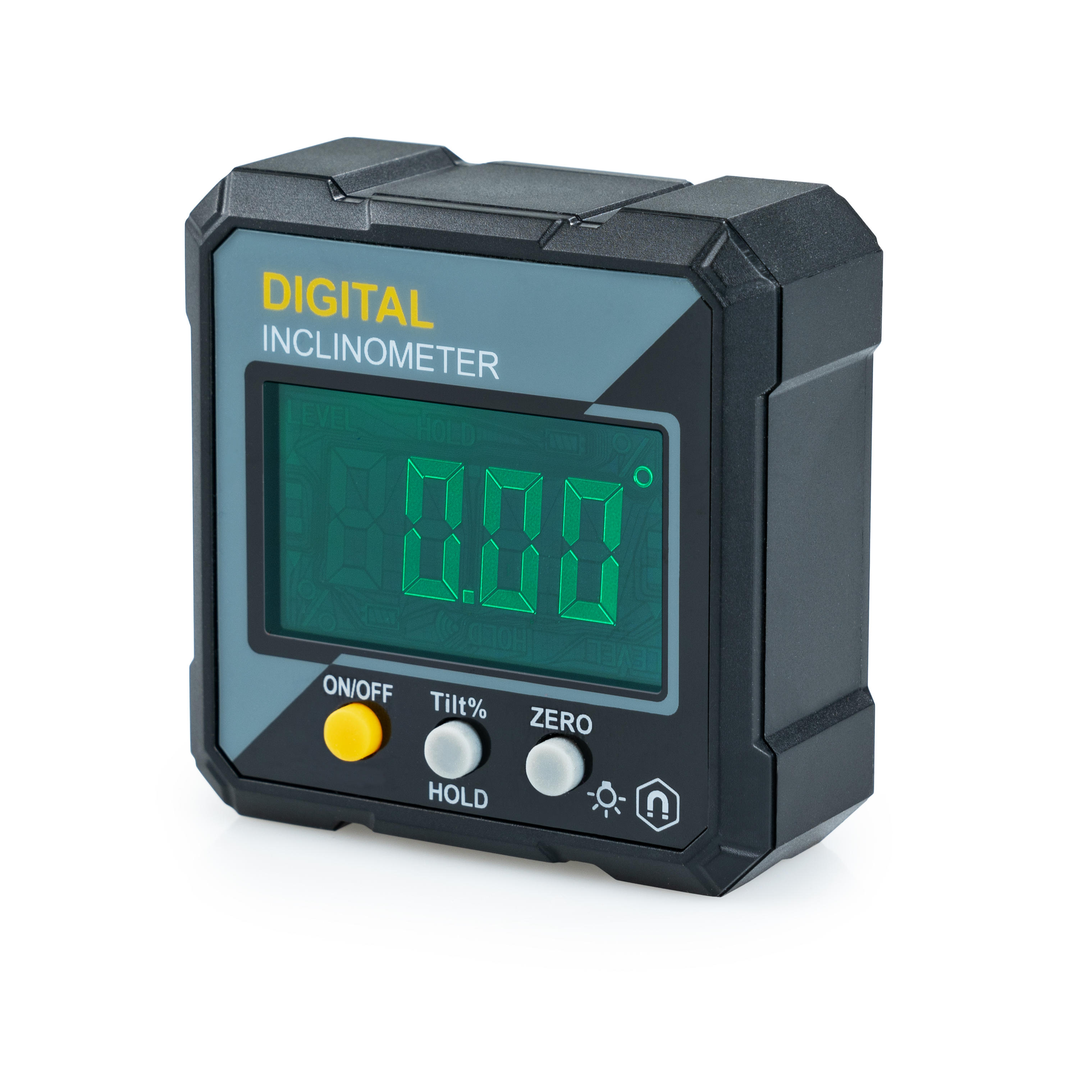

Digital Angle Gauge
Product no.:
790984
Brand:
Sonstige
€17.50 €14.71
per piece
Delivery time approx. 3-5 working days
- Automatic deactivation Yes
- Dimensions (L x W x H) 58 x 25 x 58 mm
- Measurment range 4 x 90 °
- Operating temperature -10 to +50
- Power Supply 2 AAA batteries
Description

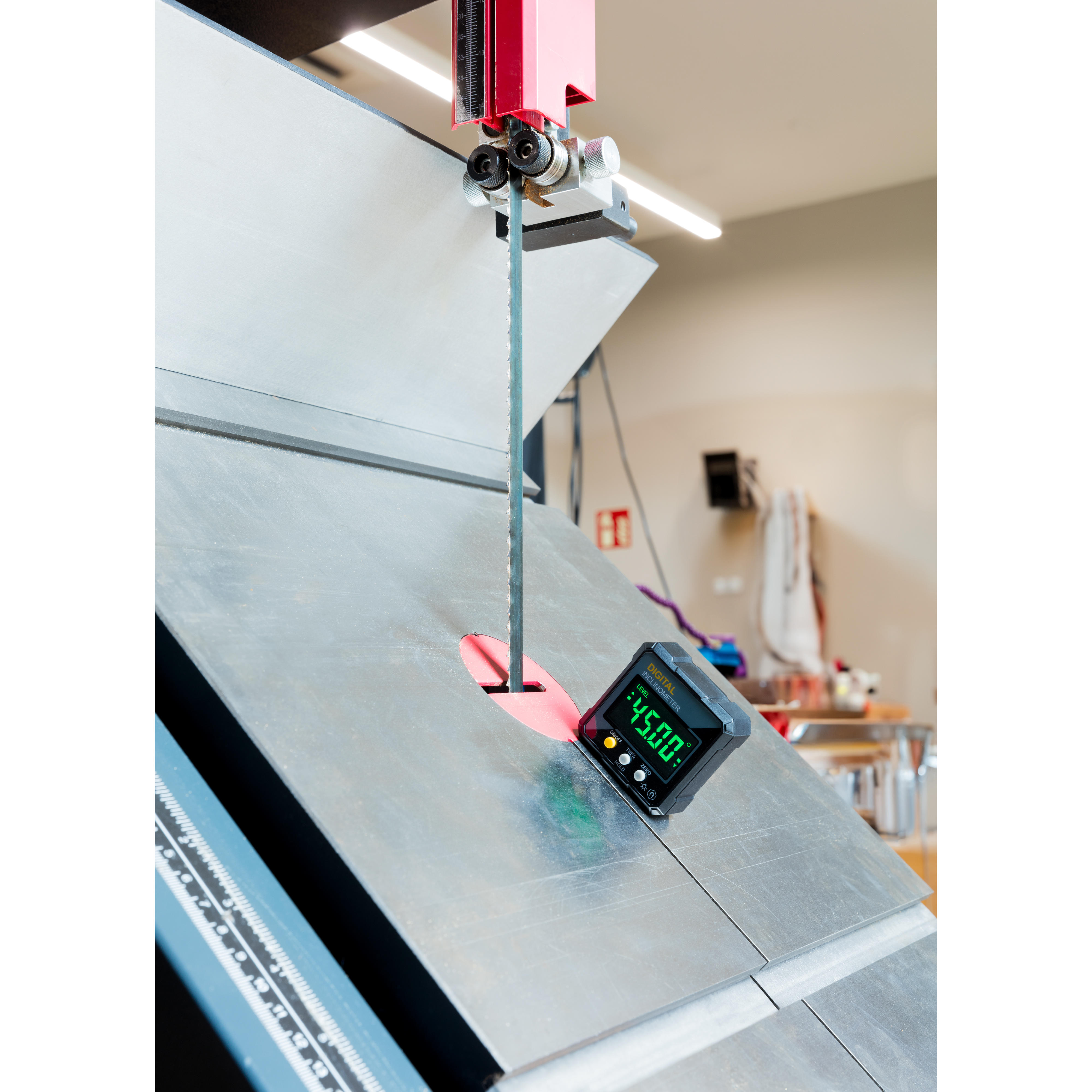

The compact digital angle gauge allows quick and precise measurement of angles (°) and inclinations (%). It is ideal for workshop use, for example on machine tables of bandsaws, when setting circular saw blade tilt or adjusting sharpening guides. The device supports both absolute and relative measurements. The magnetic base ensures secure attachment to ferromagnetic surfaces, while the integrated V-groove enables precise alignment, e.g. on pipes. The display resolution is 0.05°, with a repeatability of 0.1°.
Your benefits:
Absolute mode (ABS):
The displayed value corresponds to the angle relative to level.
Relative mode (REF):
This mode displays the angular difference between the start and end position.

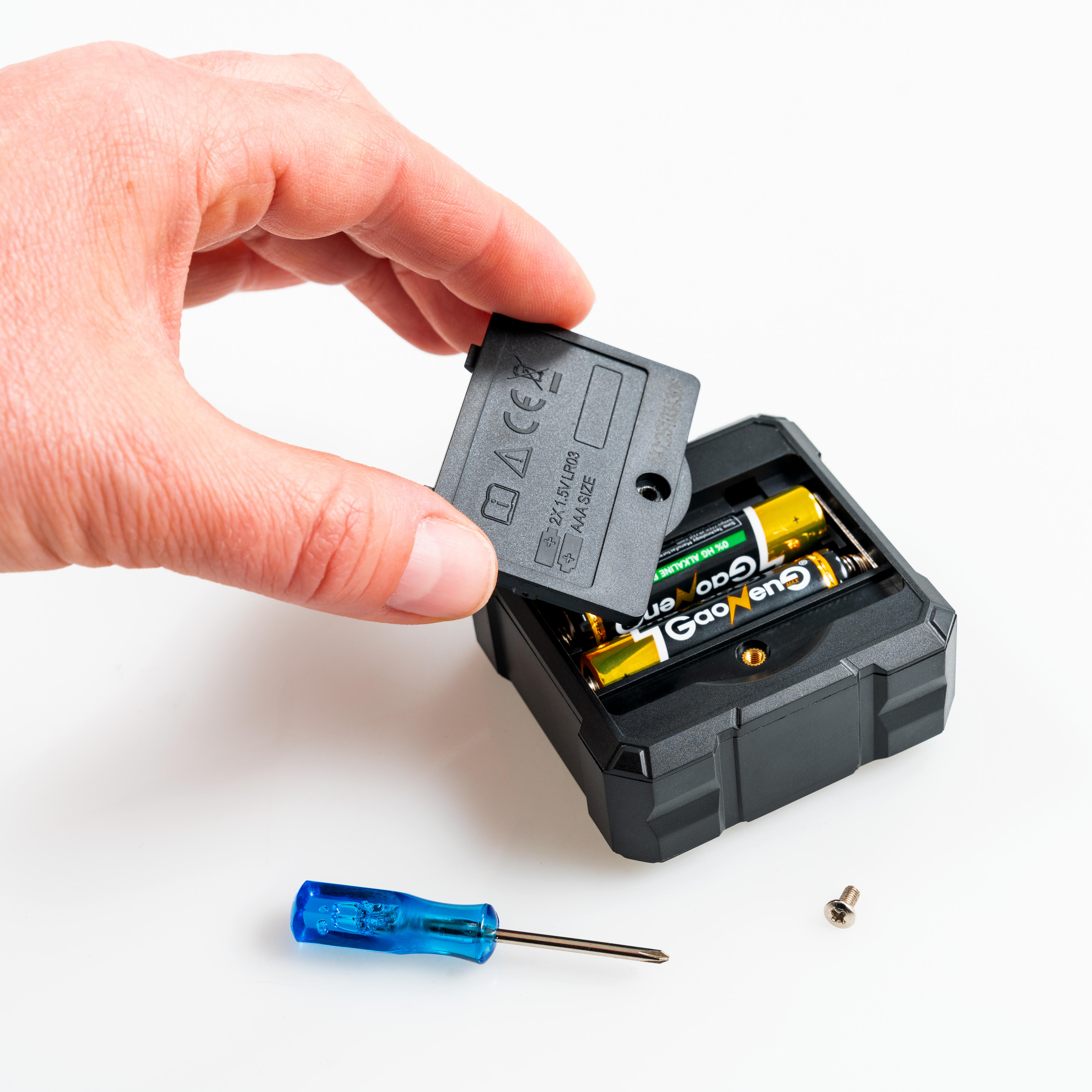

Supplied with two AAA batteries.
Your benefits:
- Data hold function for retaining current readings
- Display in degrees (°) and percent (%)
- Digital level indication via arrow symbols
- Display size 39 x 22 mm
- Automatic shut-off function
- Powered by two AAA batteries
- Measuring range: 4 x 90°
Absolute mode (ABS):
The displayed value corresponds to the angle relative to level.
Relative mode (REF):
This mode displays the angular difference between the start and end position.
Supplied with two AAA batteries.
Properties
| Automatic deactivation: | Yes |
|---|---|
| Dimensions (L x W x H): | 58 x 25 x 58 mm |
| Measurment range: | 4 x 90 ° |
| Operating temperature: | -10 to +50 |
| Power Supply: | 2 AAA batteries |
| Units of measurement: | ° / % |
Properties
| Automatic deactivation: | Yes |
|---|---|
| Dimensions (L x W x H): | 58 x 25 x 58 mm |
| Measurment range: | 4 x 90 ° |
| Operating temperature: | -10 to +50 |
| Power Supply: | 2 AAA batteries |
| Units of measurement: | ° / % |
