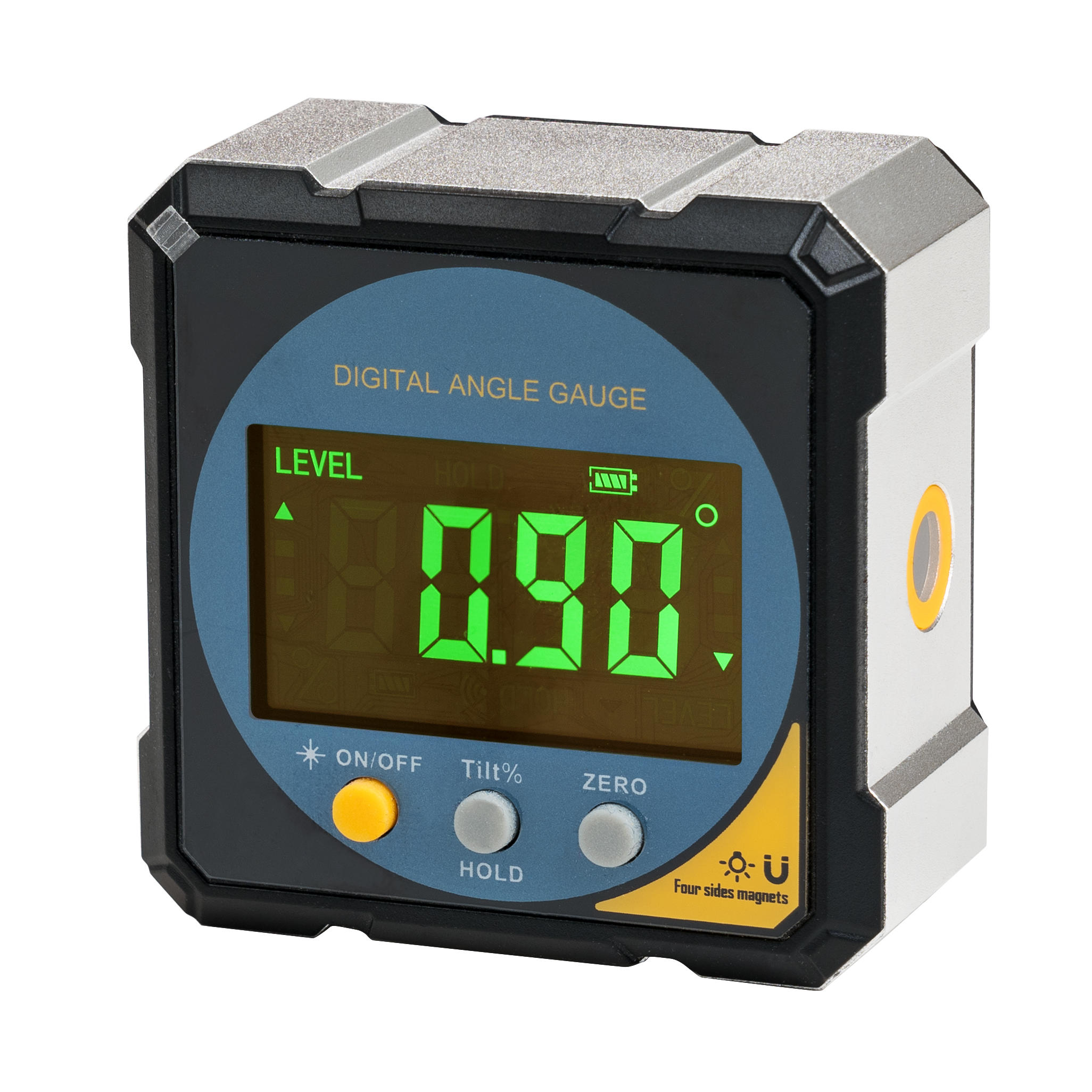

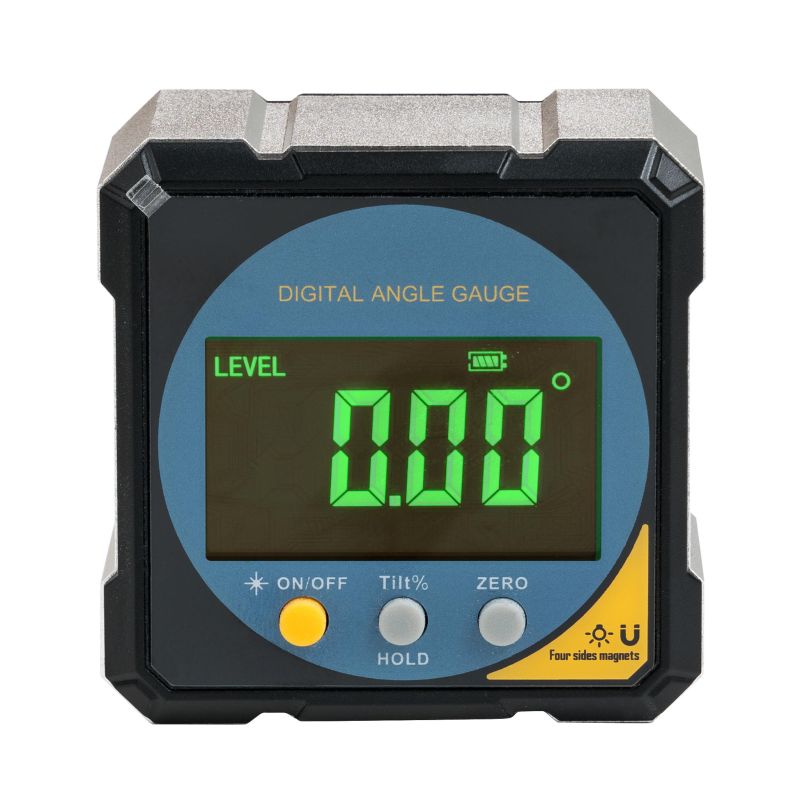

Digital Angle Gauge with Point Laser

Description

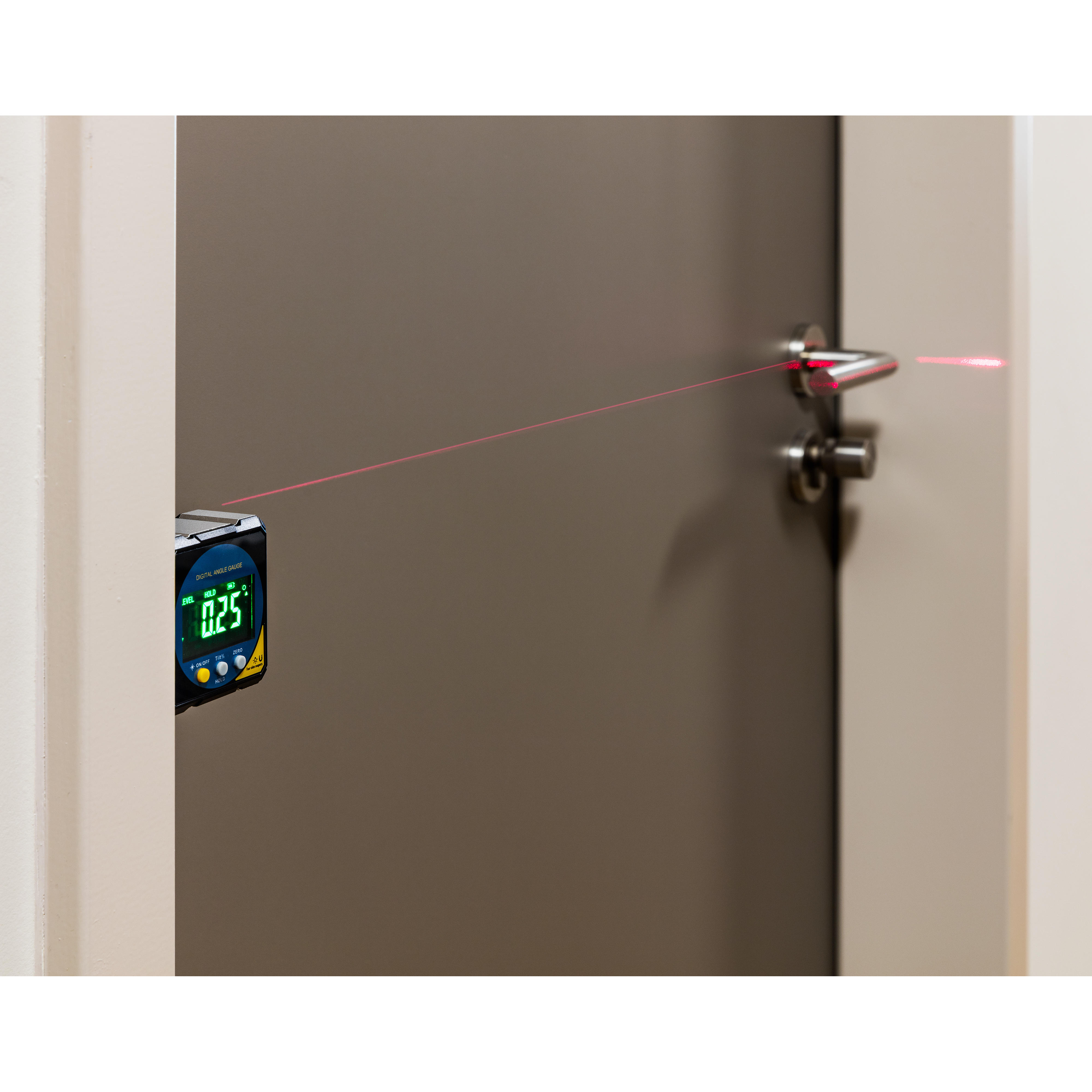

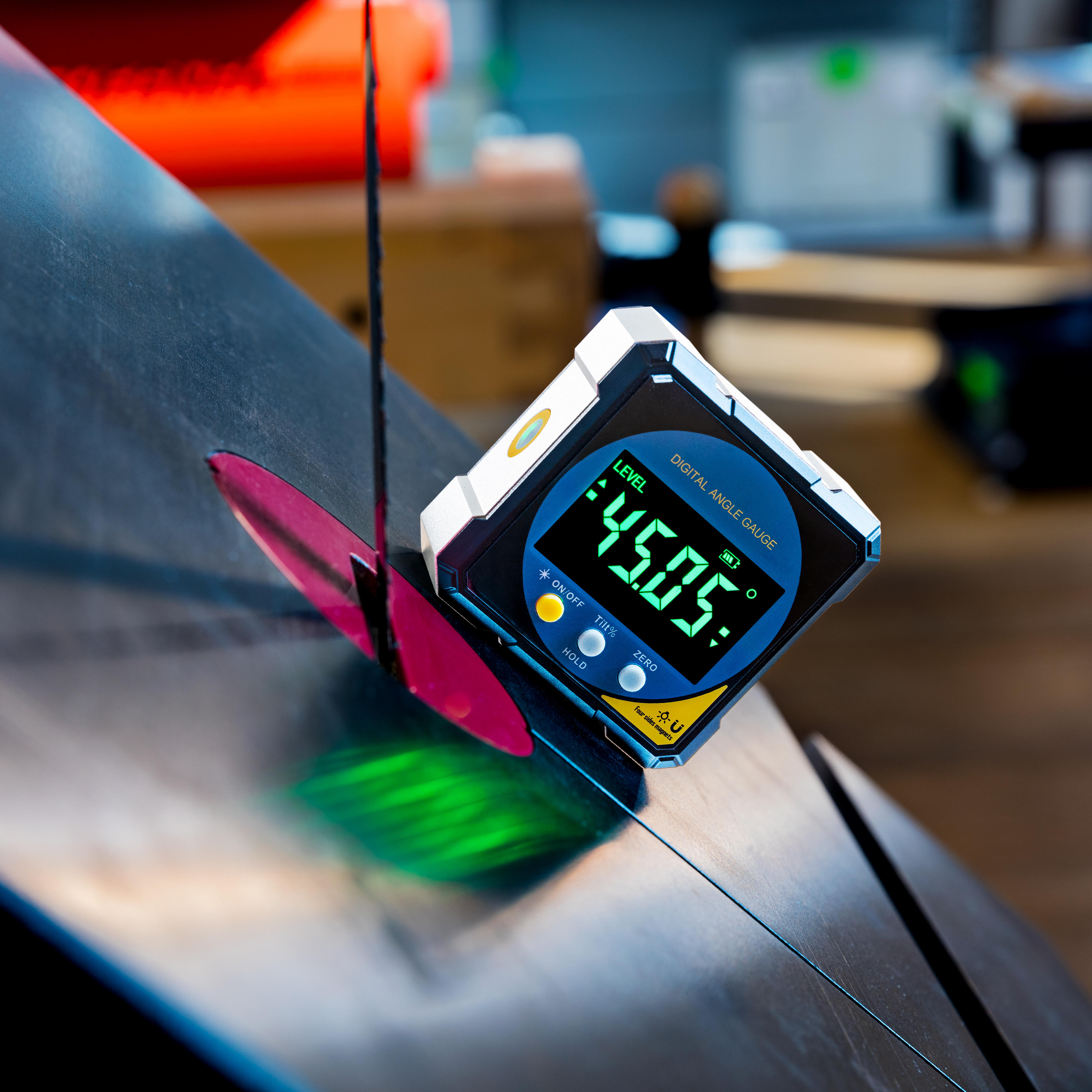

For fast and precise measurement of angles (°) and inclinations (%). An indispensable tool on the machine tables of bandsaws and drill presses, as well as for setting the angle of circular saw blades. The integrated point laser offers a significant advantage for assembly and site work, allowing the required or existing angle to be projected directly onto the workpiece. All measurements can be taken as absolute or relative values. Robust aluminium frame, protected against dust and splash water (IP54), with four magnetic sides for secure attachment to ferromagnetic surfaces. Display resolution 0.05°, repeatability 0.1°.

Your benefits:
  • Data hold function to retain current measurement values
  • Unit display in ° and %
  • Digital level indication with directional arrows
  • Display size 34 × 23 mm

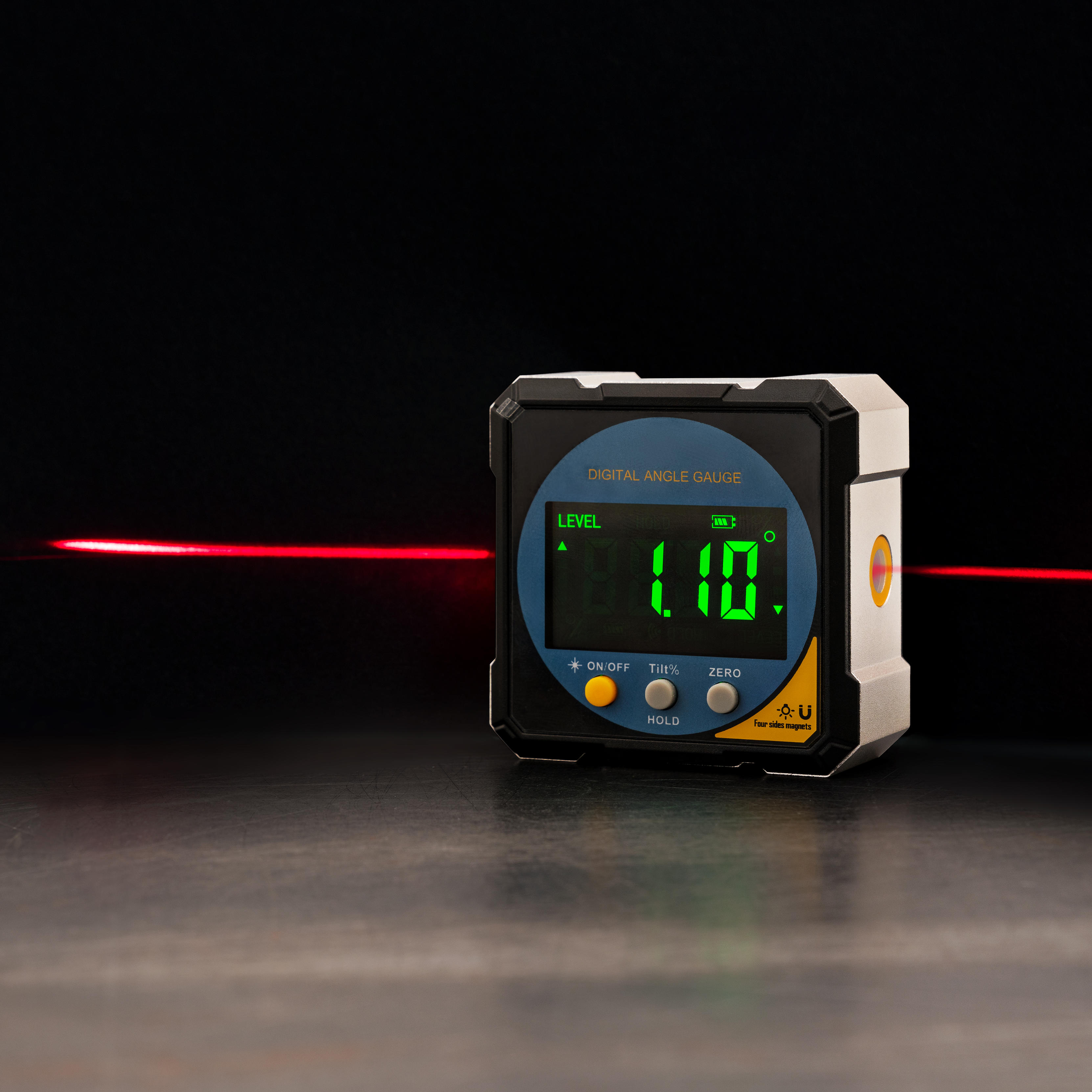

  • Point laser, single- and dual-sided
  • Automatic shut-off function (can be switched on/off)
  • Integrated 3.7 V lithium battery
  • Measuring range 4 × 90°

Absolute mode (ABS): The value shown on the display is the angle between the current surface and the horizontal plane.

Relative mode (REF): Displays the change in angle between the starting position and the end position.

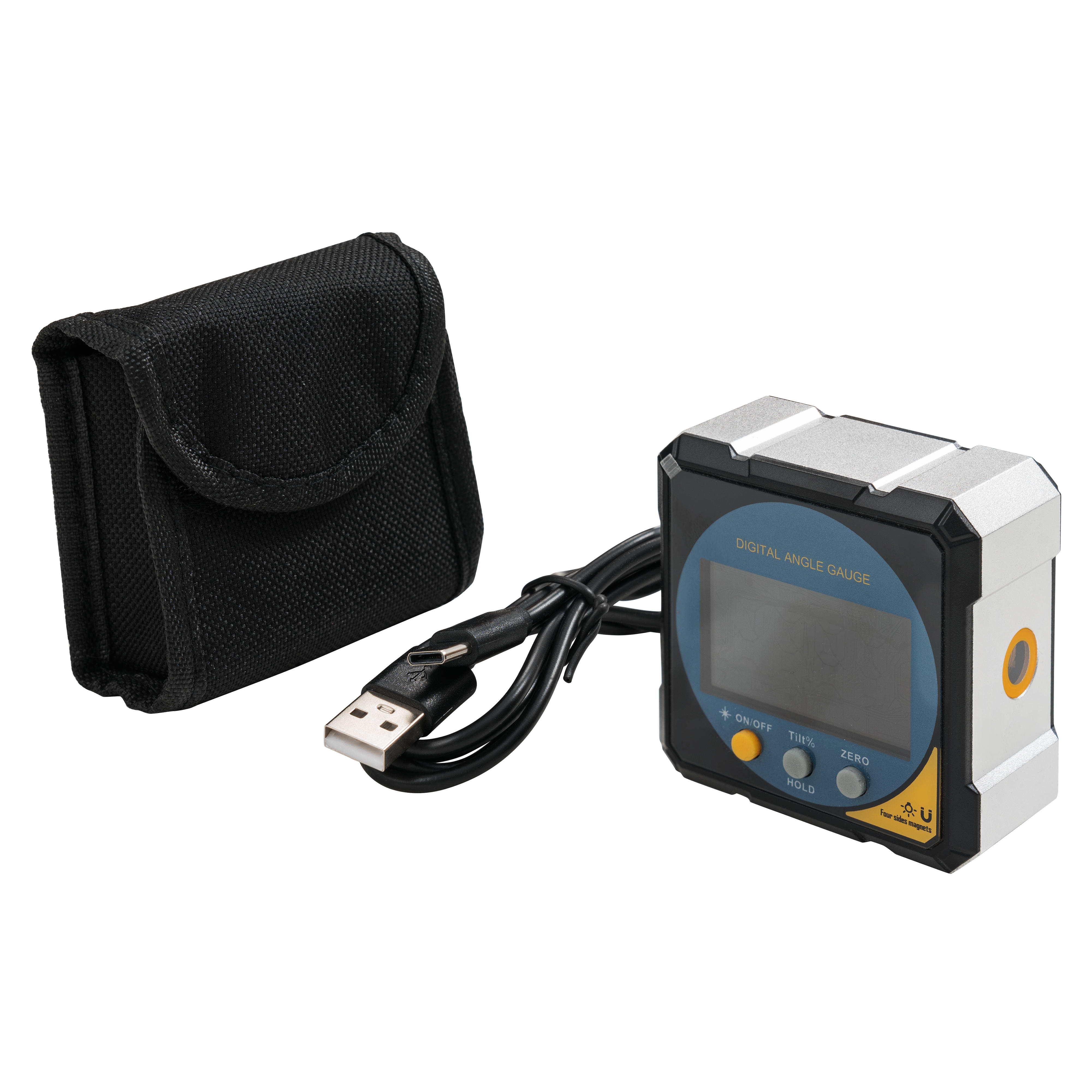

Supplied with charging cable and belt pouch.

Properties

Automatic deactivation: after 5 minutes
Dimensions (L x W x H): 61 x 31 x 61 mm
Laser class: 2
Measurment accuracy: ± 0.2 °
Measurment range: 4 x 90 °
Operating temperature: -10 to +50 °C
Units of measurement: ° / %
Weight: 106 g

Properties

Automatic deactivation: after 5 minutes
Dimensions (L x W x H): 61 x 31 x 61 mm
Laser class: 2
Measurment accuracy: ± 0.2 °
Measurment range: 4 x 90 °
Operating temperature: -10 to +50 °C
Units of measurement: ° / %
Weight: 106 g
