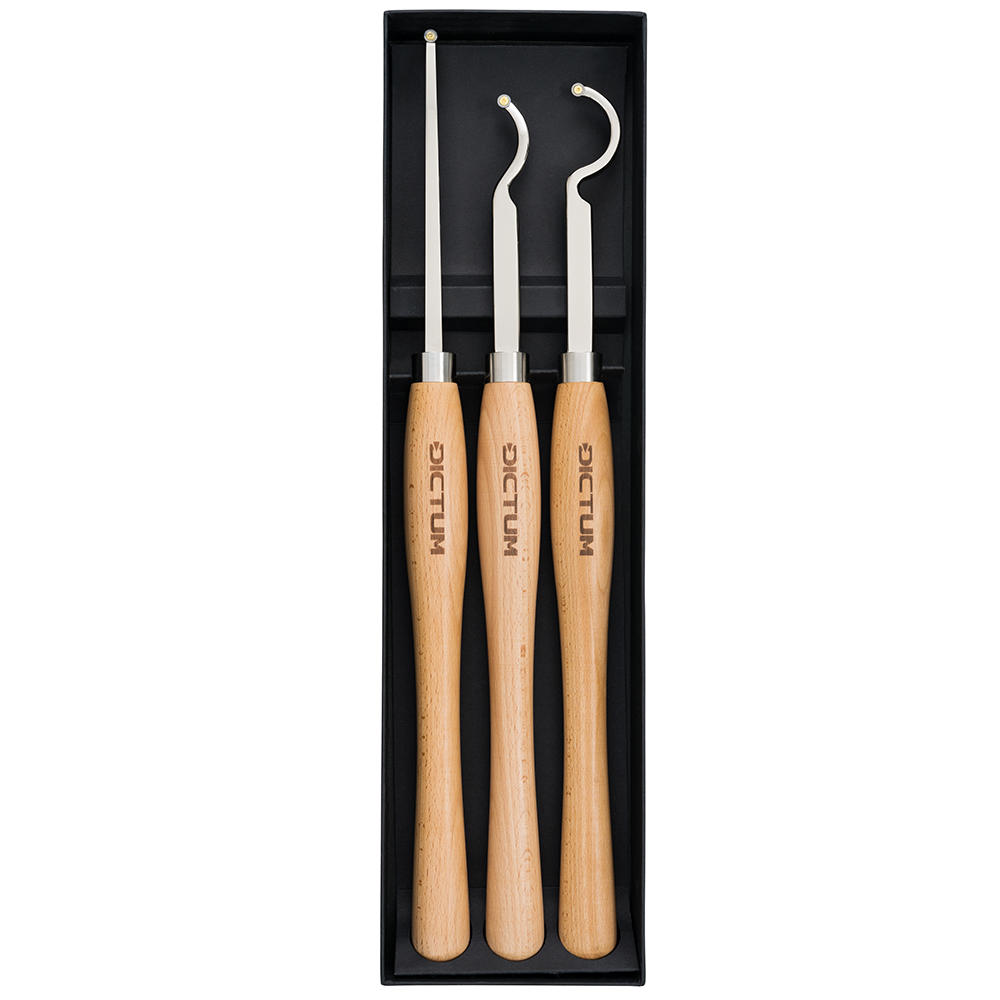

DICTUM® TC Hollowing Tools, 3-Piece Set
Product no.:
725069
Brand:
DICTUM GmbH
Price advantage
€199.00 €167.23
per Satz
Product mid November 2025 Available
- Blade diameter 9 mm
- Handle length 410 mm
- Handle material Red beech
- Hardness 93 HRC
- Overall length 580-620 mm
Description
For turning hollow shapes and undercuts on hollow vessels. With their replaceable carbide cutters, these scrapers offer a simple, safe, and effective way to achieve fine finishes on the insides of hollow workpieces. The three different versions (straight, slightly cranked and strongly cranked) complement each other or stand alone, depending on the degree of undercut on the vessel.
The long service life of the 93 HRC hard carbide scrapers, as well as their multiple use (cutters are rotated until all edges are dull), also offer easy handling.
Benefits:
The set contains:
The long service life of the 93 HRC hard carbide scrapers, as well as their multiple use (cutters are rotated until all edges are dull), also offer easy handling.
Benefits:
- Safe handling, less kickback of the tools
- Rectangular shaft as a support surface for reduced vibrations
- Various cranked versions for a perfect and safe working position
- Reduced fatigue as less effort is required

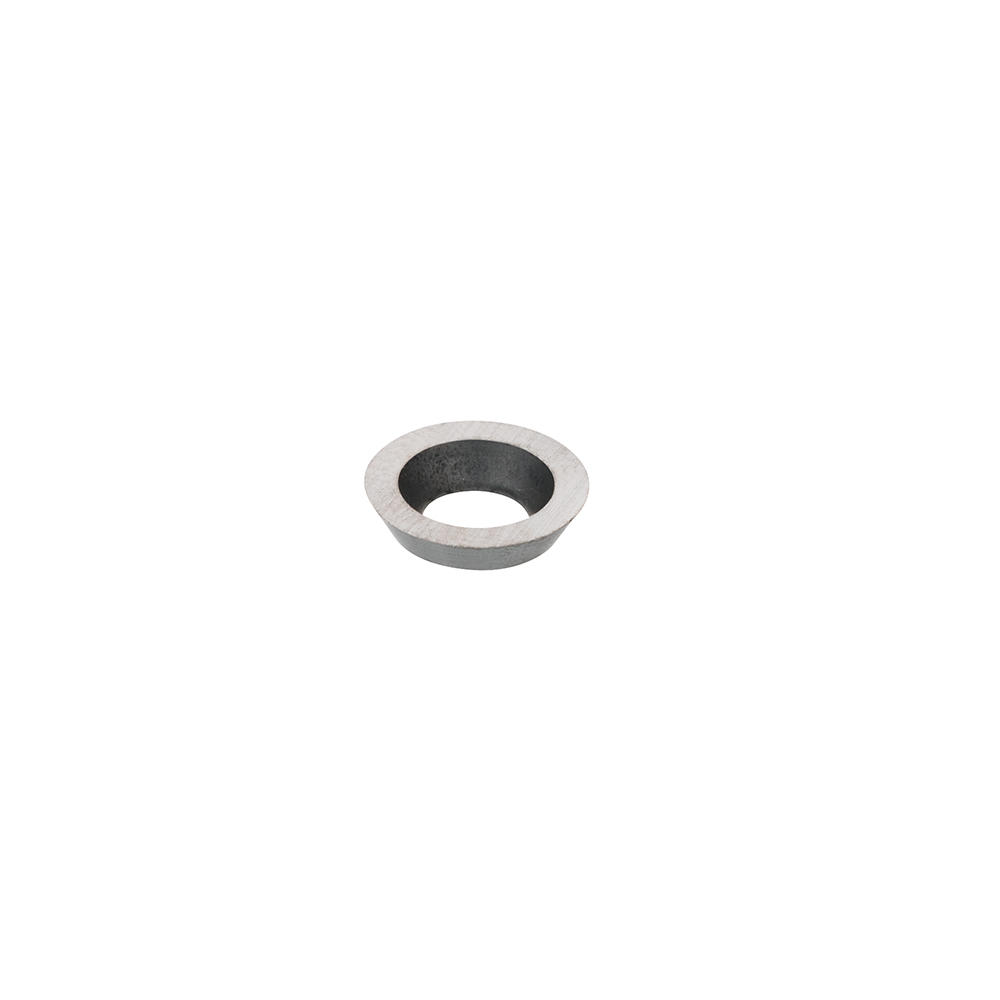

- Carbide scrapers Ø 9 mm cut in all directions
- No sharpening required – rotate or replace the carbide cutters
- Scraper fastening screw made of high-strength steel for wear-resistant screw drive and long lifespan
- Turned stainless steel ferrule with a closed front for easy cleaning and long durability
- Handle made of waxed beech
The set contains:

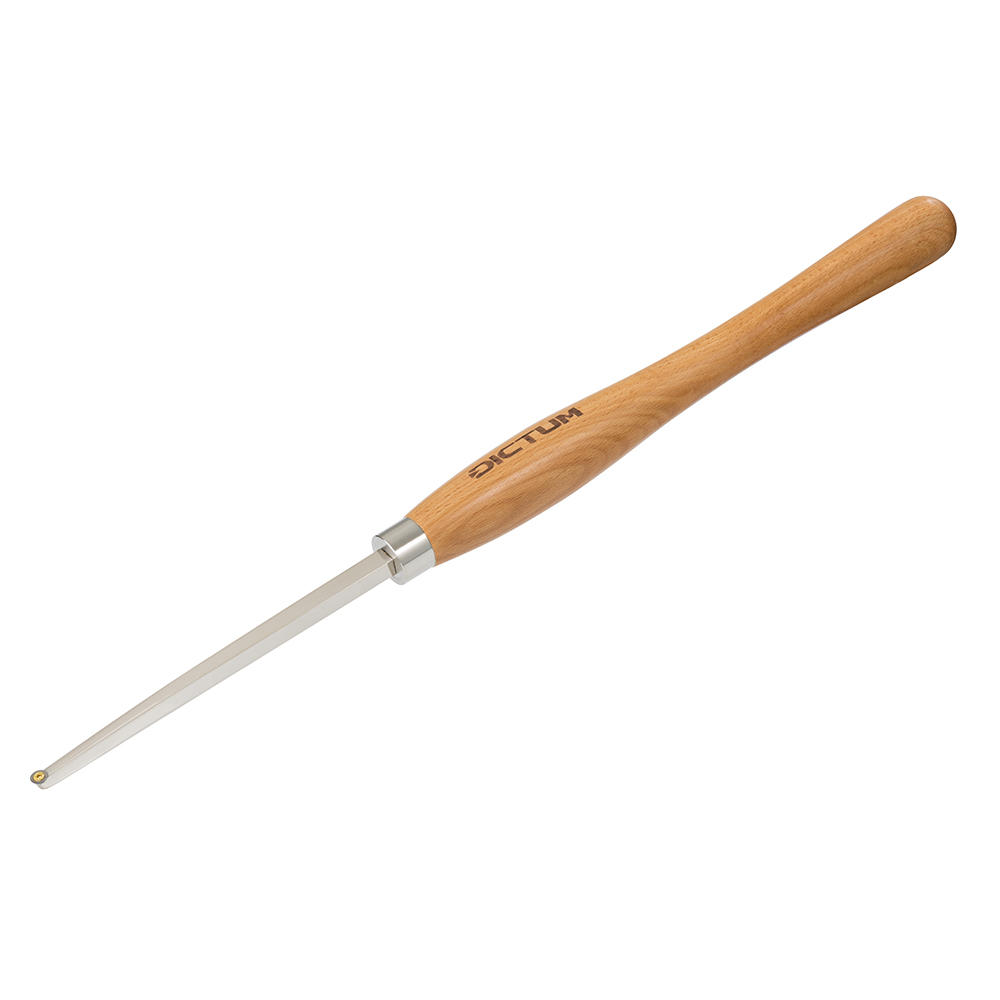

- TC Hollowing Tool #1, Straight (No. 725070)

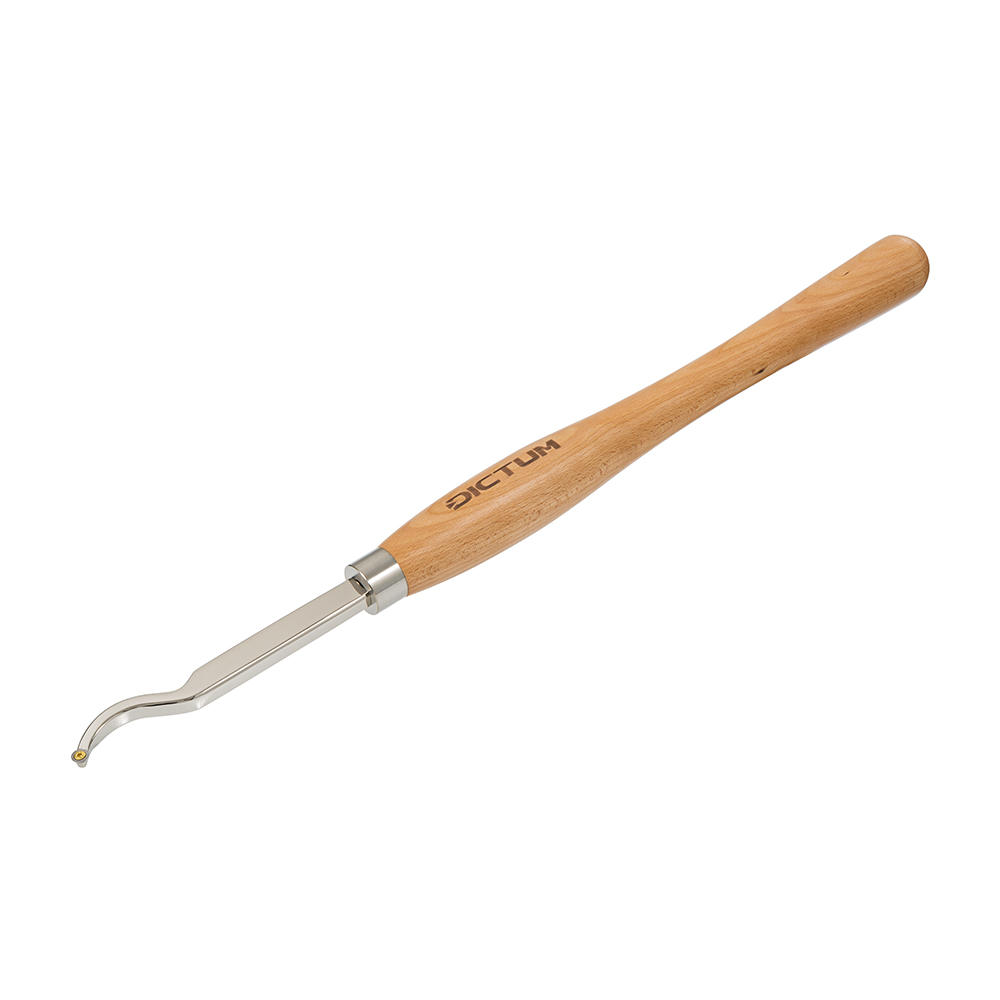

- TC Hollowing Tool #2, Slightly Cranked (No. 725071)
- TC Hollowing Tool #3, Strongly Cranked (No. 725072)

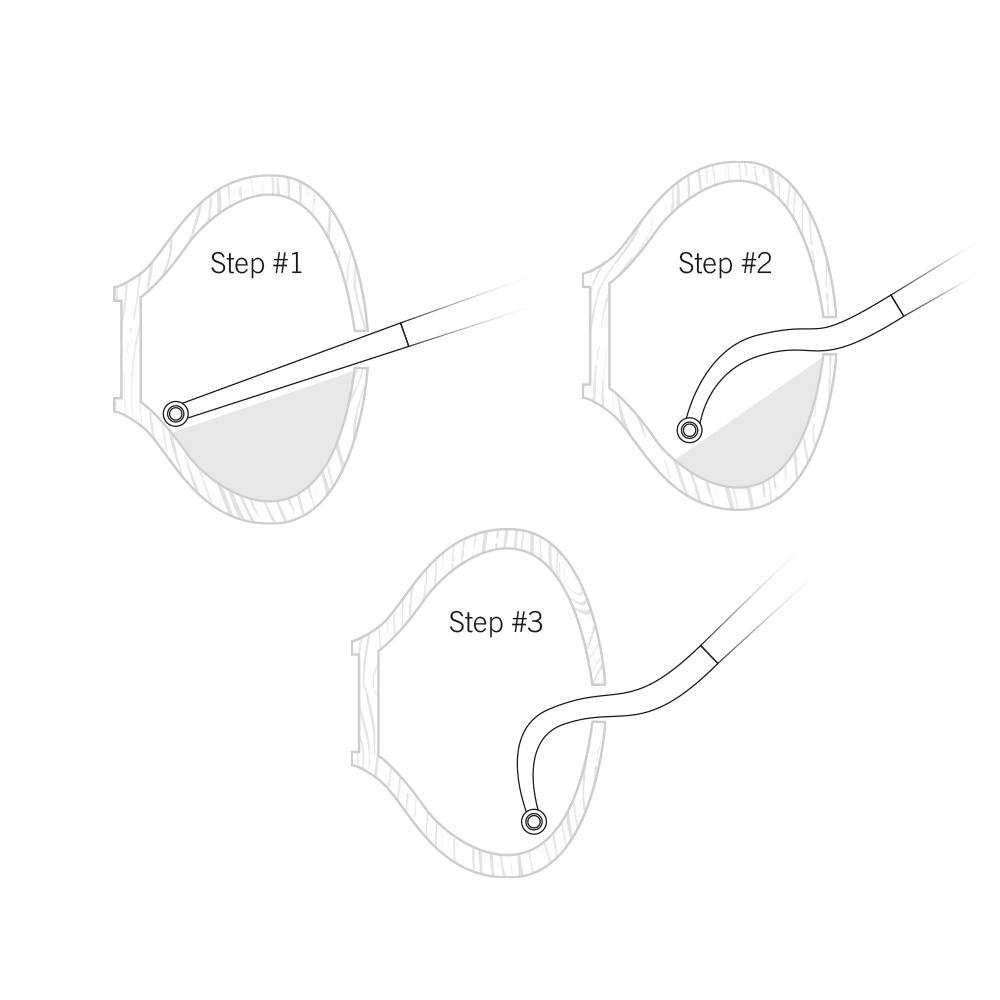

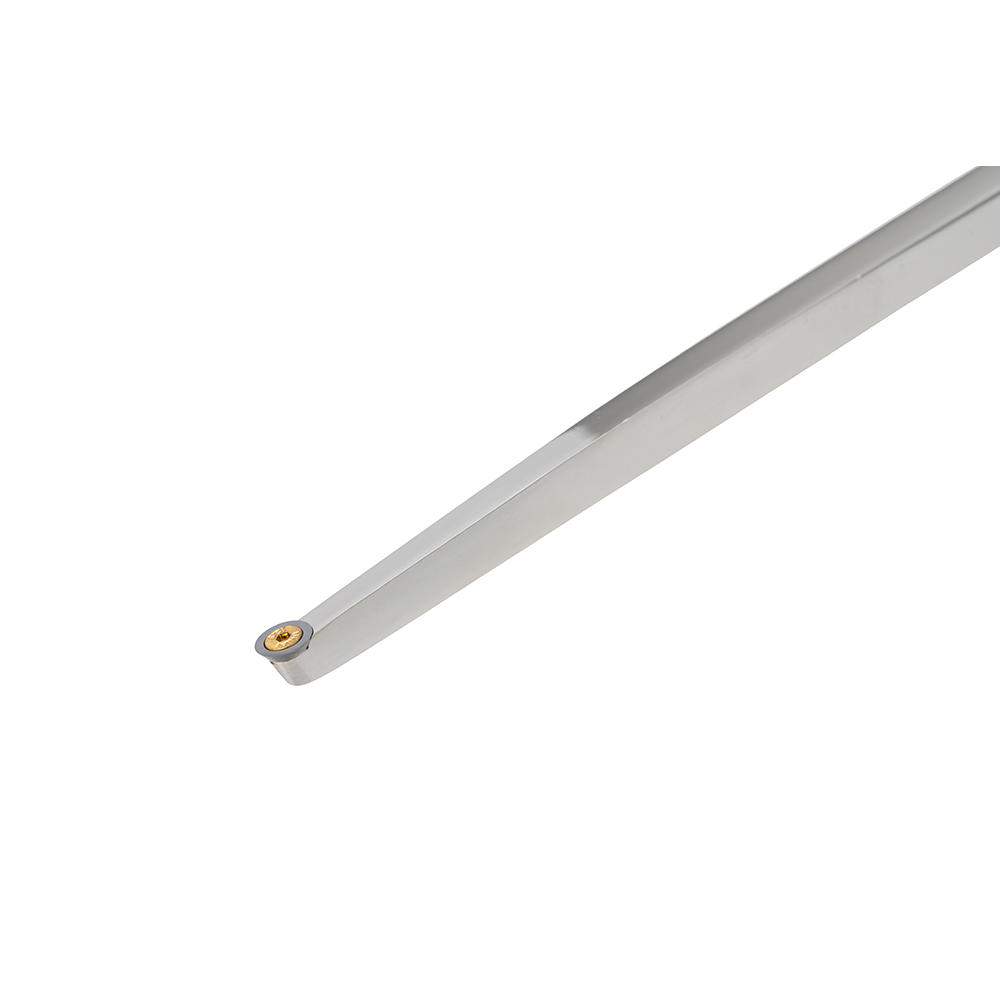

Straight #1
For working on straight, deep vessels or for material removal before using the slightly cranked and strongly cranked designs.

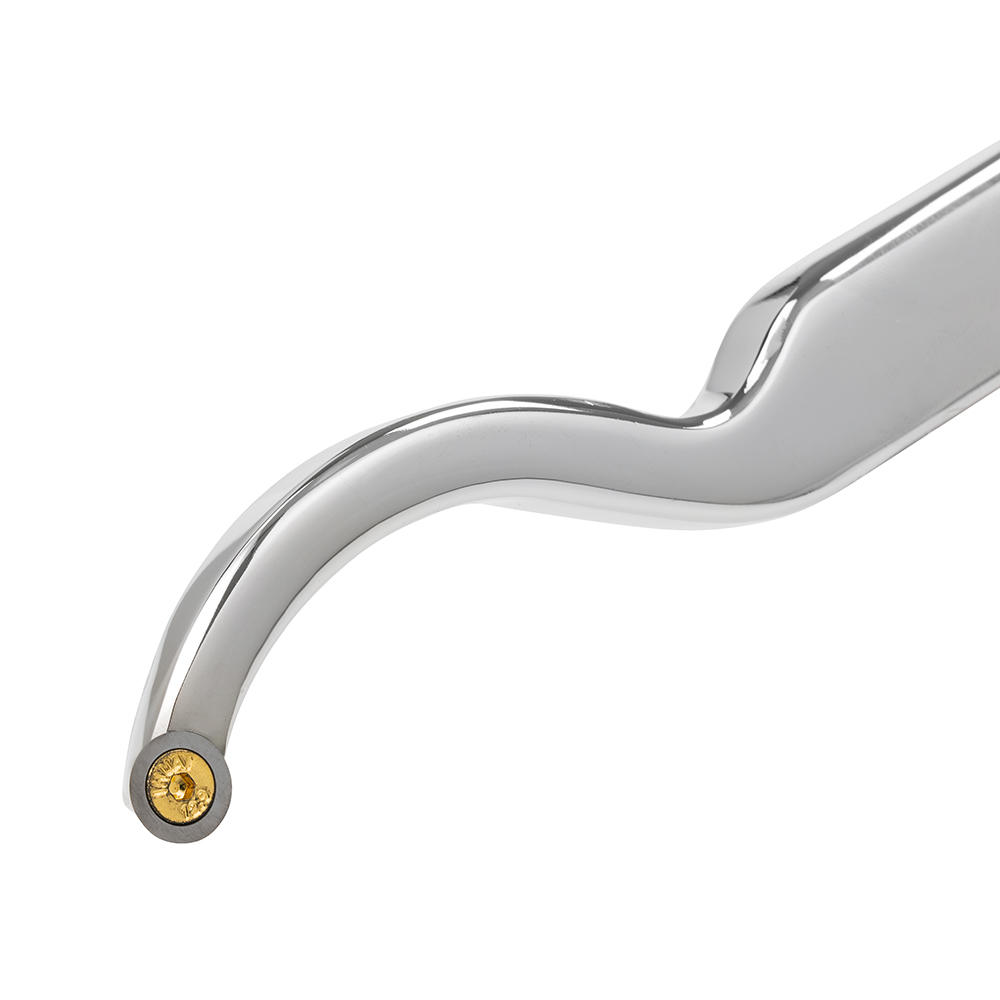

Slightly cranked #2
For vessels with slight undercuts or for material removal before using the strongly cranked shape.

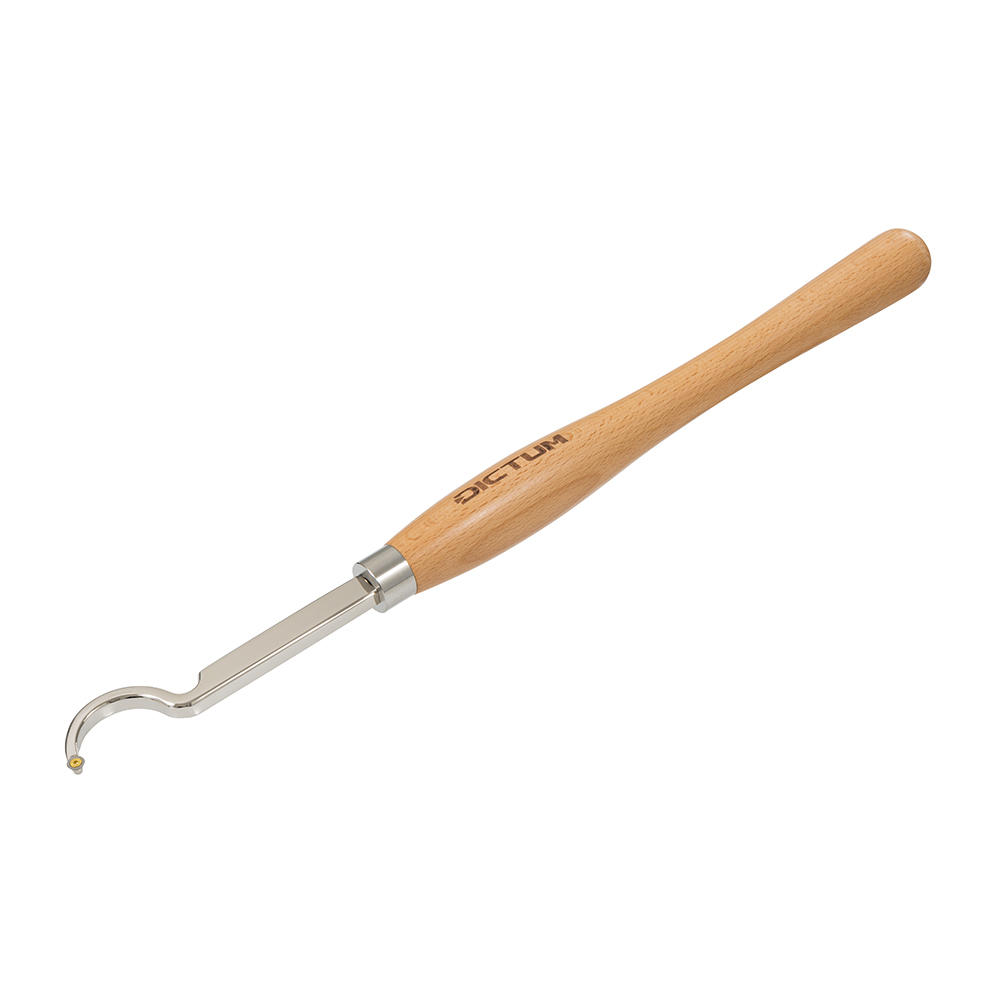

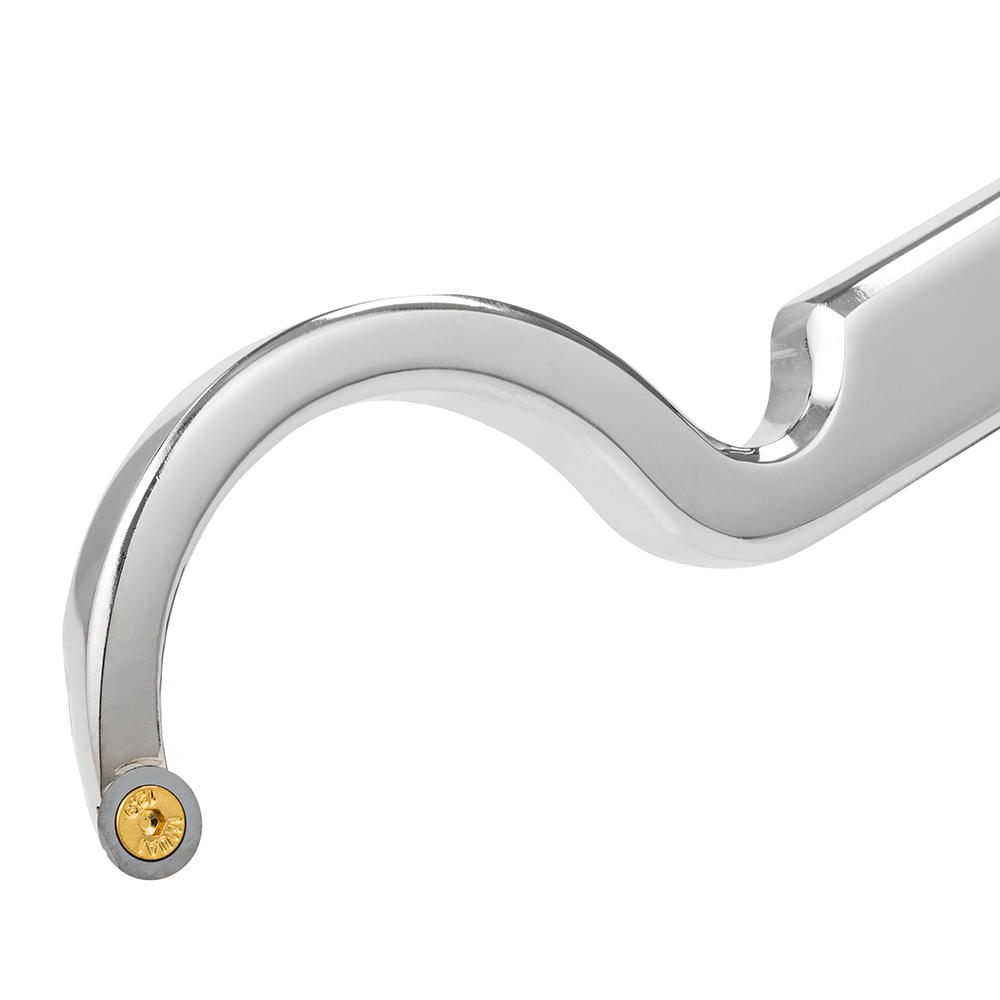

Strongly cranked #3
The strong cranking enables pronounced undercuts, e.g. for vessels with a narrow neck.
For working on straight, deep vessels or for material removal before using the slightly cranked and strongly cranked designs.
Slightly cranked #2
For vessels with slight undercuts or for material removal before using the strongly cranked shape.
Strongly cranked #3
The strong cranking enables pronounced undercuts, e.g. for vessels with a narrow neck.
Properties
| Blade diameter: | 9 mm |
|---|---|
| Handle length: | 410 mm |
| Handle material: | Red beech |
| Hardness: | 93 HRC |
| Overall length: | 580-620 mm |
| Steel: | Carbide cutter |
| Typ: | Drechseleisen-Satz |
Properties
| Blade diameter: | 9 mm |
|---|---|
| Handle length: | 410 mm |
| Handle material: | Red beech |
| Hardness: | 93 HRC |
| Overall length: | 580-620 mm |
| Steel: | Carbide cutter |
| Typ: | Drechseleisen-Satz |

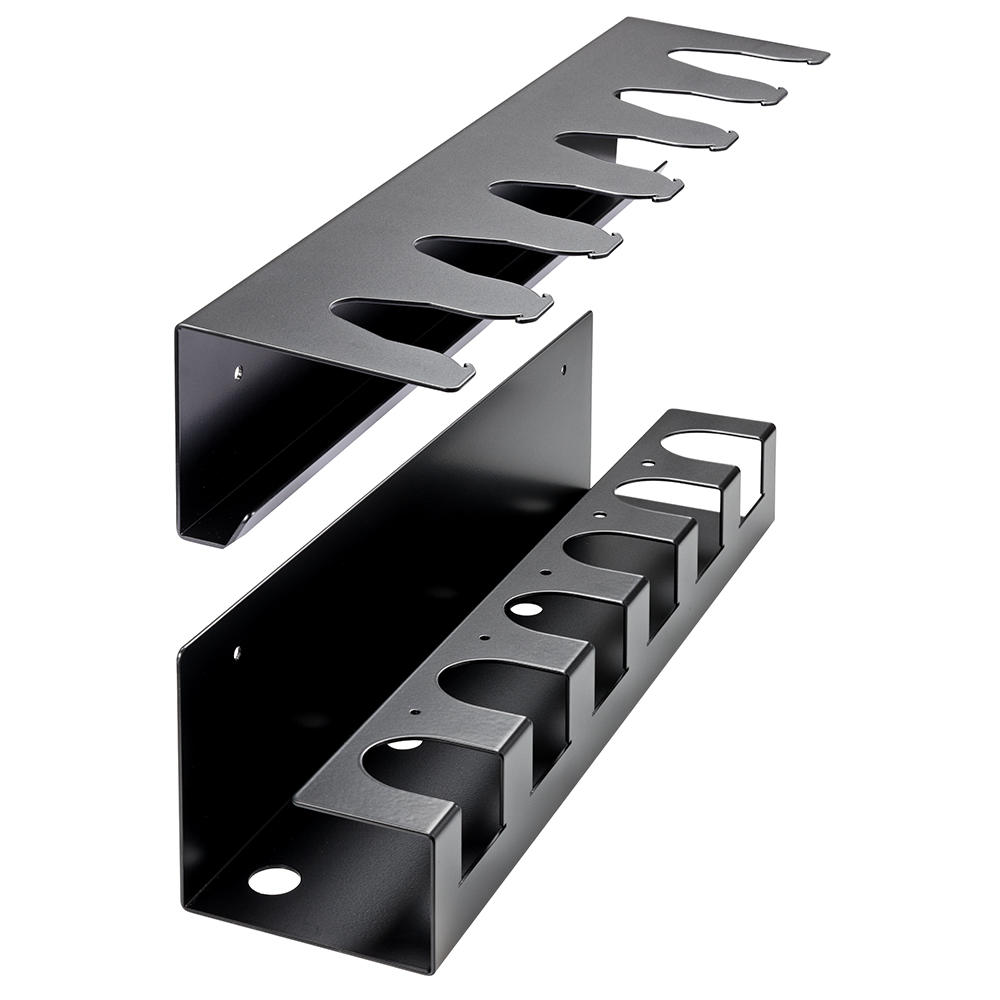

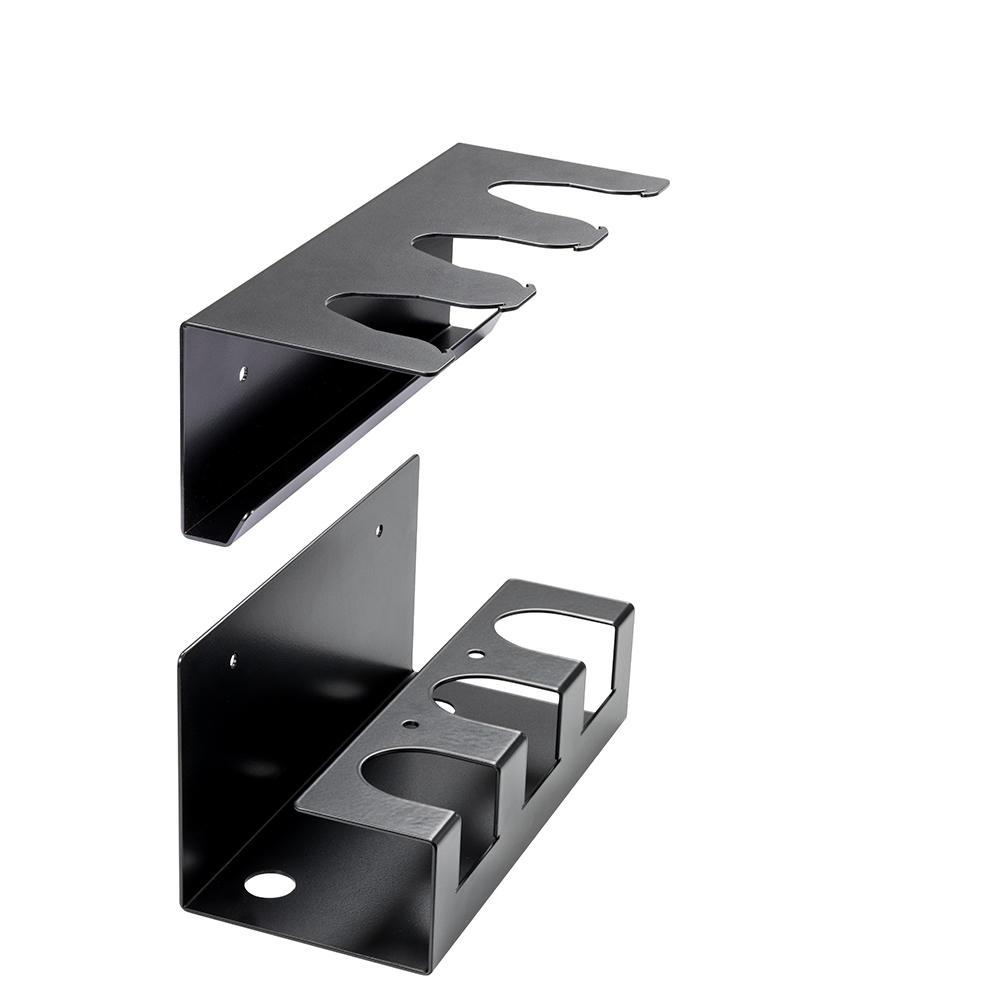

Accessories
