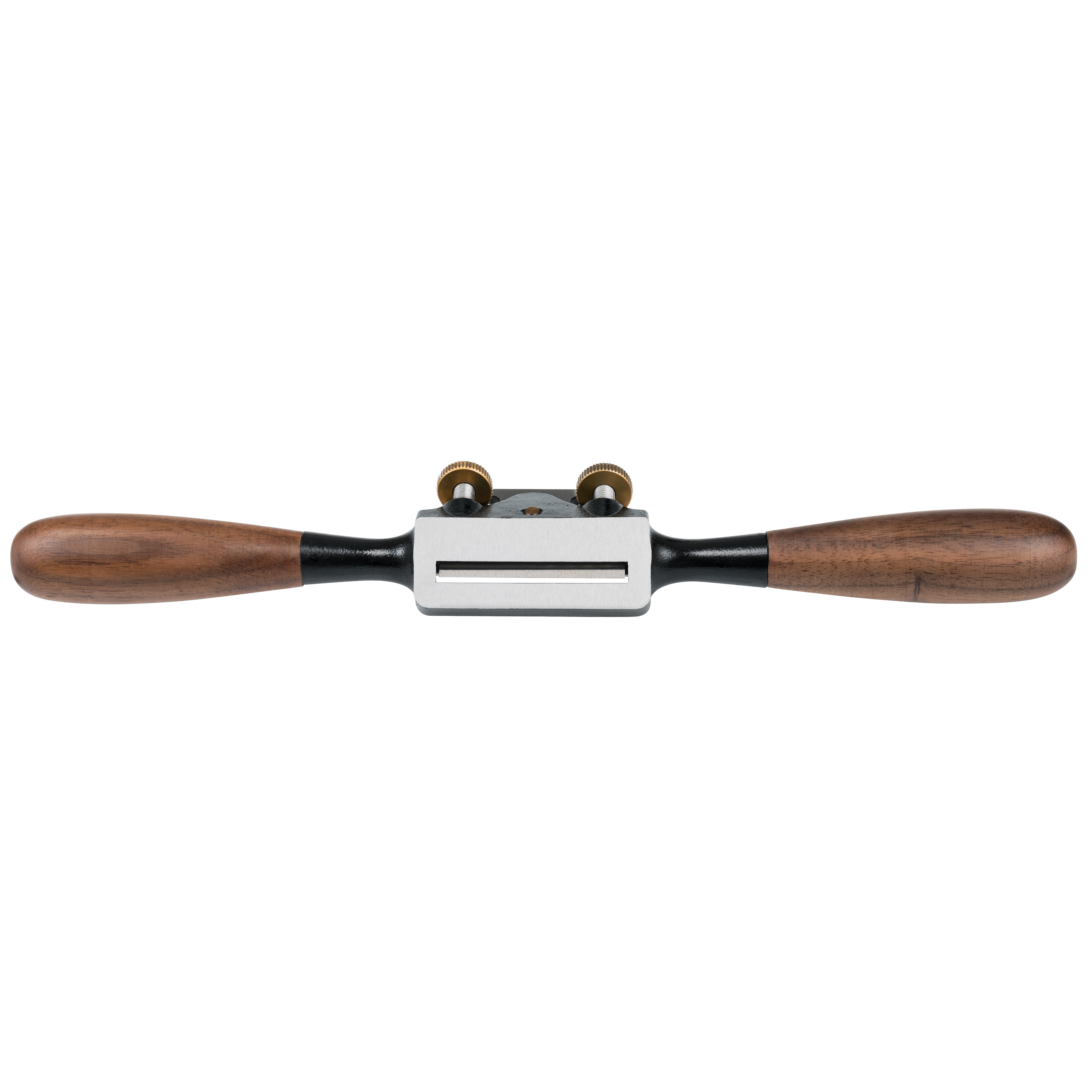

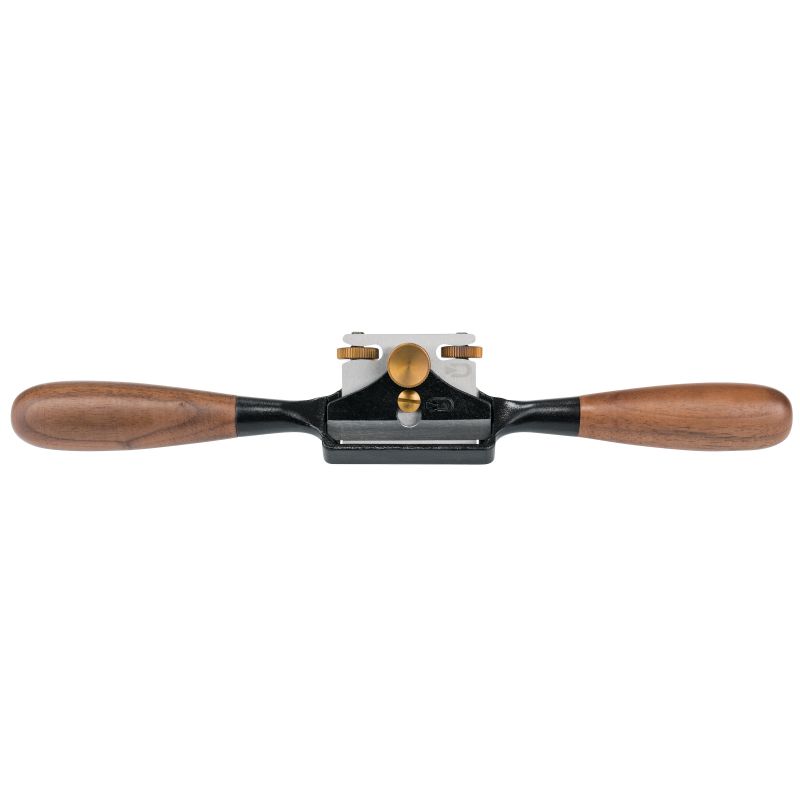

DICTUM® Spokeshave, Straight Sole, Japanese Blade
Product no.:
703346
Brand:
DICTUM
€91.90 €77.23
per piece
Delivery time approx. 3-5 working days
- Blade material Blue Paper Steel
- Blade thickness 3 mm
- Blade width 51 mm
- Design / cutting angle Bevel down / cutting angle 40°-45°, Others
- Overall length 280 mm
Description
This spokeshave from the DICTUM series has a mouth opening of 0.5-0.8 mm when adjusted for fine shavings. This makes it an indispensable tool for bow making as well as for cutting stretchers and rounding edges in furniture making. Radius of round version: 40 mm.
- Precisely adjustable depth feed
- Comfortable large wood handle for easy control of the tool

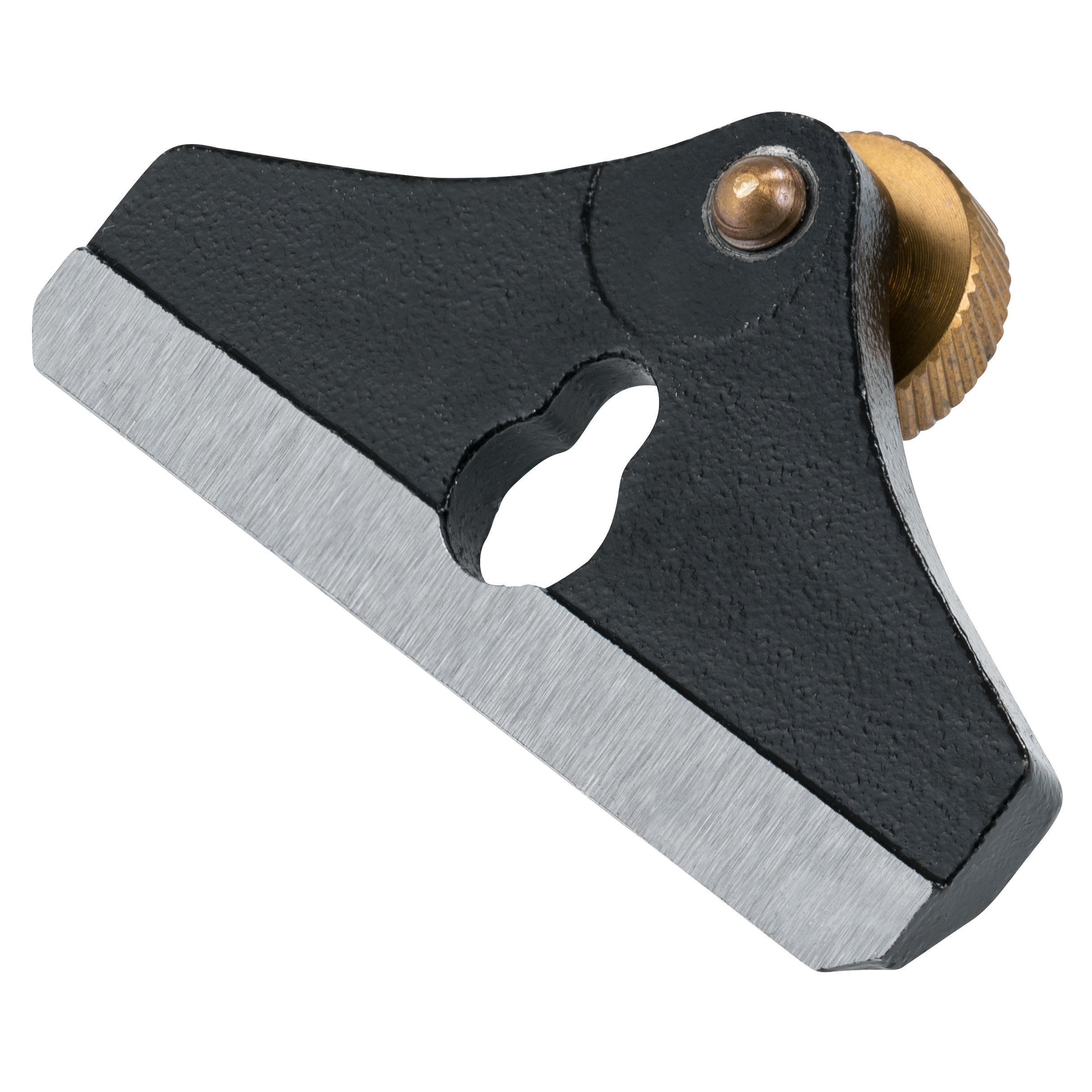

- Taper-ground cap for full-surface contact pressure without shavings clogging the tool - simplifies rework
DICTUM® Planes
We have developed our DICTUM plane series based on our Herdim planes. We have been making these planes for decades for our violin makers, who require the utmost precision and perfect workmanship. The solid, stress-relieved plane bodies made from cast steel* with precisely ground soles aligned at right angles to the sides, together with the minimum 3 mm thick blades made from SK4 steel (61 HRC) signify top quality. The planes are also available with a Japanese blade made of Blue Paper Steel (63 HRC) or O2 Waterjet (62 HRC). The blade adjuster allows for precise adjustments and the ergonomically shaped handles developed through tests as well as the polished cap irons provide a good grip. Handles made of walnut wood.
* unless otherwise specified
* unless otherwise specified
Properties
| Blade material: | Blue Paper Steel |
|---|---|
| Blade thickness: | 3 mm |
| Blade width: | 51 mm |
| Design / cutting angle: | Bevel down / cutting angle 40°-45° Others |
| Overall length: | 280 mm |
| Plane body: | Cast steel |
| Purpose: | For curved contours |
| Sole shape: | straight |
| Type: | Spokeshaves |
| Weight: | 320 g |
Properties
| Blade material: | Blue Paper Steel |
|---|---|
| Blade thickness: | 3 mm |
| Blade width: | 51 mm |
| Design / cutting angle: | Bevel down / cutting angle 40°-45° Others |
| Overall length: | 280 mm |
| Plane body: | Cast steel |
| Purpose: | For curved contours |
| Sole shape: | straight |
| Type: | Spokeshaves |
| Weight: | 320 g |
