DICTUM® Sharpening Device for BS 50-55
-37%
Product no.:
729398
Brand:
DICTUM
€80.60 €67.73
per piece % €129.00 €108.40 (37.52% saved) (You save €48.40)
Delivery time approx. 3-5 working days
- Accessories / Replacement parts Accessories
- Fits DICTUM Belt Grinding Device BS 50/55
Description

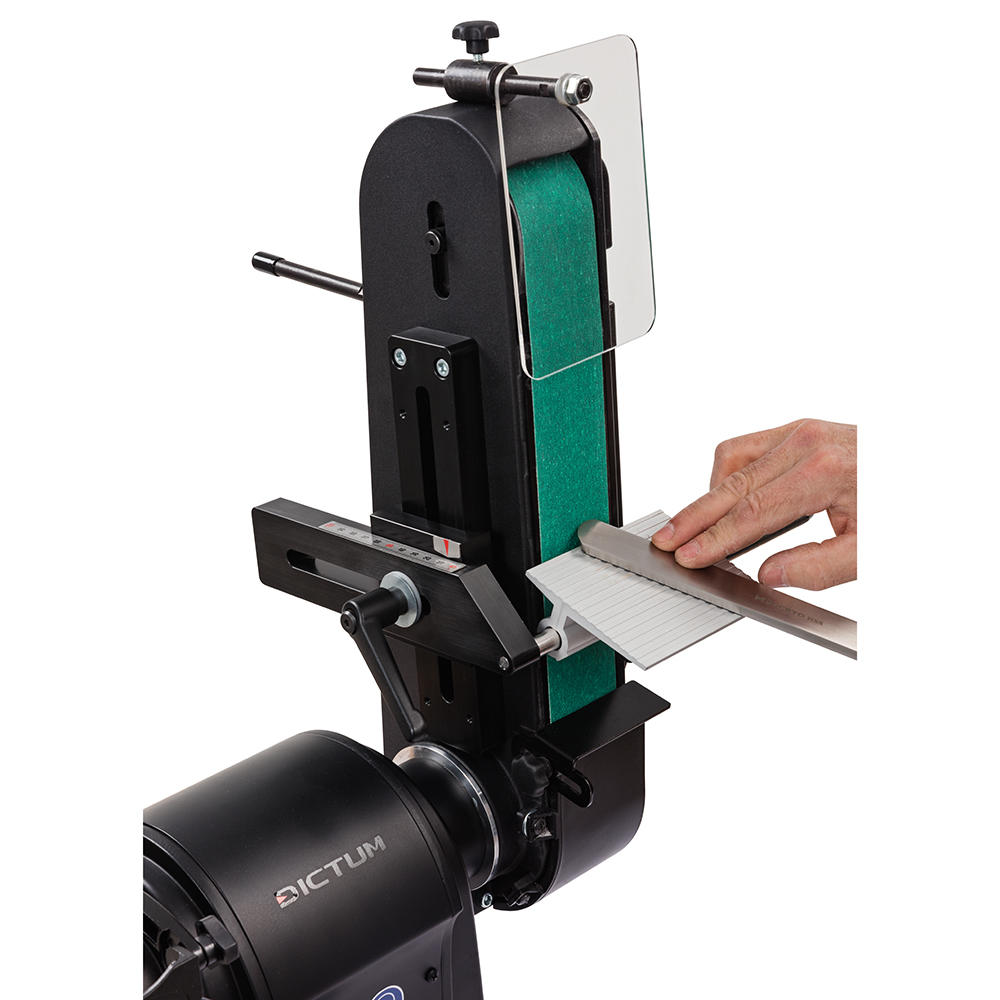

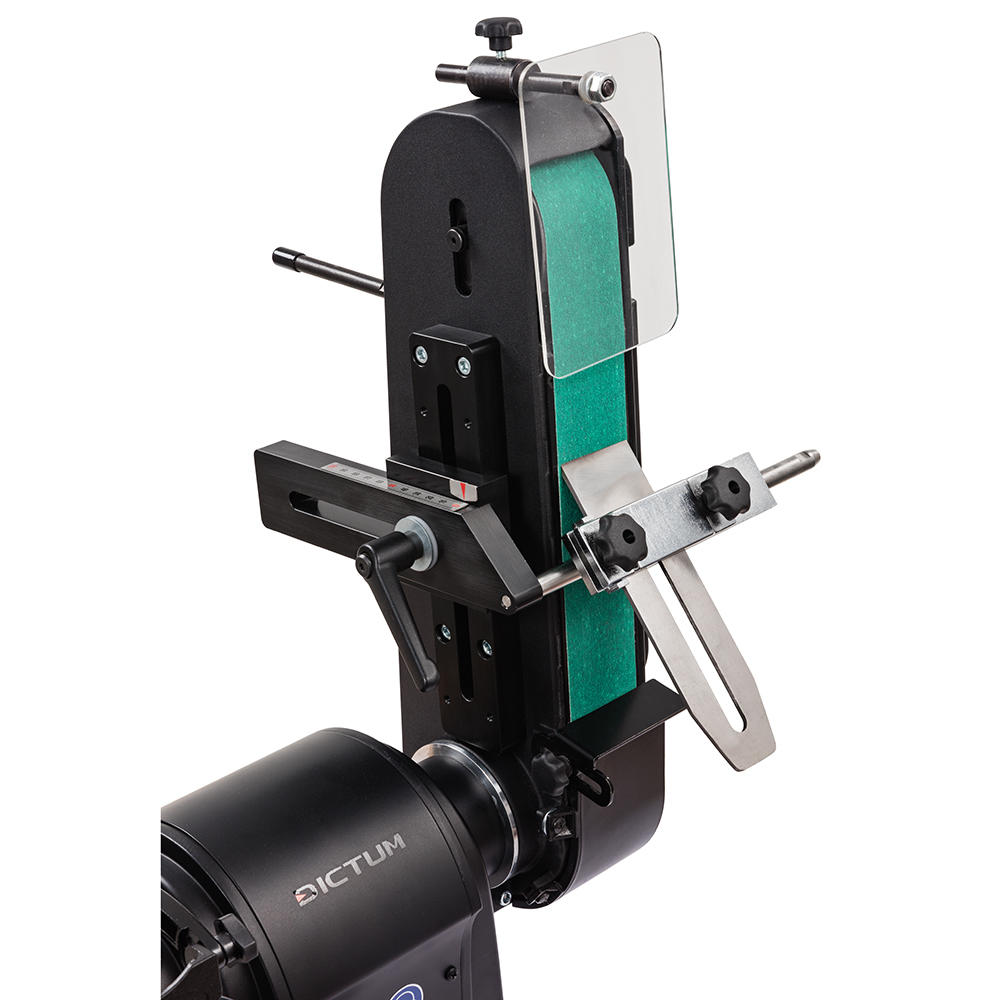

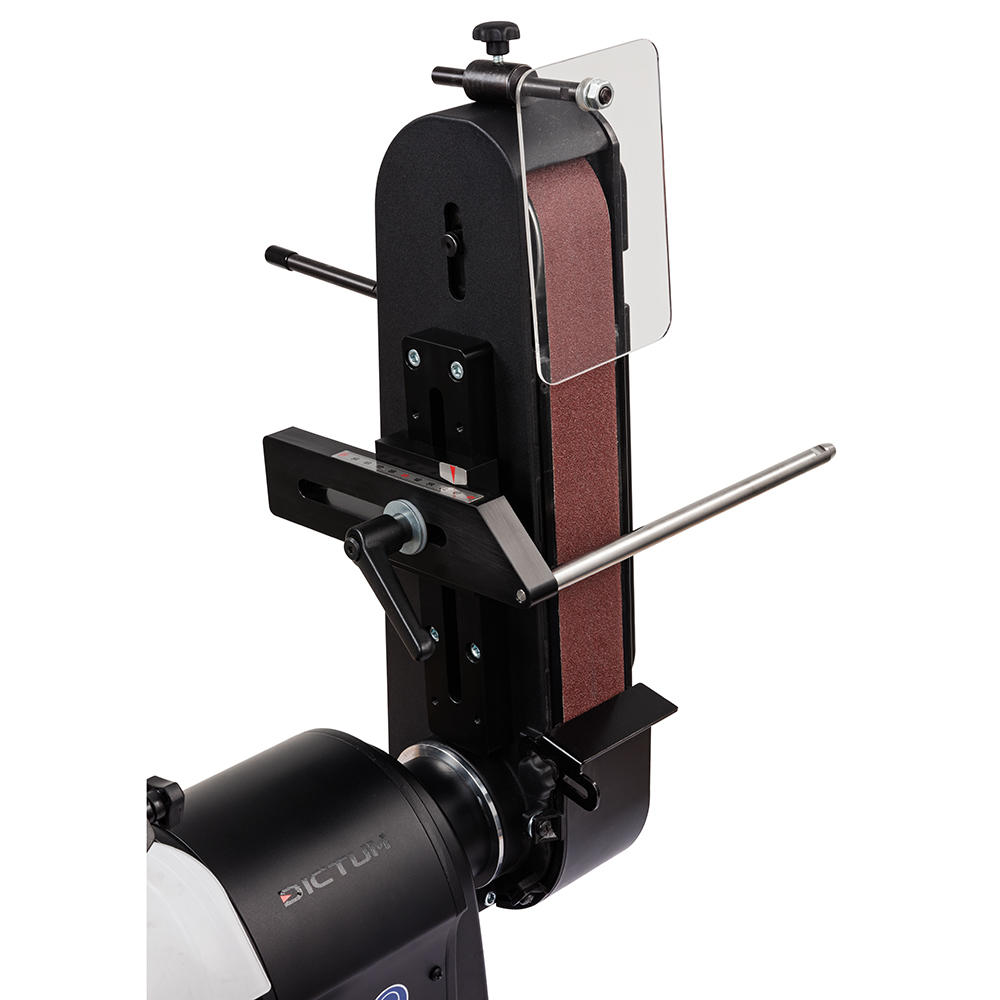

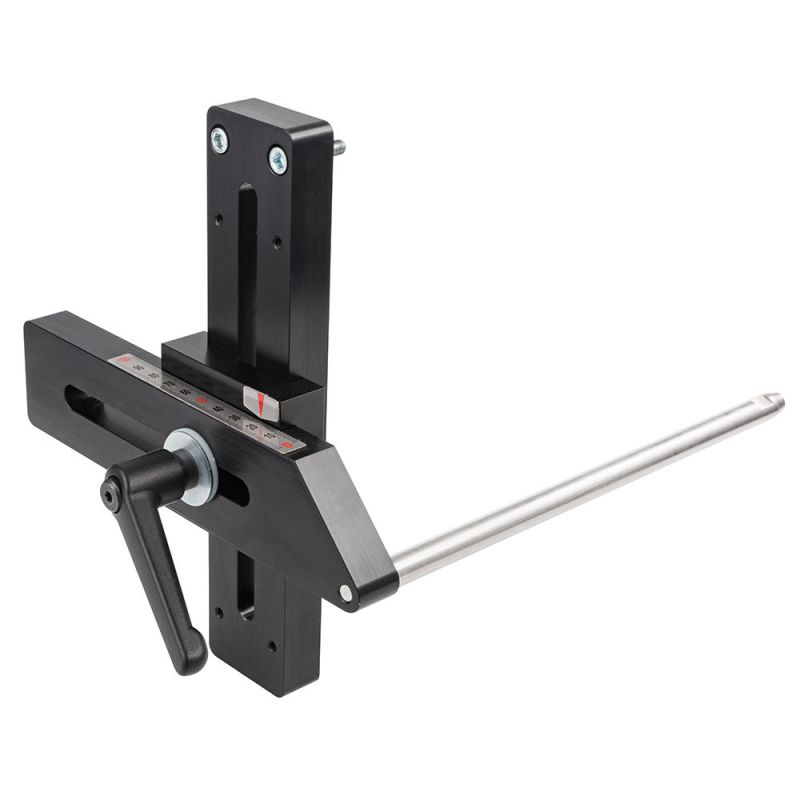

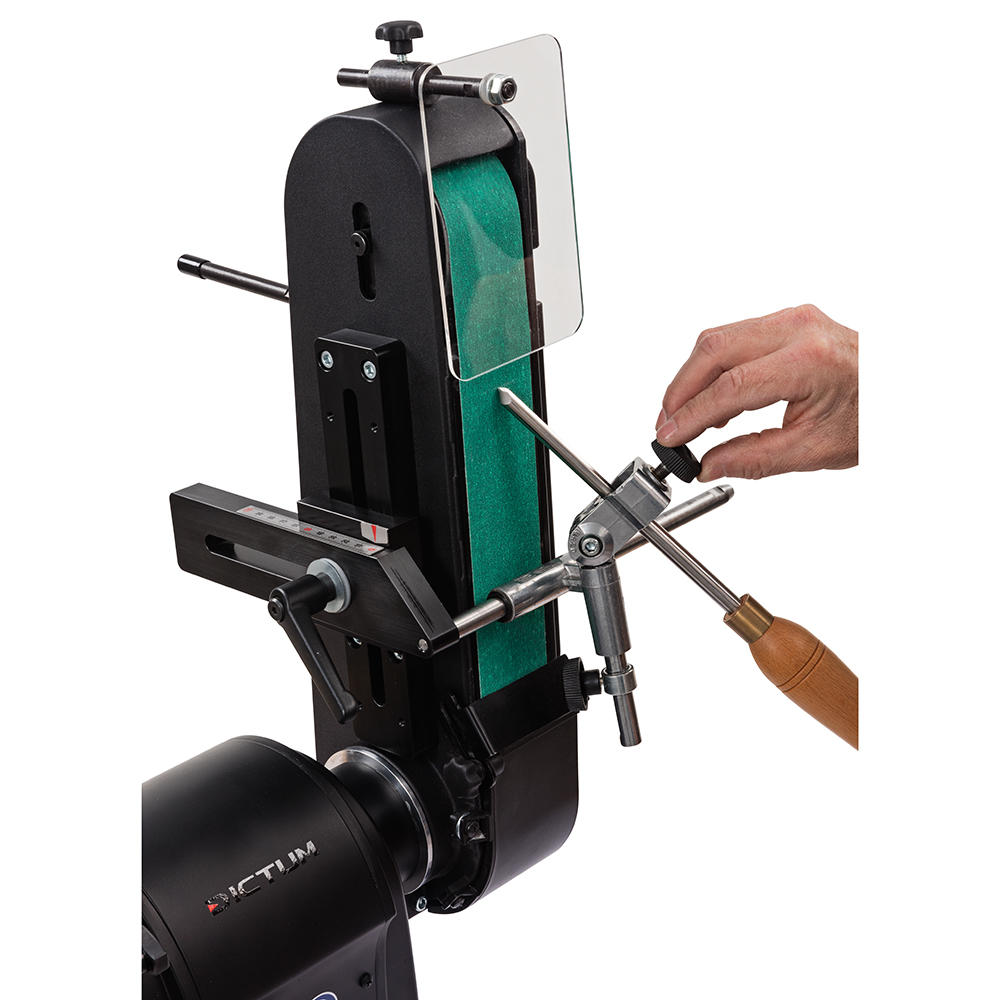

The precisely milled cross slide allows the arm to be moved in two directions at the same time in one operation. Almost all common jigs, e.g. for straight cutting edges, gouges, grinding tables, etc., can be attached and quickly positioned to obtain the required bevel angle.
The device is mounted to the Belt Grinding Device BS 50/55 (No. 711284) with four screws. Adjustment screws enable exact right-angled positioning to the belt.

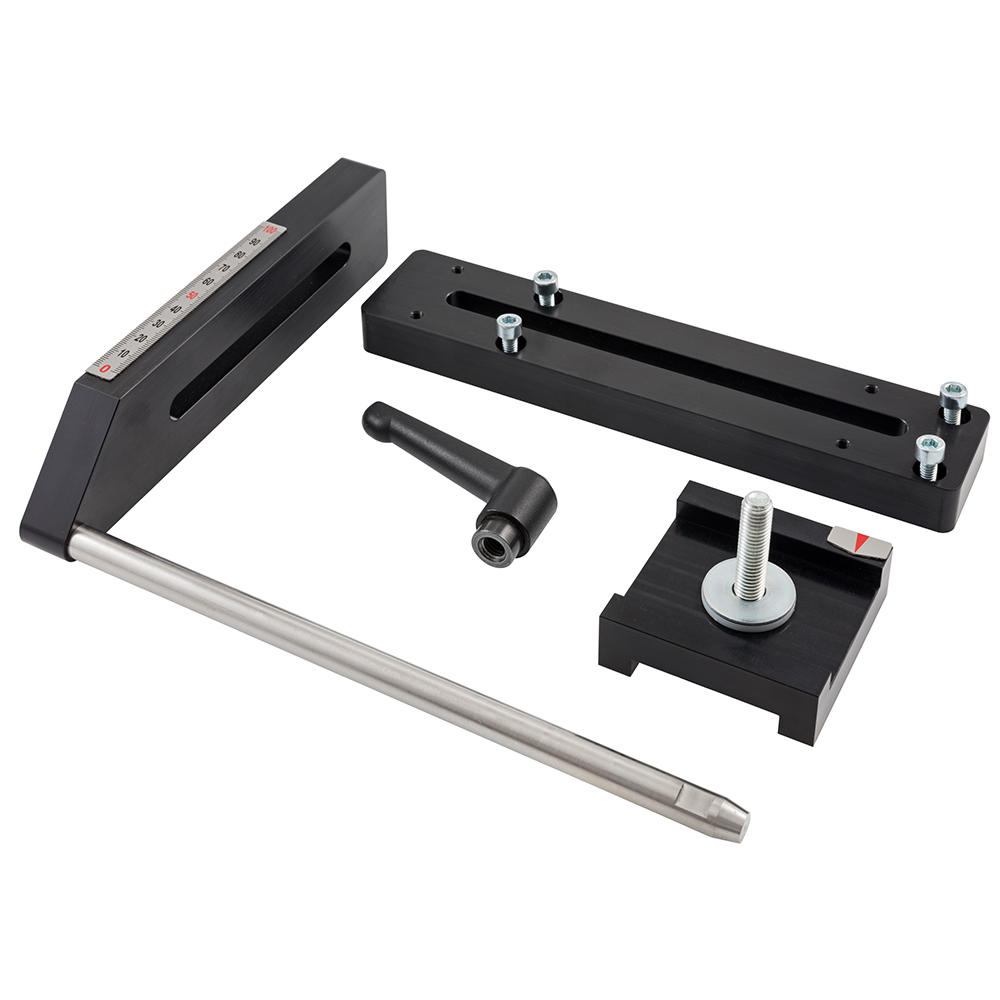

Made of CNC-milled, anodised aluminium. Guide rod Ø 12 mm, stainless steel scale. Sharpening Device for Convex Bevels (No. 729794) is available as an accessory.
Fits bandsaw BS 50/55 (No. 711284).
The device is mounted to the Belt Grinding Device BS 50/55 (No. 711284) with four screws. Adjustment screws enable exact right-angled positioning to the belt.
Made of CNC-milled, anodised aluminium. Guide rod Ø 12 mm, stainless steel scale. Sharpening Device for Convex Bevels (No. 729794) is available as an accessory.
Fits bandsaw BS 50/55 (No. 711284).
Properties
| Accessories / Replacement parts: | Accessories |
|---|---|
| Fits: | DICTUM Belt Grinding Device BS 50/55 |
Properties
| Accessories / Replacement parts: | Accessories |
|---|---|
| Fits: | DICTUM Belt Grinding Device BS 50/55 |
