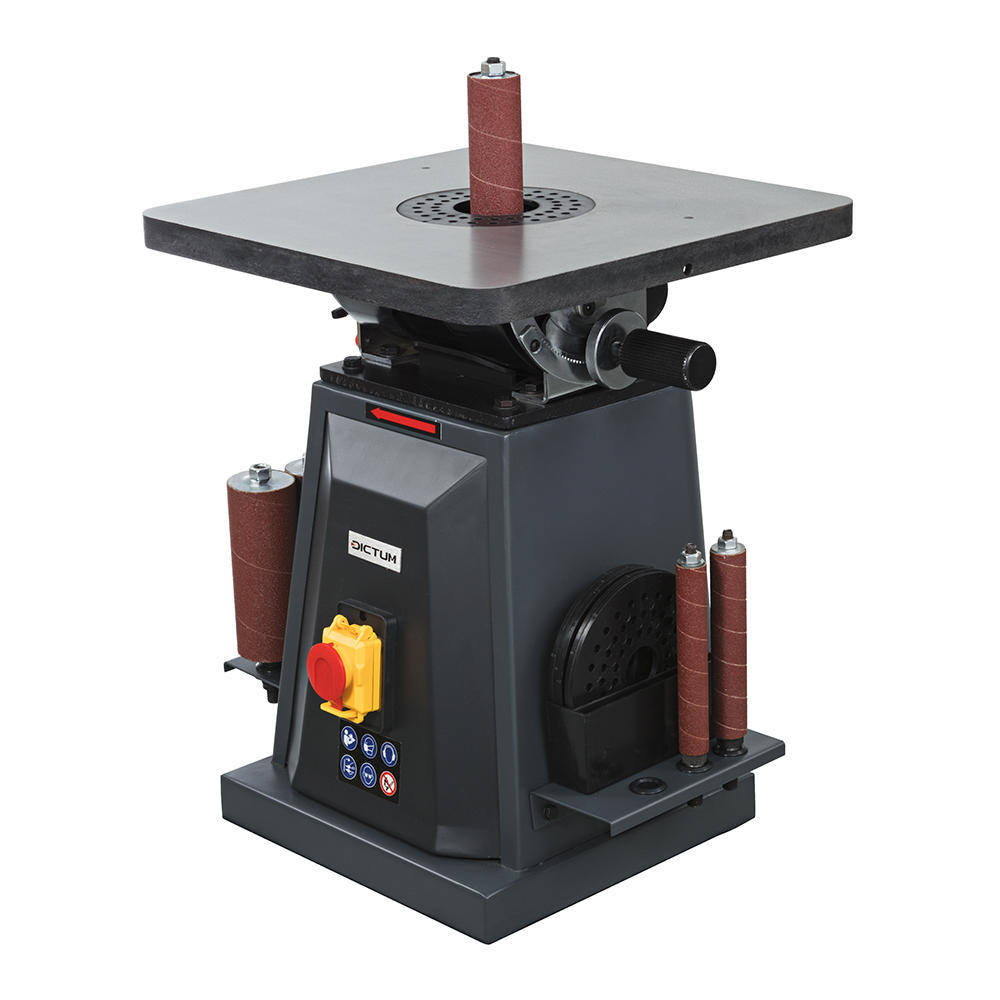

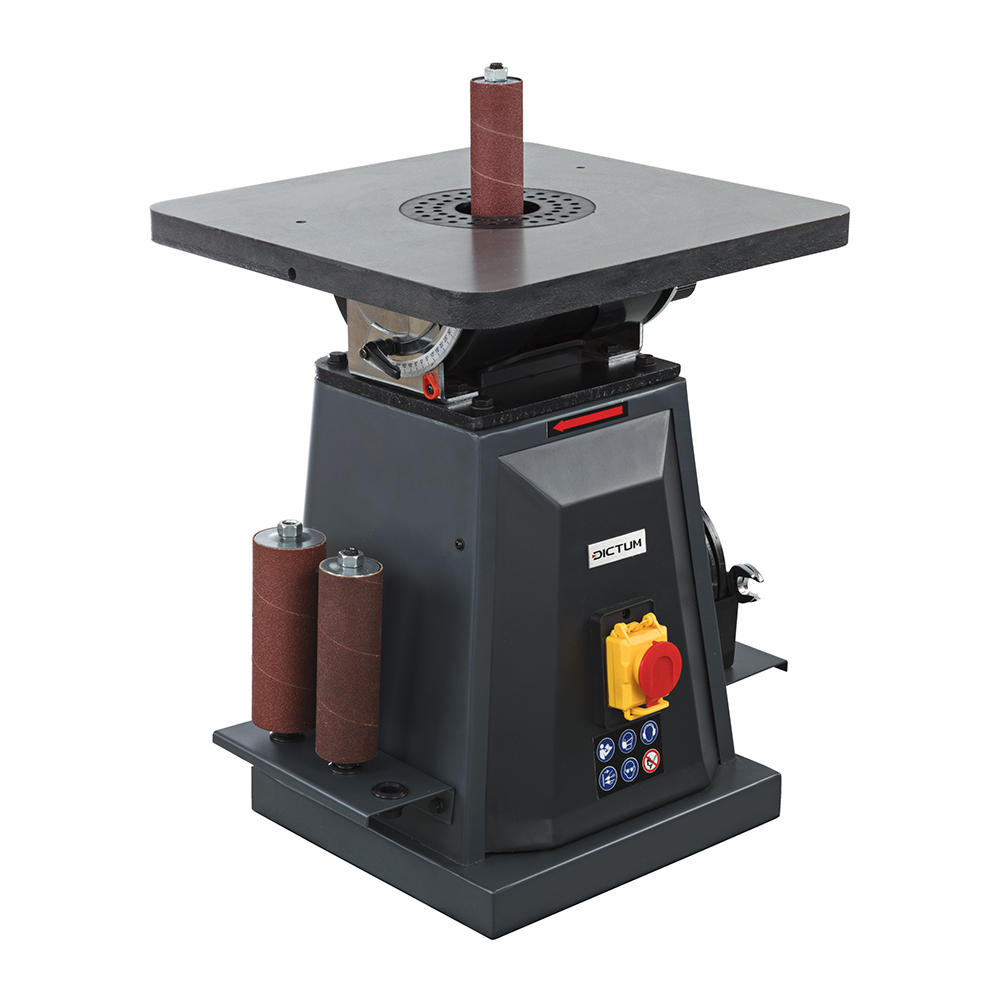

DICTUM® Oscillating Spindle Sander SSO 140
Product no.:
727403
Brand:
DICTUM
€435.00 €365.55
per piece(s)
Bulky goods – delivery approx. 3–5 business days within Germany.
For international delivery, please contact our customer service at +49 (0)9931 4058-901.
For international delivery, please contact our customer service at +49 (0)9931 4058-901.
In stock, delivery time approx. 2-3 working days
- Dimensions (L x W x H) Without underframe 365 x 430 x 610 mm, with underframe 435 x 430 x 1020 mm
- Exhaust Nozzle Ø 44/50 mm
- Maschine/Zubehör Machine
- Maschinen-Typ Spindle sanders
- Motor voltage 230 V / 50 Hz
Bulky goods – delivery approx. 3–5 business days within Germany.
For international delivery, please contact our customer service at +49 (0)9931 4058-901.
For international delivery, please contact our customer service at +49 (0)9931 4058-901.
In stock, delivery time approx. 2-3 working days
Description

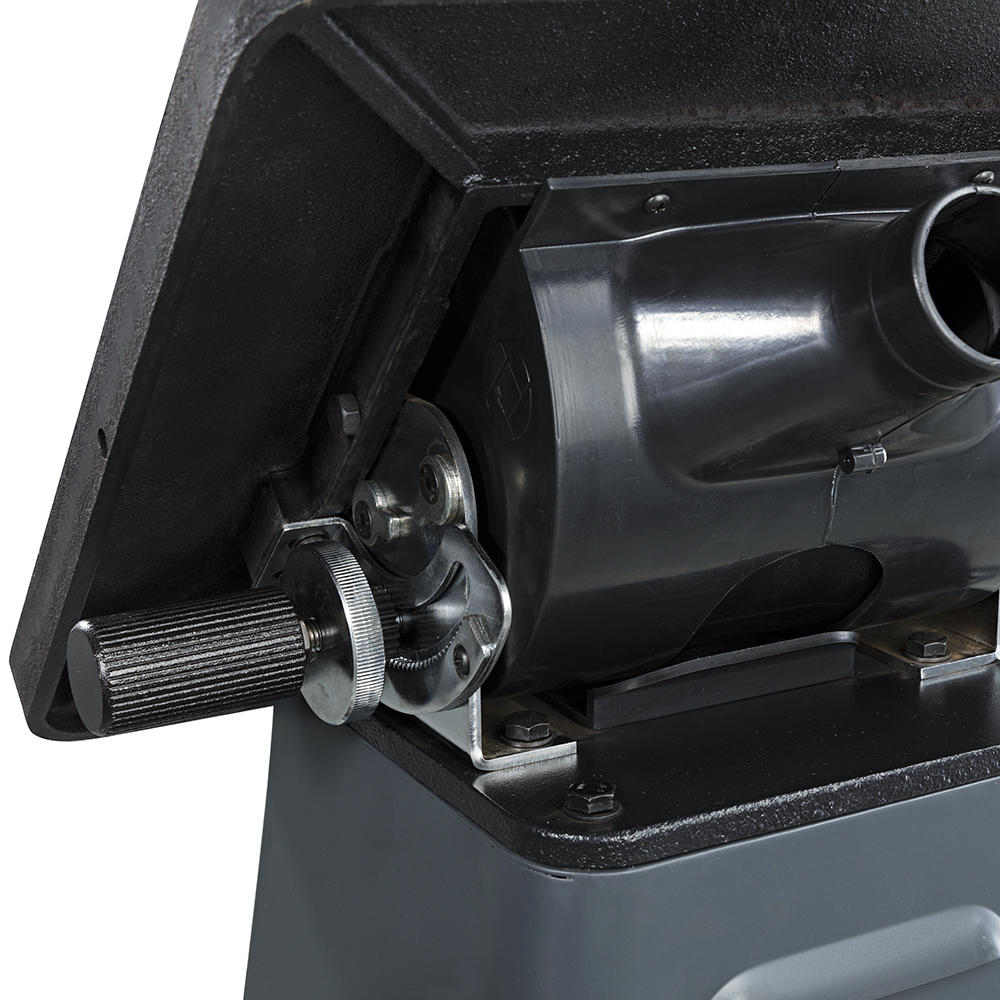

The spindle sander is ideal for grinding curved edges and (circular) cut-outs. The surface-ground machine table made of solid grey cast iron is fully adjustable up to a 45° inclination, e.g. fem. The oscillation with 24 mm stroke avoids early clogging and overheating of the sanding cloth sleeve and prevents grinding marks on the workpiece. The 370 Watt motor chamfering workpiece edges. A containment below the working area collects the dust and ensures efficient operation of any connected extraction systor makes it possible to work with sanding cloth sleeves 140 mm in length (maximum grinding height 100 mm).
Your benefits:
Your benefits:
- 140 mm long grinding spindles (8 different diameters available, Ø 12.7 to 73.8 mm)
- Quick and easy grinding spindle and sleeve change

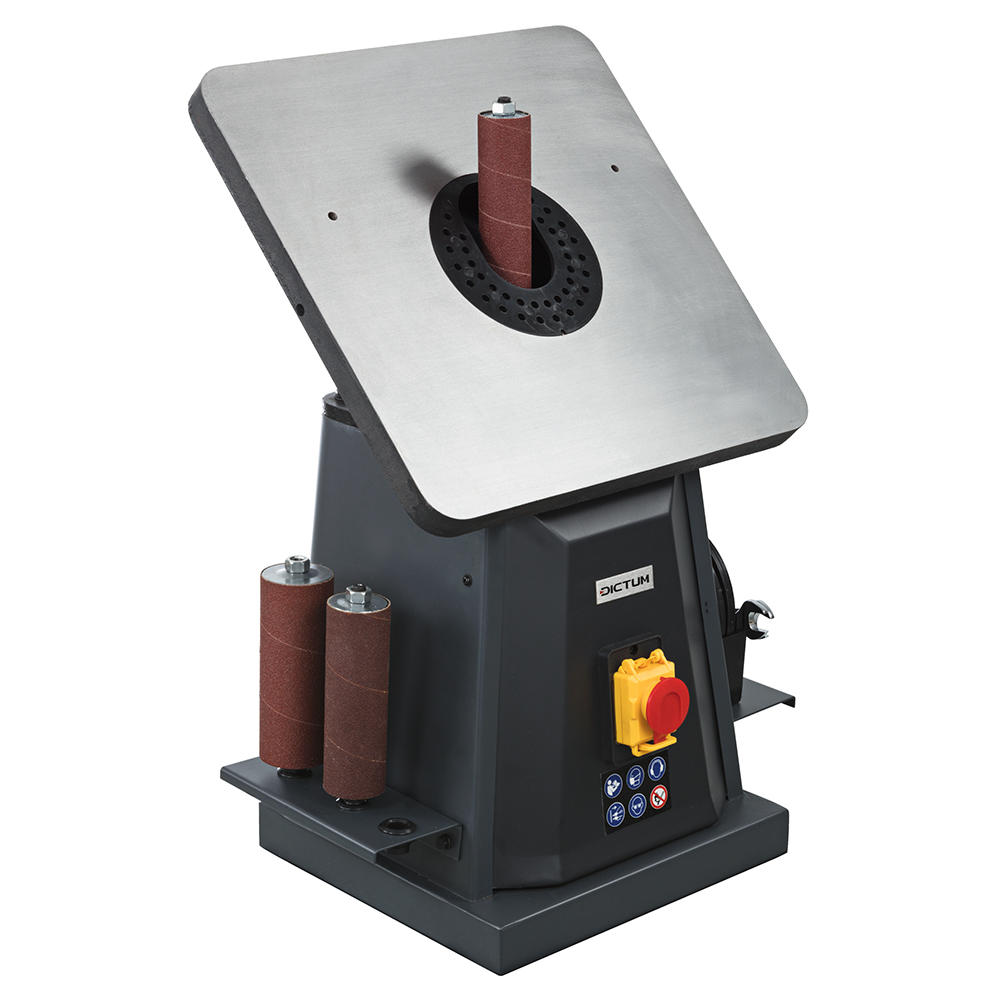

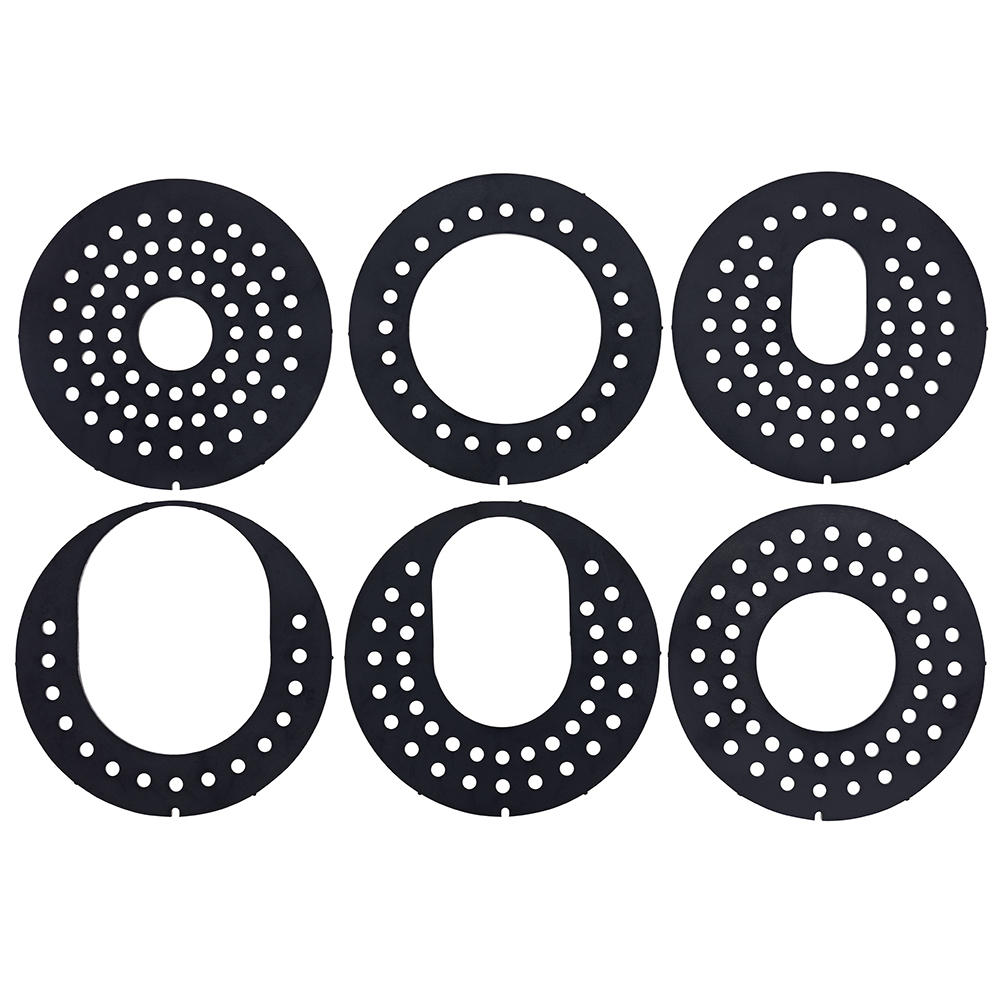

- Machine table swivels up to 45° with 6 different table inserts

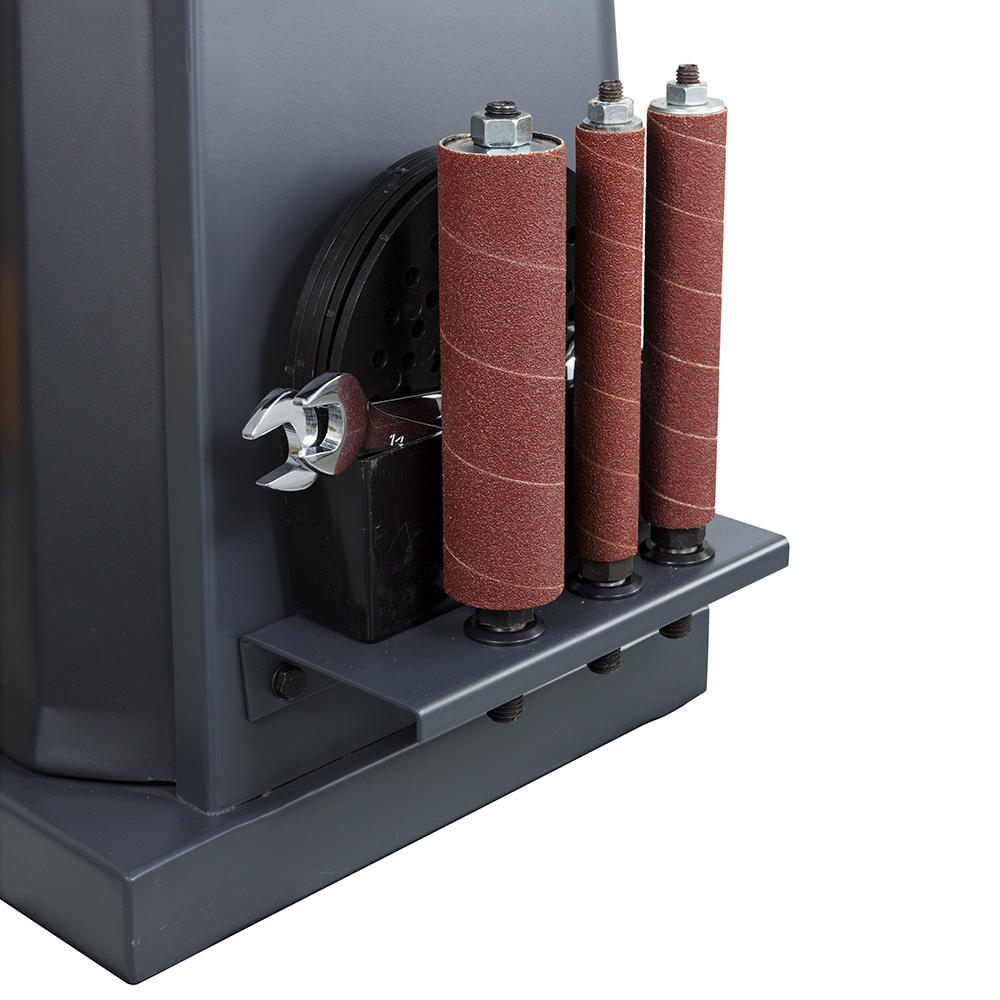

- Shelf for grinding spindles, table inserts and assembly tools
- On/off switch with undervoltage release and emergency stop

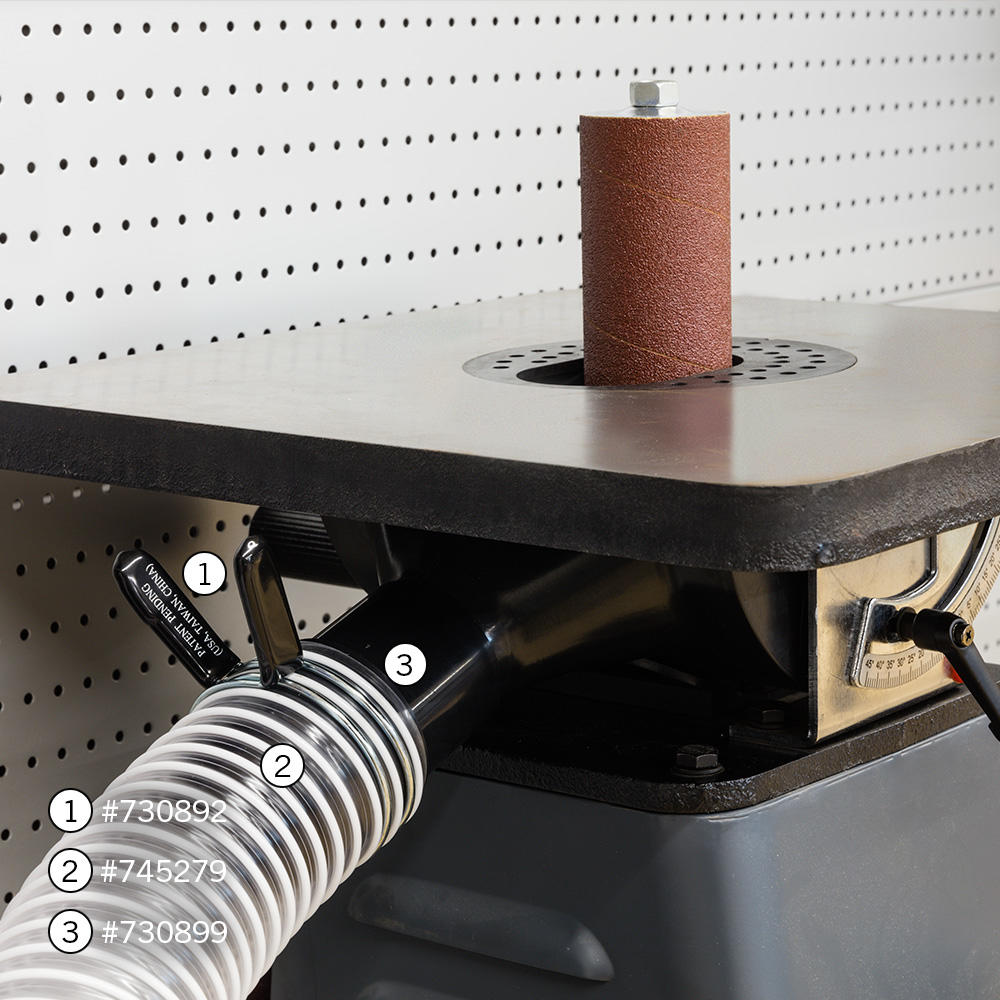

- Exhaust nozzle (44/50 mm)
The grinding spindle diameter corresponds to the inside diameter of the grinding sleeves. The exact outside diameter of the grinding sleeves is determined as follows.
- Grit 60: Grinding spindle diameter + 2.8 mm*
- Grit 80: Grinding spindle diameter + 2.6 mm*
- Grit 100: Grinding spindle diameter + 2.6 mm*
- Grit 120: grinding spindle diameter + 2.4 mm*
Scope of delivery
- 5 grinding spindles (Ø 18.7/22.9/34.8/41.8/50.2 mm) incl. one grinding sleeve each K80
Properties
| Dimensions (L x W x H): | Without underframe 365 x 430 x 610 mm, with underframe 435 x 430 x 1020 mm |
|---|---|
| Exhaust Nozzle Ø: | 44/50 mm |
| Maschine/Zubehör: | Machine |
| Maschinen-Typ: | Spindle sanders |
| Motor voltage: | 230 V / 50 Hz |
| No Load Speed: | 1400 1/min |
| No Load Stroke rate: | 29 1/min |
| Power input: | 370 W |
| Power source: | Corded |
| Stroke: | 24 mm |
| Weight: | wihout/with underframe 38/43 kg kg |
Properties
| Dimensions (L x W x H): | Without underframe 365 x 430 x 610 mm, with underframe 435 x 430 x 1020 mm |
|---|---|
| Exhaust Nozzle Ø: | 44/50 mm |
| Maschine/Zubehör: | Machine |
| Maschinen-Typ: | Spindle sanders |
| Motor voltage: | 230 V / 50 Hz |
| No Load Speed: | 1400 1/min |
| No Load Stroke rate: | 29 1/min |
| Power input: | 370 W |
| Power source: | Corded |
| Stroke: | 24 mm |
| Weight: | wihout/with underframe 38/43 kg kg |
