DICTUM® Column Drill Press SB20/T
Product no.:
727918
Brand:
DICTUM
€579.00 €486.55
per piece
Bulky goods – delivery time will be provided by our customer service.
Currently unavailable until further notice.
- Arbeitstisch (LxB) 305 x 305 mm
- Bohrfutterspannweite 0.5-16 mm
- Bohrfuttertyp Quick-release drill chuck
- Column diameter 73 mm
- Drehzahlbereiche 12
Bulky goods – delivery time will be provided by our customer service.
Currently unavailable until further notice.
Description

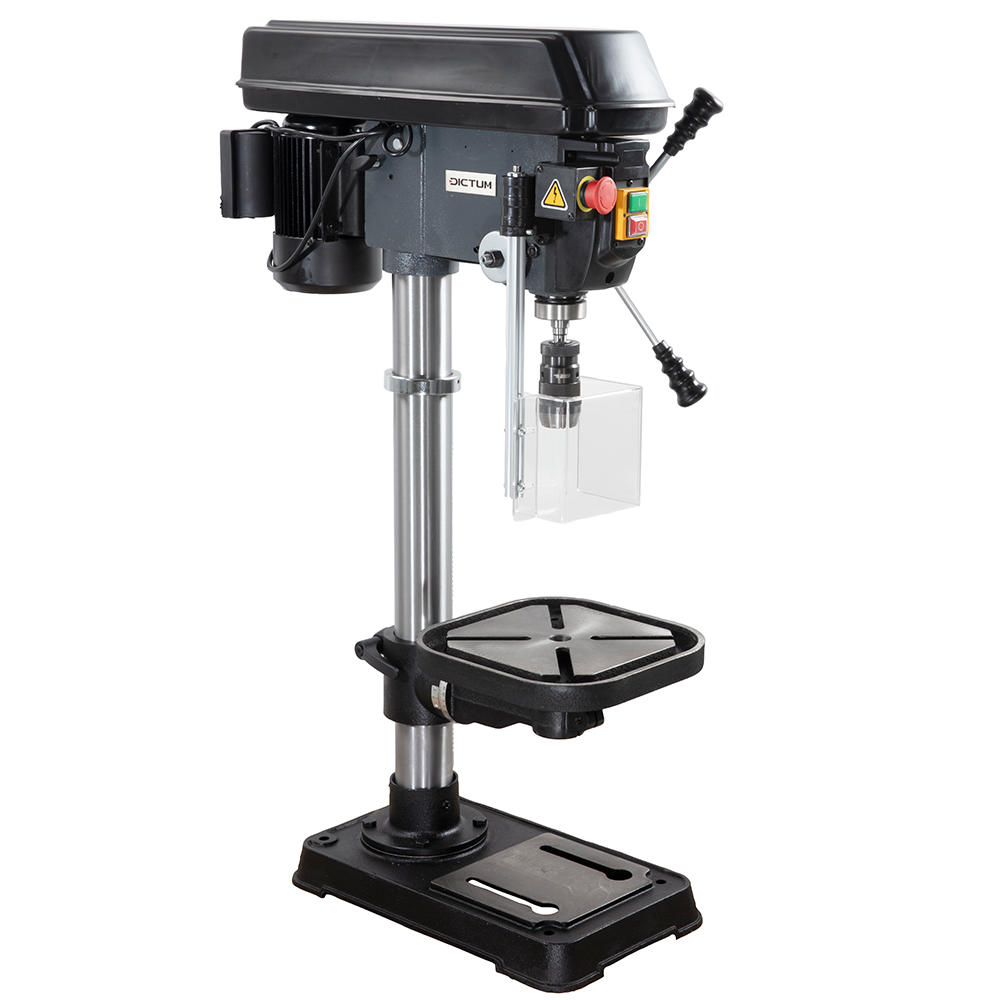

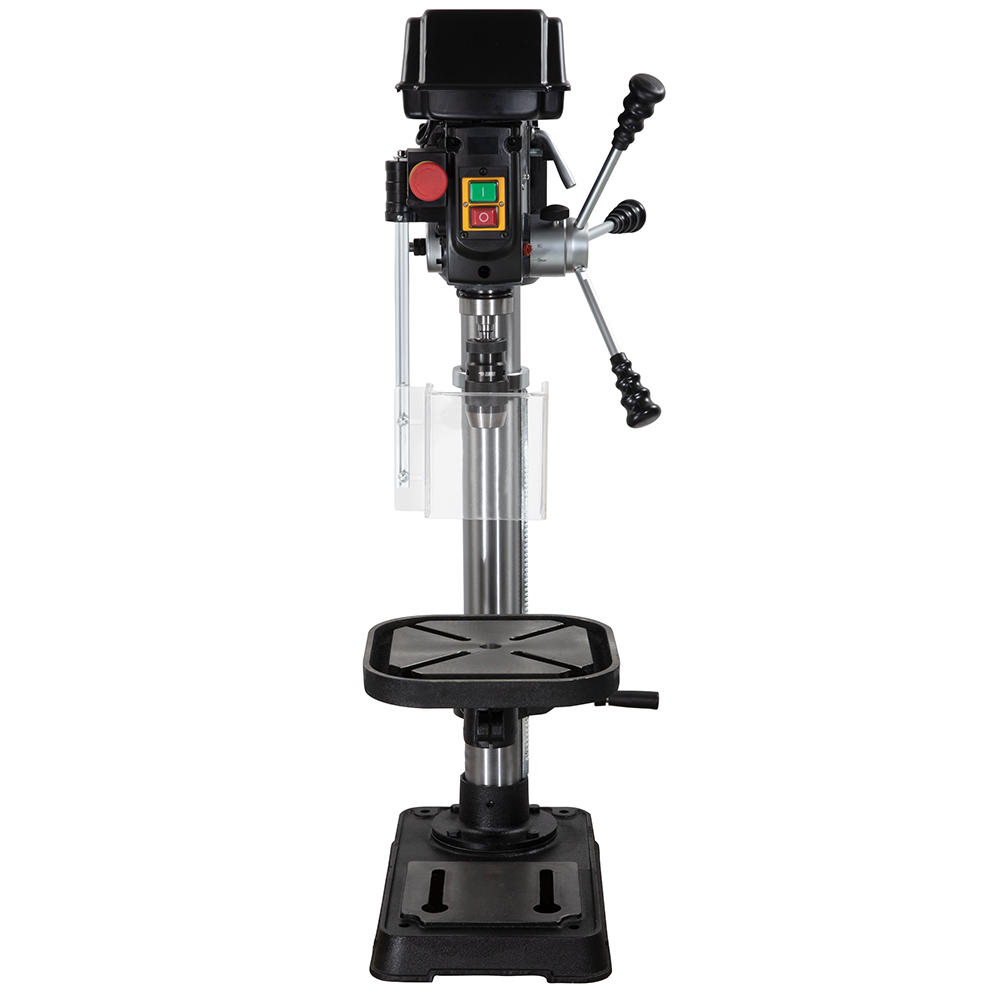

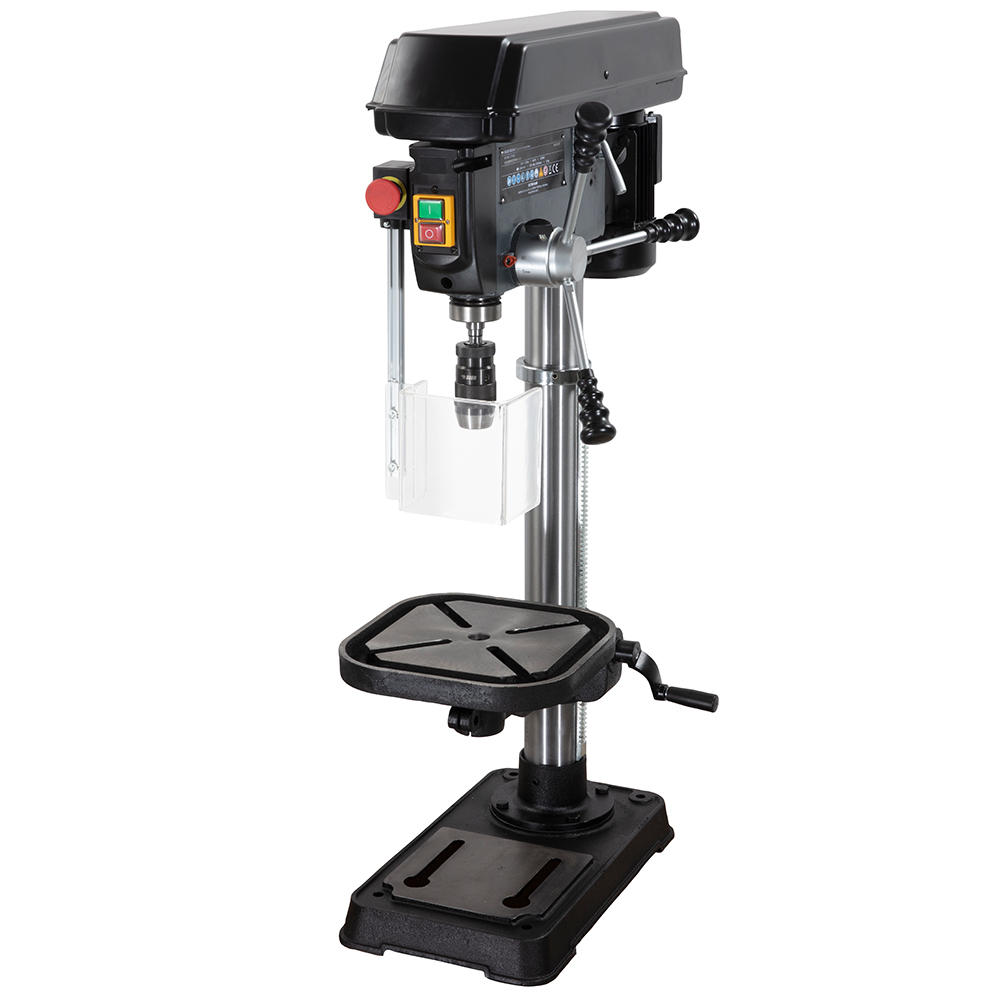

Bench version with short column

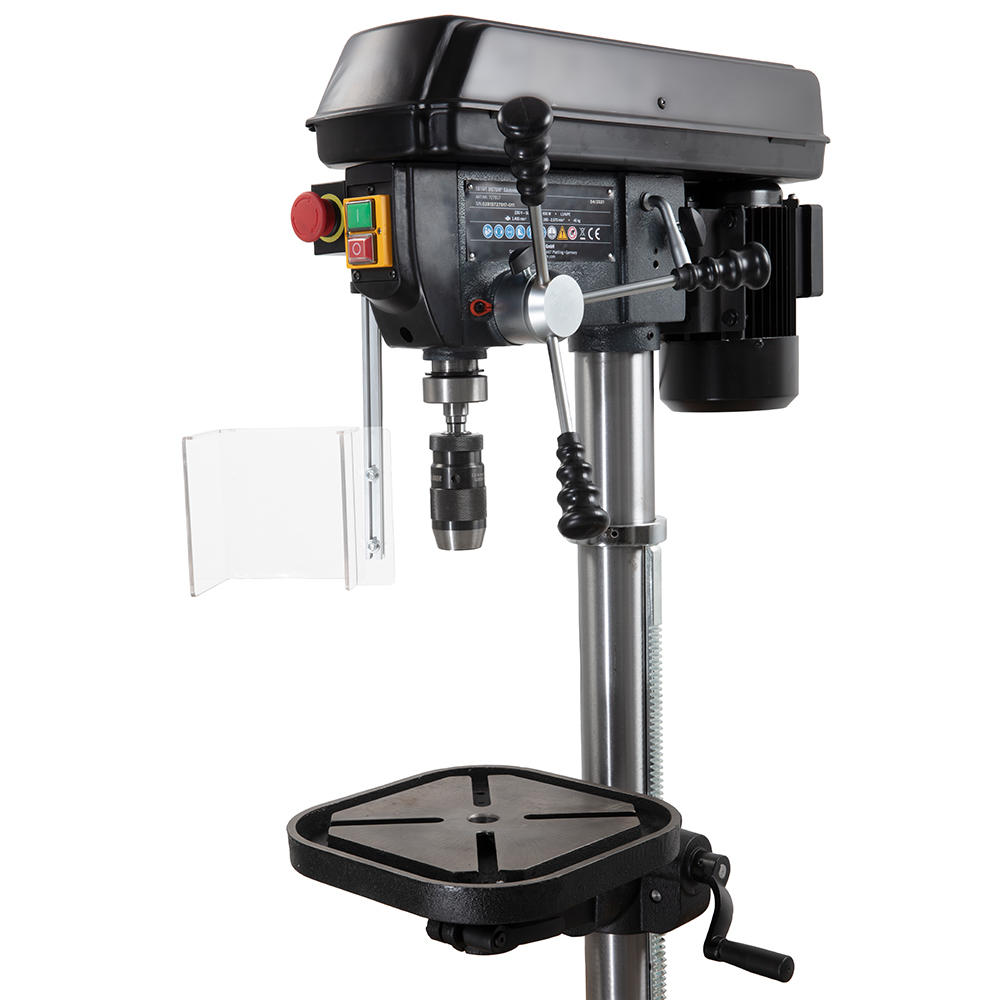

A drill press for every workshop. Whether as a bench-top or floor-standing model, a column drill press is indispensable for drilling precise holes. The solid cast-iron head is equipped with chrome-plated controls, quill feed levers with soft-grip handles, and an integrated depth stop. The height-adjustable, two-piece chuck guard features a safety interlock switch, while the user-friendly on/off switch includes undervoltage release and a separate emergency stop button.

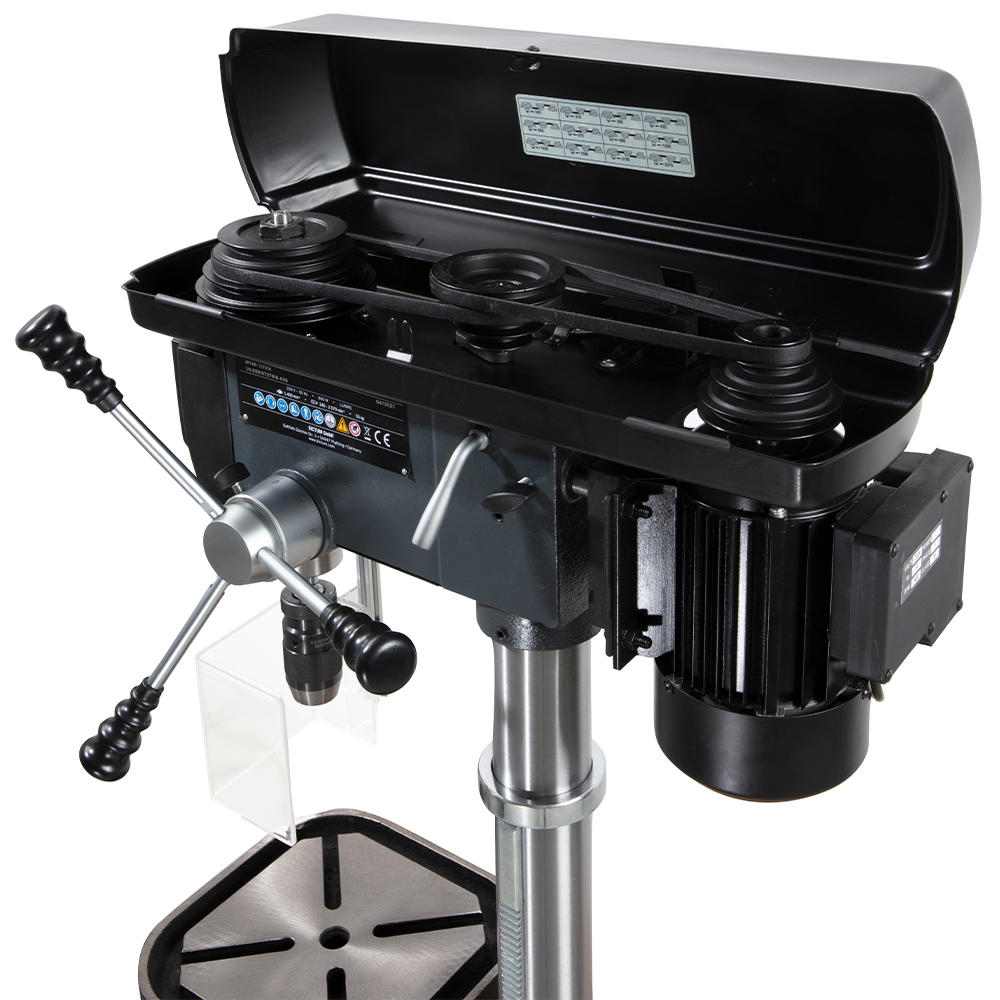

The proven V-belt drive and cast-iron pulleys ensure optimum power transmission across 12 speeds from 180 to 2740 rpm.

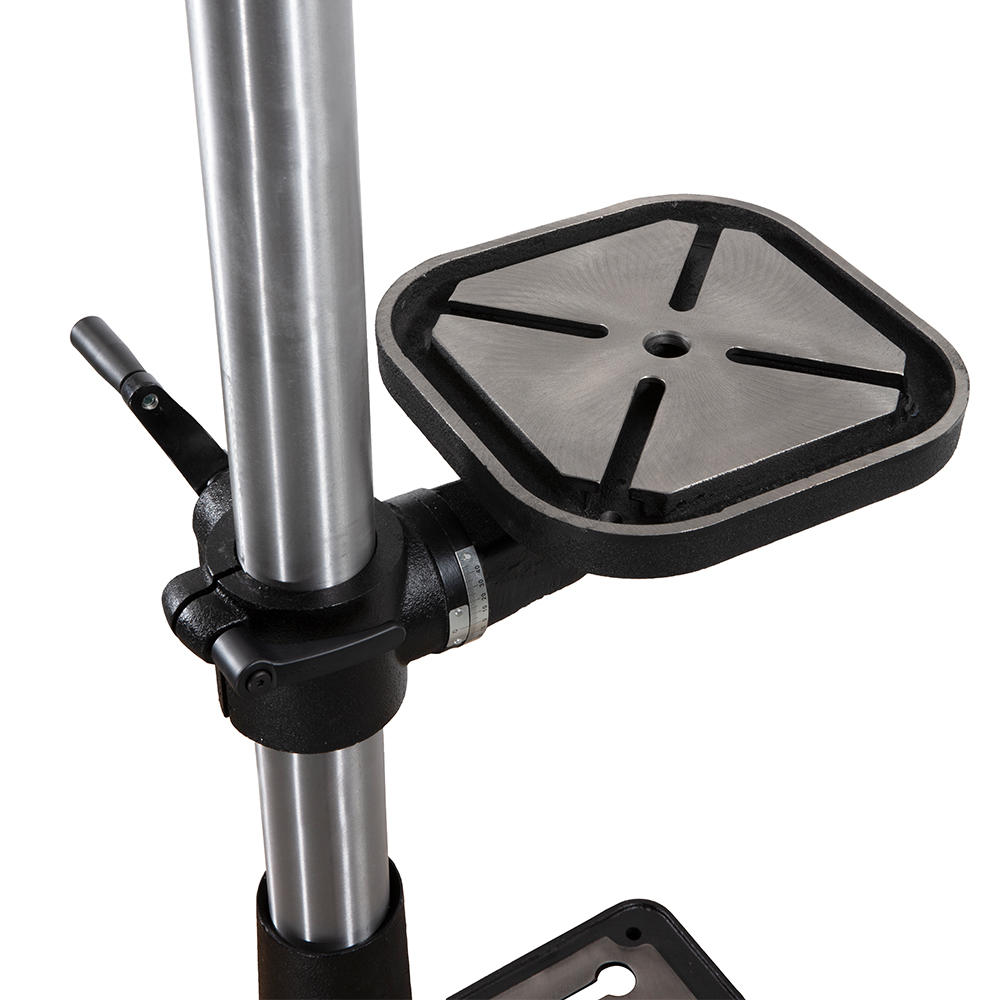

The sturdy machine table rotates 360° and tilts ± 45°, with four diagonally arranged T-slots (15/28 mm) for securing jigs and fixtures. Table height is adjusted via a crank-operated rack-and-pinion mechanism.
The solid cast-iron base features two 15 mm slots and reinforced ribs at the rear for maximum stability.
Includes a high-quality quick-action drill chuck B16 (capacity 0.5–16 mm / runout accuracy 0.08 mm).
The proven V-belt drive and cast-iron pulleys ensure optimum power transmission across 12 speeds from 180 to 2740 rpm.
The sturdy machine table rotates 360° and tilts ± 45°, with four diagonally arranged T-slots (15/28 mm) for securing jigs and fixtures. Table height is adjusted via a crank-operated rack-and-pinion mechanism.
The solid cast-iron base features two 15 mm slots and reinforced ribs at the rear for maximum stability.
Includes a high-quality quick-action drill chuck B16 (capacity 0.5–16 mm / runout accuracy 0.08 mm).
Scope of delivery
- Quick-release drill chuck B 16
- Taper drift
- Operating tool
Properties
| Arbeitstisch (LxB): | 305 x 305 mm |
|---|---|
| Bohrfutterspannweite: | 0.5-16 mm |
| Bohrfuttertyp: | Quick-release drill chuck |
| Column diameter: | 73 mm |
| Drehzahlbereiche: | 12 |
| Machine/Accessory: | Machines |
| Machine type: | Column drill press Pillar drilling machine / bench drill |
| Motor voltage: | 230 V / 50 Hz |
| No Load Speed: | 240-2570 rpm |
| Overall height: | 1050 mm |
| Pinolenhub / Bohrtiefe : | 80 mm |
| Power input: | 600 W |
| Power source: | Corded |
| Speed control: | Belt change |
| Spindelaufnahme: | #2 MT |
| Standfuß (LxB): | 485 x 280 mm |
| Swing: | 195 mm |
| Table tilt: | ± 45 ° |
| Version: | Bench version with short column |
| Weight: | 58 kg |
Properties
| Arbeitstisch (LxB): | 305 x 305 mm |
|---|---|
| Bohrfutterspannweite: | 0.5-16 mm |
| Bohrfuttertyp: | Quick-release drill chuck |
| Column diameter: | 73 mm |
| Drehzahlbereiche: | 12 |
| Machine/Accessory: | Machines |
| Machine type: | Column drill press Pillar drilling machine / bench drill |
| Motor voltage: | 230 V / 50 Hz |
| No Load Speed: | 240-2570 rpm |
| Overall height: | 1050 mm |
| Pinolenhub / Bohrtiefe : | 80 mm |
| Power input: | 600 W |
| Power source: | Corded |
| Speed control: | Belt change |
| Spindelaufnahme: | #2 MT |
| Standfuß (LxB): | 485 x 280 mm |
| Swing: | 195 mm |
| Table tilt: | ± 45 ° |
| Version: | Bench version with short column |
| Weight: | 58 kg |
