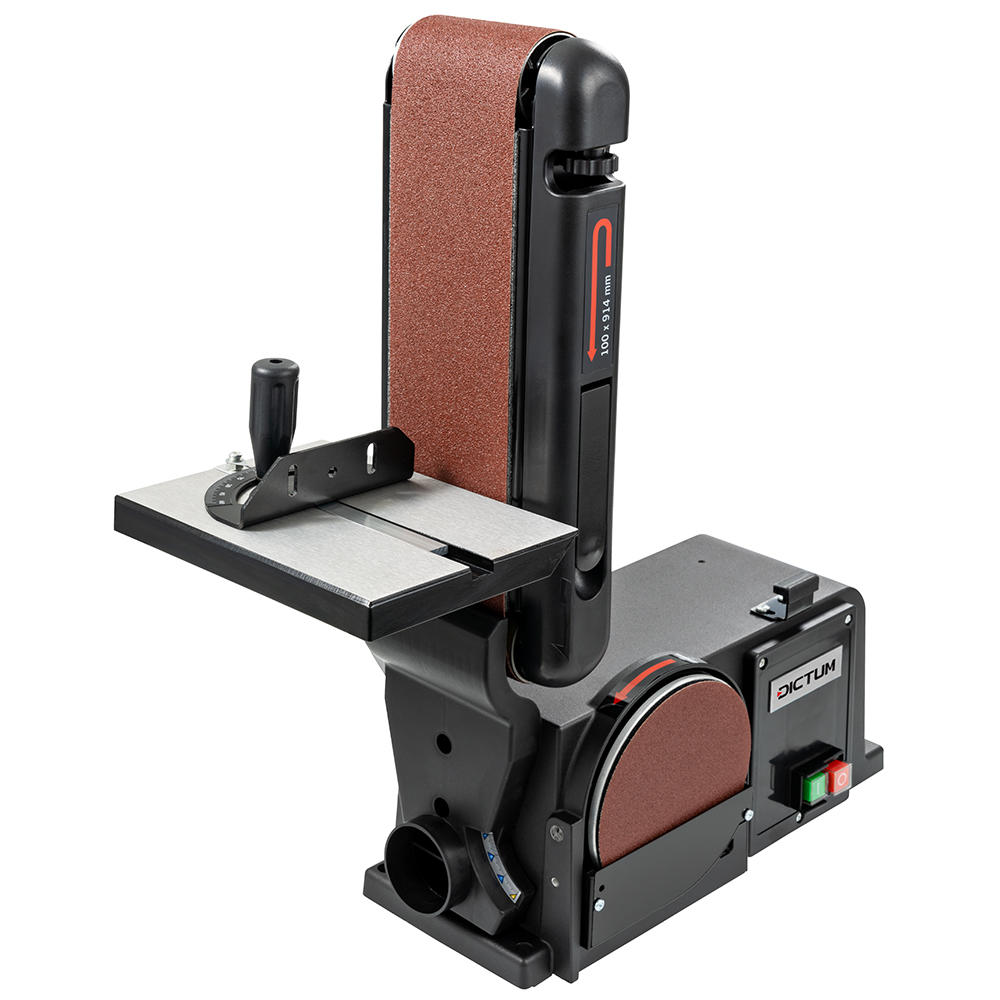

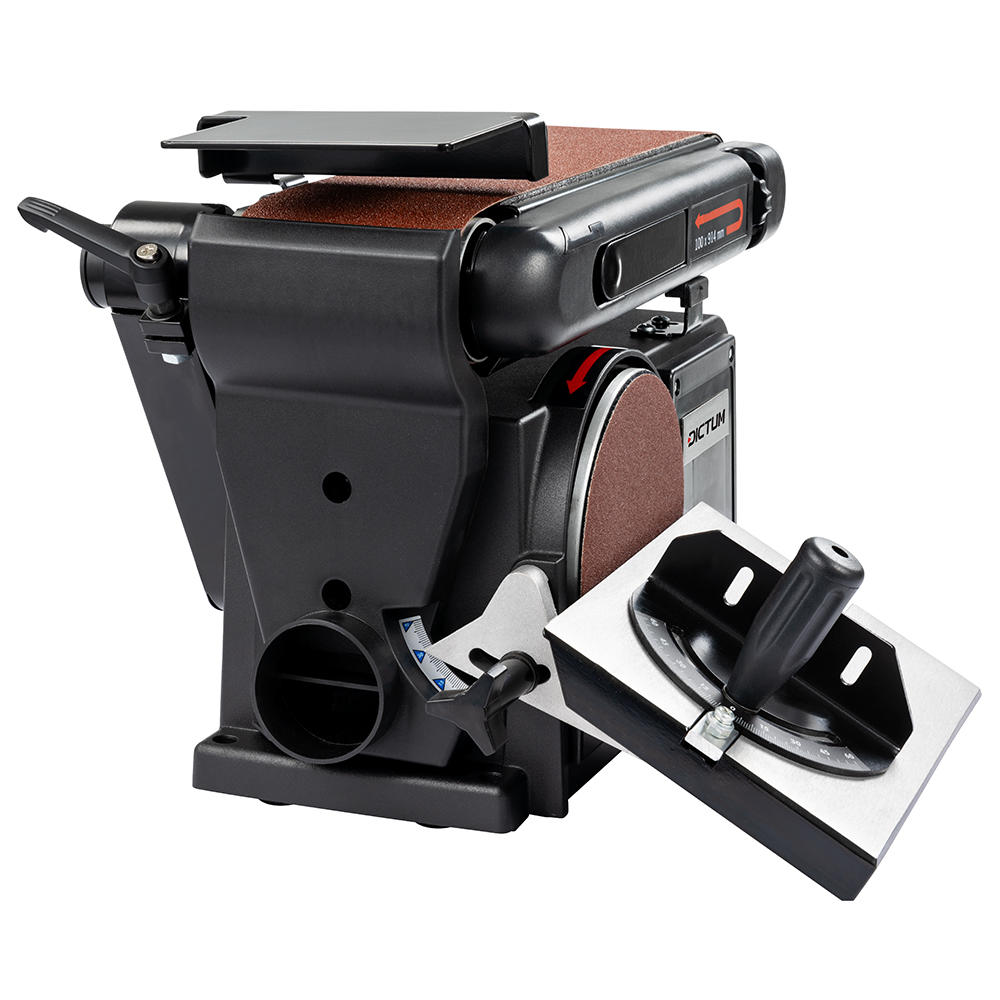

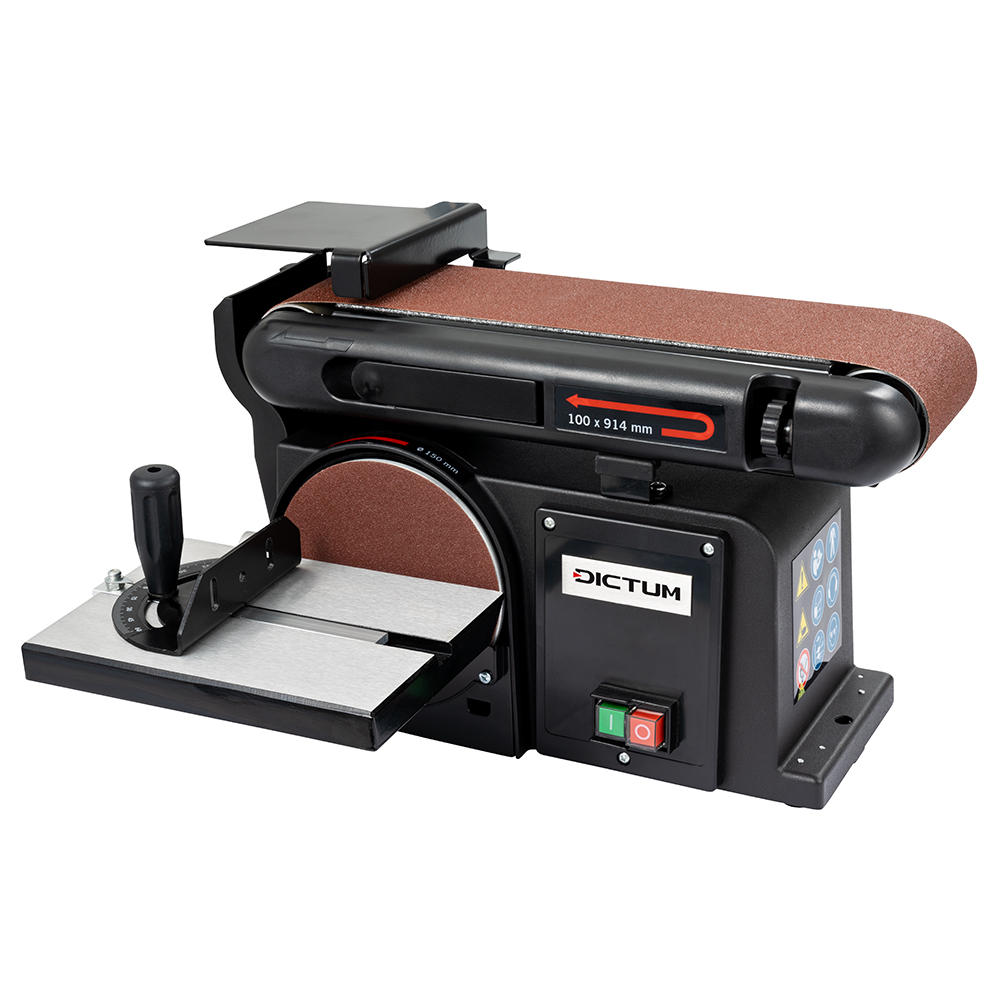

DICTUM® Belt Disc Sander BTS 100/150
Product no.:
721054
Brand:
DICTUM
€219.00 €178.05
per piece(s)
In stock, delivery time approx. 2-3 working days
- Abmessungen (LxBxH) 440 x 370 x 290 mm
- Belt Length x Belt Width 914 x 100 mm
- Belt speed 7.4 m/sec
- Exhaust Nozzle Ø 58/63 mm
- Maschine/Zubehör Machine
Description
The belt grinder that can also be used for polishing

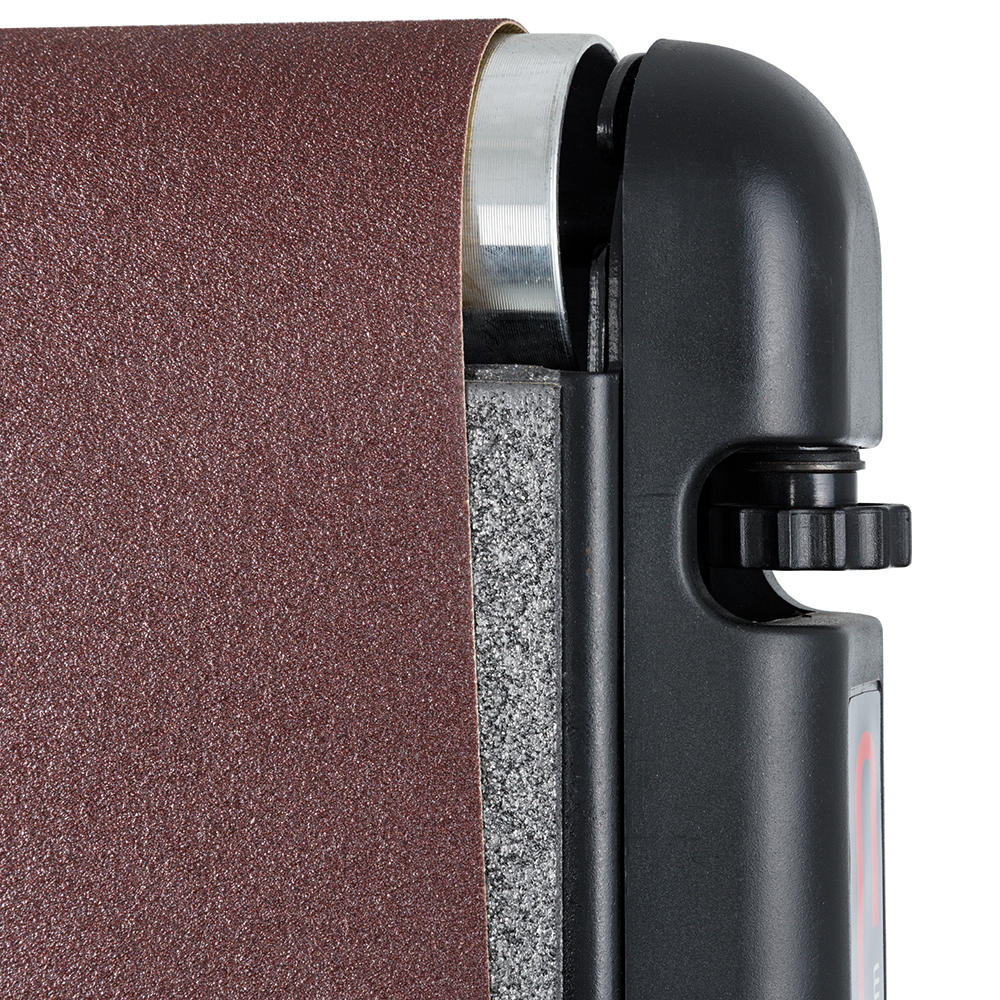

The combination of belt and disc grinder offers a wide range of applications, from grinding small surfaces, longitudinal and end-grain edges, mitres, curves and contours, to grinding chamfers and deburring metal parts. The extendable drive shaft allows a mandrel (No. 729777) to be attached and fitted with e.g. polishing wheels. This extends the machine’s range of application. The belt sanding unit can be continuously adjusted without tools from a horizontal to a vertical position. The sanding table is mounted on the sanding disc or sanding belt. A quick clamping device ensures quick and effortless changing of the sanding belt, while the sanding belt correction device ensures precise alignment. This belt and disc sander was developed for sanding wood materials or plastics that are processed similarly. Grinding disc Ø 150 mm, sanding belt 100 x 914 mm.
Your benefits:
Your benefits:
- Also suitable for polishing work (discs with 10 and 20 mm bore) thanks to optional accessories
- Solid cast aluminium construction for high stability and low-vibration work

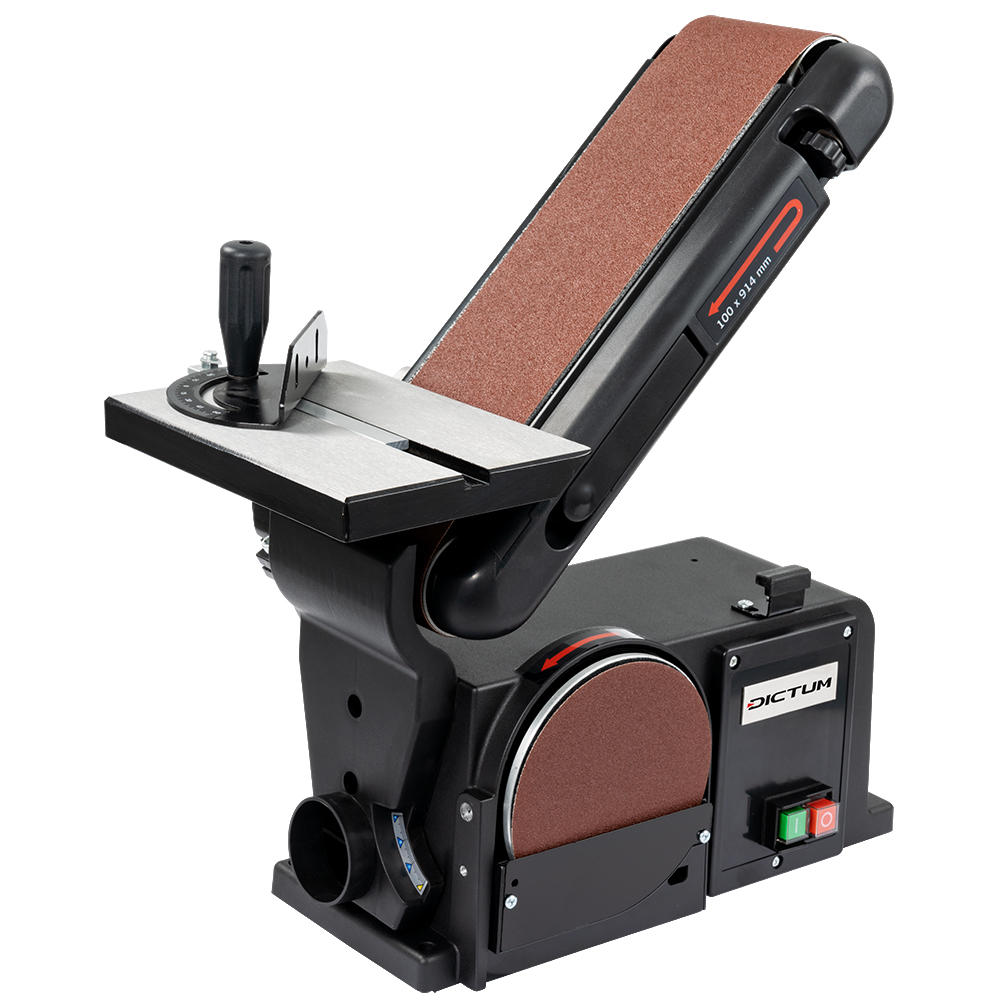

- Belt sanding unit can be used horizontally and vertically (no tools needed)

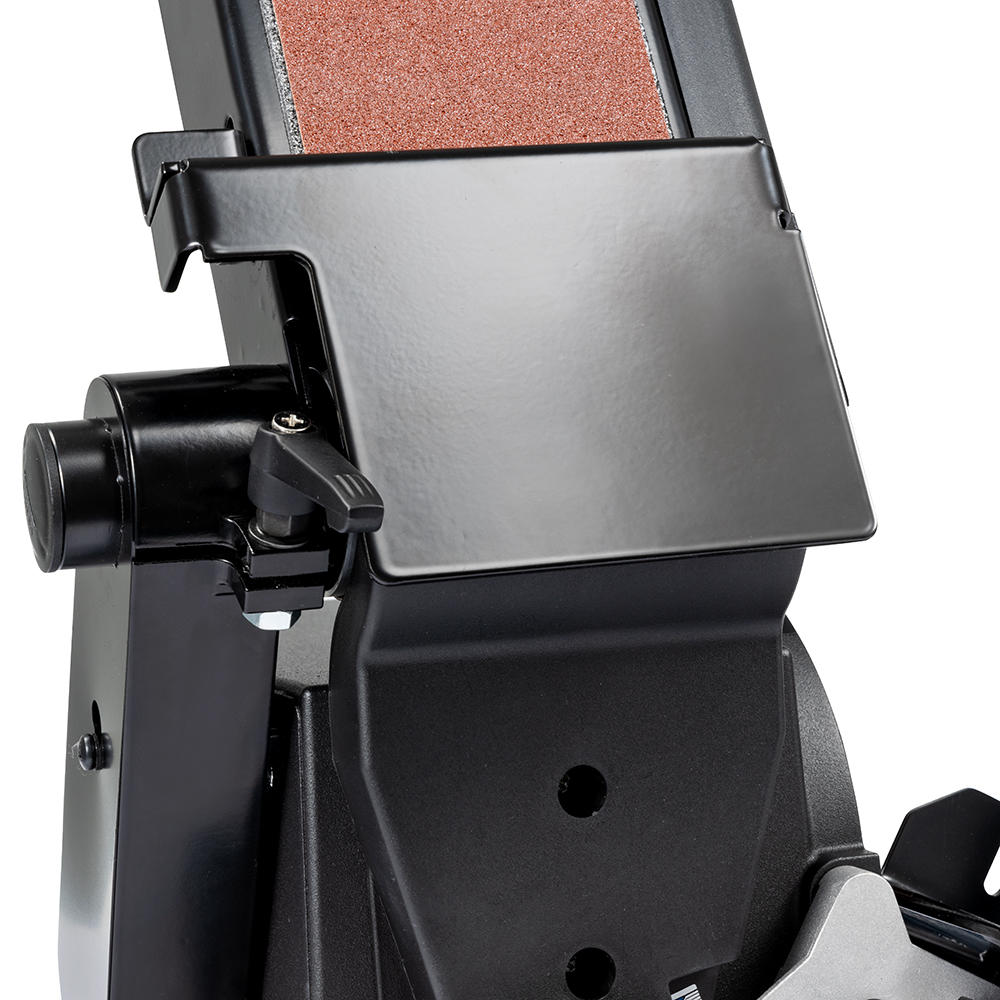

- Sanding table made of cast aluminium tiltable up to 45°
- Mitre gauge made of sheet steel

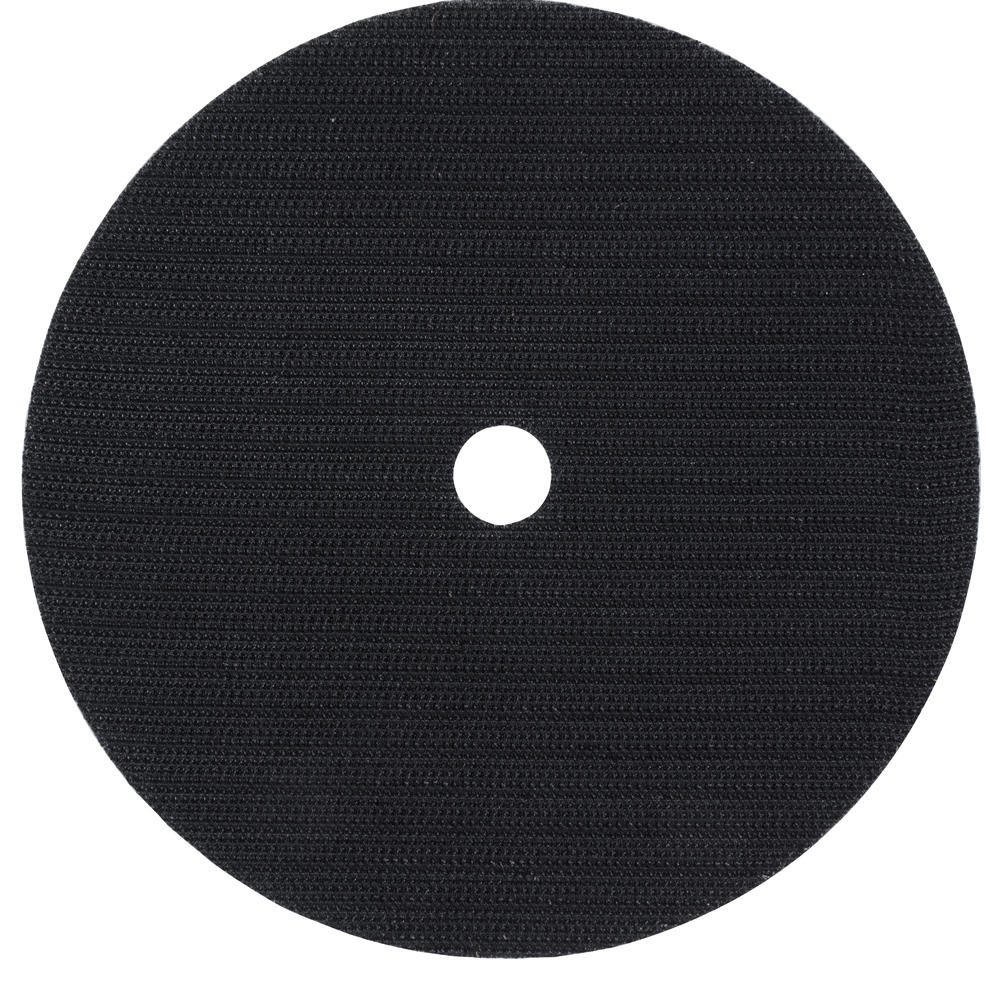

- Hook-and-loop pad on grinding disc to easily change the grinding wheel
- On/off switch with undervoltage release for greater work safety

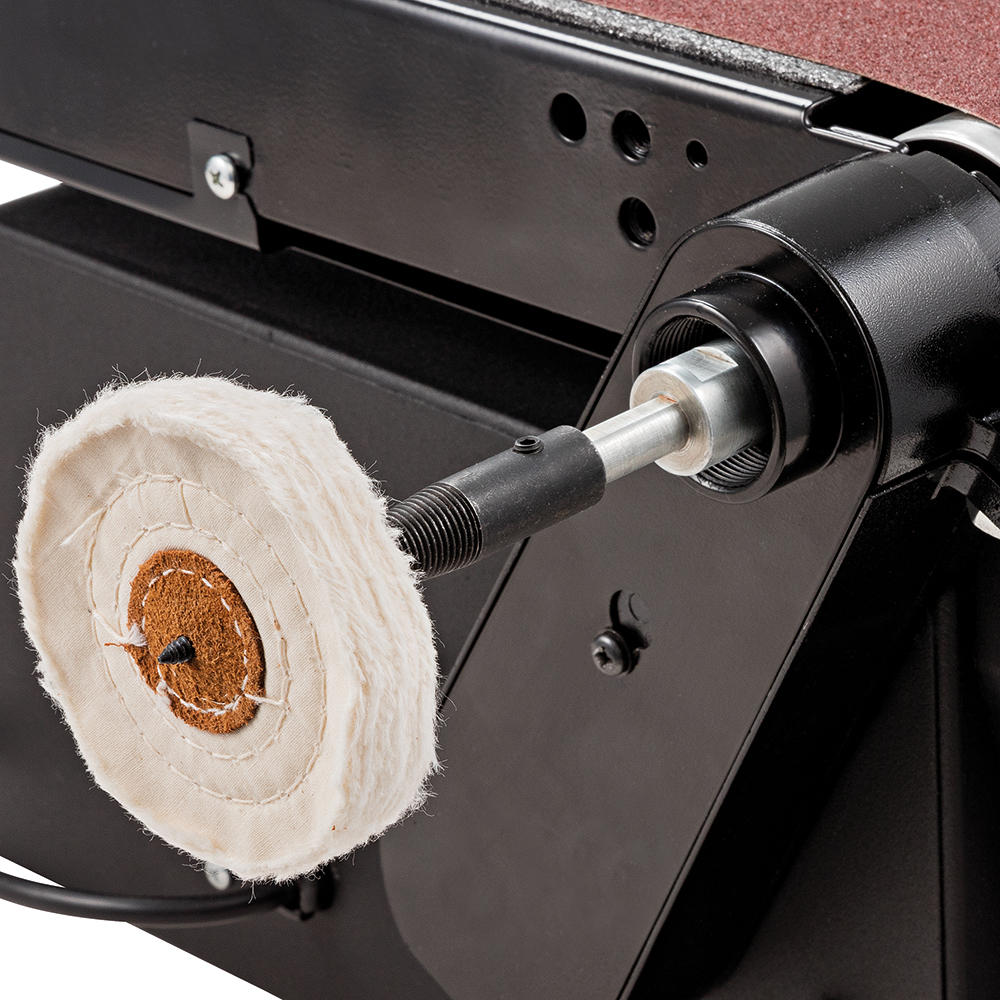

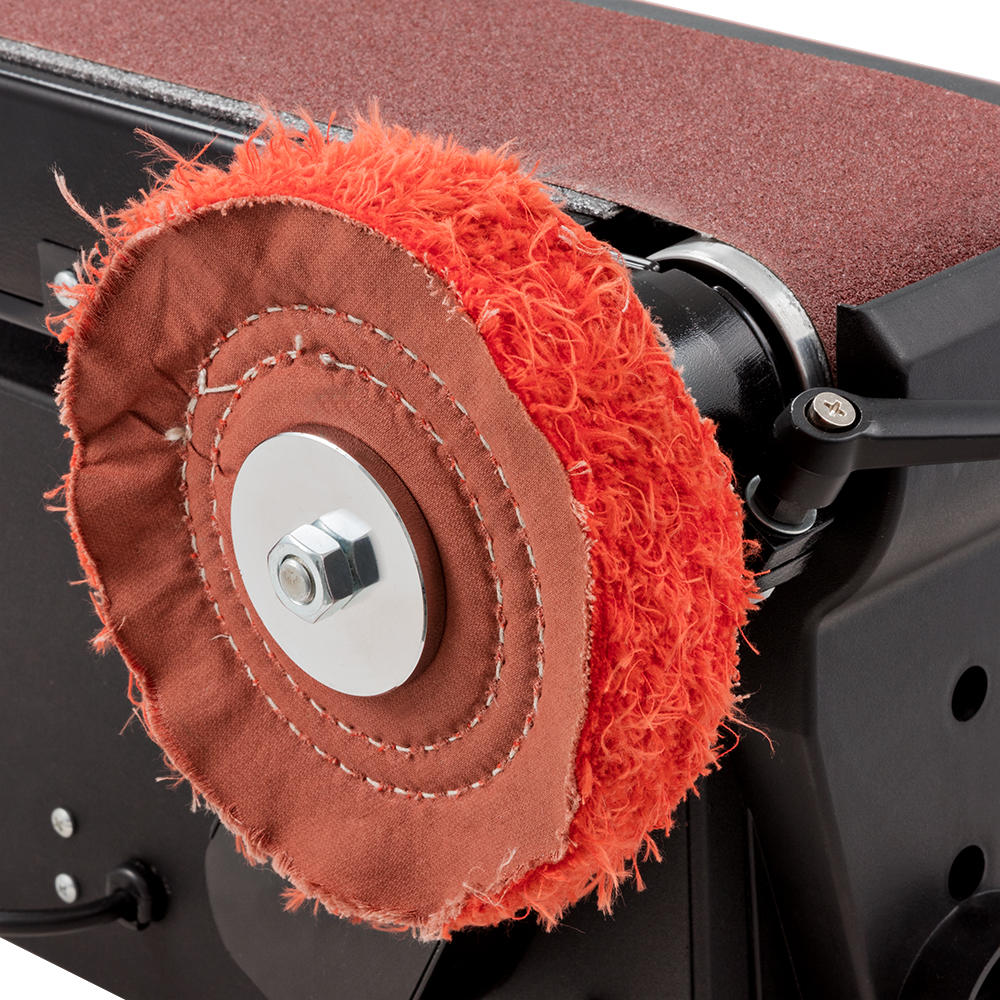

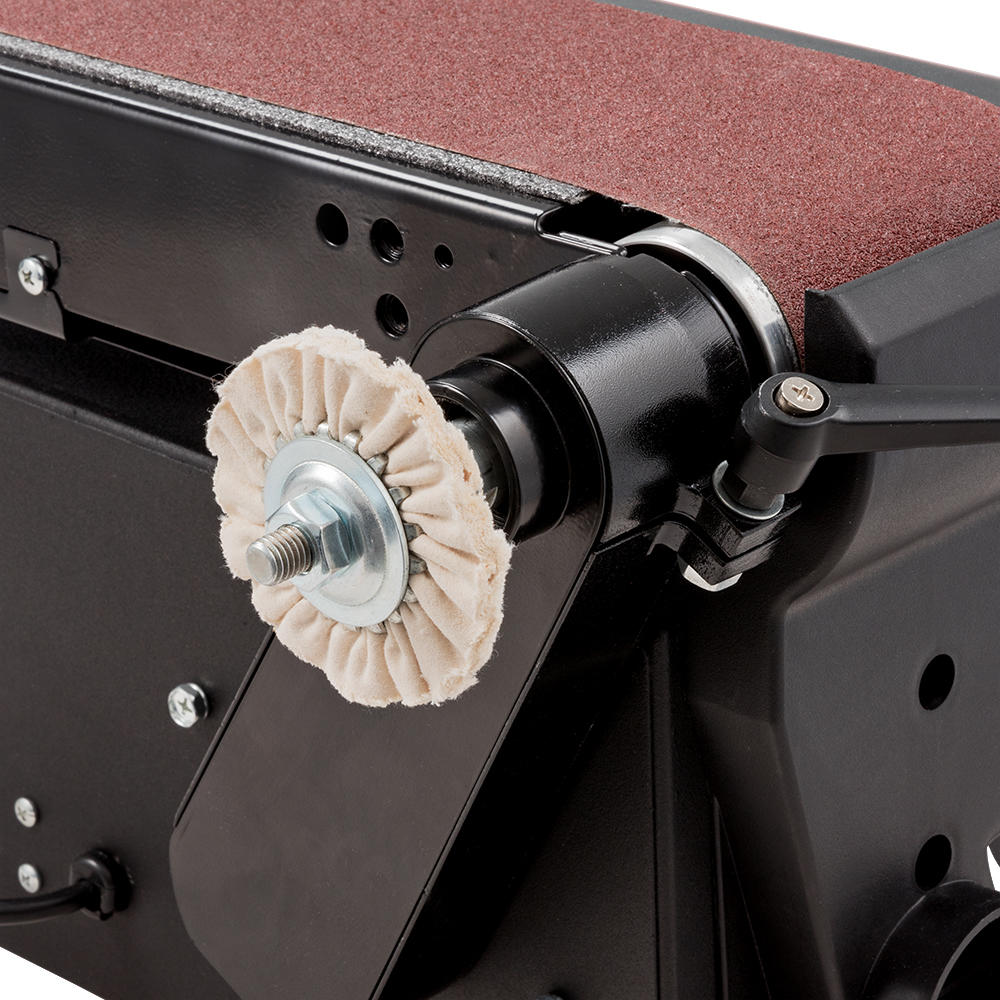

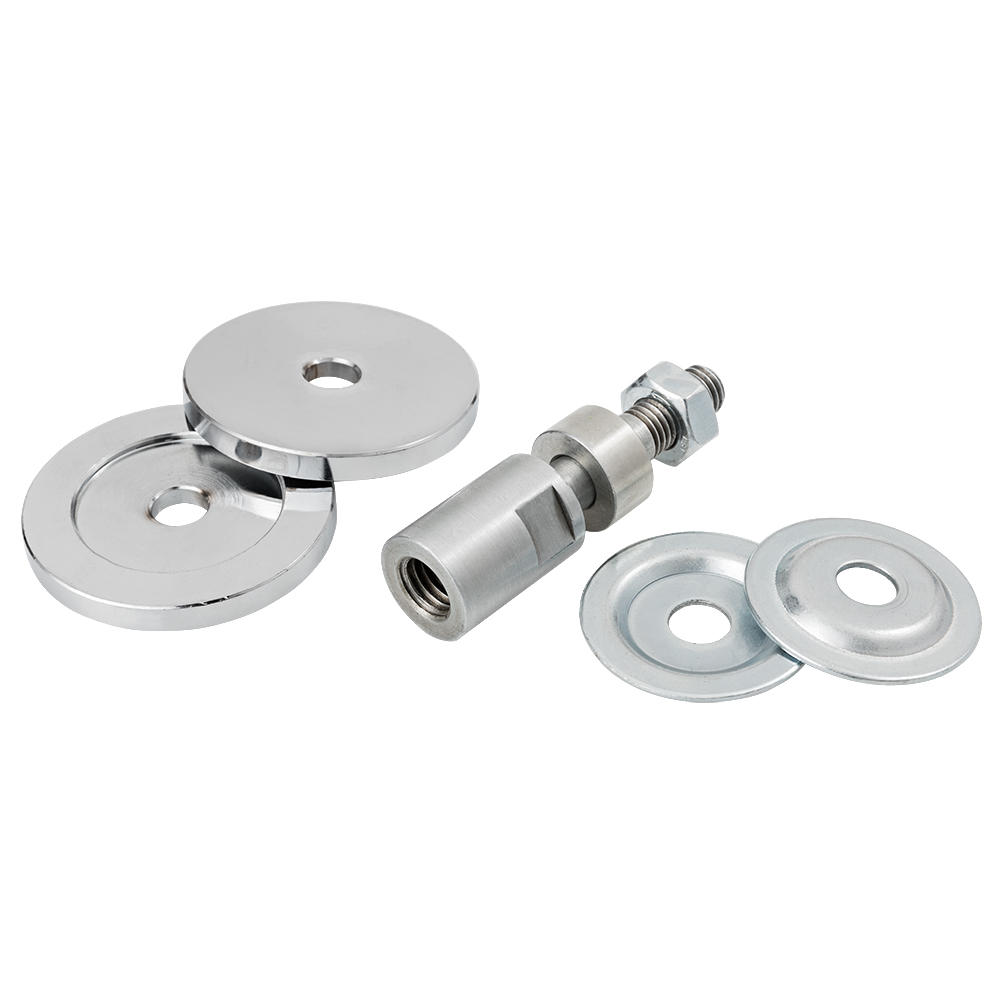

Unique application options: polishing accessories such as buffing wheels, cloth wheels, etc. with 10 or 20 mm bore can be attached to the rear of the machine. To do this, the clamping mandrel (No. 729777, available as an accessory) is connected to the belt drive.
Scope of delivery
- Sanding table
- Mitre gauge
- Sanding belt 100 x 914 mm, grit 80
- Sanding disc Ø 150 mm, grit 80
Properties
| Abmessungen (LxBxH): | 440 x 370 x 290 mm |
|---|---|
| Belt Length x Belt Width: | 914 x 100 mm |
| Belt speed: | 7.4 m/sec |
| Exhaust Nozzle Ø: | 58/63 mm |
| Maschine/Zubehör: | Machine |
| Maschinen-Typ: | Belt disc sanders |
| Motorspannung: | 230 V / 50 Hz V |
| Power input: | 370 W |
| Power source: | Corded |
| Schleifteller-Ø: | 150 mm |
| Weight: | 12.8 kg |
Properties
| Abmessungen (LxBxH): | 440 x 370 x 290 mm |
|---|---|
| Belt Length x Belt Width: | 914 x 100 mm |
| Belt speed: | 7.4 m/sec |
| Exhaust Nozzle Ø: | 58/63 mm |
| Maschine/Zubehör: | Machine |
| Maschinen-Typ: | Belt disc sanders |
| Motorspannung: | 230 V / 50 Hz V |
| Power input: | 370 W |
| Power source: | Corded |
| Schleifteller-Ø: | 150 mm |
| Weight: | 12.8 kg |
