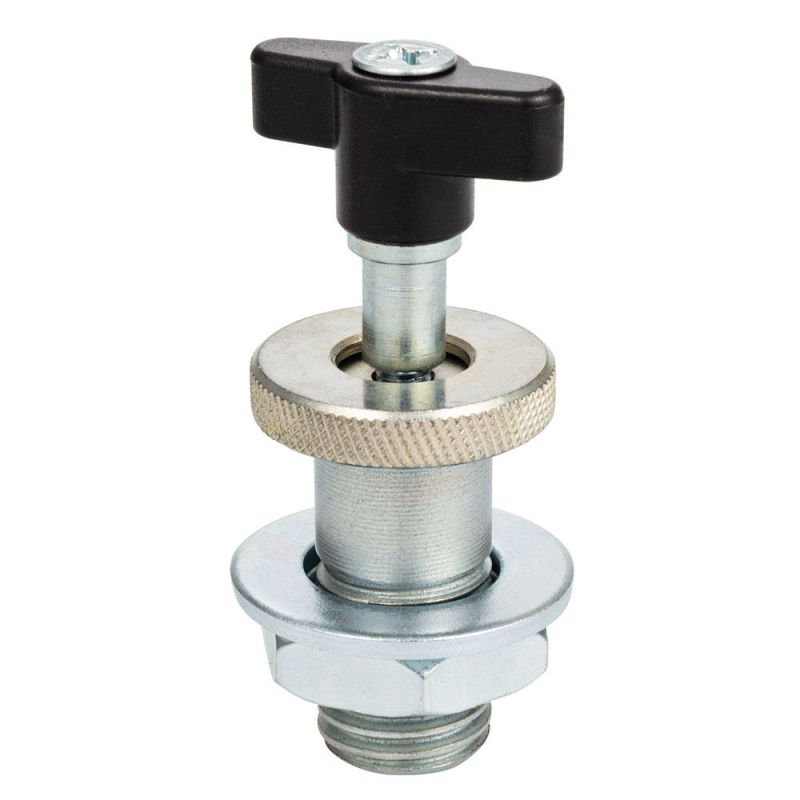

Clamping Sleeve Adapter for Piher® Mini Quick
Description
For bench dog holes Ø 20 mm, bench top thickness 12-28 mm.

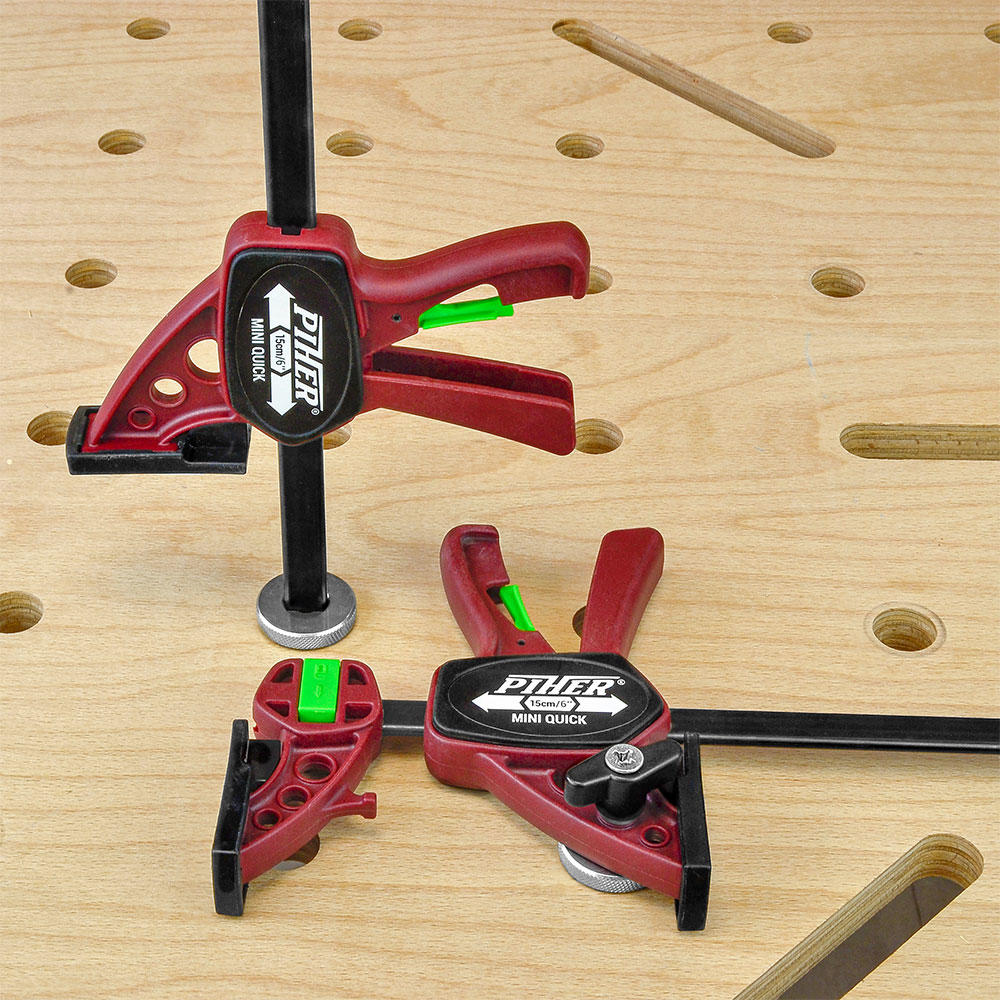

The clamping sleeve for 20 mm holes allows the Mini Quick one-handed clamp to be used as an insertion clamp or horizontal clamping element on e.g. multifunction tables.

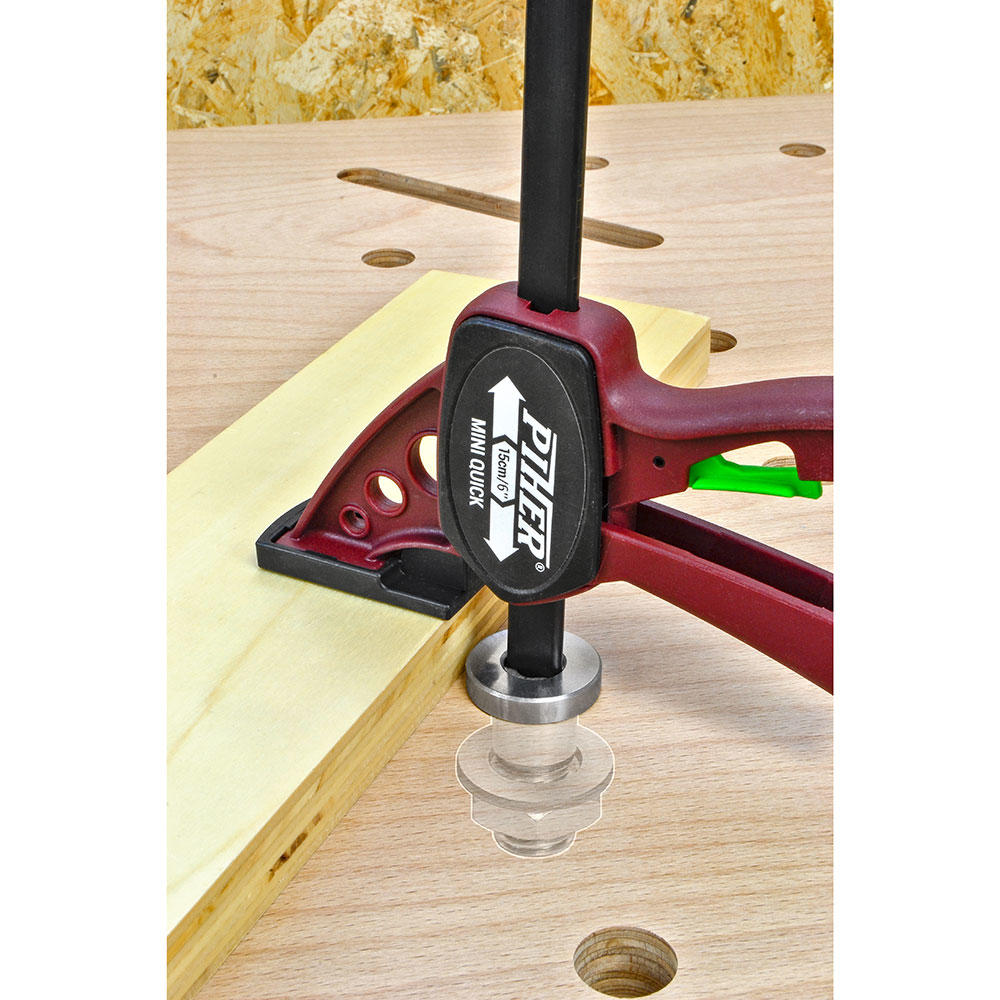

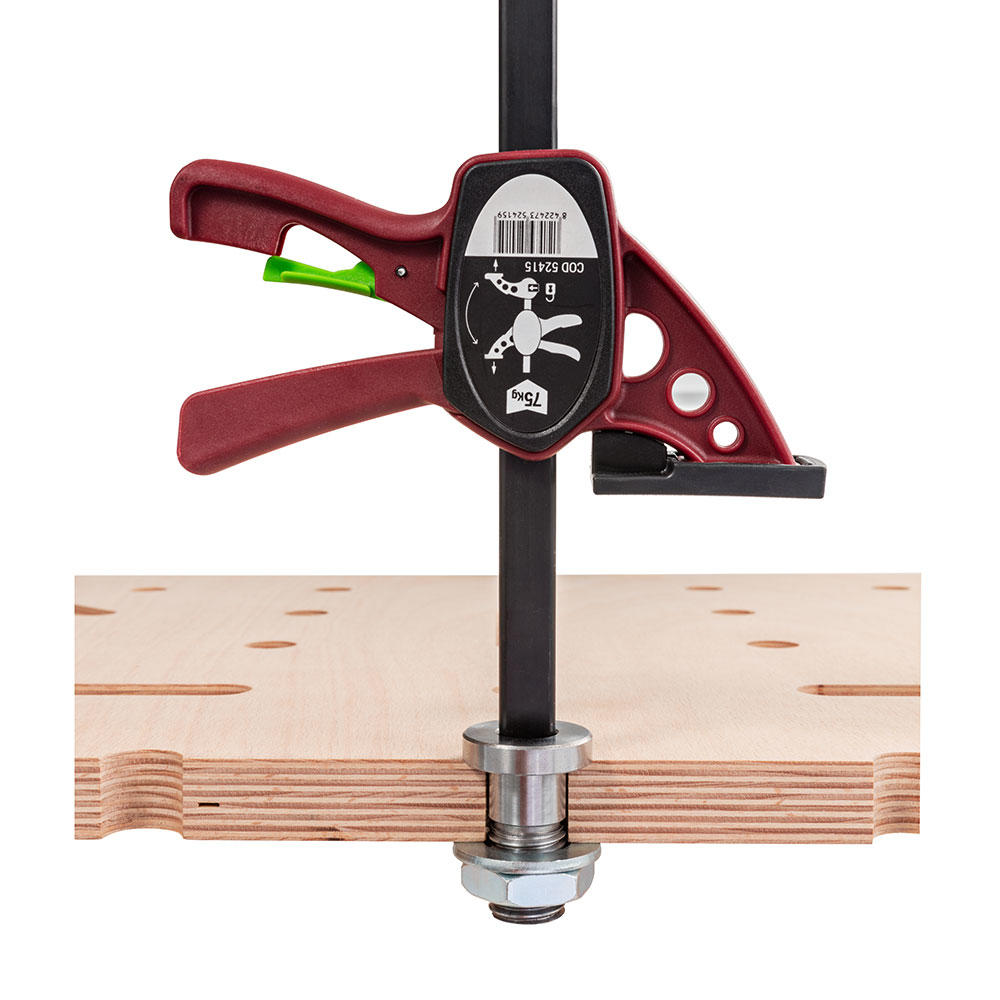

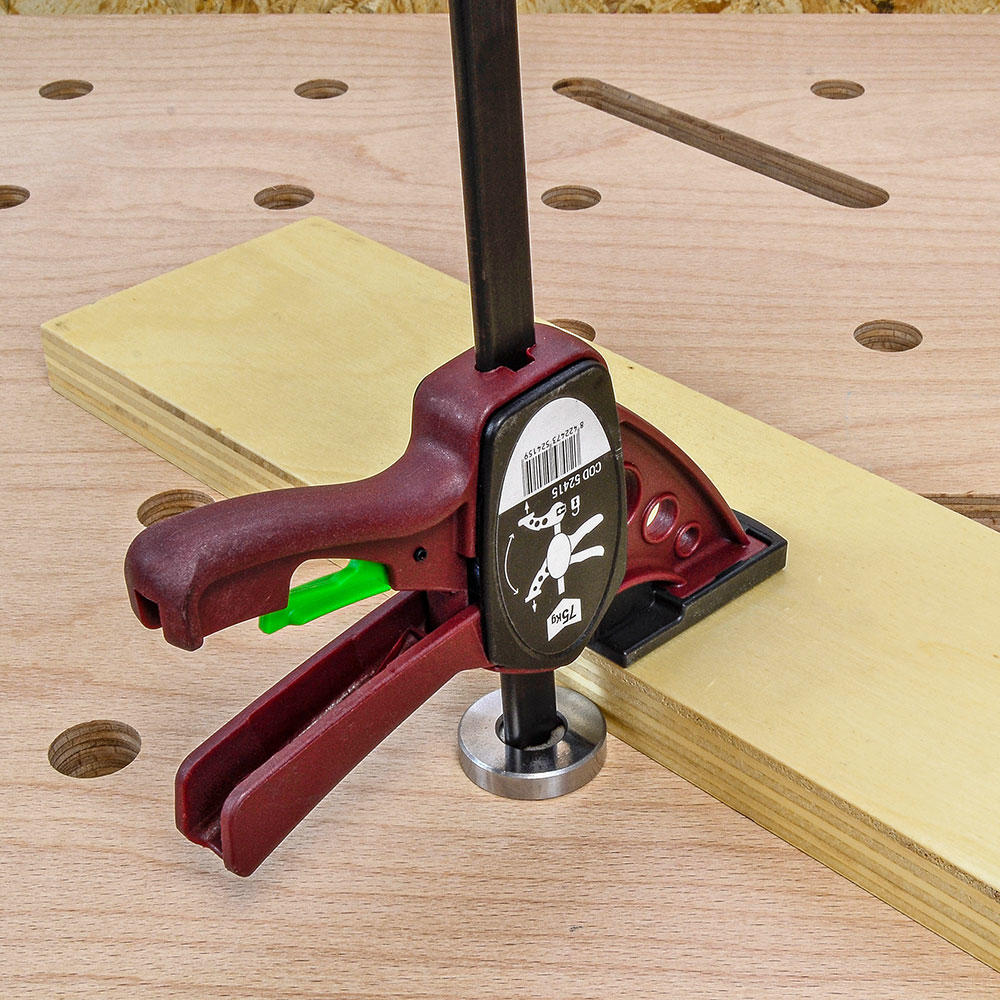

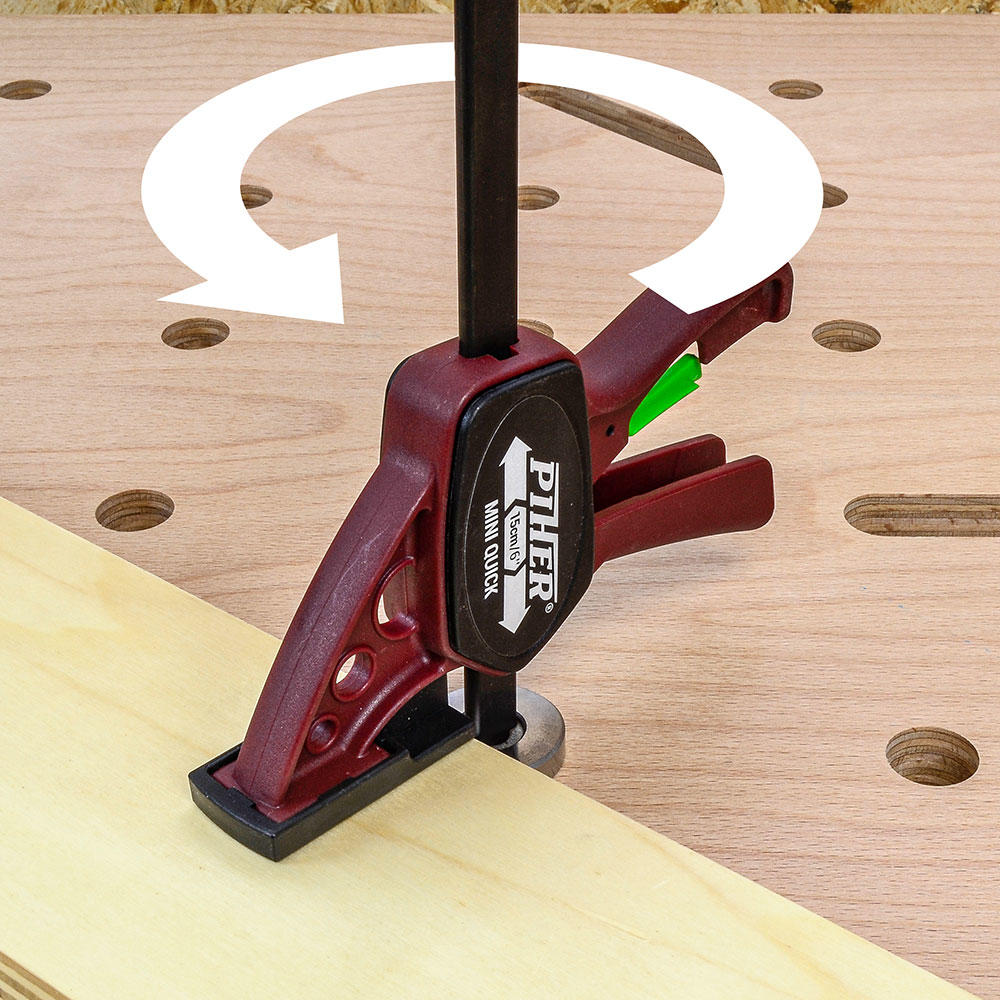

Insertion clamp:
Remove the fixed bracket of the Mini Quick one-handed clamp, put on the union nut and anchor plate and screw them into the sleeve. Now you have an insertion clamp with finely adjustable pistol-type handle.

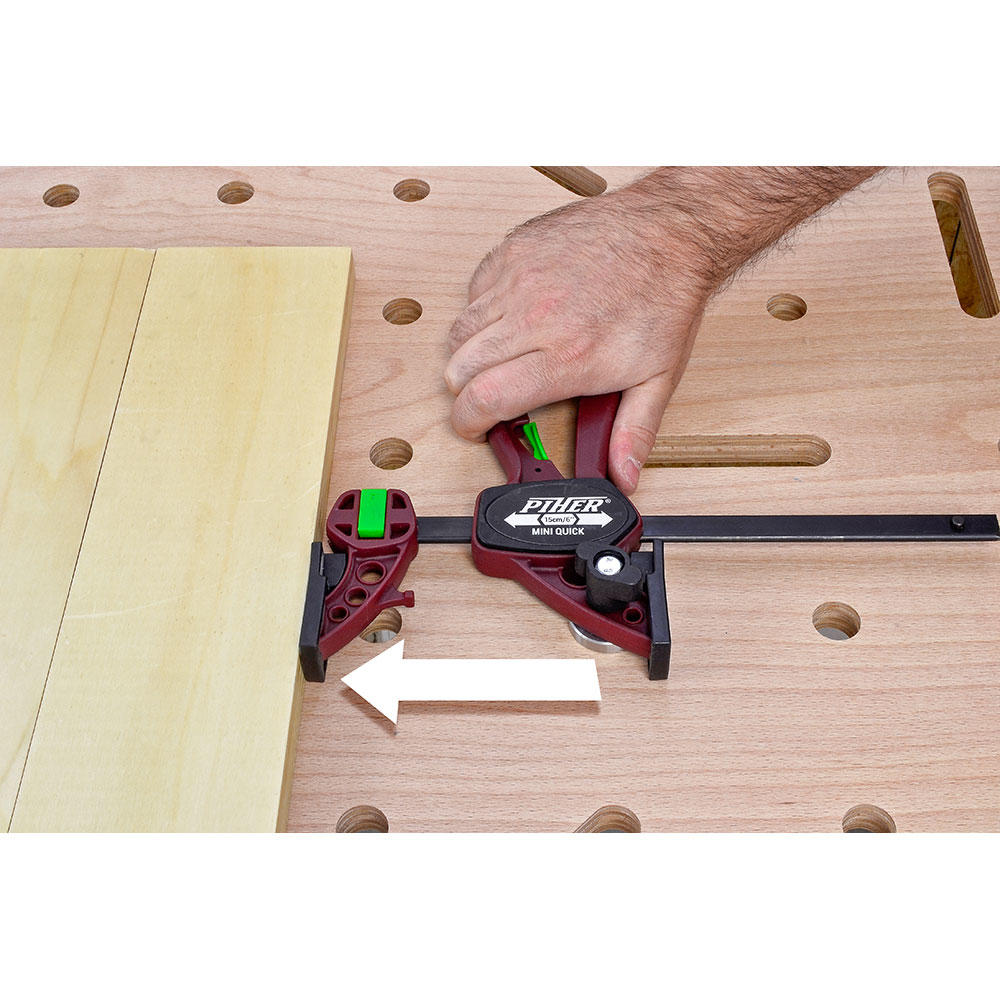

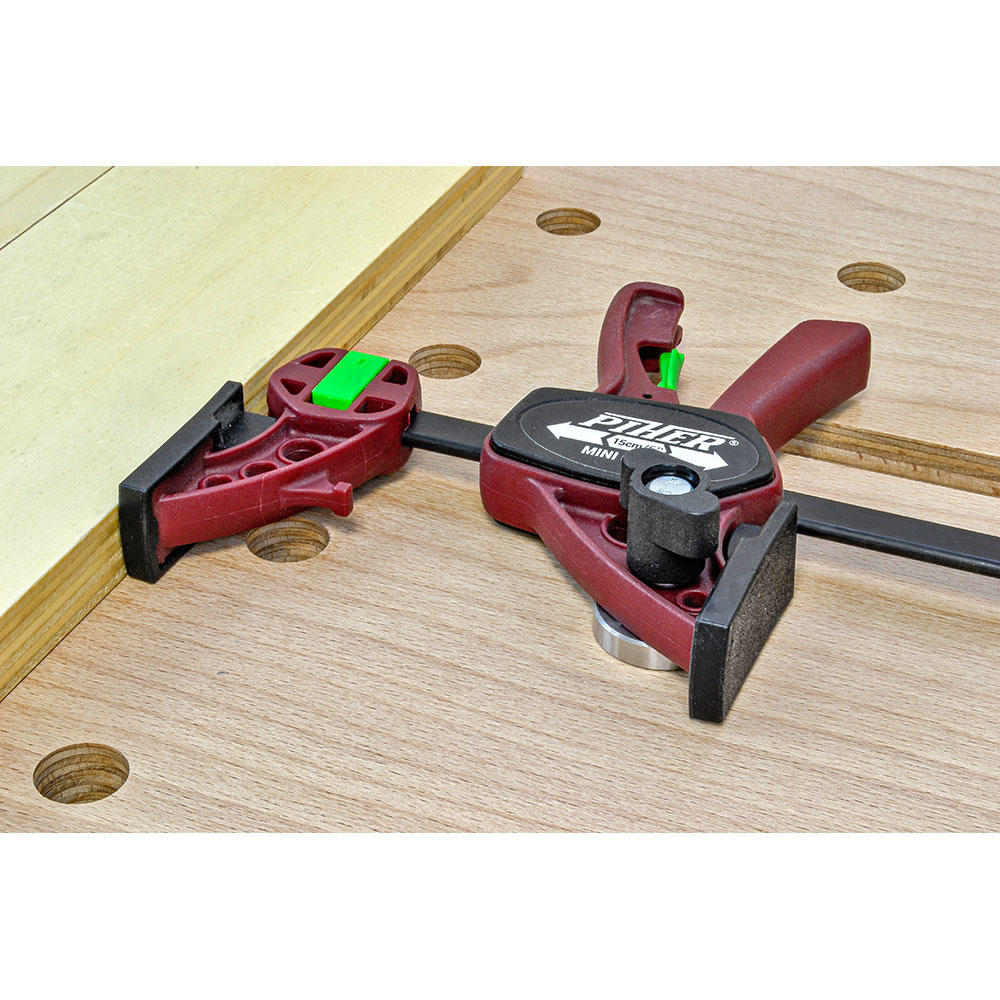

Clamping element:
Convert Mini Quick one-handed clamp for spreading function, fix wing screw in the centre hole of the sliding bar and fix in the sleeve. Now you have a horizontal clamp for fixing workpieces on tables with 12 to 28 mm worktop thickness.
Fits Piher Mini Quick One-handed Clamps (Nos. 715559, 715560).
Insertion clamp:
Remove the fixed bracket of the Mini Quick one-handed clamp, put on the union nut and anchor plate and screw them into the sleeve. Now you have an insertion clamp with finely adjustable pistol-type handle.
Clamping element:
Convert Mini Quick one-handed clamp for spreading function, fix wing screw in the centre hole of the sliding bar and fix in the sleeve. Now you have a horizontal clamp for fixing workpieces on tables with 12 to 28 mm worktop thickness.
Fits Piher Mini Quick One-handed Clamps (Nos. 715559, 715560).
