Arbortech™ SpheroPlane™ Milling and Carving Attachment
Product no.:
714887
Brand:
Arbortech
€299.00 €251.26
per set
In stock, delivery time approx. 2-3 working days
- Weight 1.5 kg
Description

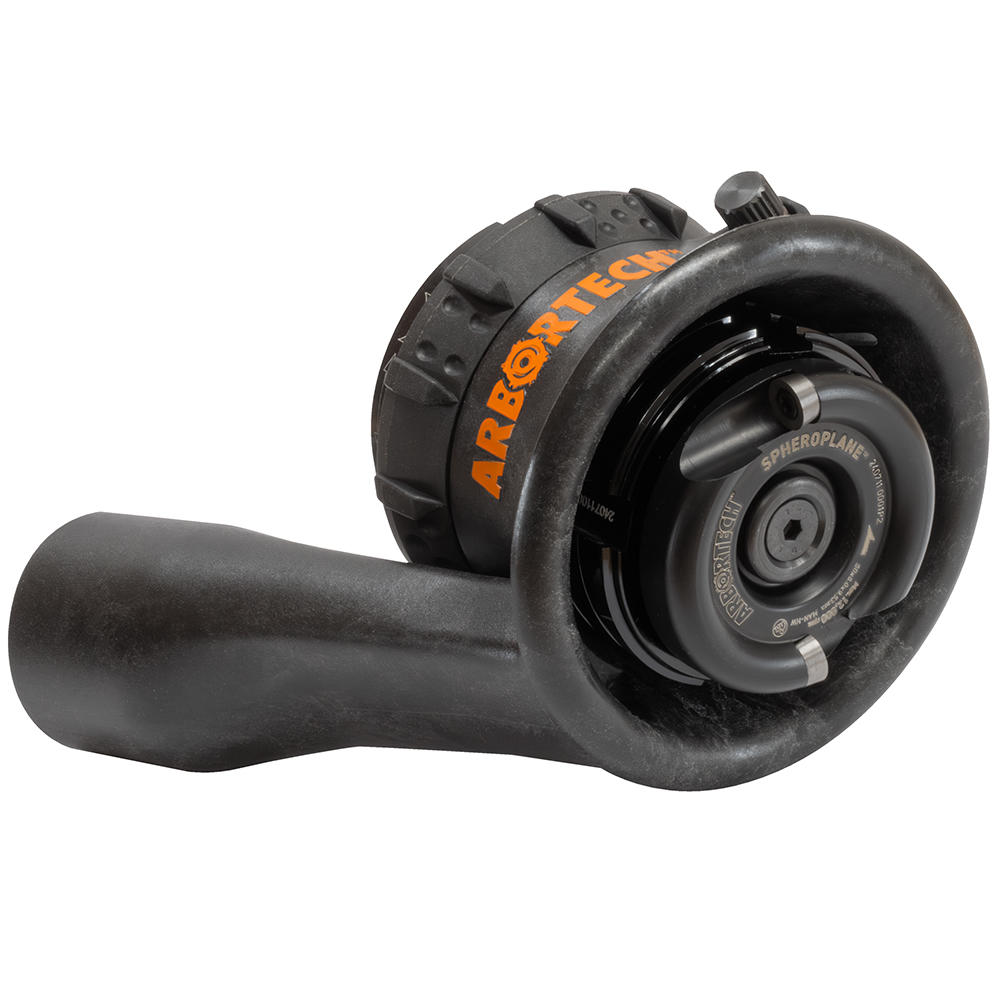

New and unique milling and carving attachment for perfectly curved bowls and spheres

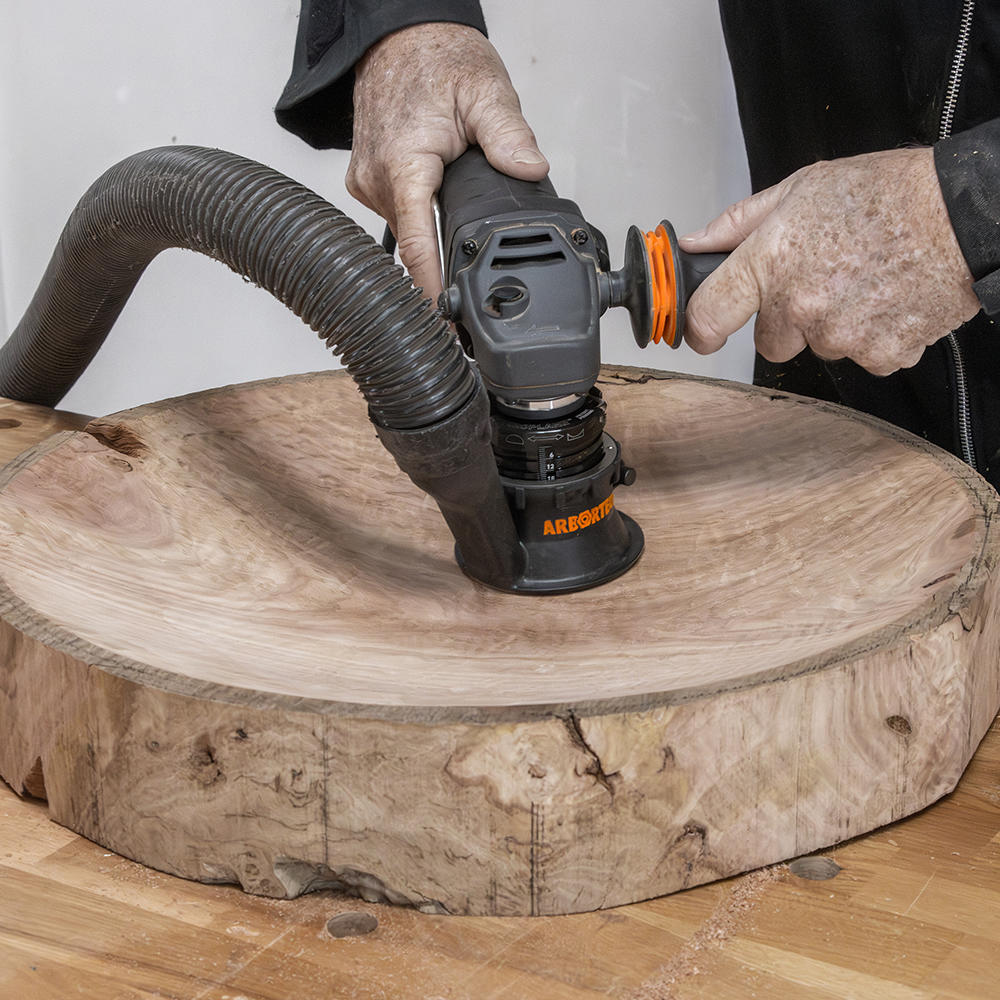

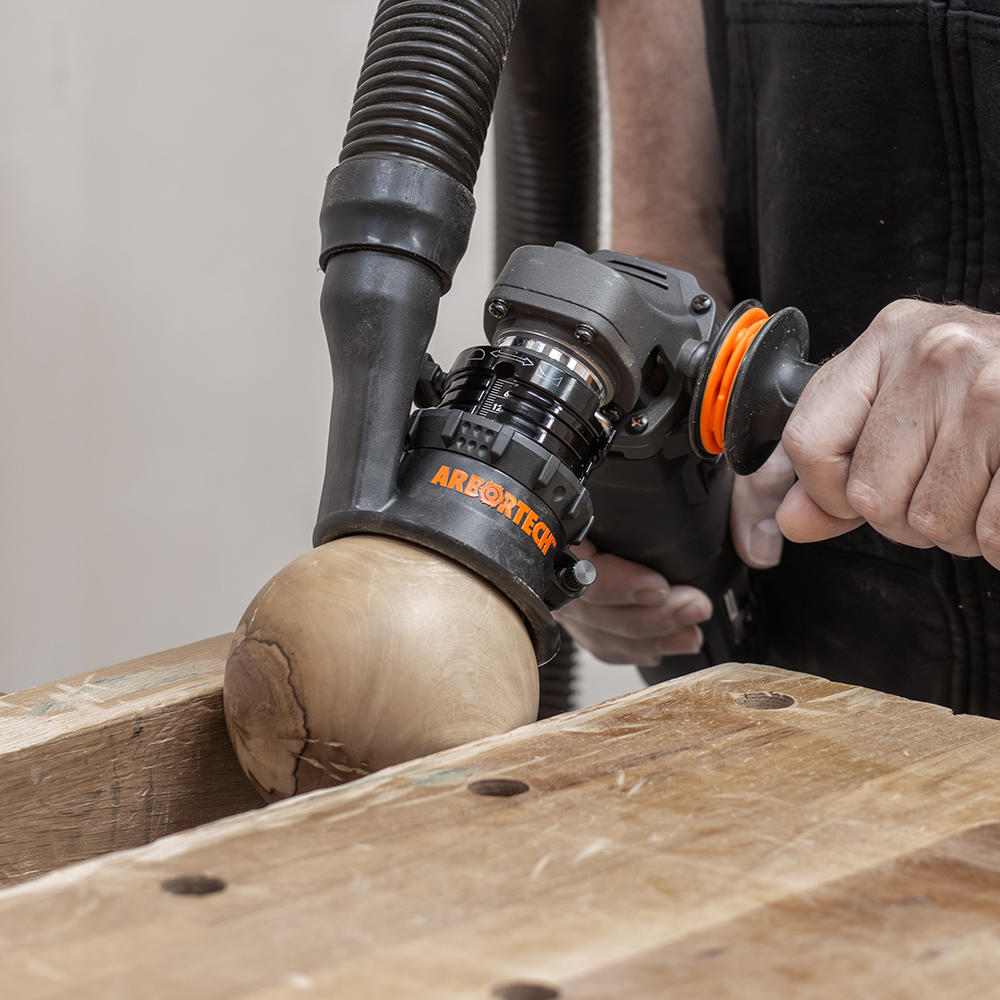

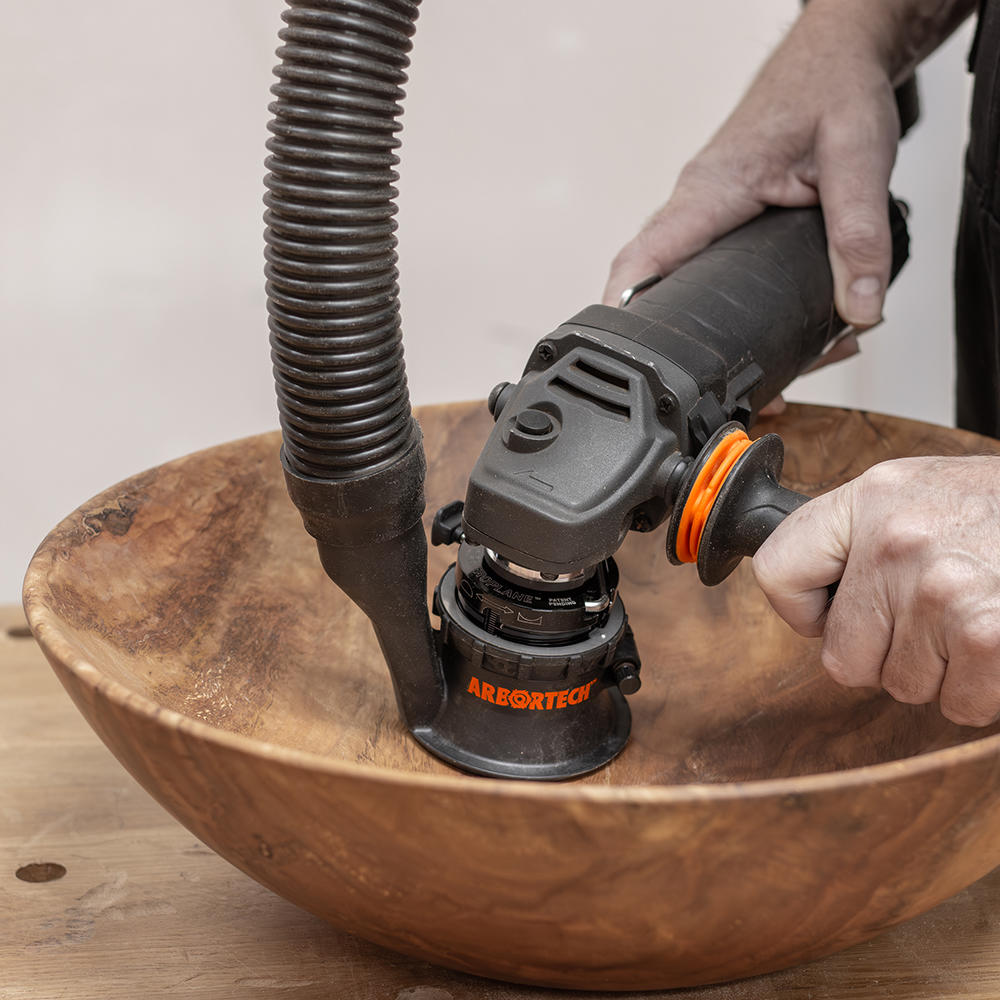

The unique SpheroPlane mills perfect spherical wooden bowls or balls, something that was previously only possible with a lathe.

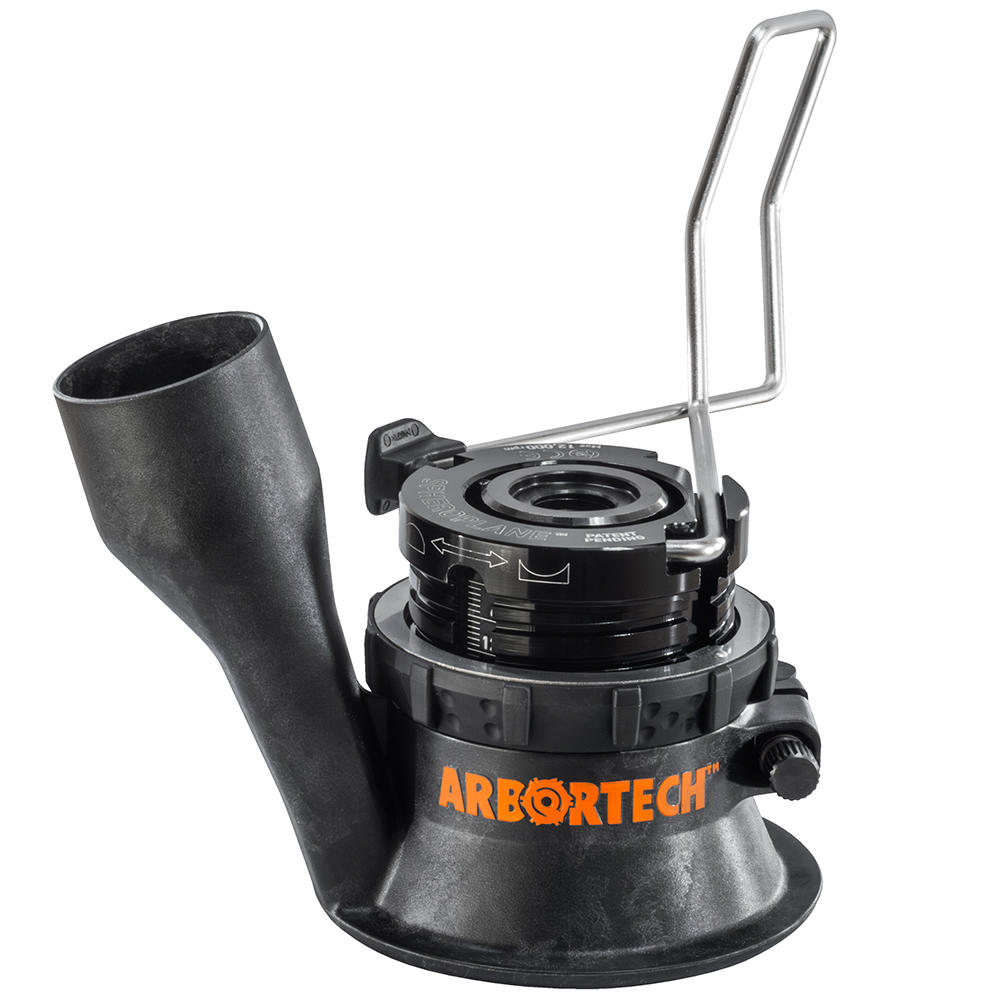

The SpheroPlane attachment mounts onto the Arbortech Power Carving Unit (No. 715608) or a 115/125 mm angle grinder. It features an adjustable working radius, making both small and large projects possible.
The SpheroPlane’s all-around protection system enables precise adjustments, reduces kickback, and provides exceptional control.
The SpheroPlane is designed from durable materials. Precisely machined aluminium and highly developed plastic set a new standard for durability and wear resistance. The most demanding carving tasks are handled by rotatable and replaceable carbide cutting edges, ensuring exceptional performance and longevity.
The SpheroPlane, as an all-in-one milling and carving tool, transitions quickly and effortlessly from milling to sanding. Material removal is adjusted via the fine-tuning collar to create the perfect bowl or sphere. Once the workpiece’s contour is complete, the included sanding pad can be used to finish the surface.
Your benefits:
The SpheroPlane attachment mounts onto the Arbortech Power Carving Unit (No. 715608) or a 115/125 mm angle grinder. It features an adjustable working radius, making both small and large projects possible.
The SpheroPlane’s all-around protection system enables precise adjustments, reduces kickback, and provides exceptional control.
The SpheroPlane is designed from durable materials. Precisely machined aluminium and highly developed plastic set a new standard for durability and wear resistance. The most demanding carving tasks are handled by rotatable and replaceable carbide cutting edges, ensuring exceptional performance and longevity.
The SpheroPlane, as an all-in-one milling and carving tool, transitions quickly and effortlessly from milling to sanding. Material removal is adjusted via the fine-tuning collar to create the perfect bowl or sphere. Once the workpiece’s contour is complete, the included sanding pad can be used to finish the surface.
Your benefits:
- Omni-directional guidance provides a smooth and precise cutting experience

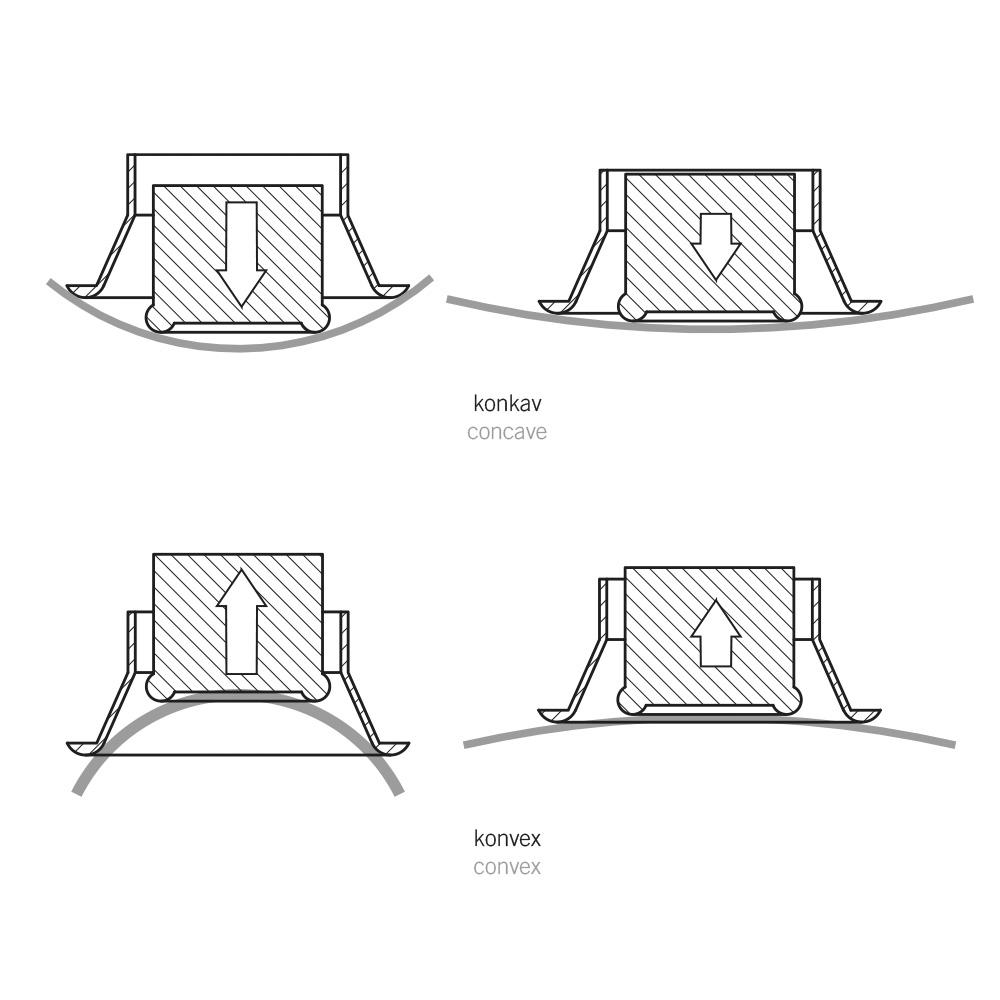

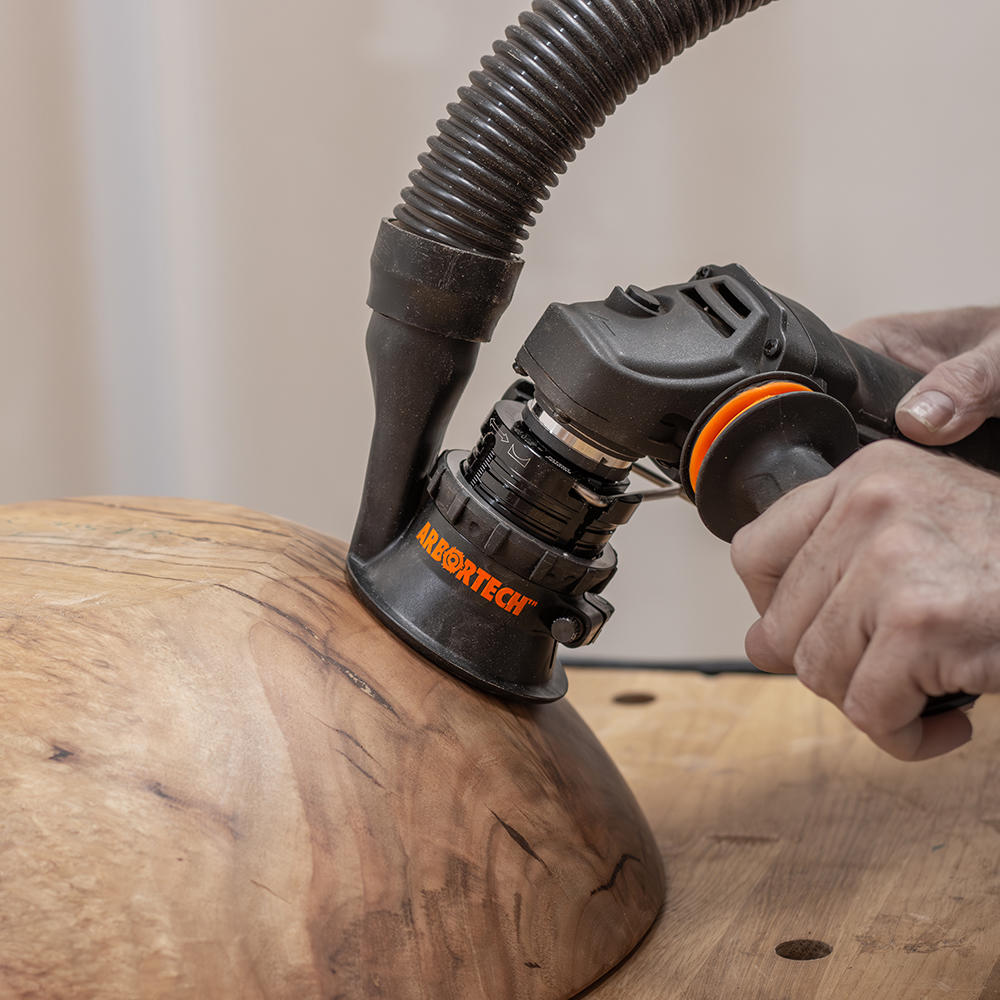

- Perfect for creating convex or concave shapes
- Outstanding control, balance, and safety thanks to the all-around protection
- Reduced kickback due to controlled blade exposure
- Effortless transition from carving/milling to sanding
- An extraction nozzle provides a low-dust working environment by connecting to a dust extractor
- Rotatable and replaceable carbide cutters for long-lasting durability
- Produces a smooth, scratch-free surface that requires minimal sanding.
Incl. multilingual assembly instructions.
An excellent addition for wood turners:
Every woodturner knows the challenge of reaching the limits imposed by the low centre height of a smaller lathe. Large projects, such as wooden bowls or spheres, often cannot be done without an expensive outboard turning setup, ball turning device or a larger lathe. With the SpheroPlane, a cost-effective alternative to large XL lathes, you can produce wooden spheres and bowls of unlimited size. For wooden spheres, a minimum diameter of 90 mm should be observed.
Scope of delivery
- SpheroPlane milling and carving attachment
- Flexible rubber sanding pad
- Velcro sanding discs (four each of grits 40, 80, 120, 240)
- Hex key
- Torx spanner
- Arbortech hard case
