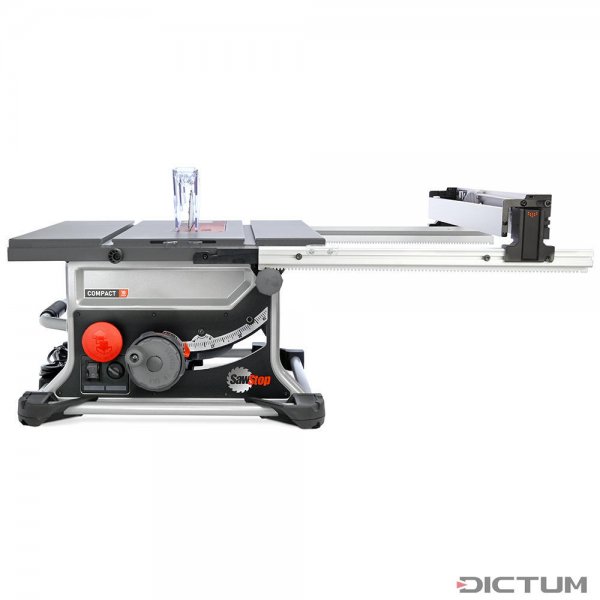

SPECIAL OFFER: SawStop »Compact« Circular Bench Saw

Incl. free base frame for an ergonomic working height

The unique SawStop AIM safety system - stopping the blade within just 5 milliseconds of skin...
Special offer valid until June 30th 2025
The unique SawStop AIM safety system - stopping the blade within just 5 milliseconds of skin contact - now in a compact format. This advanced machine features dual status lights (red and green) that clearly indicate operating modes and error messages. In bypass mode, materials can be checked for conductivity, allowing the safety system to be temporarily deactivated - ideal when cutting aluminium or wet wood.
The sturdy rip fence, with rack-and-pinion adjustment front and back and a millimetre scale, ensures precise parallel alignment using a rotary knob that locks or unlocks the fence with a simple push or pull. The fence - with an integrated holder for the push stick - can be fitted or removed in seconds and stowed conveniently beneath the table when not in use. Thanks to the Hi-Low function (an additional fold-down aluminium fence face), the fence height can be switched between 80 mm and 11 mm. Maximum rip capacity with fence: 625 mm.
Intuitive cutting height adjustment and blade tilt (0° to 45°) via the »Squeeze to Tilt« handwheel. Both settings can be operated quickly and easily with just one hand by turning and pressing the same control.
The exclusive micro-adjust function on the handwheel also allows for precise blade angle settings.

The transparent blade guard provides an optimal view of the blade and the cutting line. The side elements adjust automatically to the height of the workpiece, improving dust collection efficiency. Efficient dust extraction is provided via a Ø 58/65 mm extraction port (a reducer to 36/39 mm is included).
A strong tubular frame, a powder-coated aluminium table, and a robust 1800 W universal motor ensure a durable and stable cutting experience. A ⅜ x ¾ inch T-slot to the left, and another to the right of the blade, offer versatile options for mitre gauges and accessories.
This compact saw features a large carrying handle. Rubber feet and a height-adjustable levelling foot provide a stable footing at all times - on site or in the workshop.
The rip fence and all accessories are stored directly on the machine, always within reach and ready to use.
Highlights:
  • AIM safety system (Active Injury Mitigation)
  • Large-format on/off switch for easy tactile operation
  • Bypass mode for conductive materials
  • Rip fence with Hi-Low function and rack-and-pinion adjustment
  • Quick single-handed blade adjustment (raise, lower, tilt), including micro-adjustment
  • Integrated toolbox on the machine for accessories and guides, including storage for a spare brake cartridge
  • Compact, lightweight, and portable
  • 36-month SawStop Europe Guarantee (with registration)
The Active Injury Mitigation (AIM) system by SawStop
This revolutionary safety technology was developed by SawStop to stop the circular saw blade the moment it comes into contact with skin.
The saw blade is supplied with an alternating voltage of 12 V at 200 kHz. This voltage is continuously monitored on the opposite side of the blade. When a finger touches the blade, the voltage drops because the human body is conductive and grounded. Once a threshold value is undercut, the system triggers within just 25 microseconds. At that moment, a fuse wire melts, releasing a preloaded spring mechanism that propels an aluminium brake block into the spinning blade with high force. The brake stops the blade in approximately 5 milliseconds. Due to the sudden deceleration, the blade is simultaneously retracted below the table surface and pulled away from the point of contact - typically a finger.
Although minor skin injuries such as abrasions may occur, the system effectively reduces the risk of serious cuts.
After activation, the brake cartridge and saw blade must be replaced. However, the replacement process is user-friendly and can be completed within a few minutes.
SawStop Europe Guarantee
Extended guarantee - 3 years of worry-free operation
You have the option to register your new machine with SawStop Europe online within 30 days of purchase. In addition to your statutory warranty rights, you will receive an extended warranty of up to 3 years (36 months) from the date of purchase - the SawStop Europe Guarantee. Please note that registration can only be completed by the end user!
For full warranty terms and to register your machine, visit: sawstop.eu

    La fornitura comprende

    • Mitre gauge (±60°)
    • Rip fence with Hi-Low function and rack-and-pinion adjustment
    • Brake cartridge (installed)
    • 24-tooth saw blade, Ø 254 x 3 x 30 mm, AT 24
    • Riving knife for 254 mm blade diameter
    • Riving knife for 250 mm blade diameter
    • Standard table insert
    • Riving knife with blade guard
    • Accessory compartment for on-tool storage
    • Dust port reducer
    • Push stick
    • Assembly tools, two blade wrenches
    • User manual (German, English, French, Spanish)

    di più
    meno
    Ulteriori dettagli sul produttore

    SawStop


    SawStop is not only a manufacturer of high-quality circular bench saws, but also the inventor of the AIM system, which stops the blade within 5 milliseconds upon skin contact. SawStop’s revolutionary Active Injury Mitigation (AIM) system has saved thousands of fingers and prevented countless serious hand injuries in the United States since the company was founded in 2000. Since 2017, SawStop has been part of Tooltechnic Systems (TTS), which also includes Festool and Shaper.

    • Tensione del motore 230 V, 50 Hz
    • Potenza assorbita 1800 W
    • Regime del minimo 4000 1/min
    • Dimensioni tavola 575 x 585 mm
    • Parallelschnittbreite 625 mm
    • Ø Disco della sega 254 mm
    • Gamma di orientamento 0-45 °
    • Schnitthöhe 0° 79.5 mm
    • Schnitthöhe 45° 54 mm
    • Ø Bocchetta d'aspirazione 58/65 mm
    • Dimensioni (L x L x A) 684 x 597 x 362 mm
    • Peso 31 kg
    • Geräuschemission Sound pressure level Lpa = 99.4 dB
      Sound power level Lwa = 112.4 dB
      Incertainty 3 dB
    Codice articolo 721643K
    Marca SawStop
    Spedizione merci buona - Pre-ordine ora - Articolo Fine Maggio 2025 disponibile

    Per spedizioni in tutto il mondo puoi contattare il nostro Servizio clienti al numero +49-(0)9931 4058-903.

    999,00 € per pezzo
