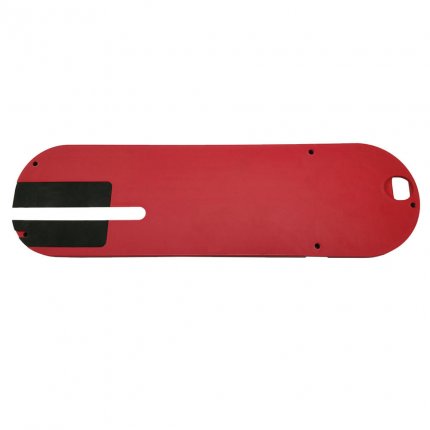

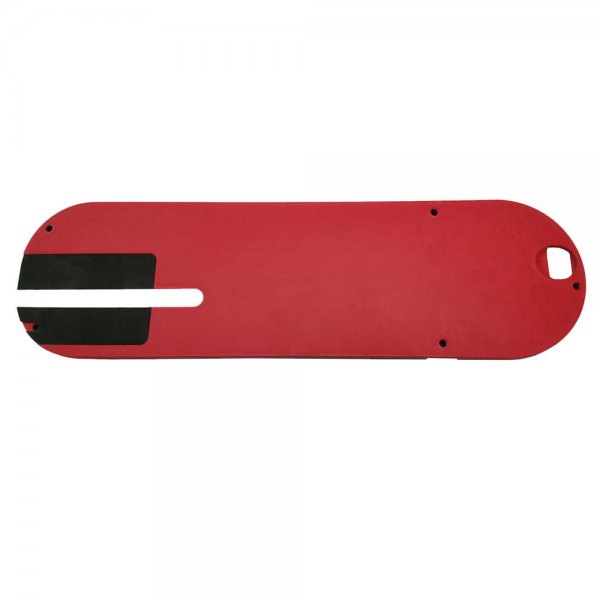

SawStop Zero-clearance Table Insert for »Jobsite Saw Pro« Circular Bench Saw | Segatura

The uncut surface of the table insert allows precise customisation between insert and saw blade...

The uncut surface of the table insert allows precise customisation between insert and saw blade depending on the blade type and kerf width. Lower the blade, position the zero-clearance insert, level and lock it in place, then slowly raise the running saw blade. As the blade cuts through the insert, a perfectly matched kerf is created between blade and insert. This provides optimal support for the workpiece and reduces the risk of tear-out.

Advantages:

Positive-locking mechanism allows for tool-free use
Positioning screws ensure a precise and secure fit in the table
Pre-cut slots accommodate riving knife and SawStop blade guard

The Active Injury Mitigation (AIM) system by SawStop

This revolutionary safety technology was developed by SawStop to stop the circular saw blade the moment it comes into contact with skin.

The saw blade is supplied with an alternating voltage of 12 V at 200 kHz. This voltage is continuously monitored on the opposite side of the blade. When a finger touches the blade, the voltage drops because the human body is conductive and grounded. Once a threshold value is undercut, the system triggers within just 25 microseconds. At that moment, a fuse wire melts, releasing a preloaded spring mechanism that propels an aluminium brake block into the spinning blade with high force. The brake stops the blade in approximately 5 milliseconds. Due to the sudden deceleration, the blade is simultaneously retracted below the table surface and pulled away from the point of contact - typically a finger.

Although minor skin injuries such as abrasions may occur, the system effectively reduces the risk of serious cuts.

After activation, the brake cartridge and saw blade must be replaced. However, the replacement process is user-friendly and can be completed within a few minutes.

di più

meno

Ulteriori dettagli sul produttore

Chiudi menu

SawStop

SawStop is not only a manufacturer of high-quality circular bench saws, but also the inventor of the AIM system, which stops the blade within 5 milliseconds upon skin contact. SawStop’s revolutionary Active Injury Mitigation (AIM) system has saved thousands of fingers and prevented countless serious hand injuries in the United States since the company was founded in 2000. Since 2017, SawStop has been part of Tooltechnic Systems (TTS), which also includes Festool and Shaper.

Dimensioni 115 x 400 mm
Fits SawStop »Jobsite Saw Pro« Circular Bench Saw

Codice articolo

721650K

Marca

SawStop

Tempo di consegna da 5 a 8 giorni lavorativi circa

30,00 € per pezzo

IVA incl.

più spese di spedizione
